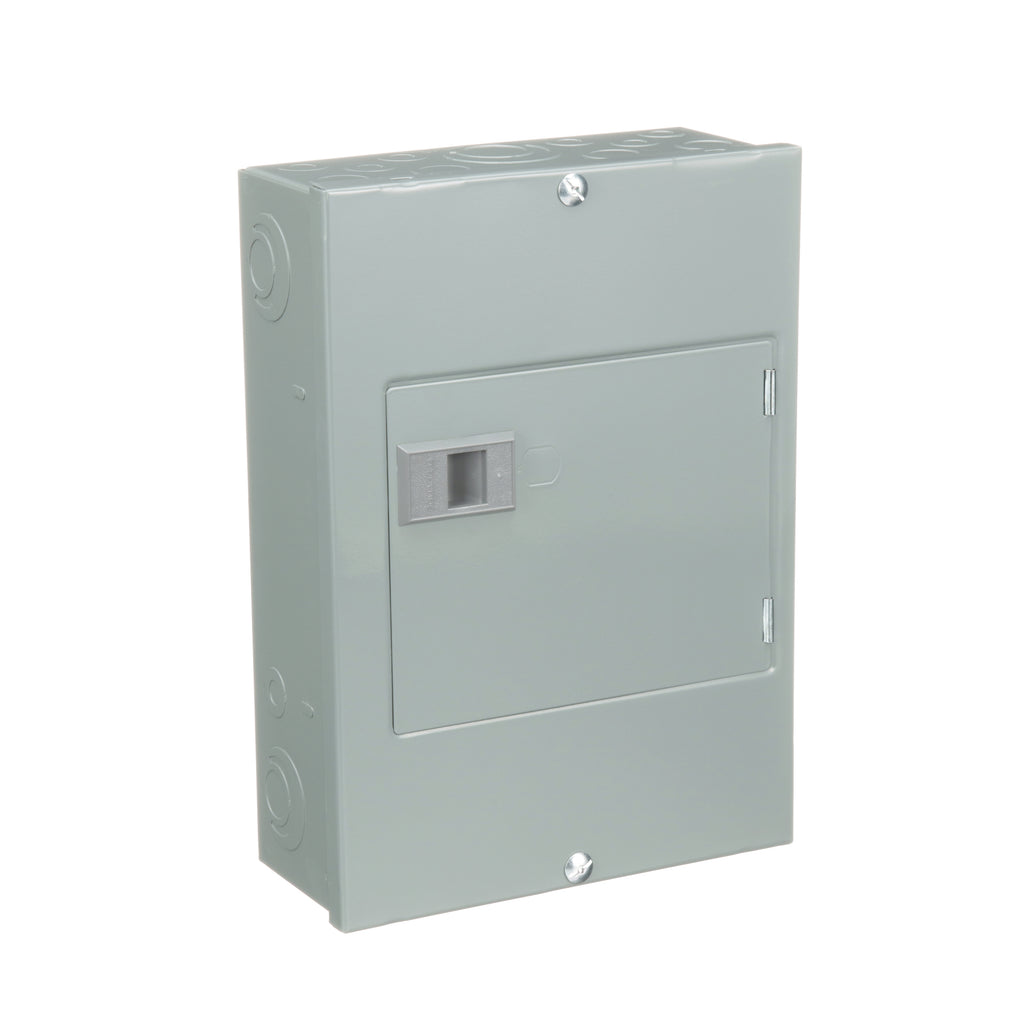

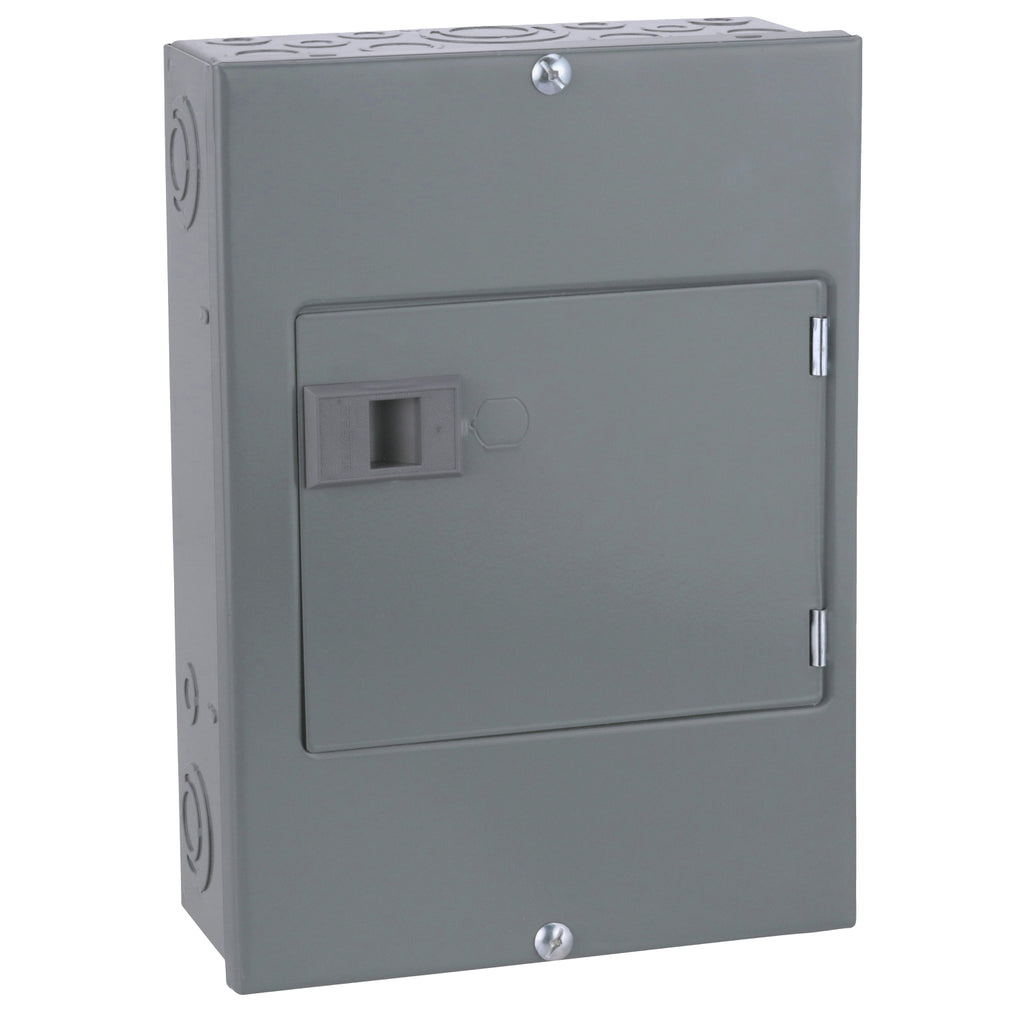

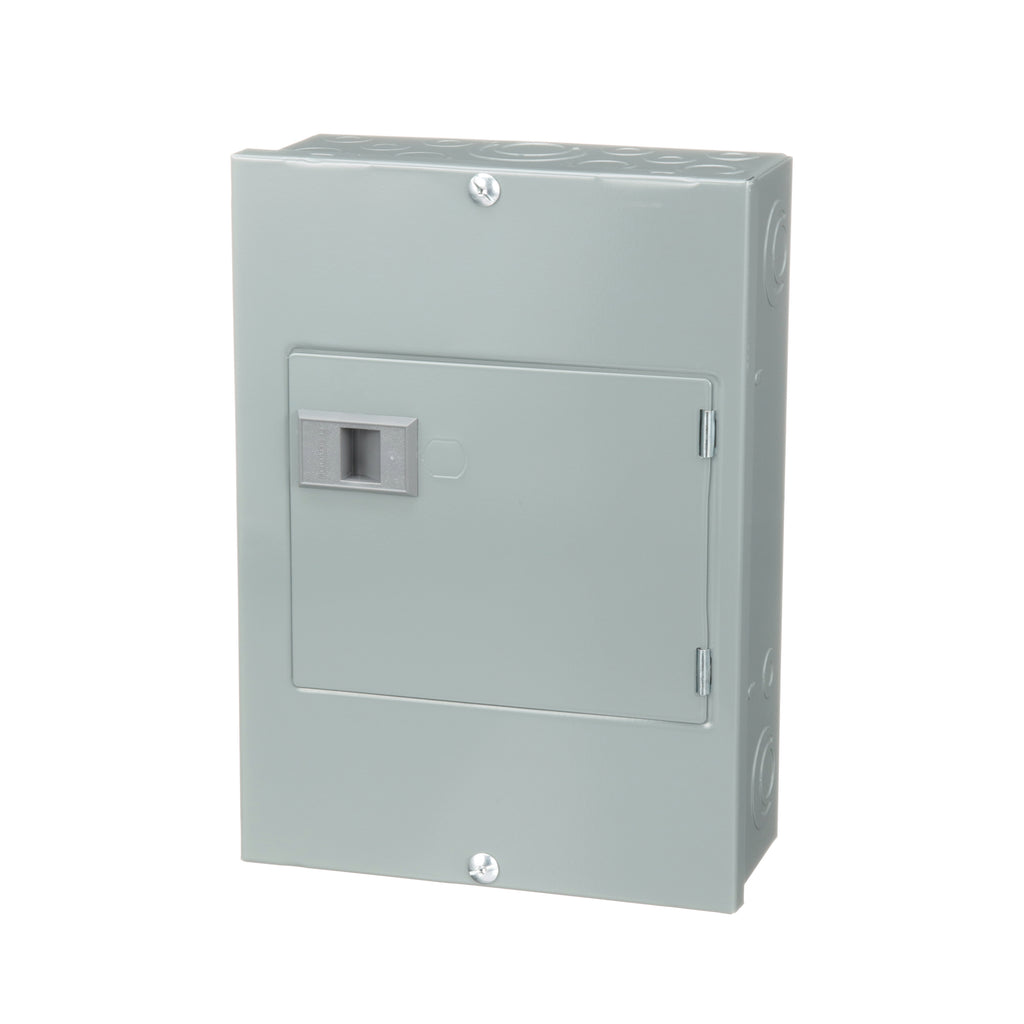

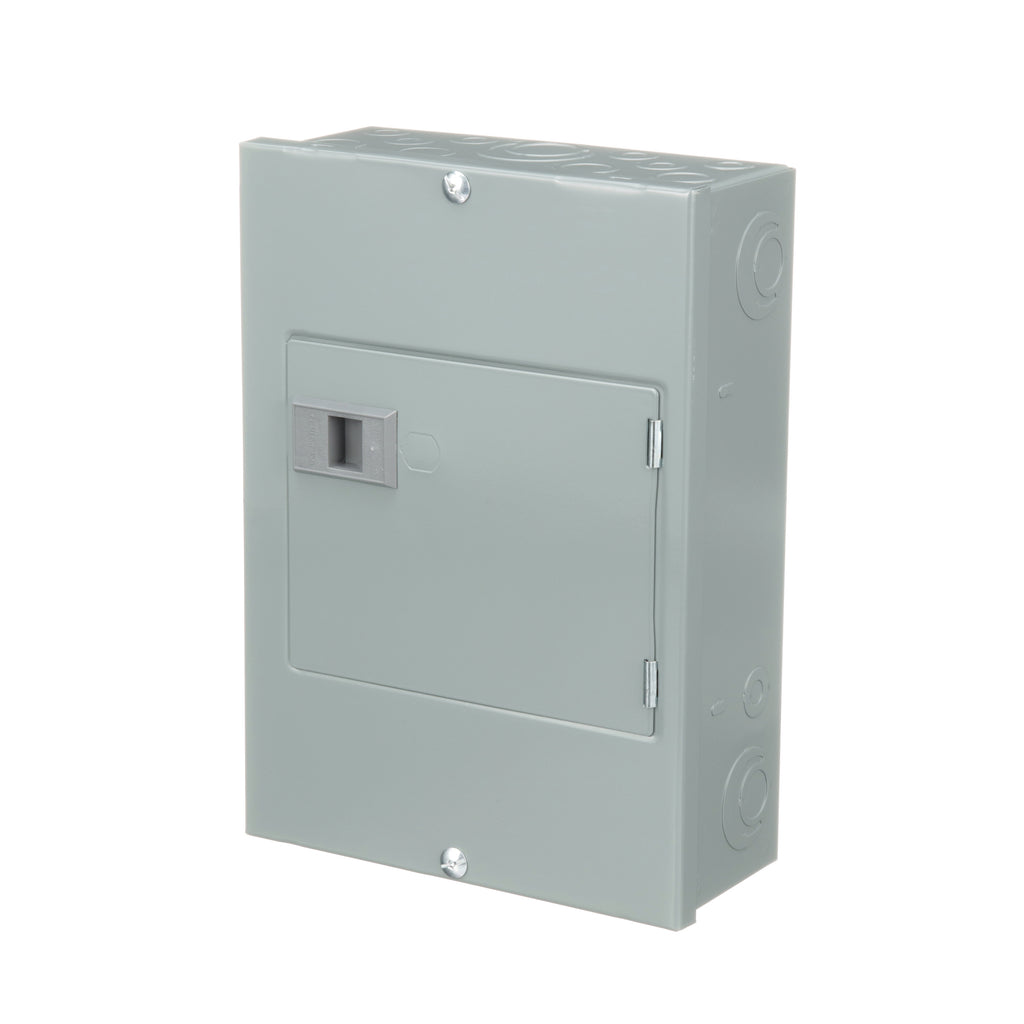

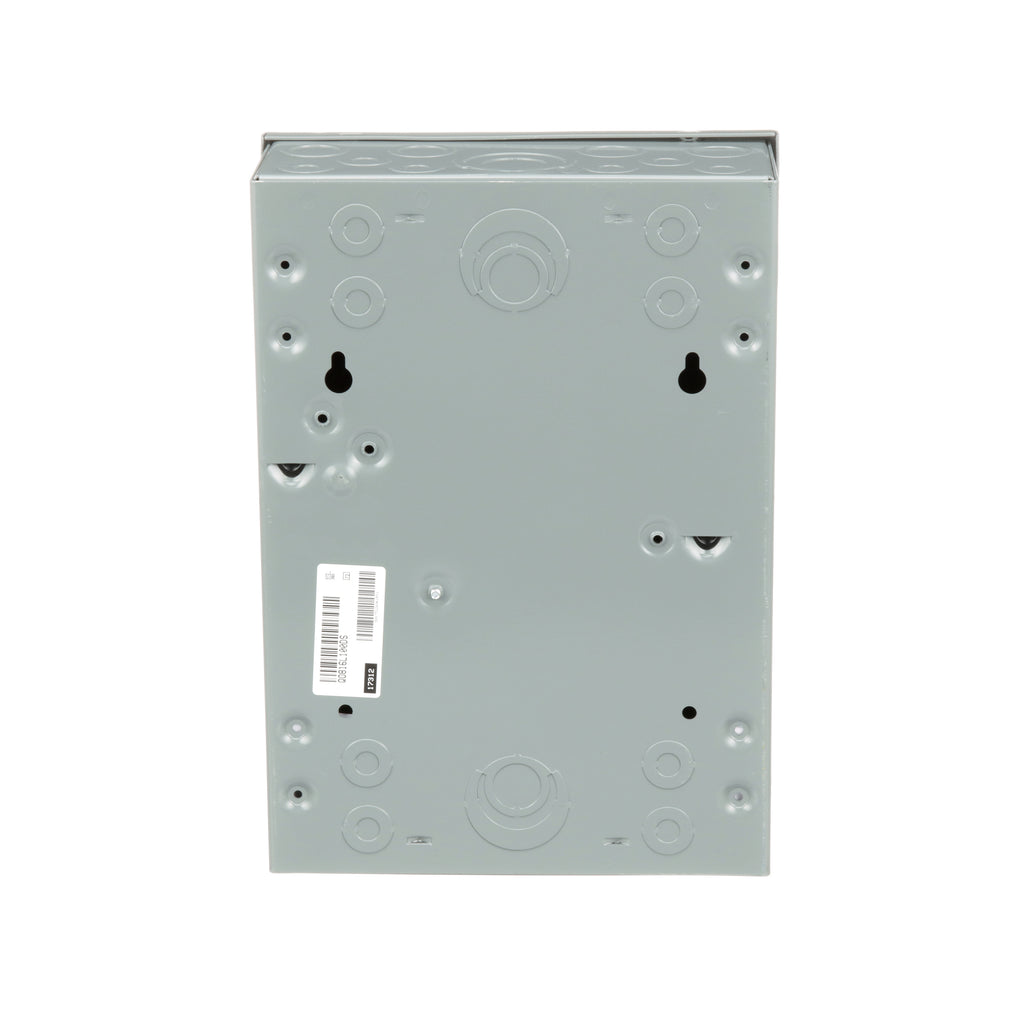

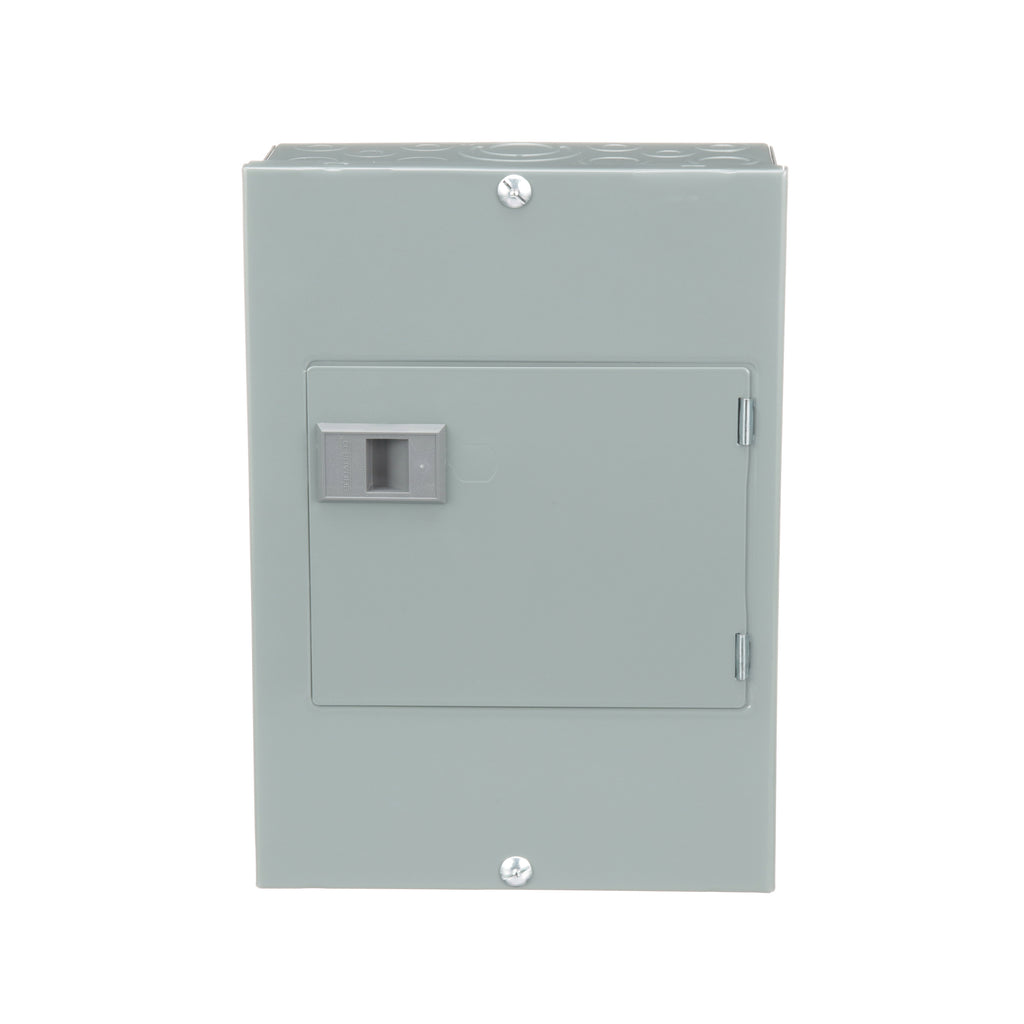

QO816L100DS - Square D 100A 120/240V 1-Phase 8-Space 16-Circuit Load Center NEMA 1

QO816L100DS

QO816L100DS is a Square D load center designed for indoor electrical distribution with a 100 ampere rating and 120/240 volt capacity.This load center features 8 spaces and supports up to 16 circuits with a 10 kA interrupt rating, suitable for single-phase 3-wire systems.

• Manufacturer: Square D
• Amperage: 100 A
• Voltage: 120/240 V AC
• Poles: Single-phase, 3-wire
• Number of Spaces: 8
• Maximum Circuits: 16
• Interrupt Rating: 10 kAIC
• Mounting Type: Surface mount
• Enclosure: NEMA 1, indoor use
• Busbar Material: Tin plated aluminum
• Cover Type: Surface cover with door
• Dimensions: 12.6 in H x 8.9 in W x 3.7 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO816L100DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Load Center
• Voltage : 120/240 AC
• Amperage : 100
• Phase : 1
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Nema Rating : 1
• Bus Type : Aluminum

Product Data

• UPC : 785901785743
• GTIN : 00785901785743
• Country of Origin : Mexico
• Dimensions : 12.6 in (319 mm) x 8.9 in (226 mm) x 3.7 in (95 mm) (Height x Width x Depth)
• Weight : 8.309
• Certification : RoHS Compliant, UL Listed
• Wire Size : AWG 8 to AWG 1, Aluminum/Copper
