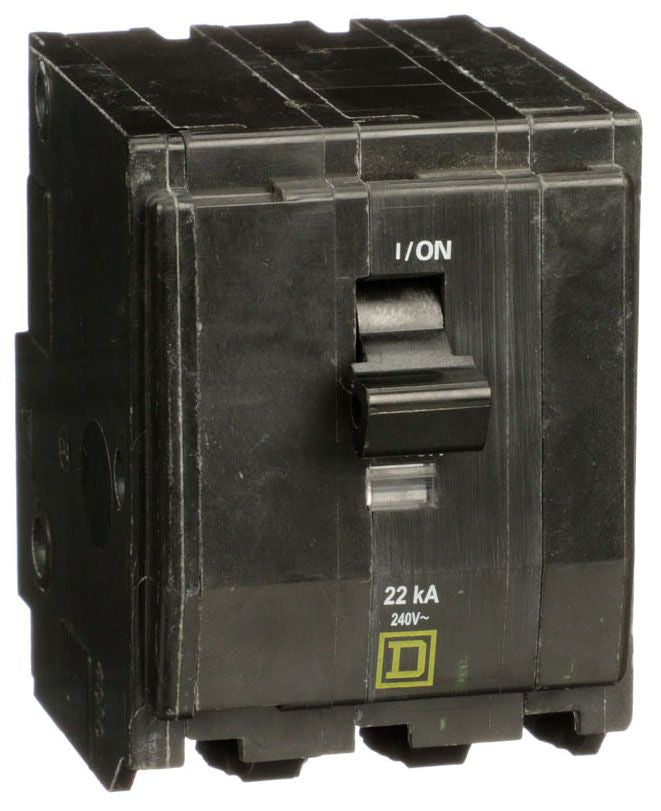

QO370VH - Square D 70 Amp 240 Volt 3 Pole Plug-In Circuit Breaker QO Series

QO370VH

QO370VH is a 3 pole, 70 amp, 240 volt thermal magnetic circuit breaker from Square D's QO series designed for plug-in mounting.This circuit breaker features a 22kA interrupting rating at 120/240 VAC, long-time and instantaneous trip functions, and is UL and CSA certified. It is suitable for 3-phase applications and uses lug terminal connections compatible with AWG 8 to AWG 2 copper or aluminum wire.

• Amperage: 70 Amps
• Voltage: 240 Volts
• Poles: 3
• Mounting Type: Plug-In
• Interrupt Rating: 22 kA at 120/240 VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL, CSA
• Terminal Connection: Lug
• Phase: 3
• Wire Gauge: AWG 8 to AWG 2 Copper or Aluminum
• Dimensions (LxWxH): 2.91 x 2.25 x 3.12 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO370VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/QO
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901060239
• GTIN : 00785901060239
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.04
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8, AWG 2 Copper or Aluminium
