Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description
QO342L225G

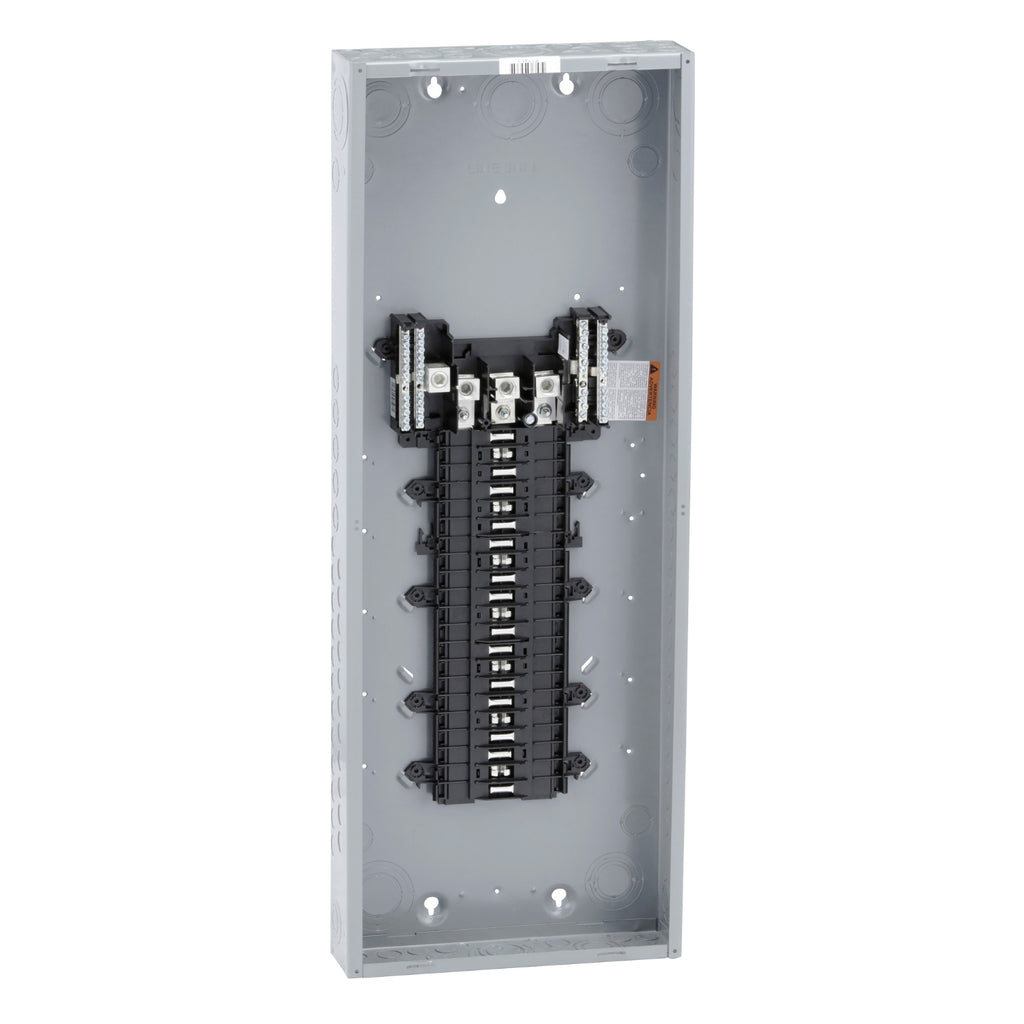

QO342L225G is a Square D 3-phase load center with 225 amp main lug rating and 42 spaces for circuit breakers. It is designed for indoor use with a NEMA 1 enclosure.
This load center features a 208Y/120/240 VAC voltage rating, 42 circuits capacity, and a 65 kA interrupt rating for reliable short circuit protection. It includes a tin-plated copper busbar for durability and a ground bar for safety. The panel measures 14.25 inches wide by 3.75 inches deep by 37.98 inches high and complies with UL 67, CSA, and IEC standards.
- Key Specifications
- Amperage: 225 Amps
- Voltage: 208Y/120/240 VAC
- Poles: 3-Phase
- Number of Spaces: 42
- Number of Circuits: 42
- Interrupt Rating: 65 kA
- Mounting Type: Panel Mount
- Series/Frame: QO
- Enclosure: NEMA 1 Indoor
- Busbar: Tin-plated copper
- Certifications: UL 67, CSA, IEC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO342L225G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : QO Series
- Voltage : 240
- Amperage : 225
- Phase : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 4
Product Data
- UPC : 785901295532
- GTIN : 00785901295532
- Country of Origin : United States
- Dimensions : 38.0 in (965 mm) x 14.3 in (362 mm) x 3.8 in (97 mm) (Height x Width x Depth)
- Weight : 20.699
- Wire Size : AWG 6 to 300KCmil, Aluminum/Copper
