QO330L200G - Square D 200A 240V 3-Phase Load Center QO Main Lug 30 Spaces NEMA 1

QO330L200G

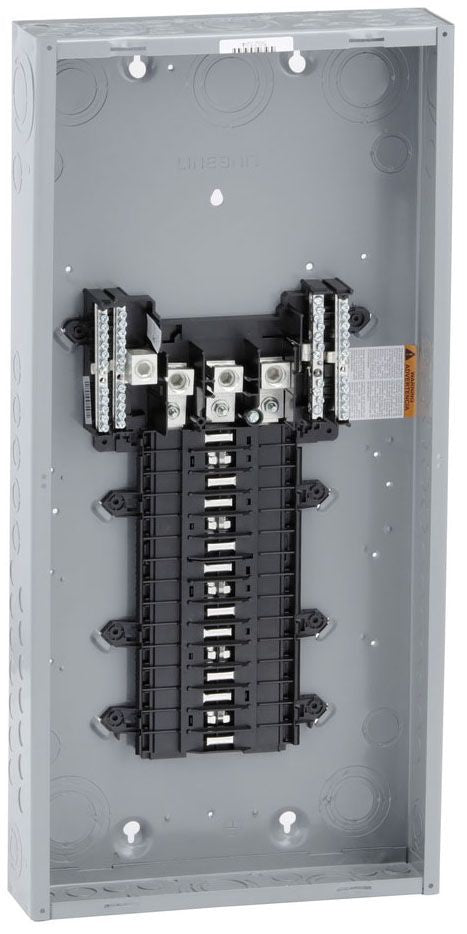

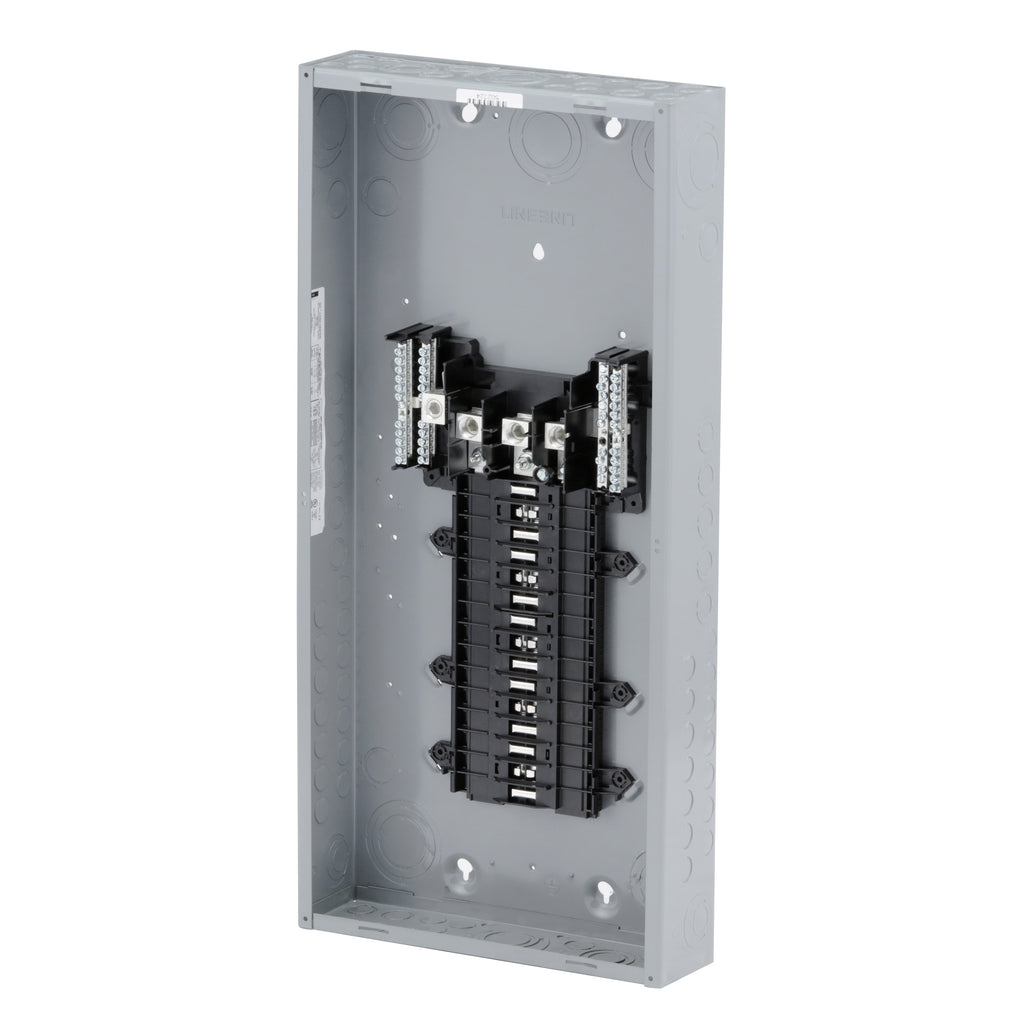

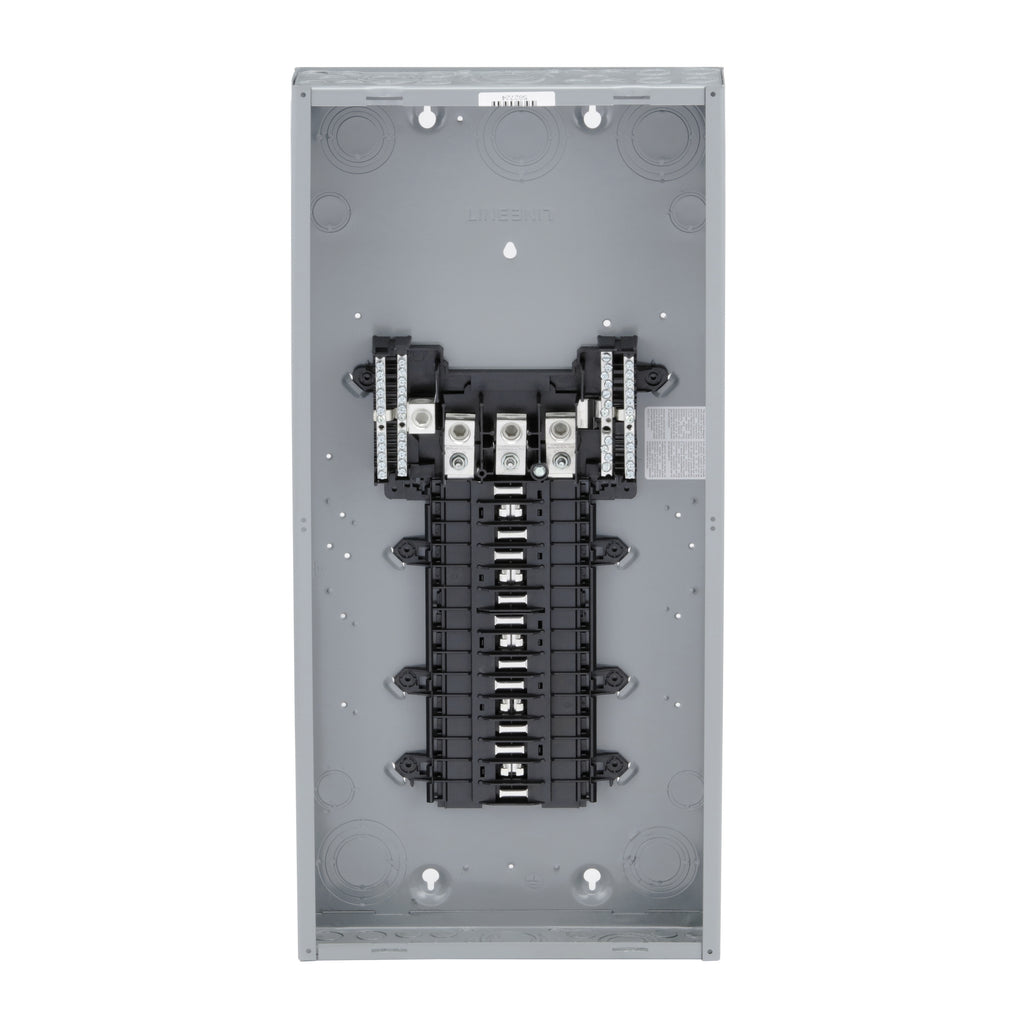

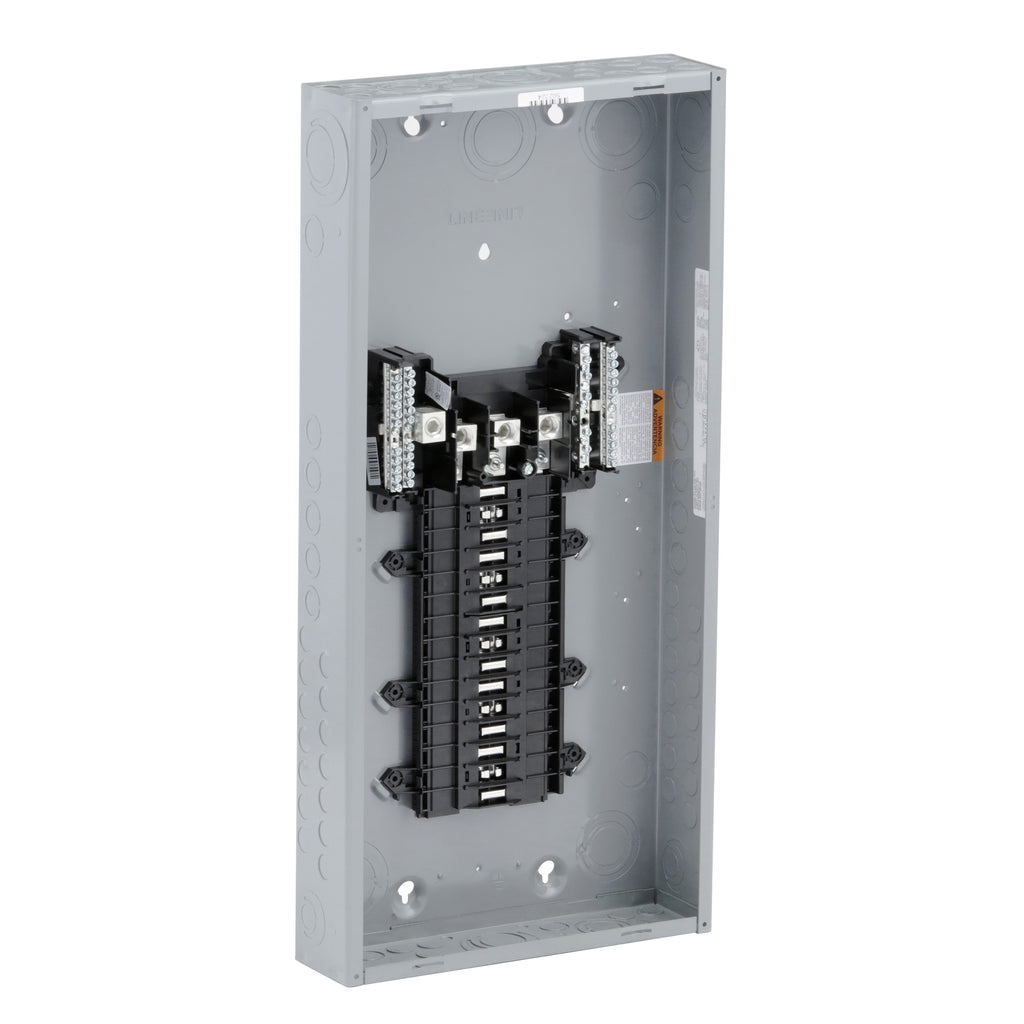

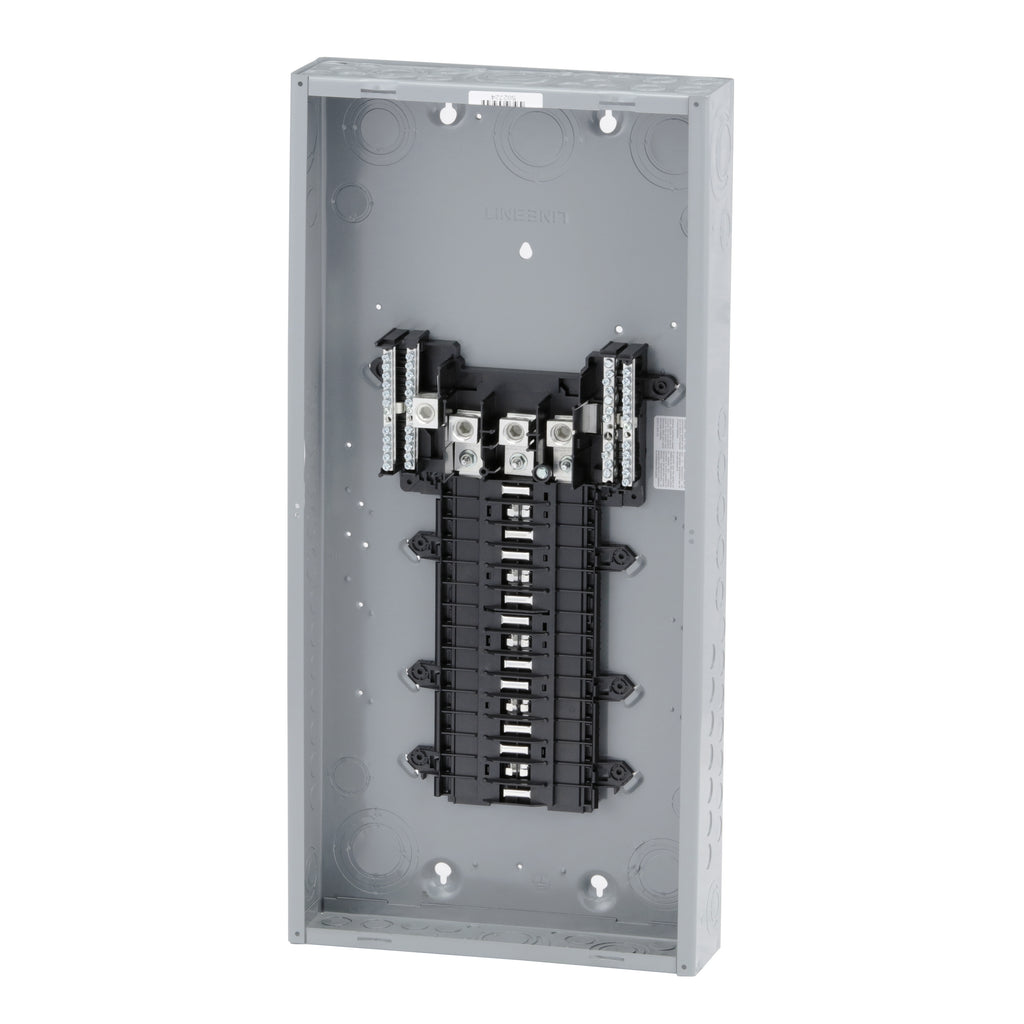

QO330L200G is a Square D 3-phase load center with 200 ampere rating and 240 volt capacity designed for residential, commercial, and industrial applications.This load center features a main lug type with 30 spaces and circuits, tin-plated copper busbars, and a durable welded sheet steel enclosure with baked enamel gray finish. It supports 208Y/120V AC, 240/120V delta AC, and 240V delta AC voltage configurations. The unit includes a field-installed grounding bar and is UL listed, NOM rated, and RoHS compliant. Its interrupt rating is 65 kA at 120/240 VAC, and it uses plug-on mounting for QO breakers, enabling faster installation and clutter-free wiring.

• Amperage: 200 A
• Voltage Rating: 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
• Poles: 3 phase
• Number of Spaces: 30
• Mounting Type: Plug-On
• Interrupt Rating: 65 kA
• Series/Frame: QO
• Trip Unit: Main Lug
• Enclosure Type: NEMA 1
• Busbar Material: Tin-plated copper
• Certifications: UL Listed, NOM Rated, RoHS Compliant
• Grounding Bar: Included (field installed)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO330L200G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Load Center
• Family : QO Series
• Type : QO
• Voltage : 120/240 AC
• Amperage : 200
• Phase : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 4
• Nema Rating : 1
• Bus Type : Copper

Product Data

• UPC : 785901295501
• GTIN : 00785901295501
• Country of Origin : United States
• Dimensions : 29.8 in (758 mm) x 14.3 in (362 mm) x 3.8 in (97 mm) (Height x Width x Depth)
• Weight : 17.45
• Certification : RoHS Compliant, UL Listed
• Wire Size : AWG 6 to 250KCmil, Aluminum/Copper
