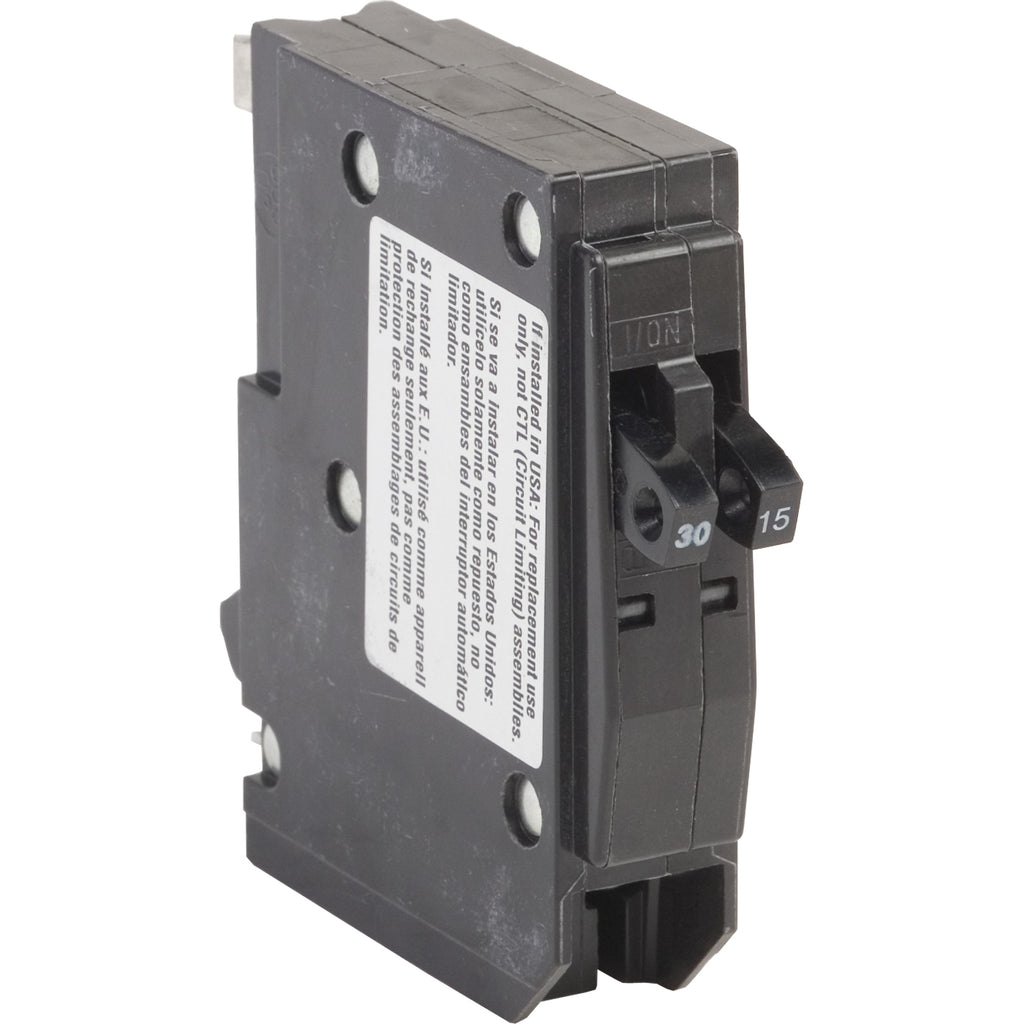

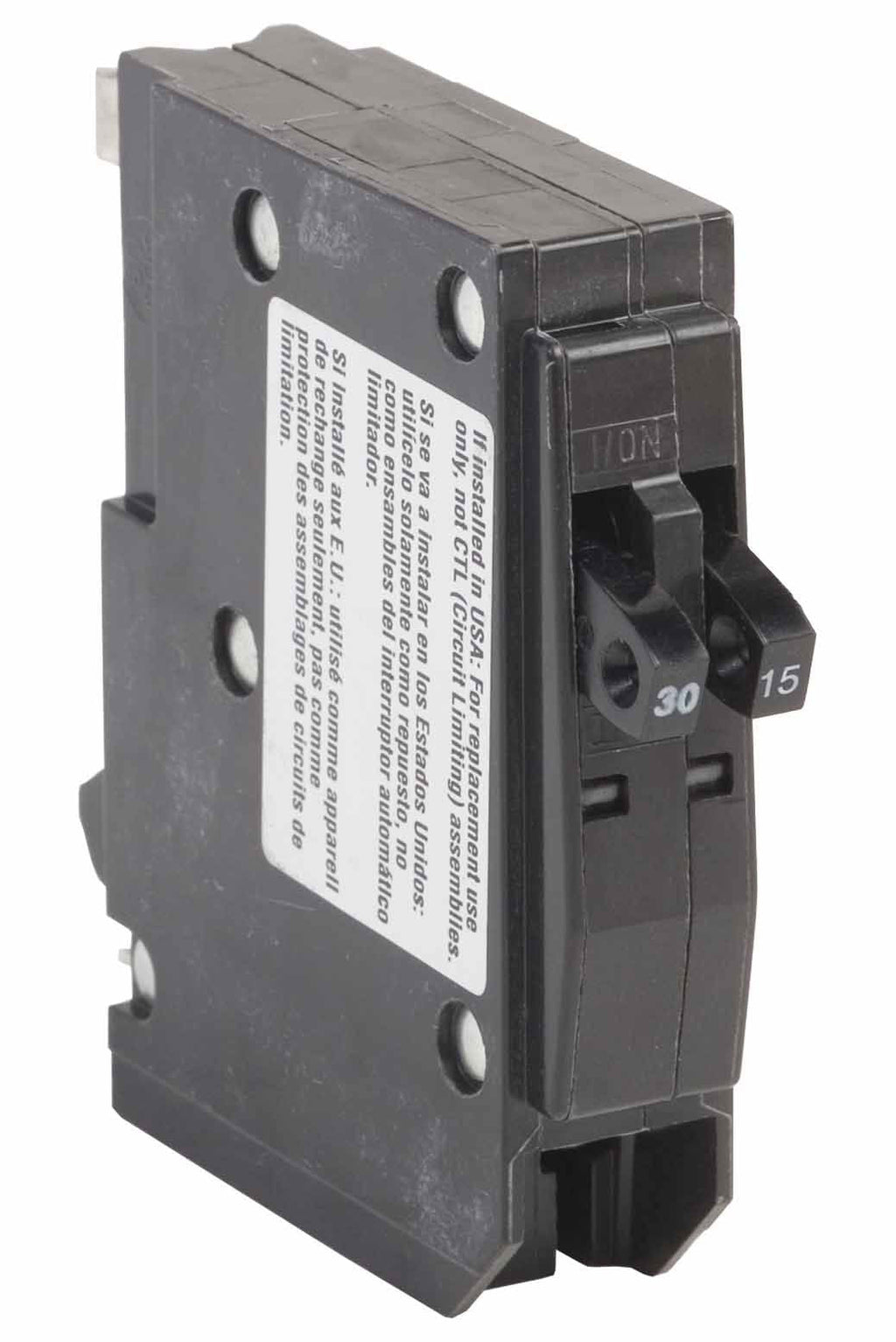

QO3015 - Square D Tandem Mini Circuit Breaker 30A/15A 120/240V 2-Pole Plug-In 10kA Interrupt Rating

QO3015

QO3015 is a Square D tandem mini circuit breaker designed for 120/240V applications with 2 poles and plug-in mounting.This tandem breaker features one pole rated at 30 amps and the other at 15 amps, providing dual circuit protection in a compact form factor. It has a thermal magnetic trip unit and a 10,000 A interrupt rating, suitable for residential and light commercial load centers. The breaker is compatible with QO series load centers and offers reliable overcurrent protection with a common trip mechanism.

Key Specifications
• Manufacturer: Square D
• Part Number: QO3015
• Type: Tandem Mini Circuit Breaker
• Amperage: 30A / 15A
• Voltage: 120/240 VAC
• Poles: 2 (tandem)
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Trip Unit: Thermal Magnetic
• Series/Frame: QO
• Phase: Single Phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO3015
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Box Lugs
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901413004
• GTIN : 00785901413004
• Country of Origin : Mexico
• Dimensions : 19 mm x 82 mm
• Weight : 145.15 lb
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
