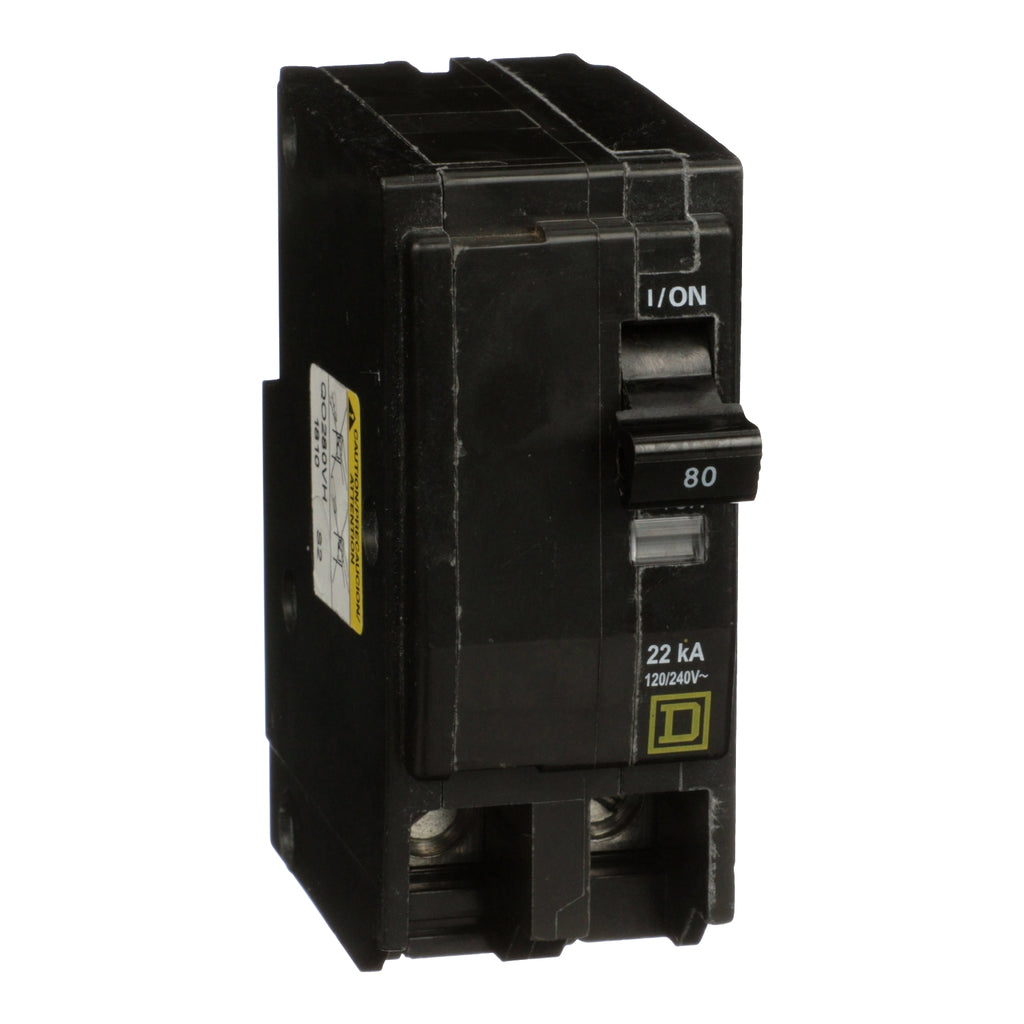

QO280VH - Square D 80 Amp 120/240V 2 Pole Thermal Magnetic Circuit Breaker QO Series

QO280VH

QO280VH is a 2 pole, 80 amp thermal magnetic circuit breaker from Square D's QO Series designed for 120/240V applications.This molded case circuit breaker features a plug-in mounting type with lug load side terminations, providing reliable overcurrent protection with a 22kA interrupt rating at 120/240VAC. It is suitable for residential and light commercial electrical panels requiring high performance and safety.

• Amperage: 80 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 22,000 Amps (22kA)
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic
• Load Side Termination: Lugs
• Line Side Termination: Plug-In
• Category: Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO280VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054993
• GTIN : 00785901054993
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.75 lb
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to AWG 2/0 Copper/Aluminum
