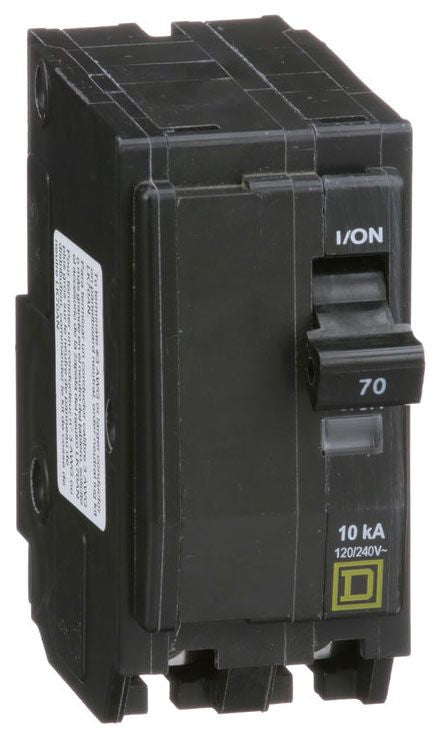

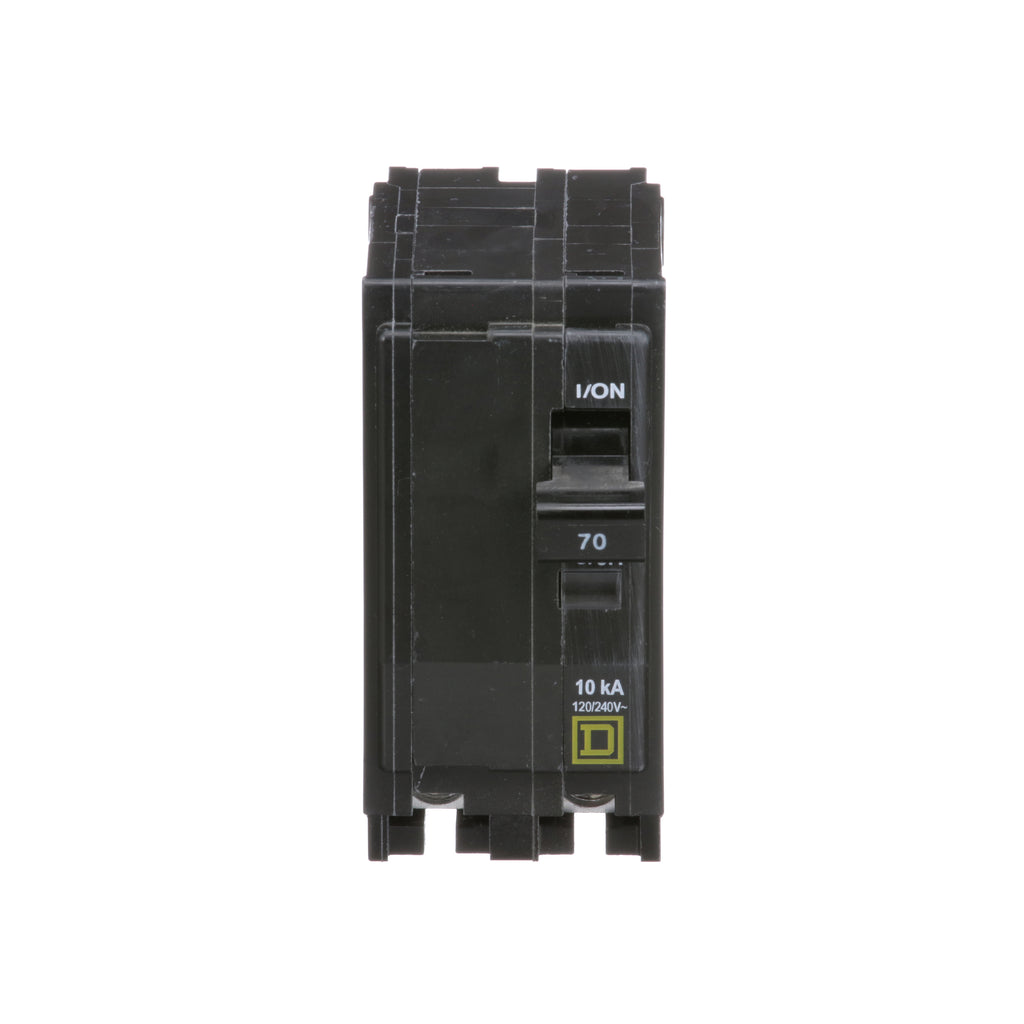

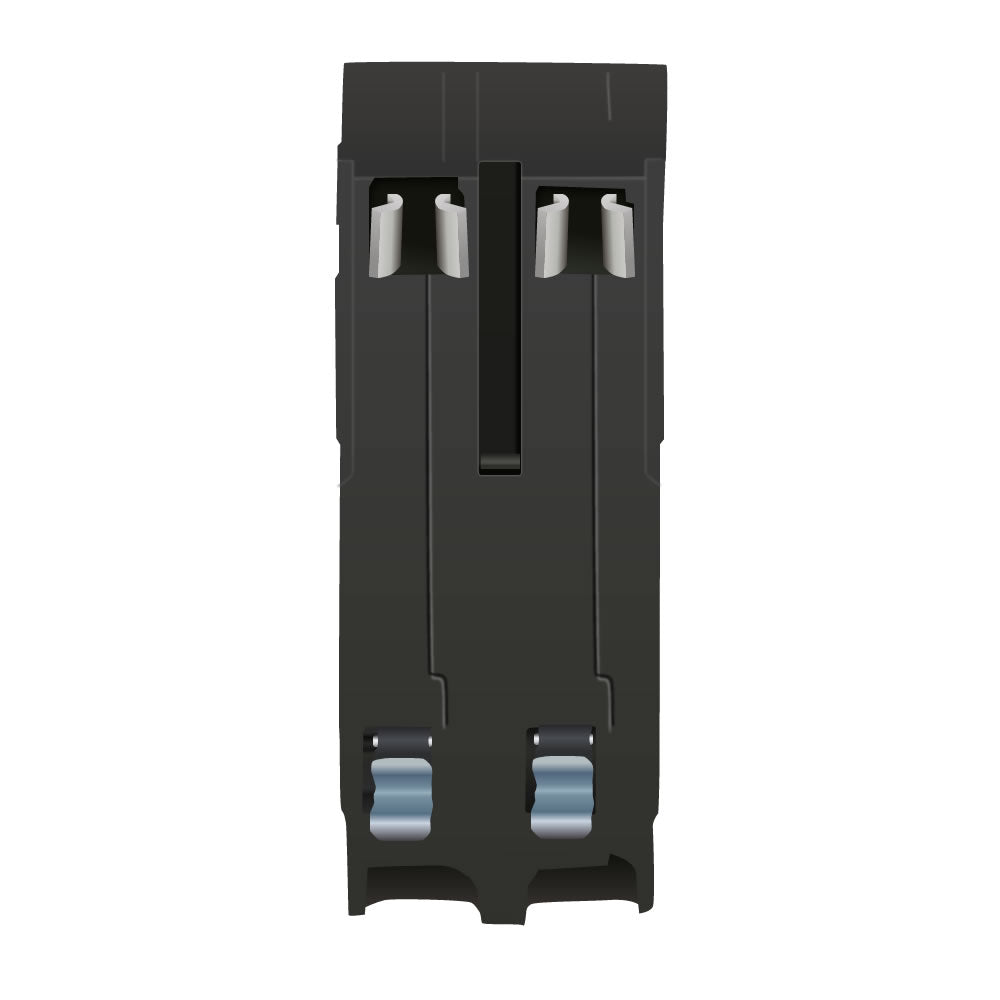

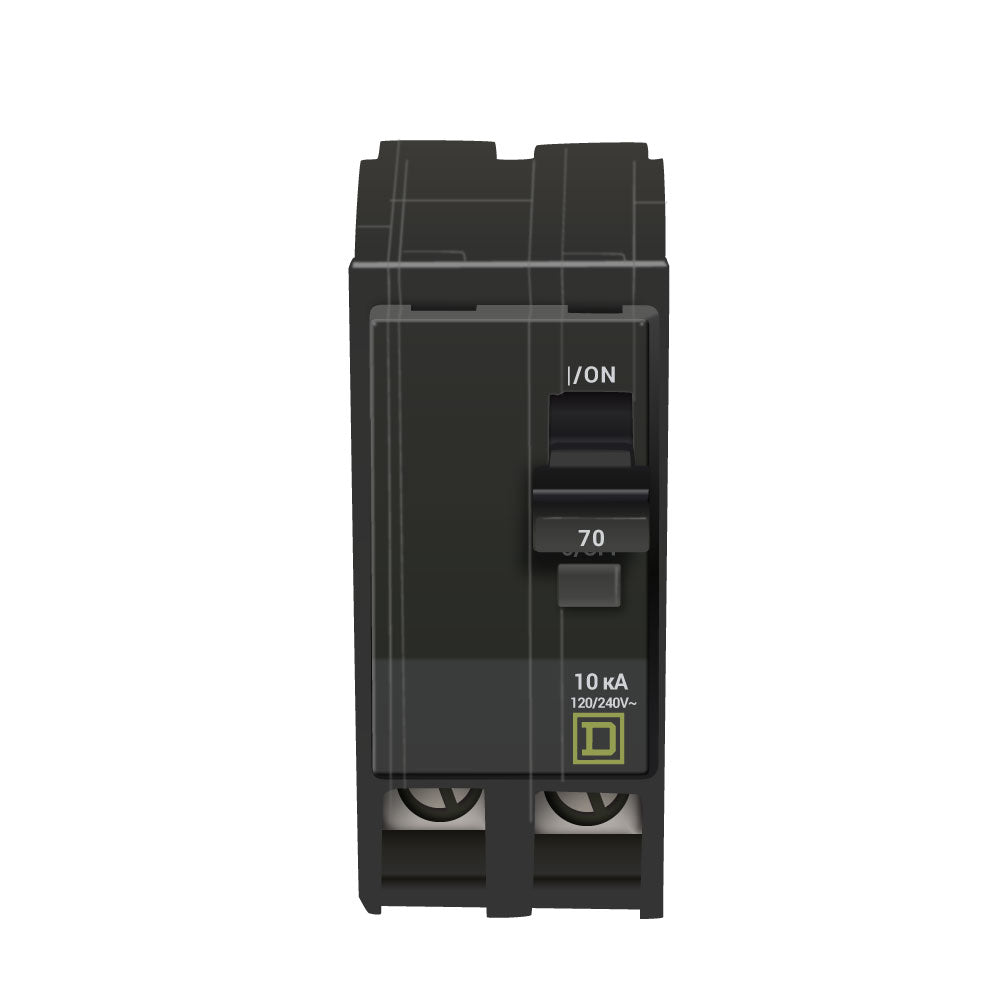

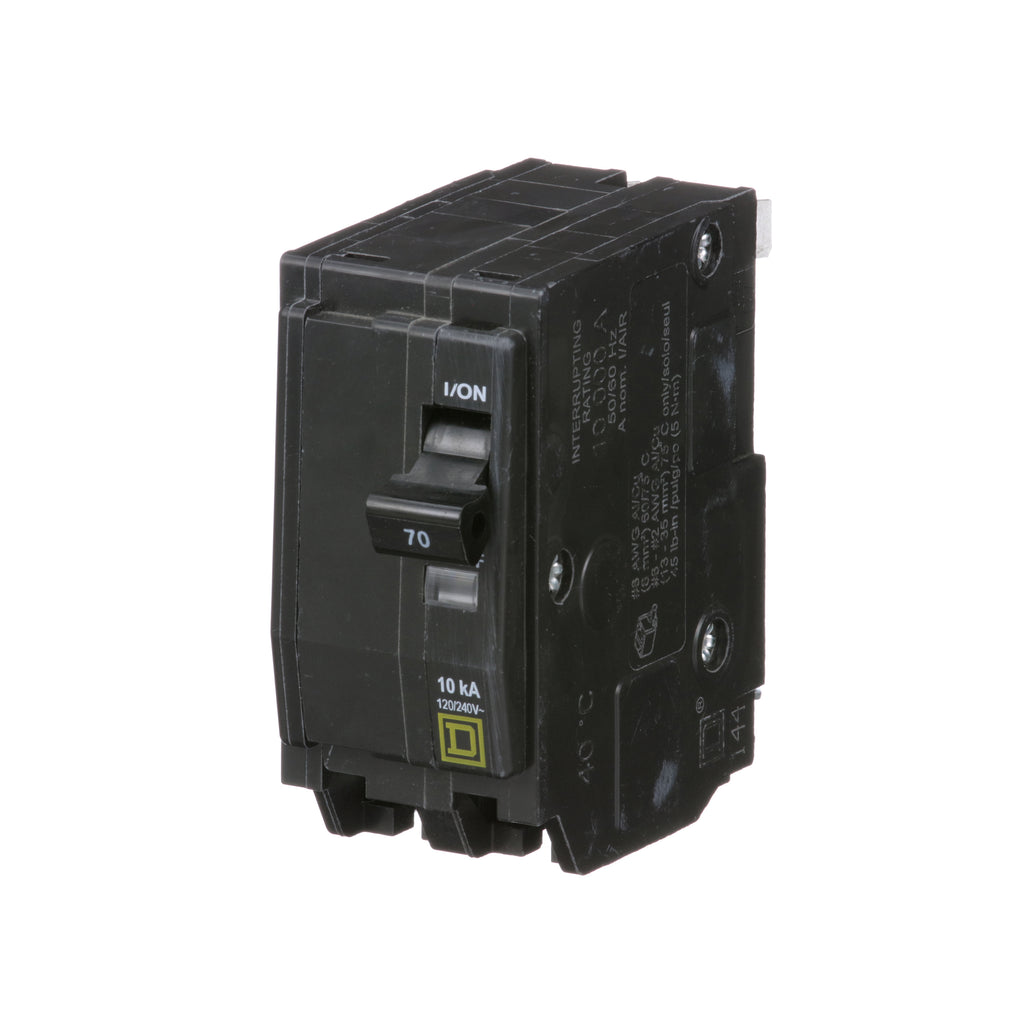

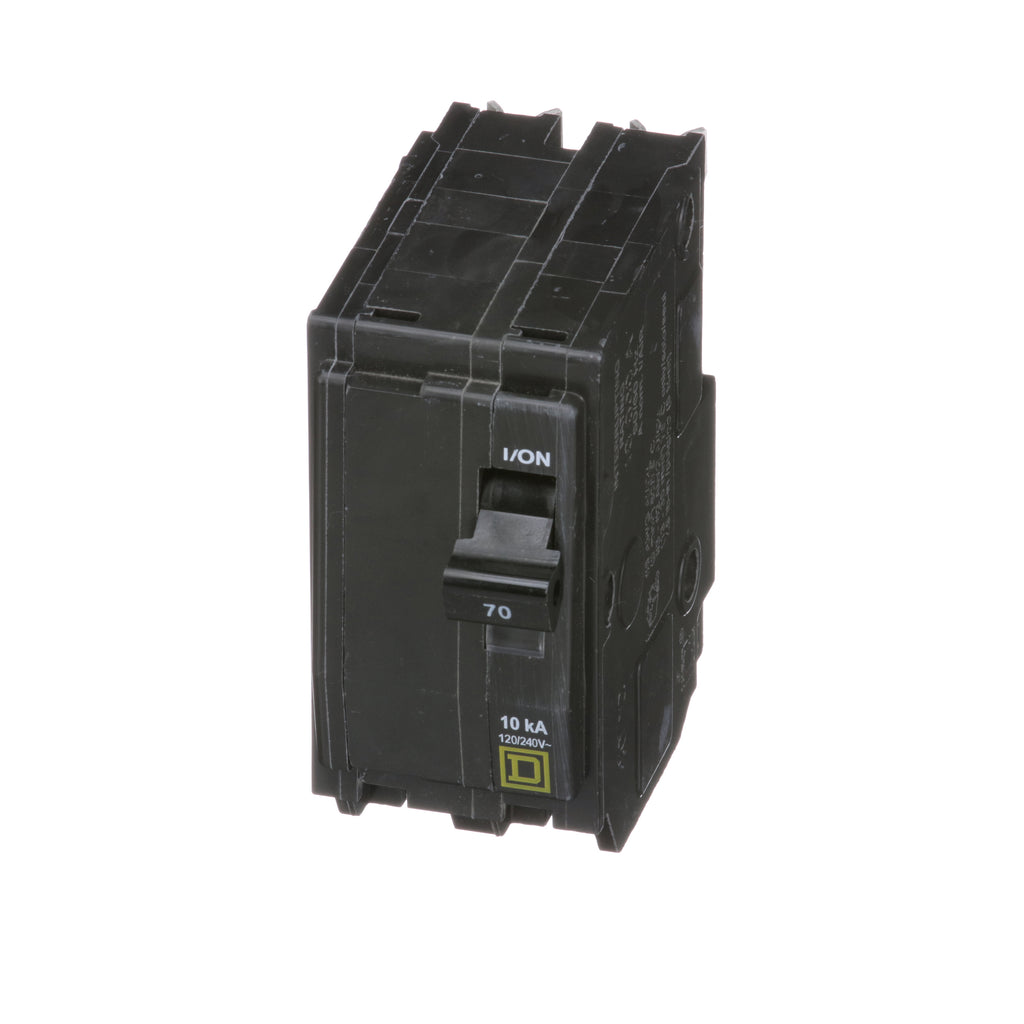

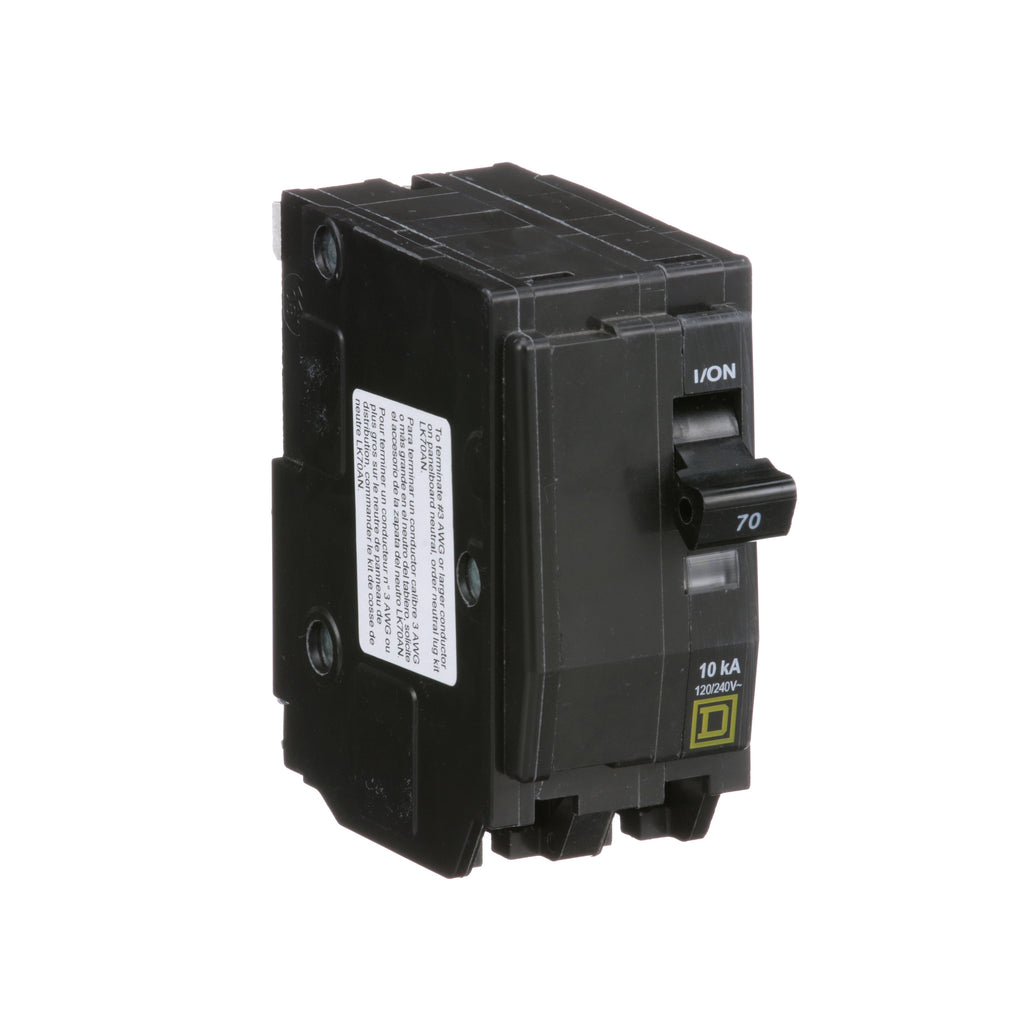

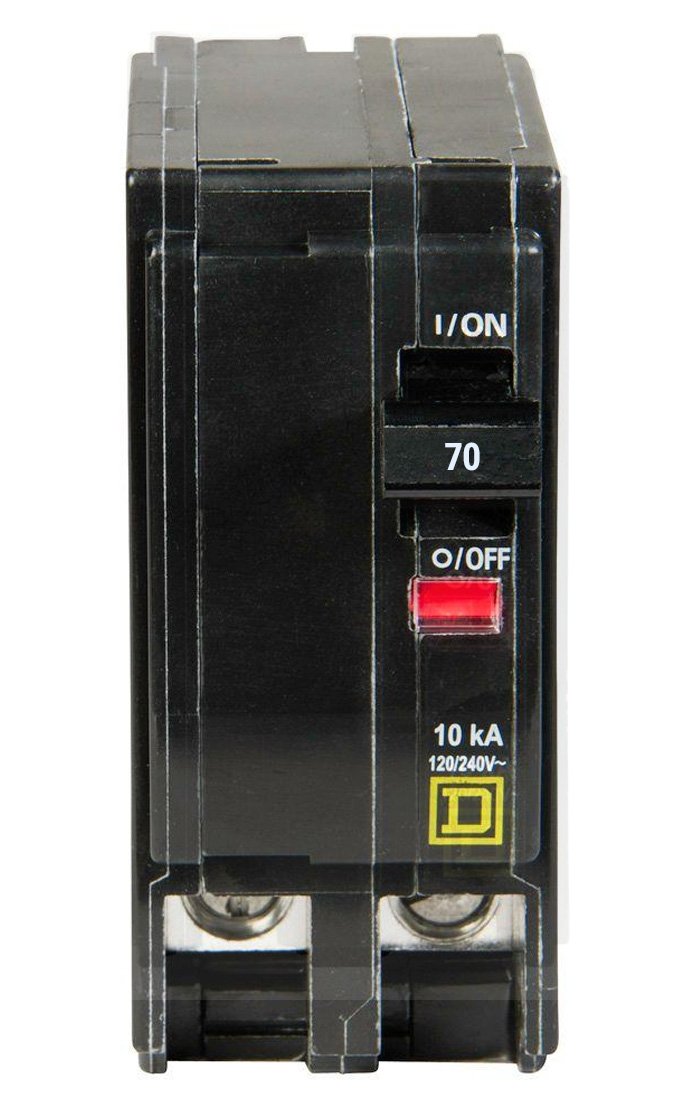

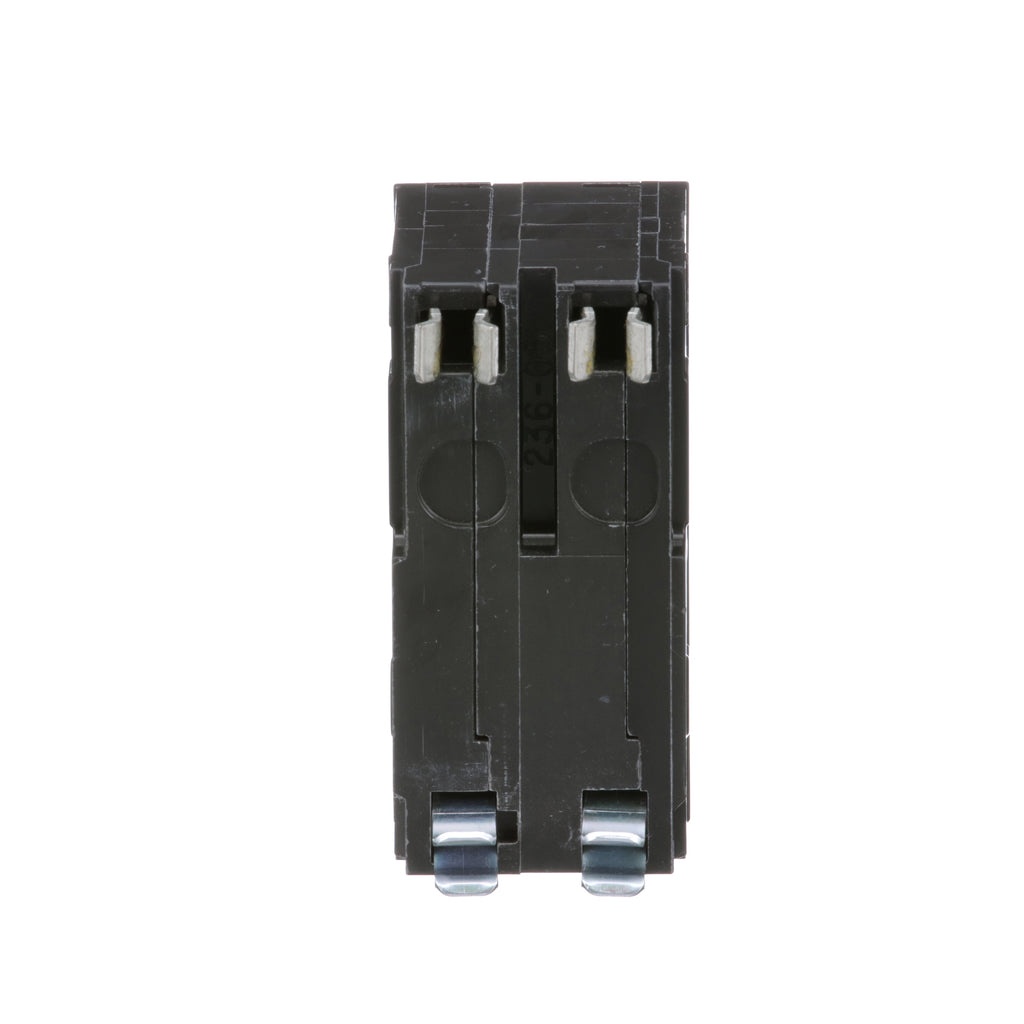

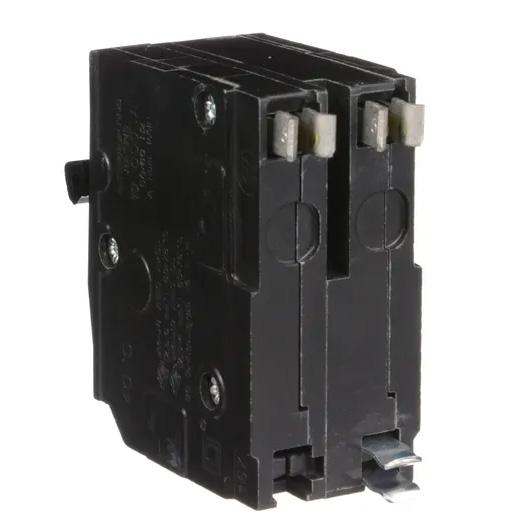

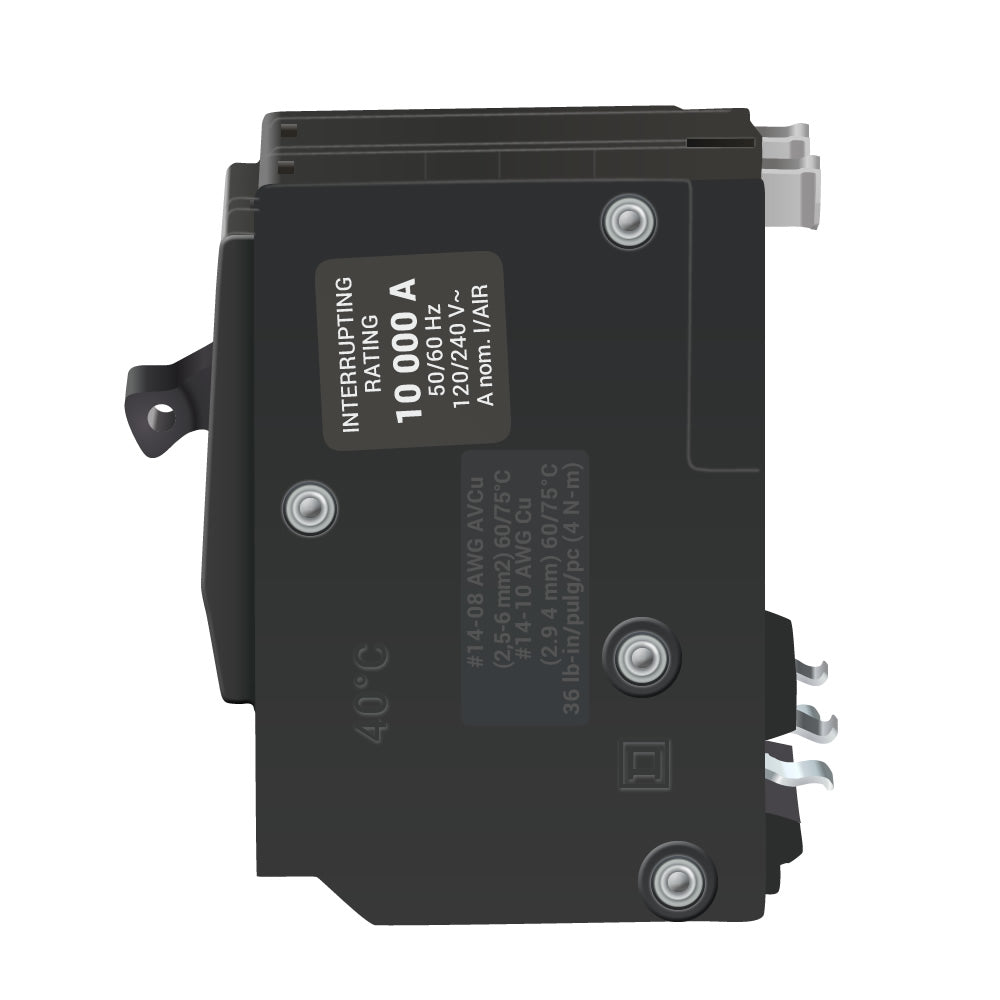

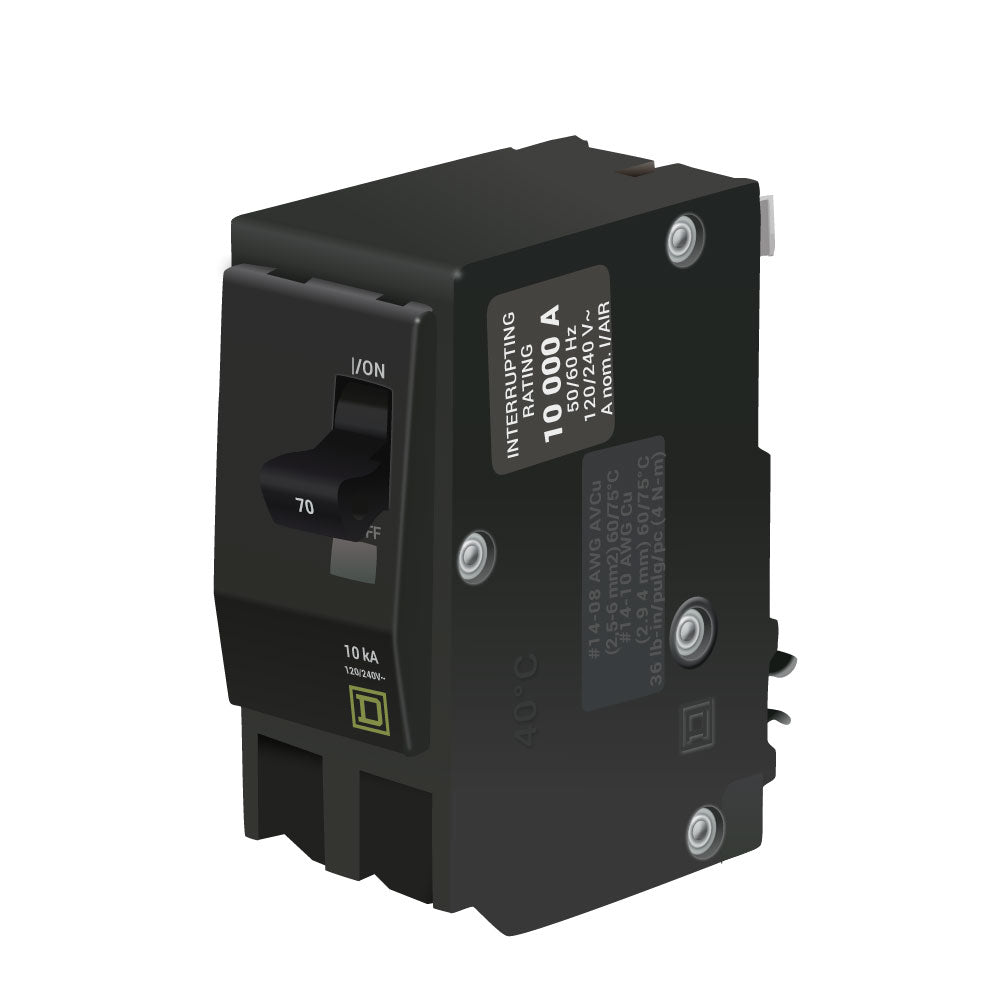

QO270 - Square D 70 Amp 2 Pole 120/240V Circuit Breaker Plug-In QO Series

QO270

QO270 is a 70 Amp, 2 Pole circuit breaker from Square D's QO Series designed for 120/240VAC systems with plug-in mounting.This thermal magnetic circuit breaker features a 10kA interrupting rating at 120/240VAC, long-time and instantaneous trip functions, and is UL and CSA certified. It supports wire sizes from AWG 8 to AWG 2 for copper or aluminum conductors and is HACR rated for HVAC applications.

• Manufacturer: Square D
• Series: QO
• Amperage: 70 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240VAC
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Certified, HACR Rated
• Connection Type: Plug-In with Box Lugs
• Wire Gauge: AWG 8 to AWG 2 Copper/Aluminum
• Dimensions (H x W x D): Approx. 3.1 x 1.5 x 2.9 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO270
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400585
• GTIN : 00785901400585
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.6
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
