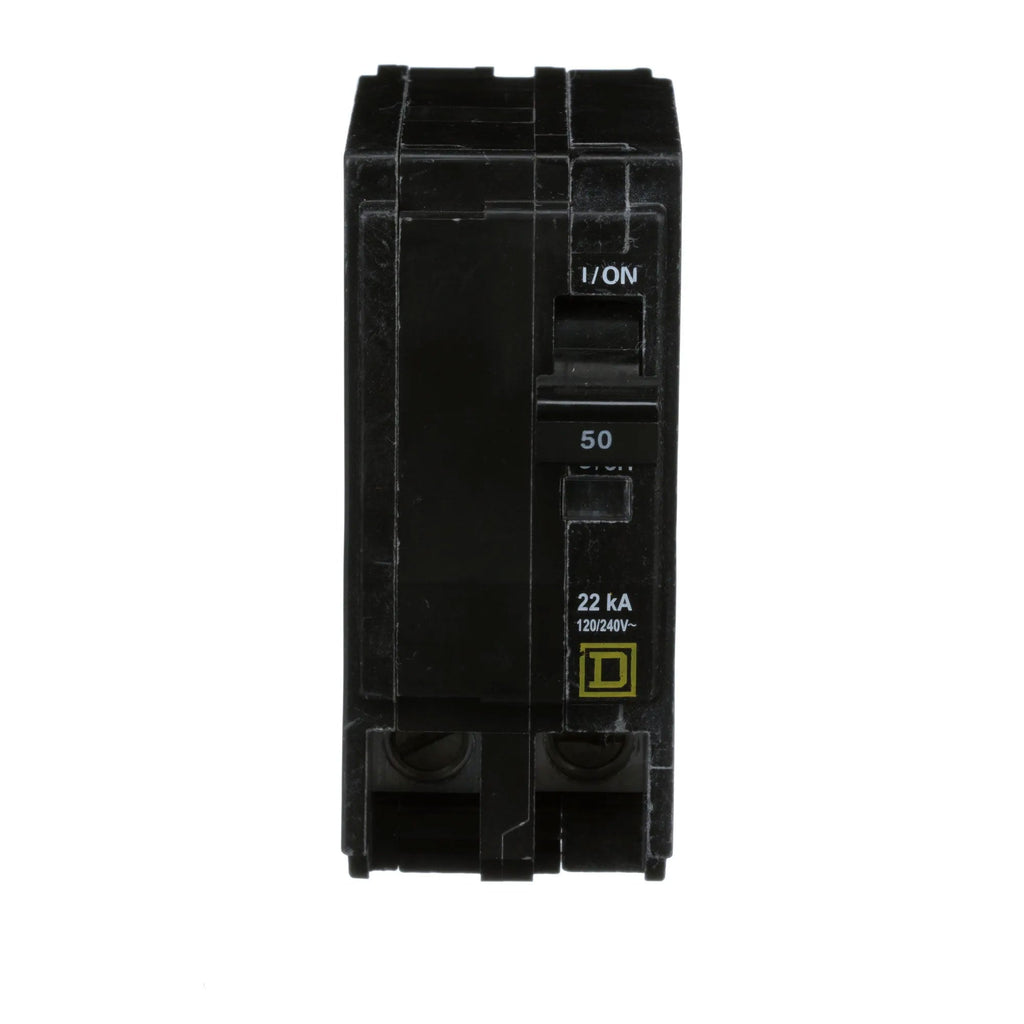

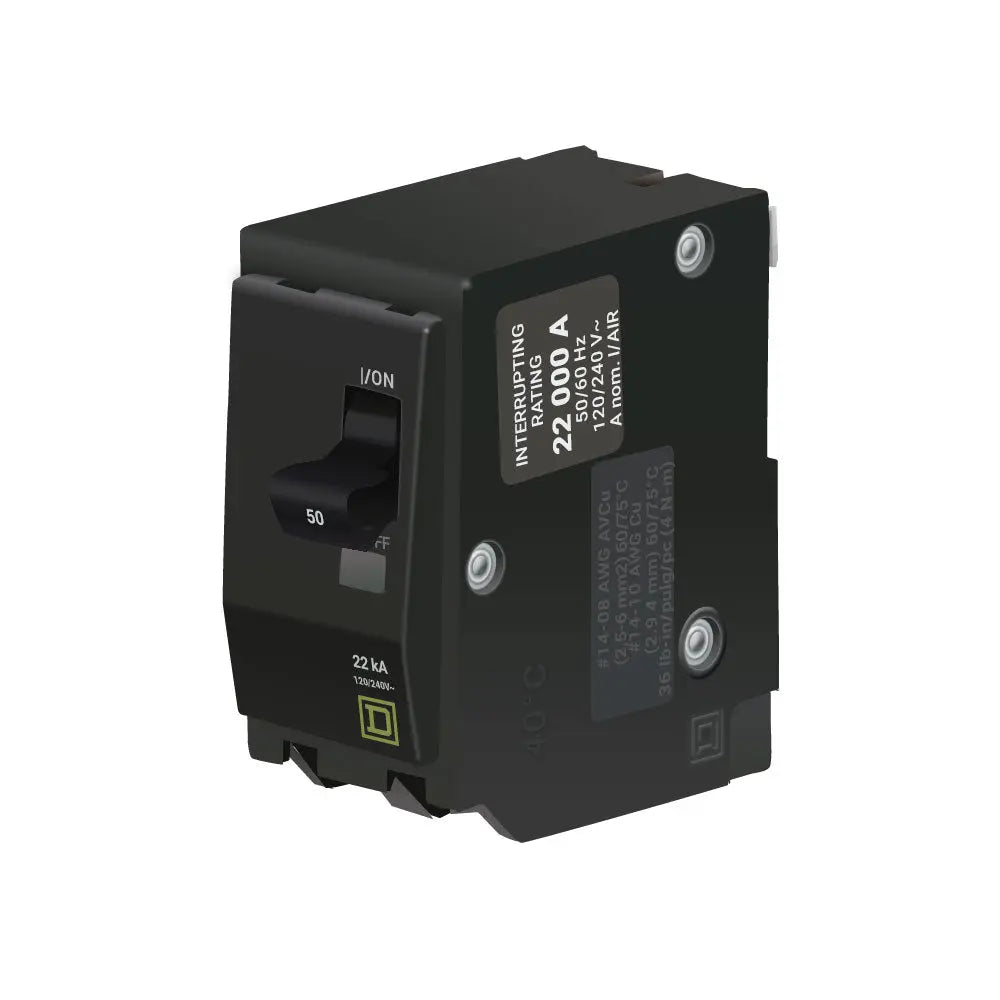

QO250VH - Square D 50 Amp 2 Pole 120/240V Circuit Breaker Plug-On Mount 22kA Interrupt

QO250VH

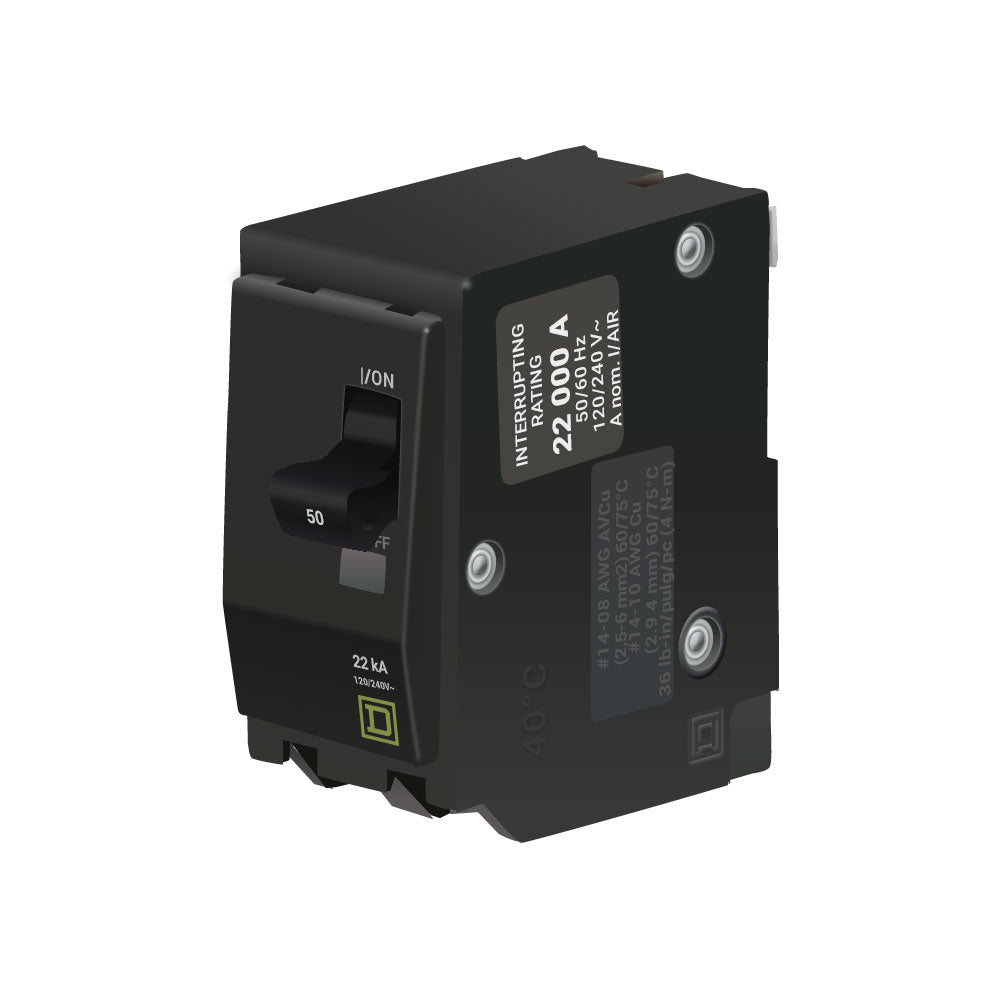

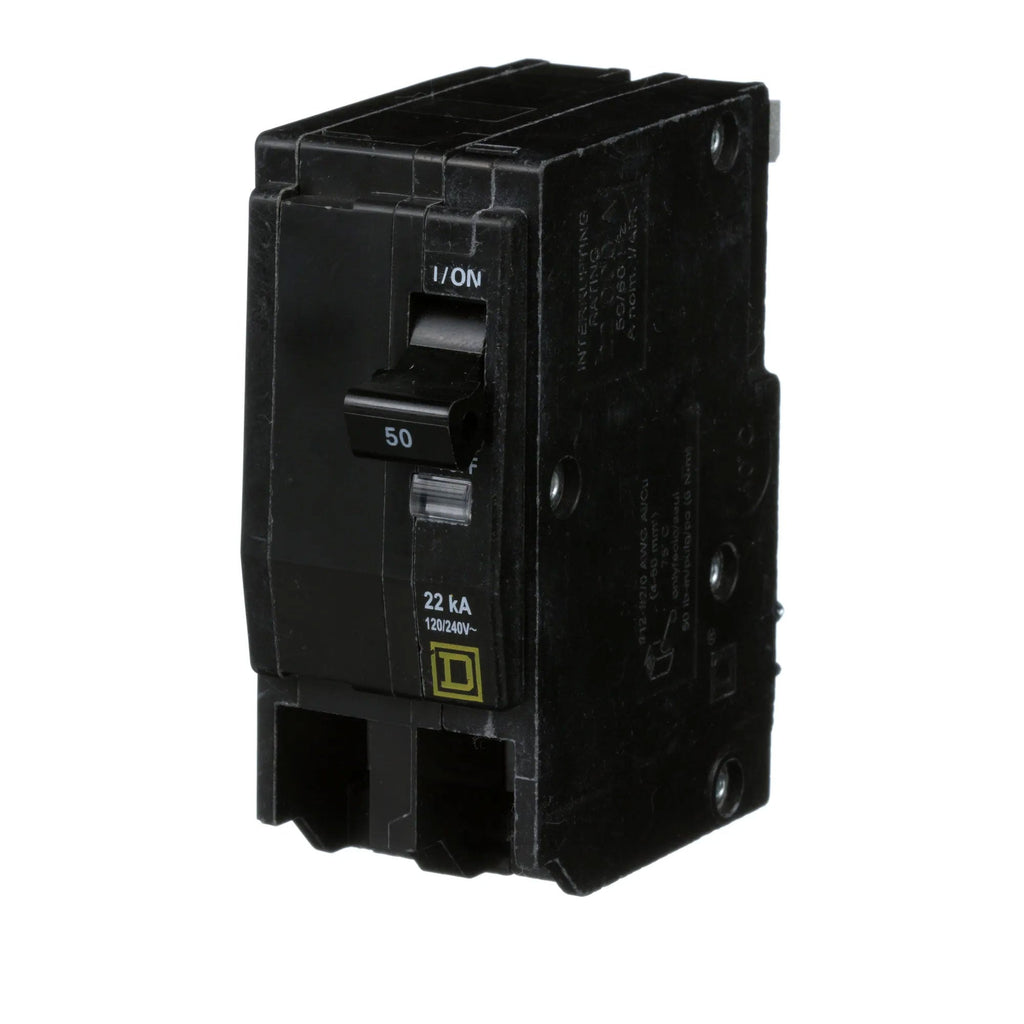

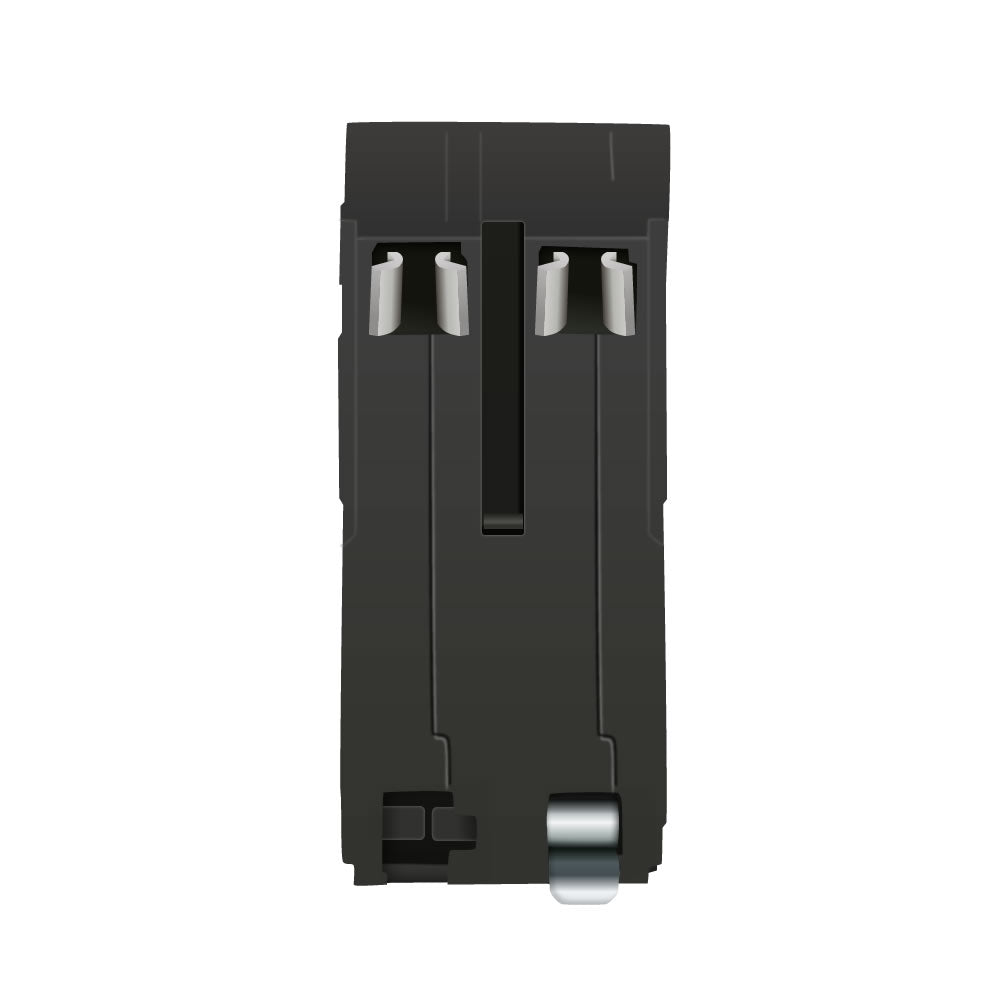

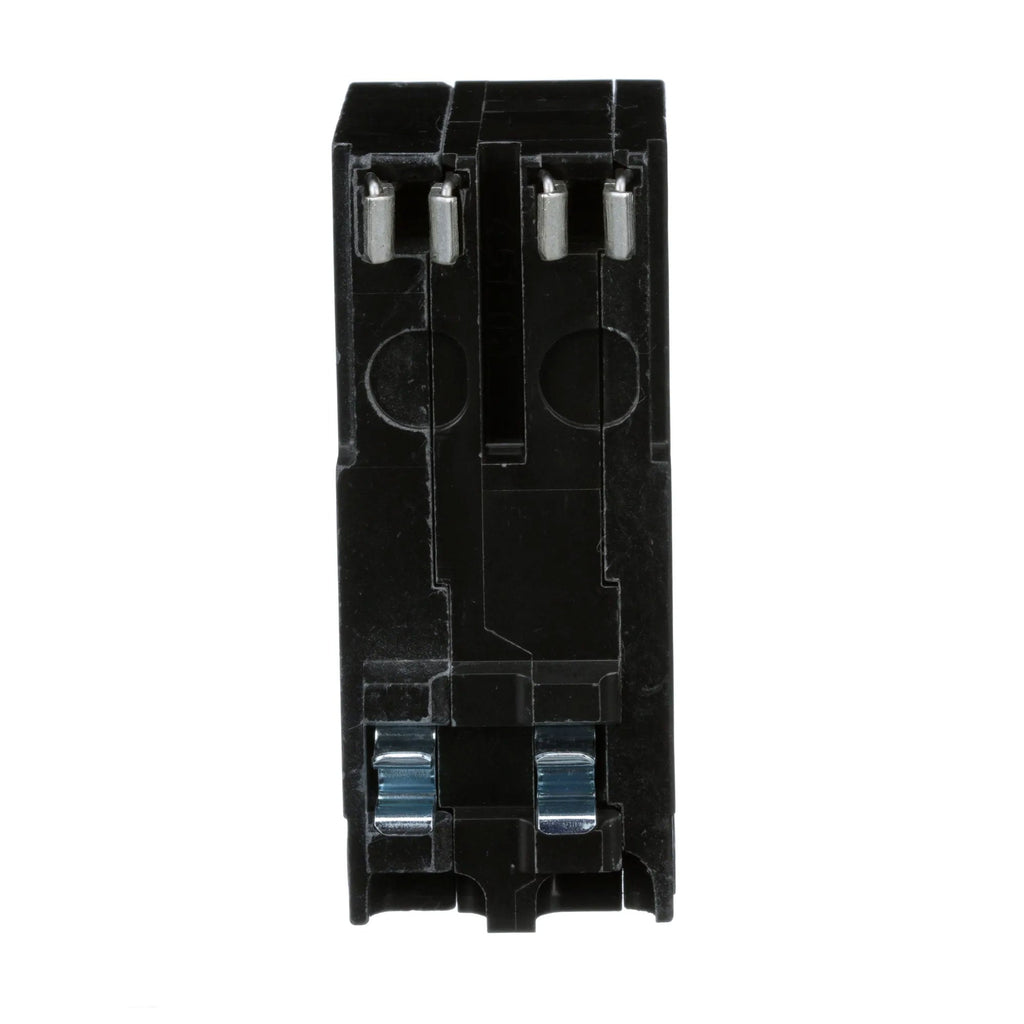

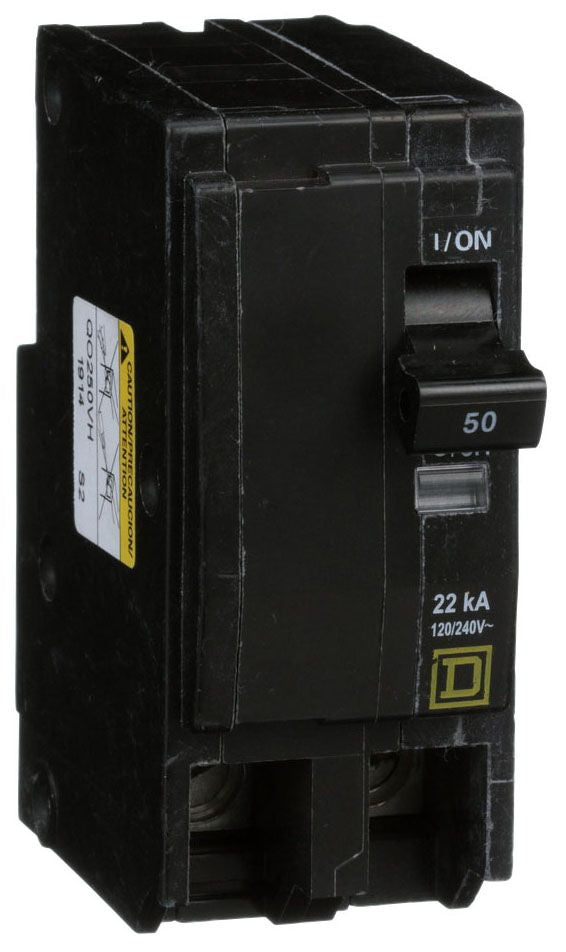

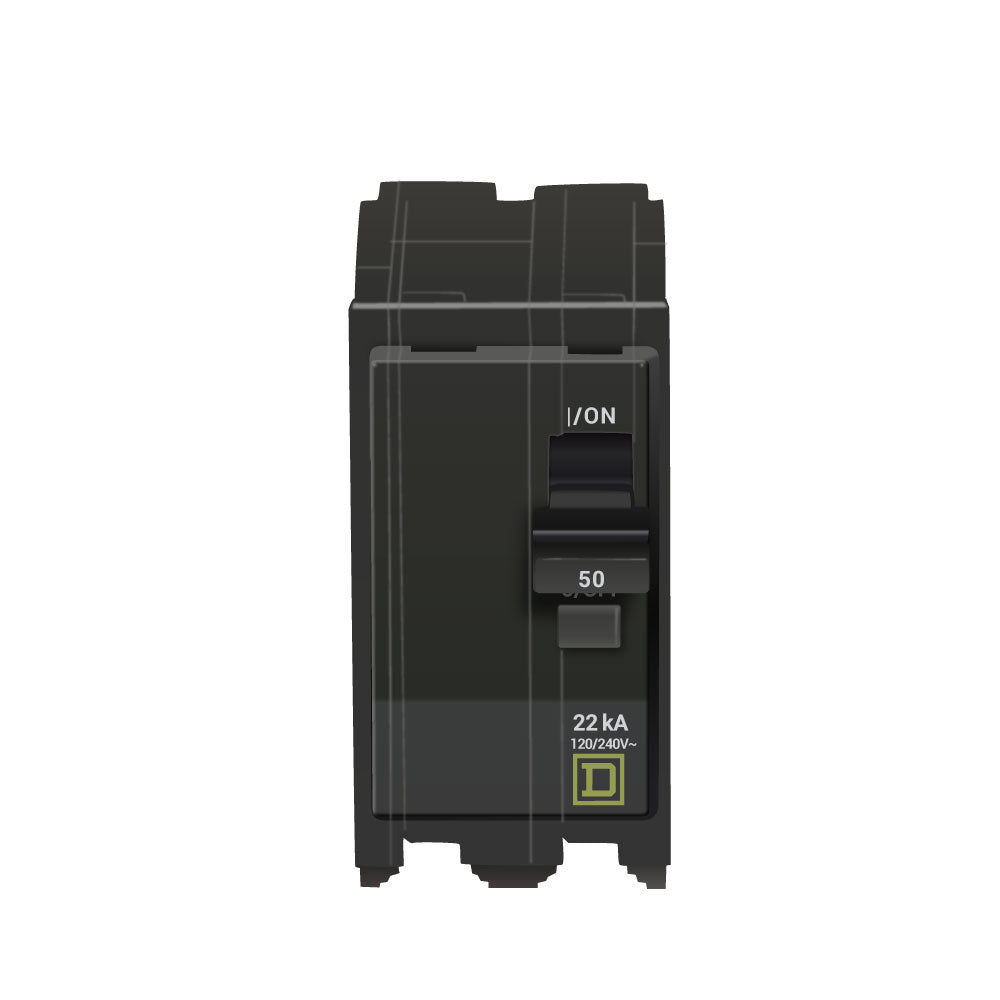

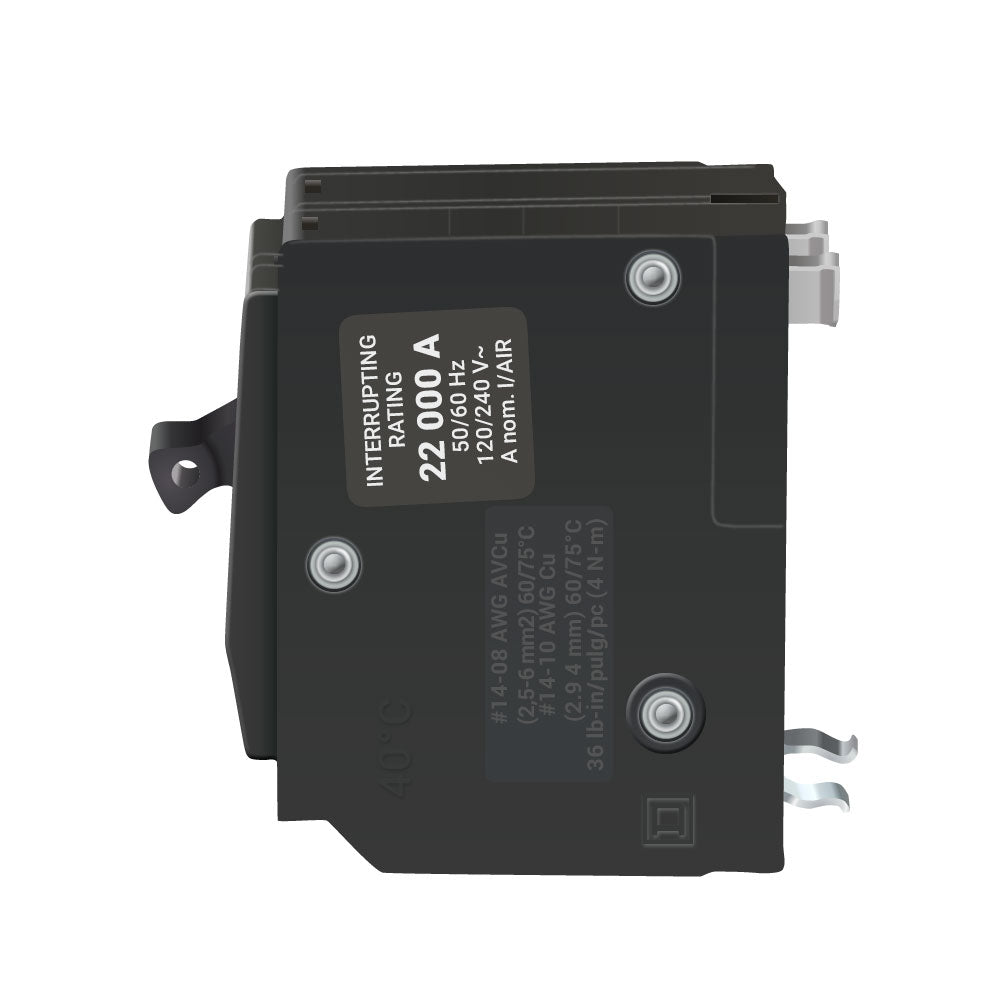

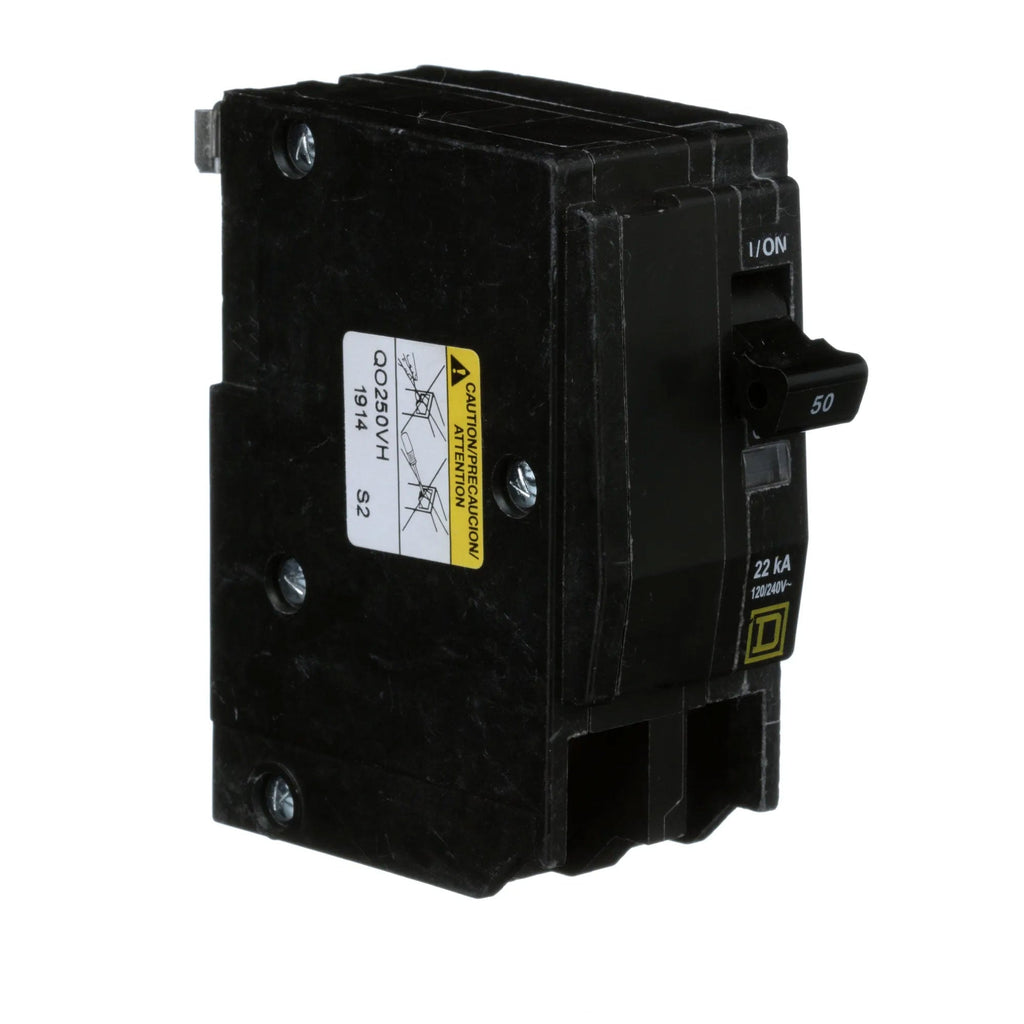

QO250VH is a Square D 2 pole circuit breaker rated for 50 amps and 120/240 volts with plug-on mounting and 22kA interrupt rating.This QO series thermal magnetic circuit breaker features a common trip, plug-in connection, and provides overcurrent protection with long-time and instantaneous trip functions. It has a 22,000 amp interrupting capacity at 120/240 VAC and is UL listed and CSA certified. The breaker includes VisiTrip trip indication for visual confirmation of a trip event and is compatible with QO load centers.

Key Specifications
• Amperage: 50 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 22 kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: Plug-In
• Certifications: UL Listed (UL File E84967), CSA Certified (Master Contract 153555)
• Phase: Single
• VisiTrip Trip Indication

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO250VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/QO
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054962
• GTIN : 00785901054962
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.72
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
