Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO235GFI

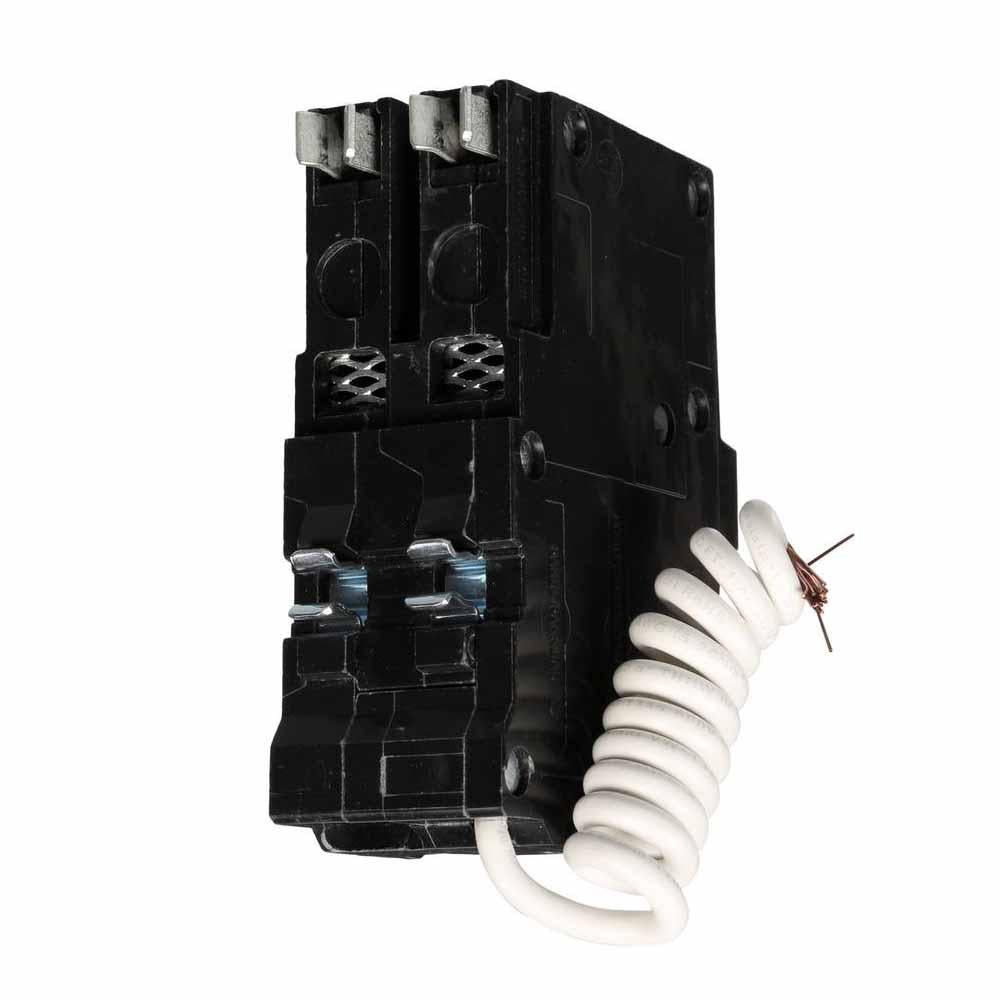

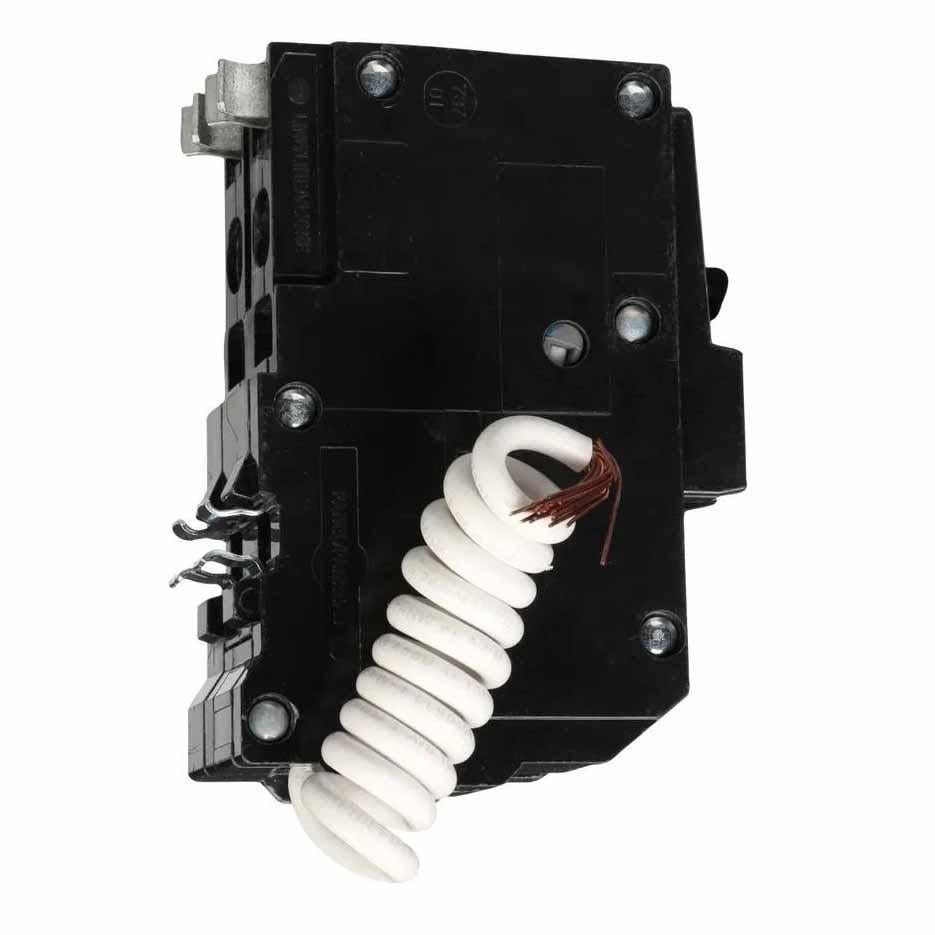

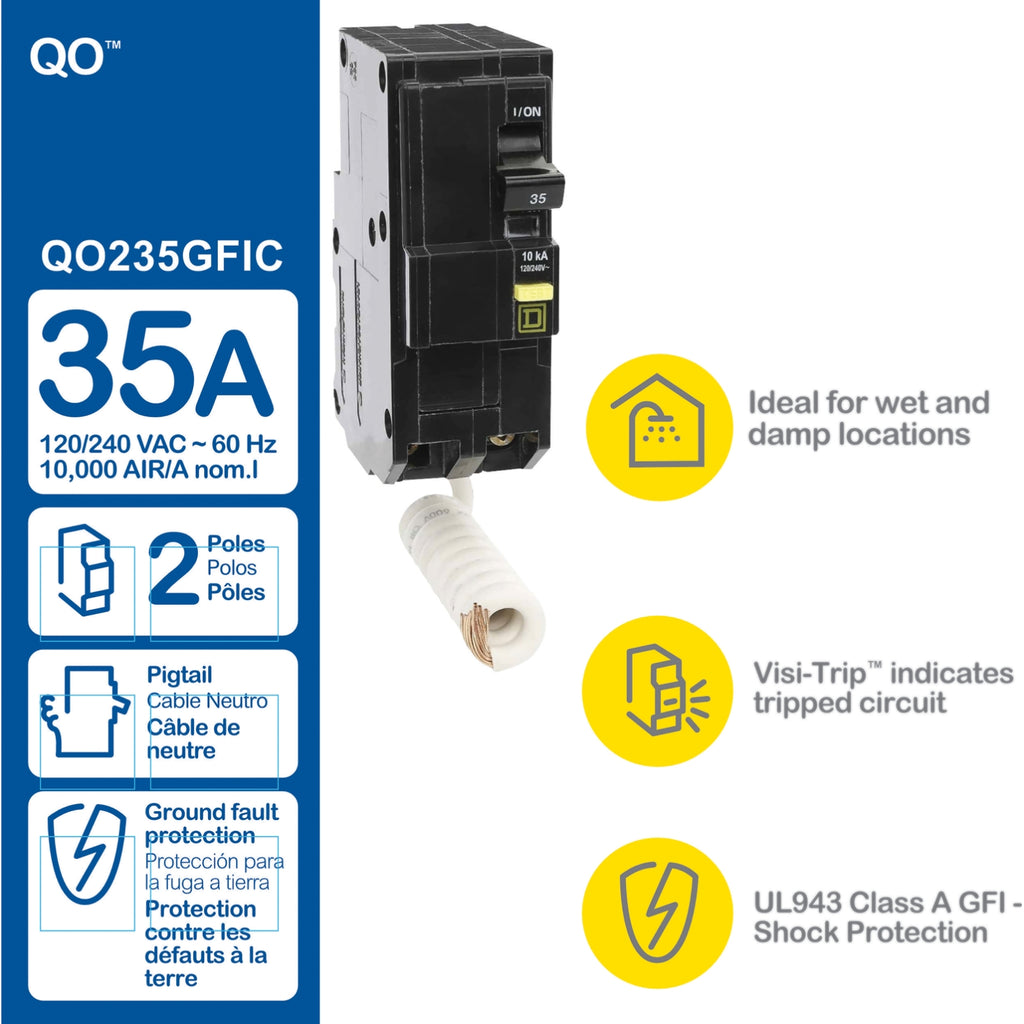

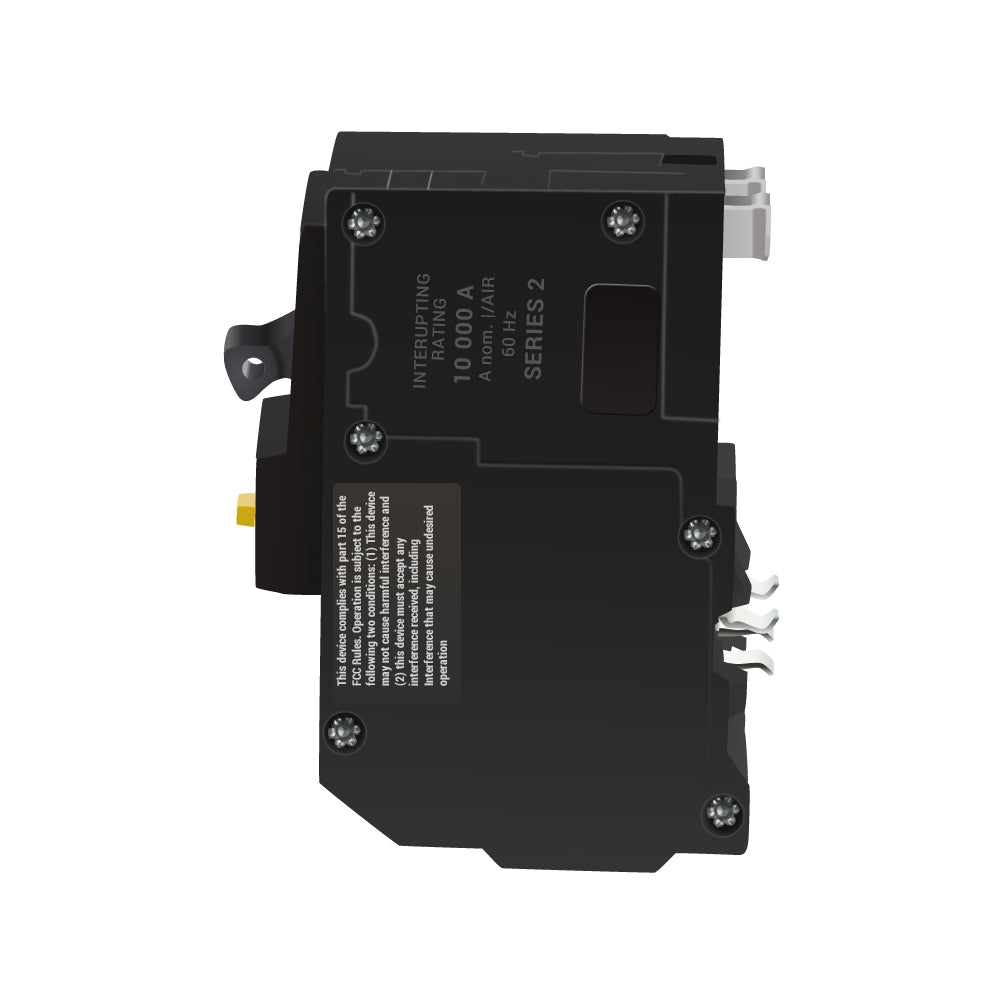

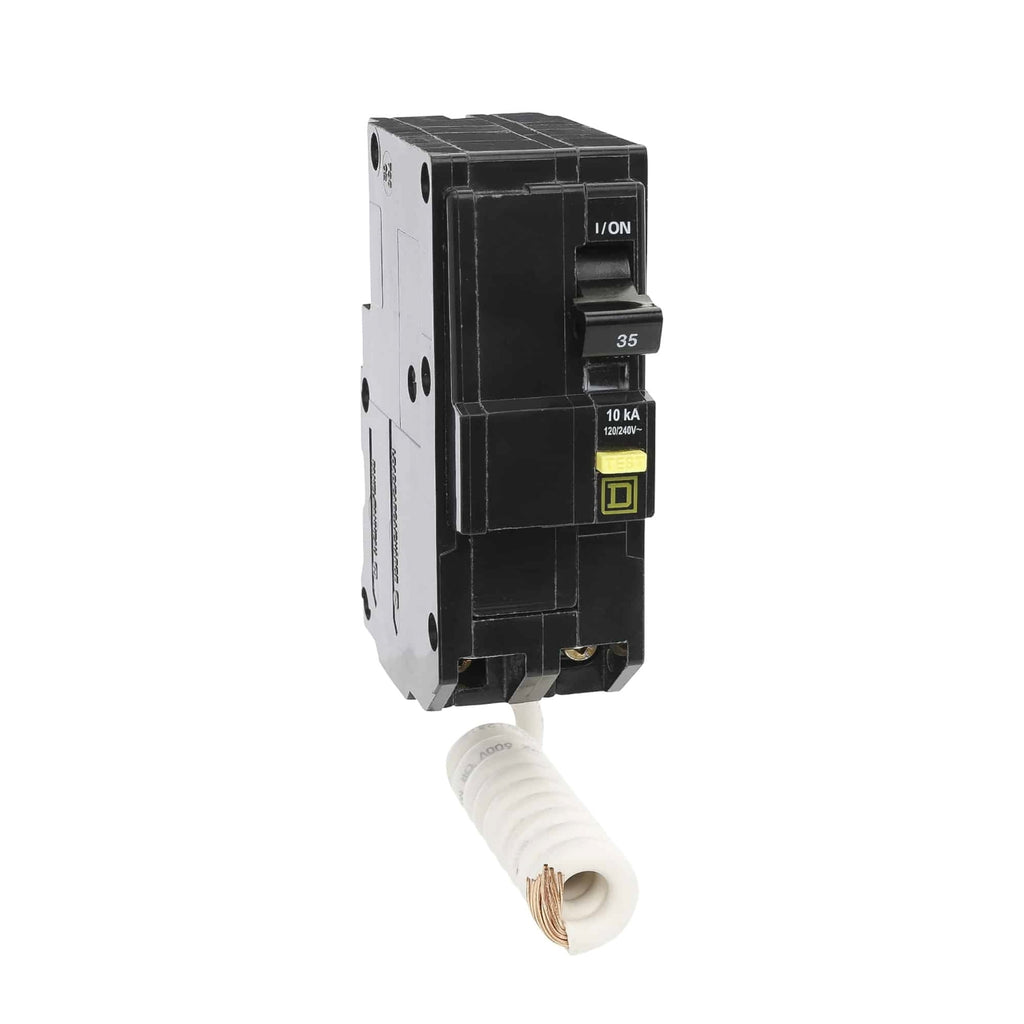

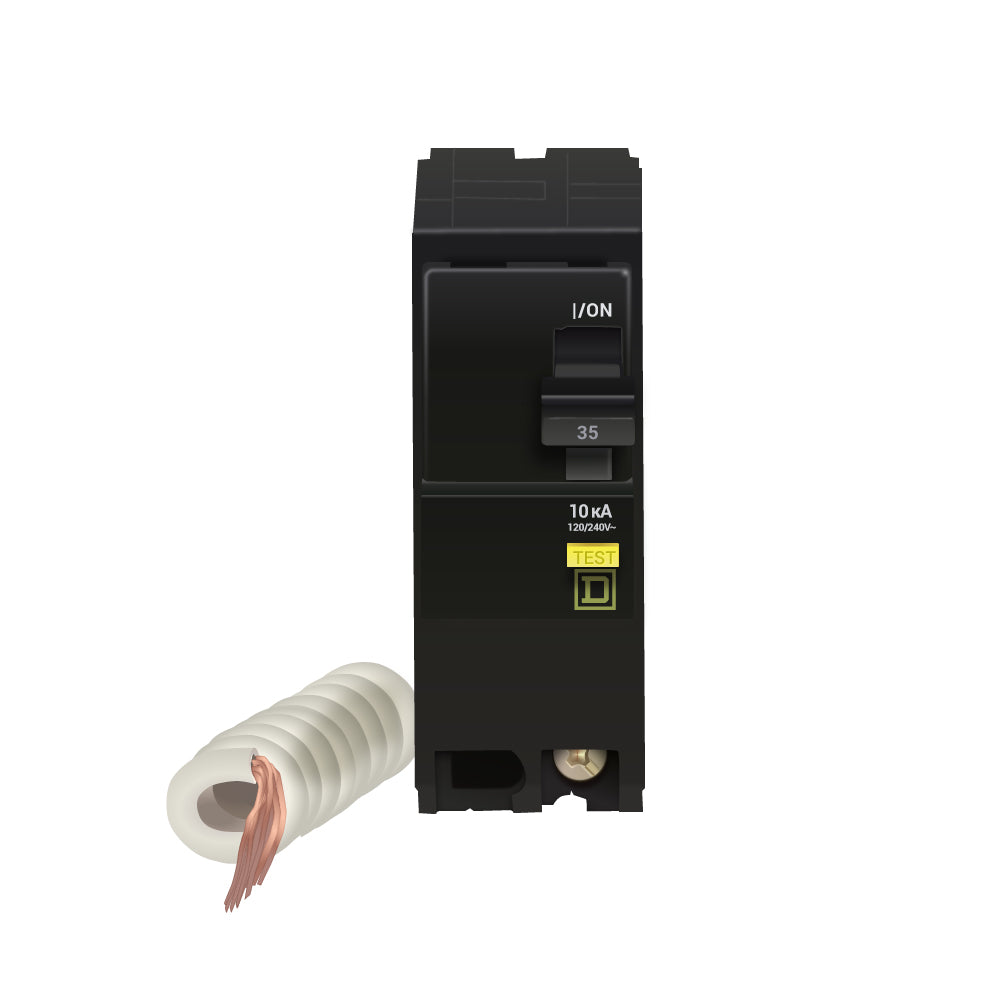

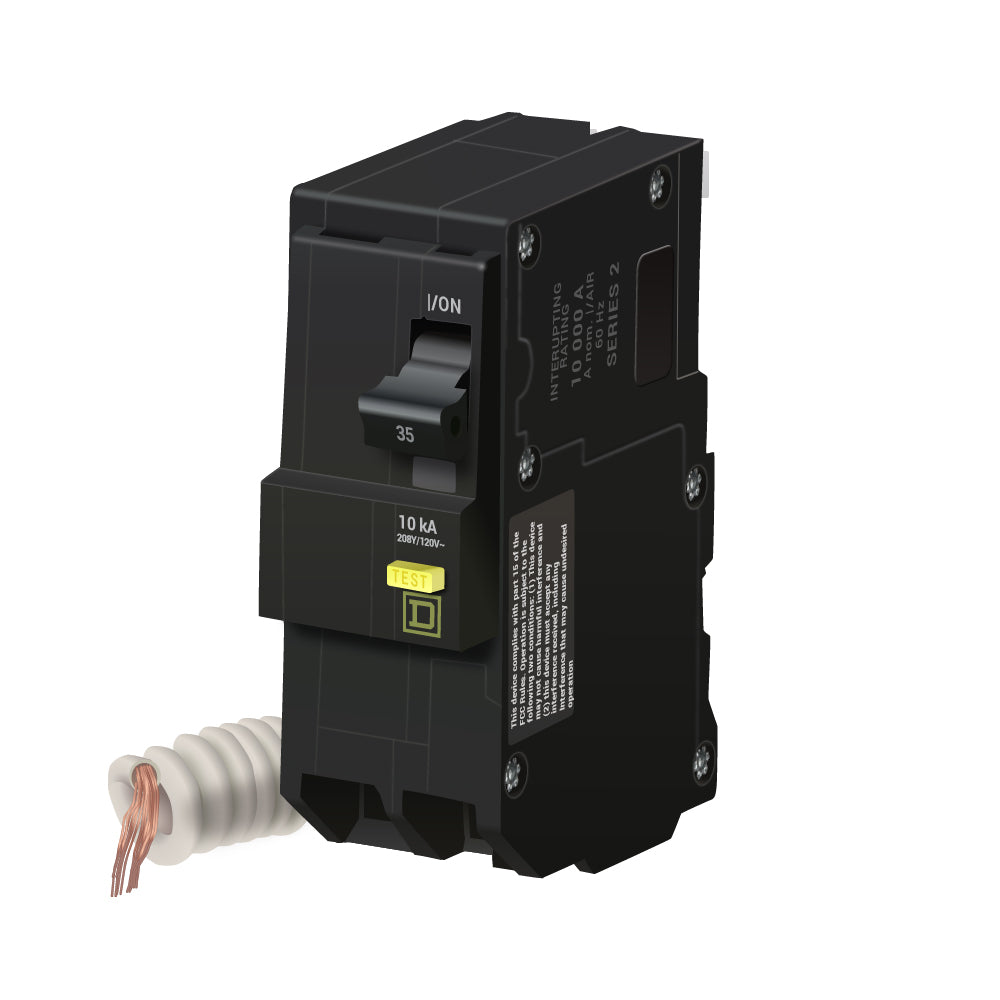

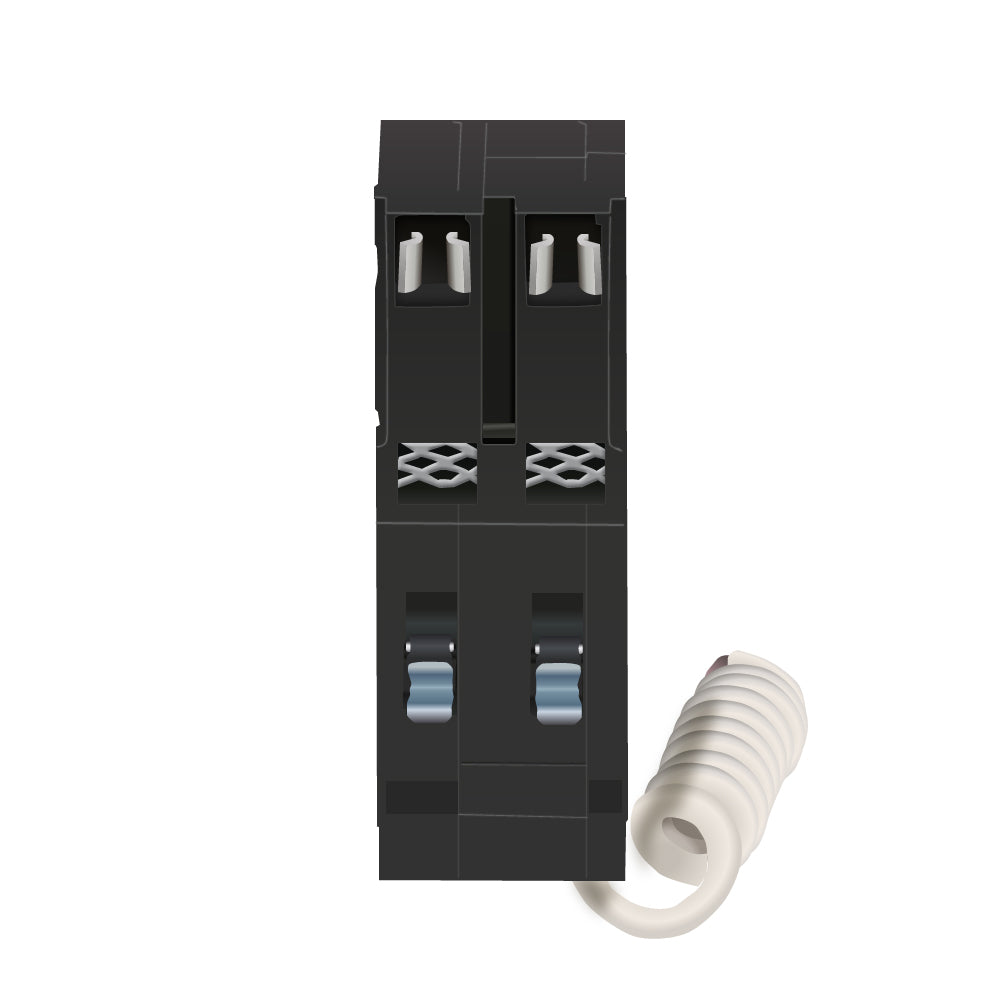

QO235GFI is a Square D 35 Amp 2 Pole ground fault circuit breaker designed for 120/240VAC systems with plug-in mounting and 10kA interrupting rating.This molded case circuit breaker features Class A 6 mA ground fault protection, thermal magnetic trip unit with long time and instantaneous trip functions, and a VISI-TRIP indicator. It is UL listed and CSA approved, suitable for residential, commercial, and industrial applications in QO series load centers.
- Key Specifications
- Manufacturer: Square D
- Series: QO
- Amperage: 35 Amp
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10kA at 120/240 VAC
- Trip Unit: Thermal Magnetic with Ground Fault (Class A 6 mA)
- Certifications: UL Listed, CSA Approved
- VISI-TRIP Indicator for trip status
- Application: Residential, Commercial, Industrial
Specifications
- Part Number: QO235GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : QO
- Voltage : 120/240VAC
- Amperage : 35
- Poles : 2
- AIC rating : 10kA at 120/240VAC 50/60 Hz
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 078590150879
- GTIN : 00785901508793
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.03
- Certification : UL, CSA
