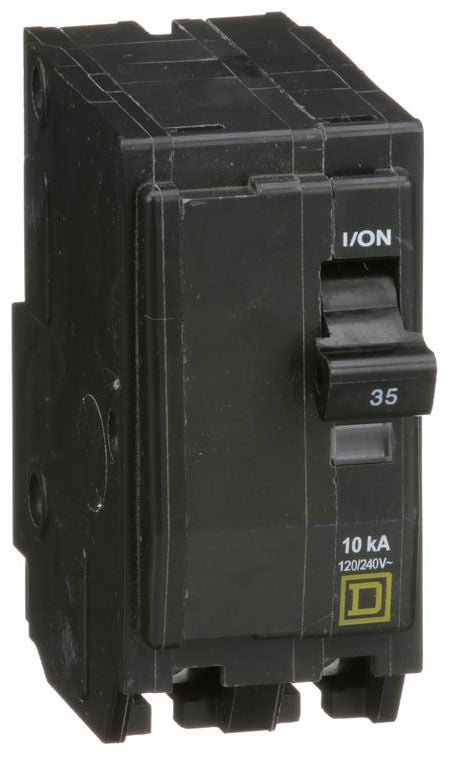

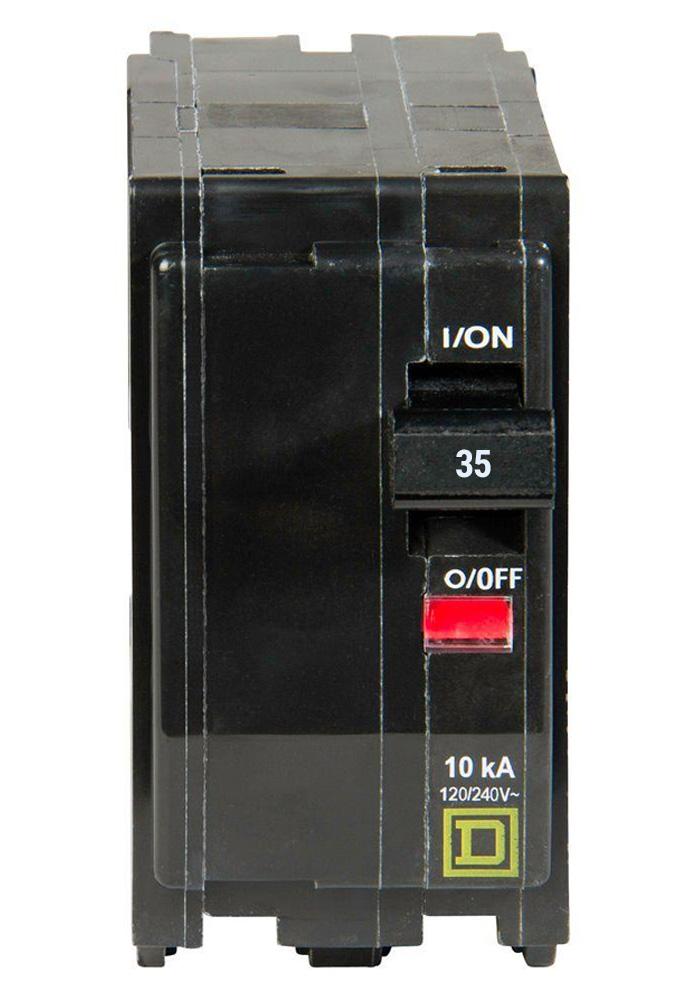

QO235 - Square D 35 Amp 2 Pole 120/240V Plug-On Circuit Breaker, 10kA Interrupt Rating

QO235

QO235 is a Square D 35 Amp 2 Pole plug-on circuit breaker designed for residential and commercial electrical protection.This QO series miniature circuit breaker features a 35 ampere current rating, 120/240 VAC voltage rating, and 2 poles with a plug-on mounting type. It provides a 10,000 amp interrupting rating (10kA) with thermal-magnetic trip unit technology for reliable overload and short circuit protection. The breaker is UL listed and CSA approved, compatible with Square D QO load centers and panelboards.

• Brand: Square D
• Series: QO
• Amperage: 35A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10kA
• Trip Unit: Thermal-Magnetic
• Phase: Single
• Certifications: UL Listed, CSA Approved
• Dimensions: Approx. 3.0" H x 1.5" W x 2.9" D
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO235
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901012429
• GTIN : 00785901012429
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.569
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
