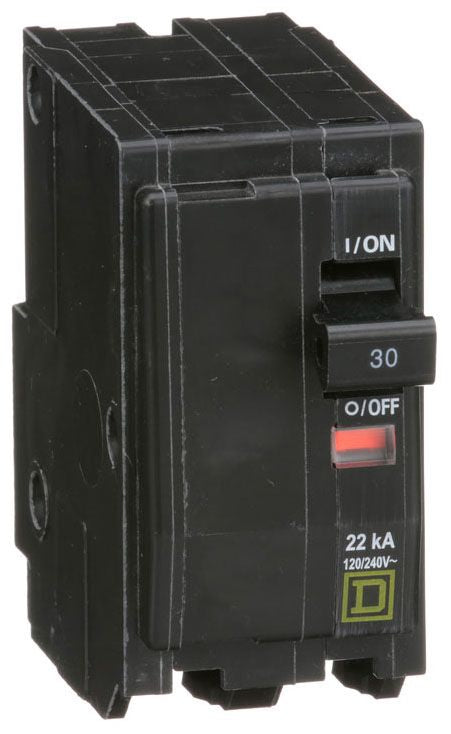

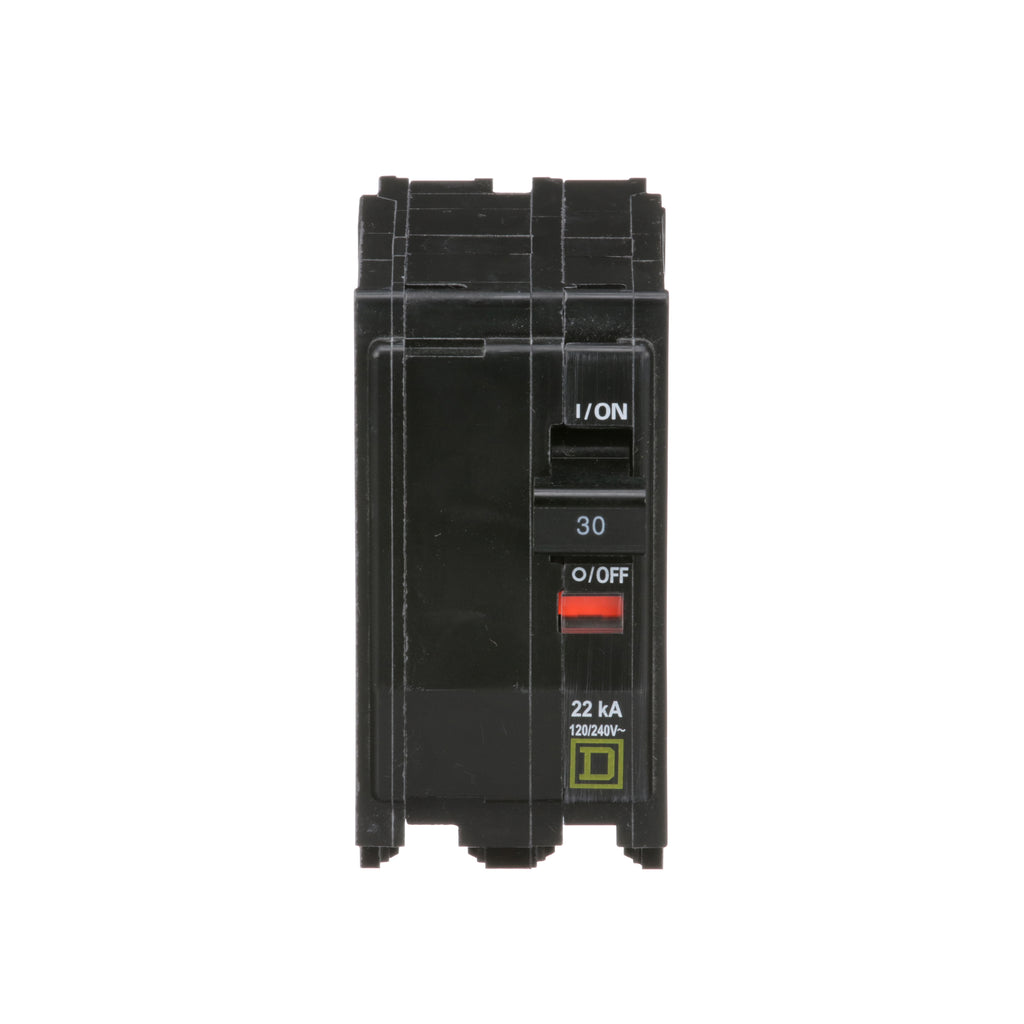

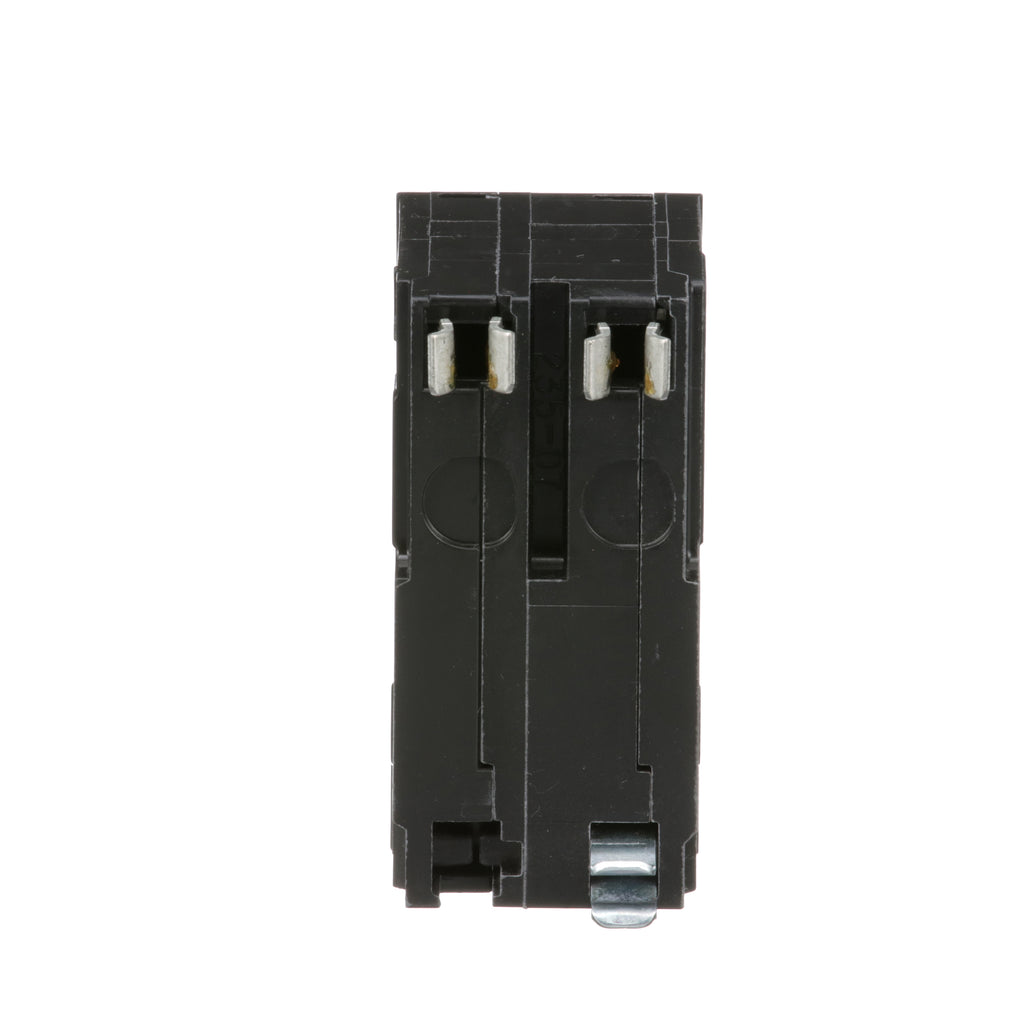

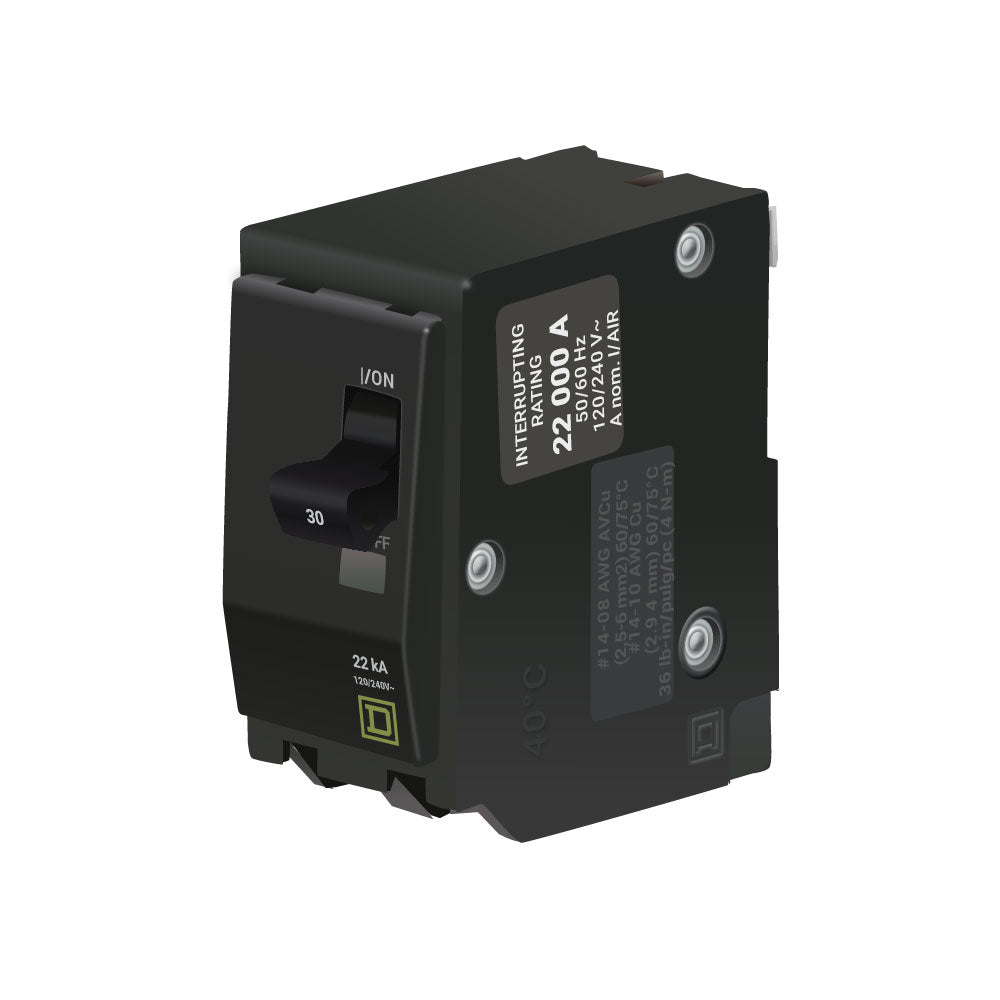

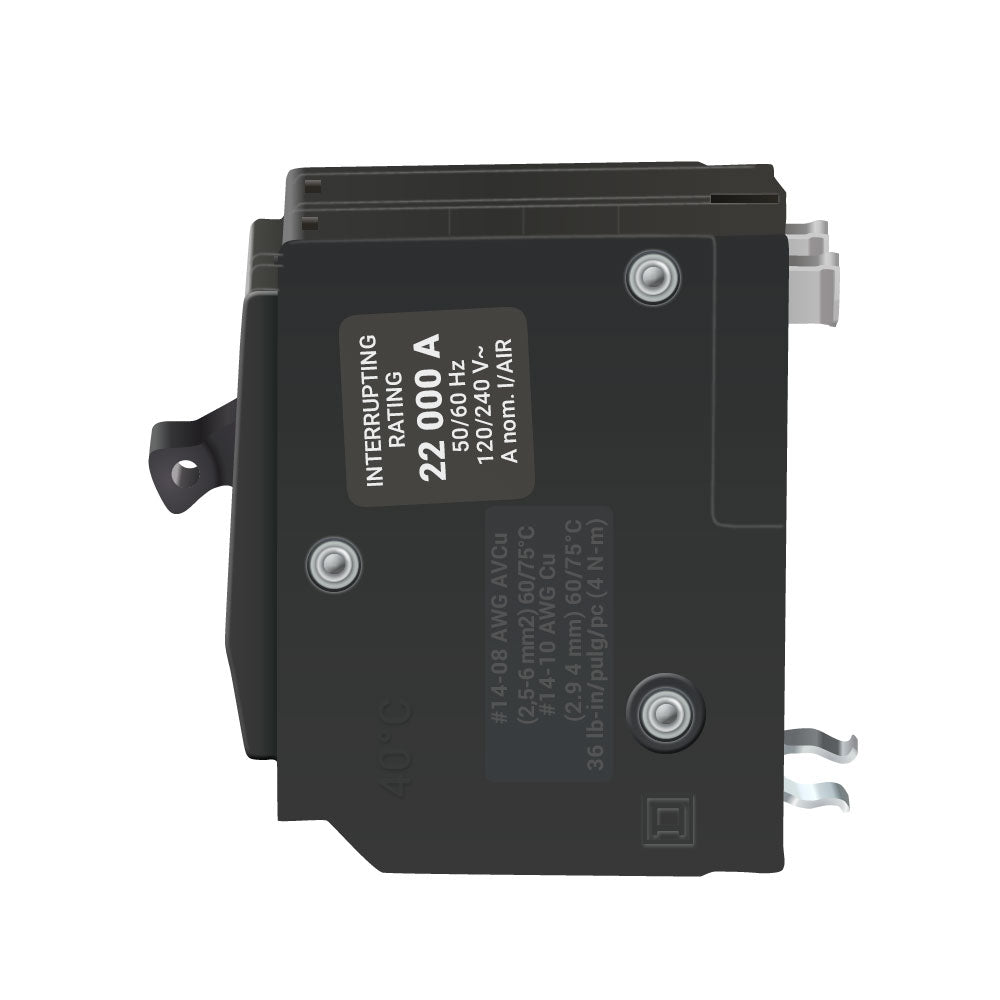

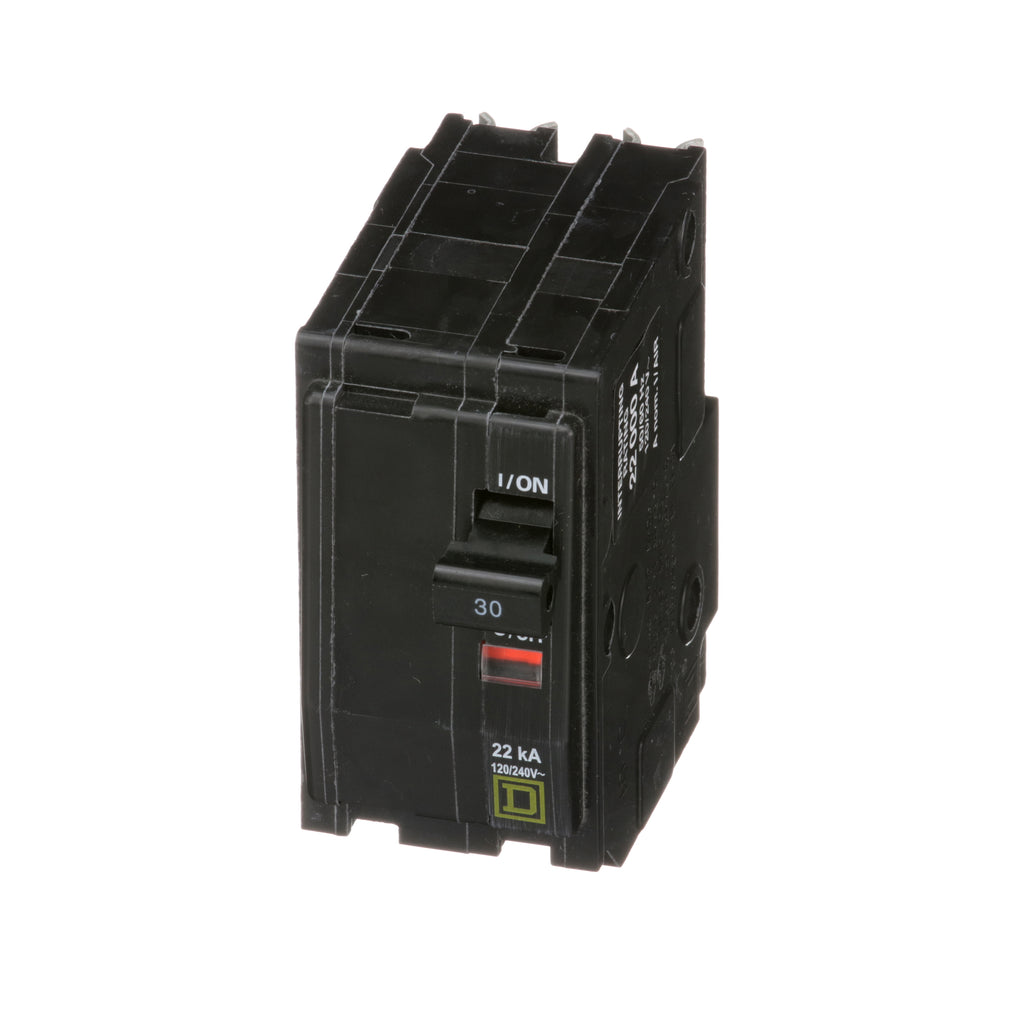

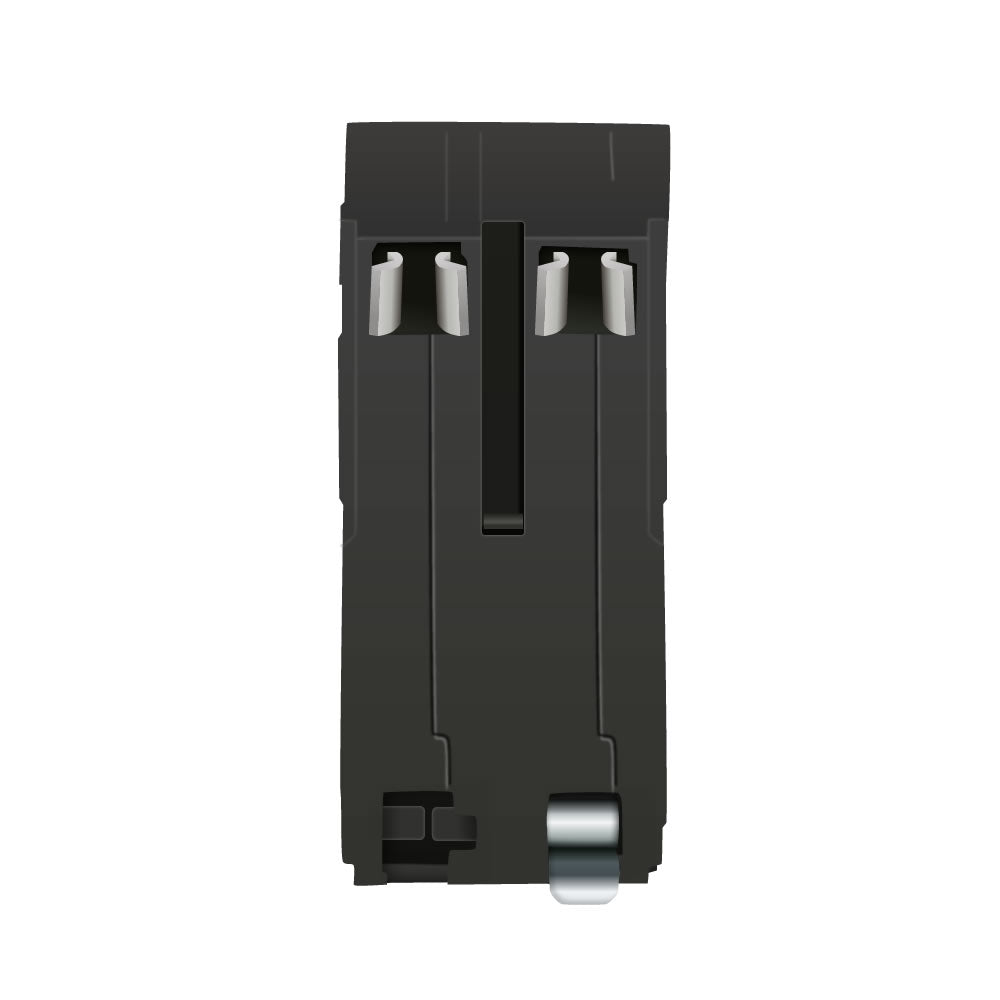

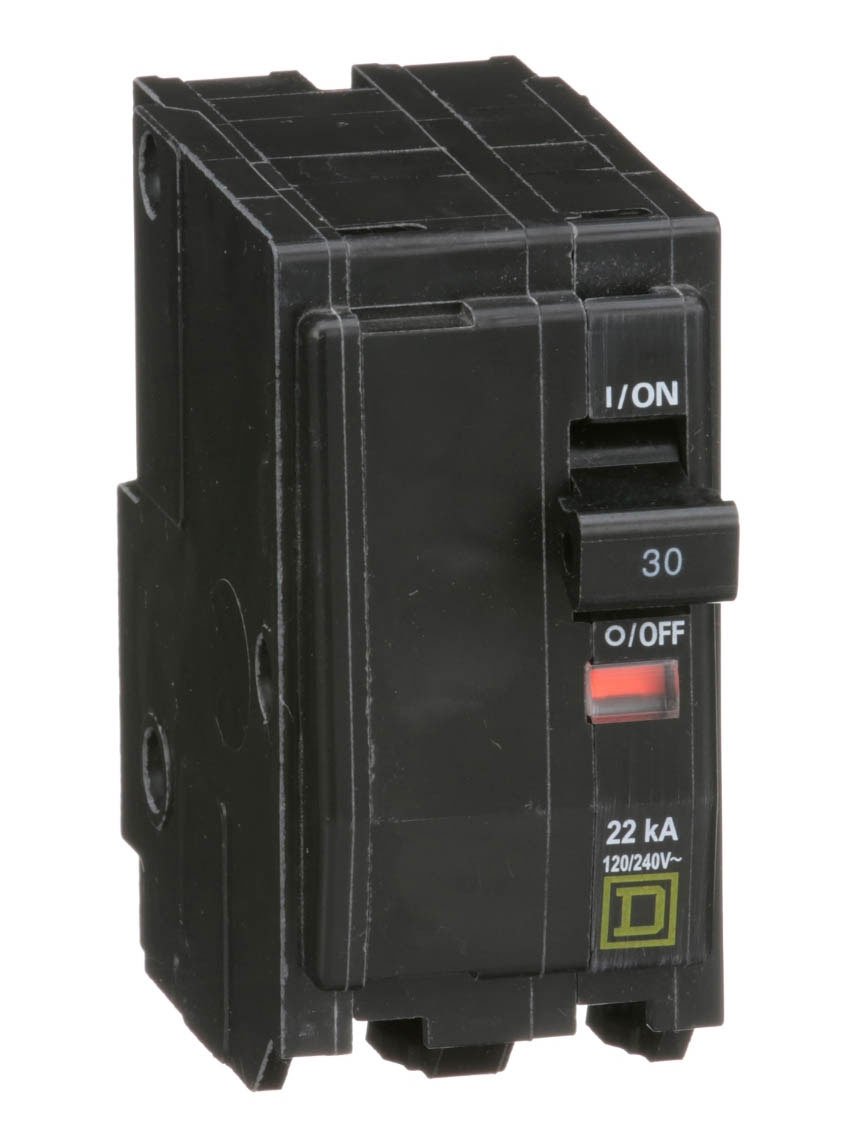

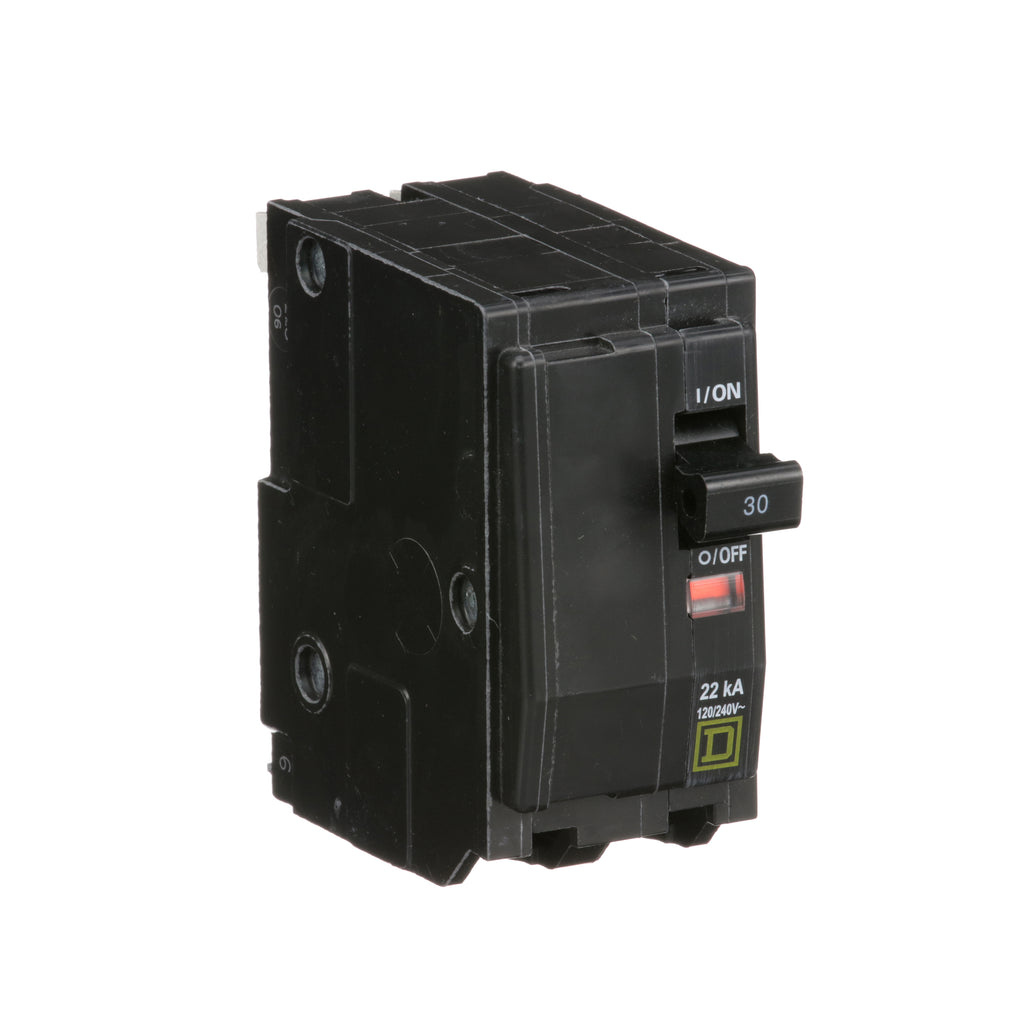

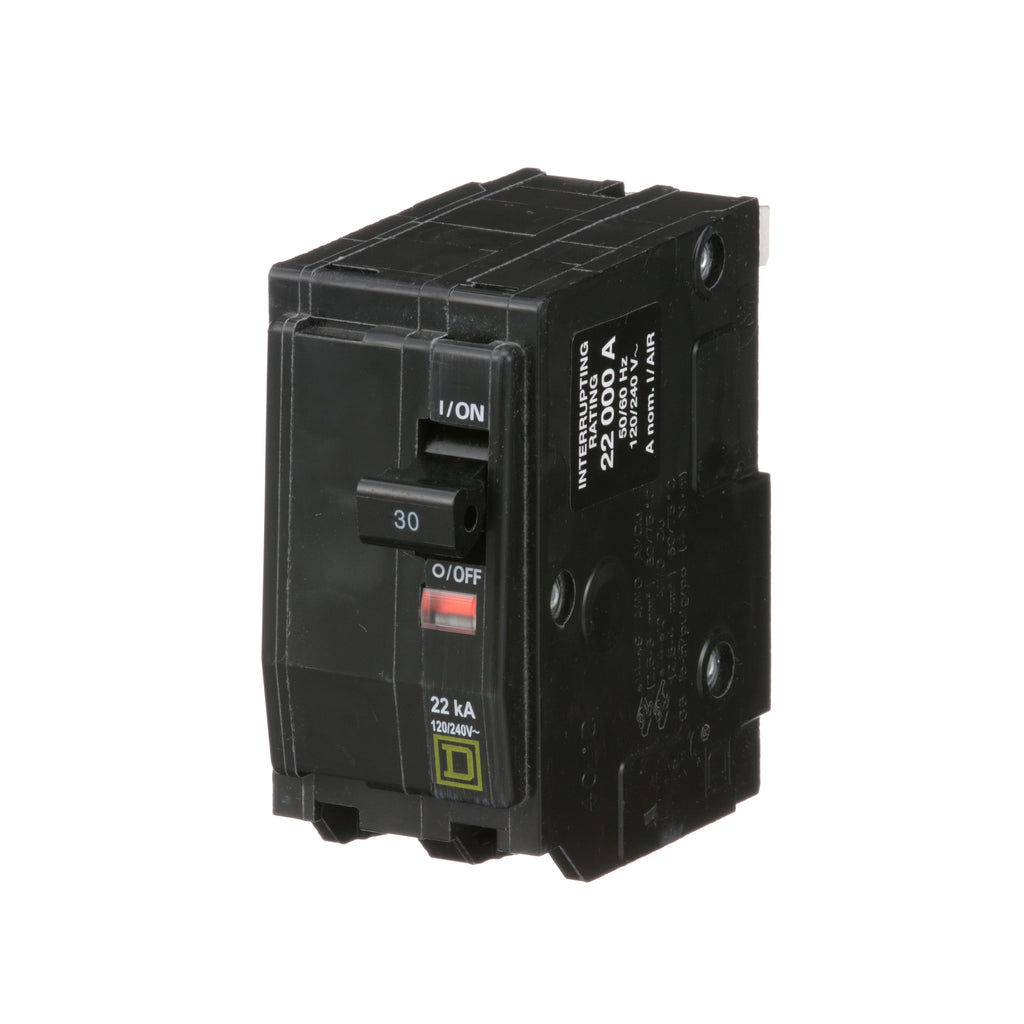

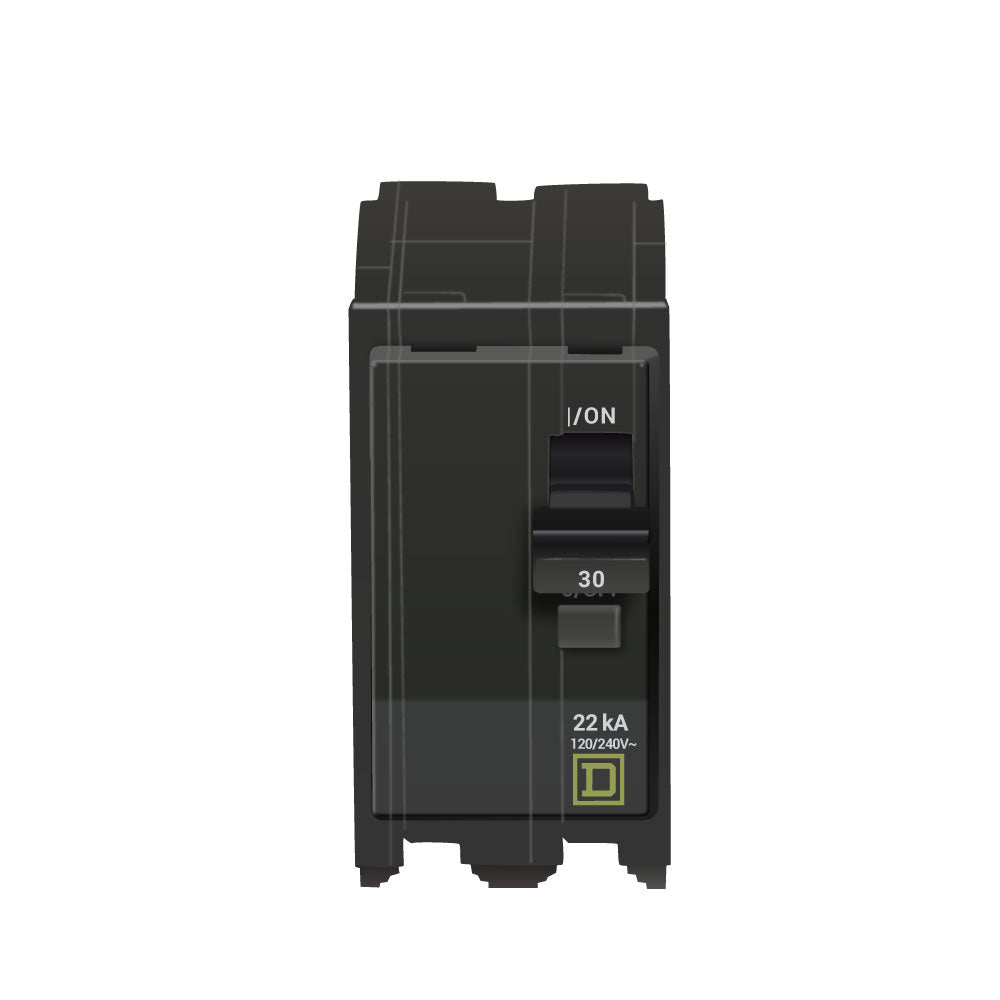

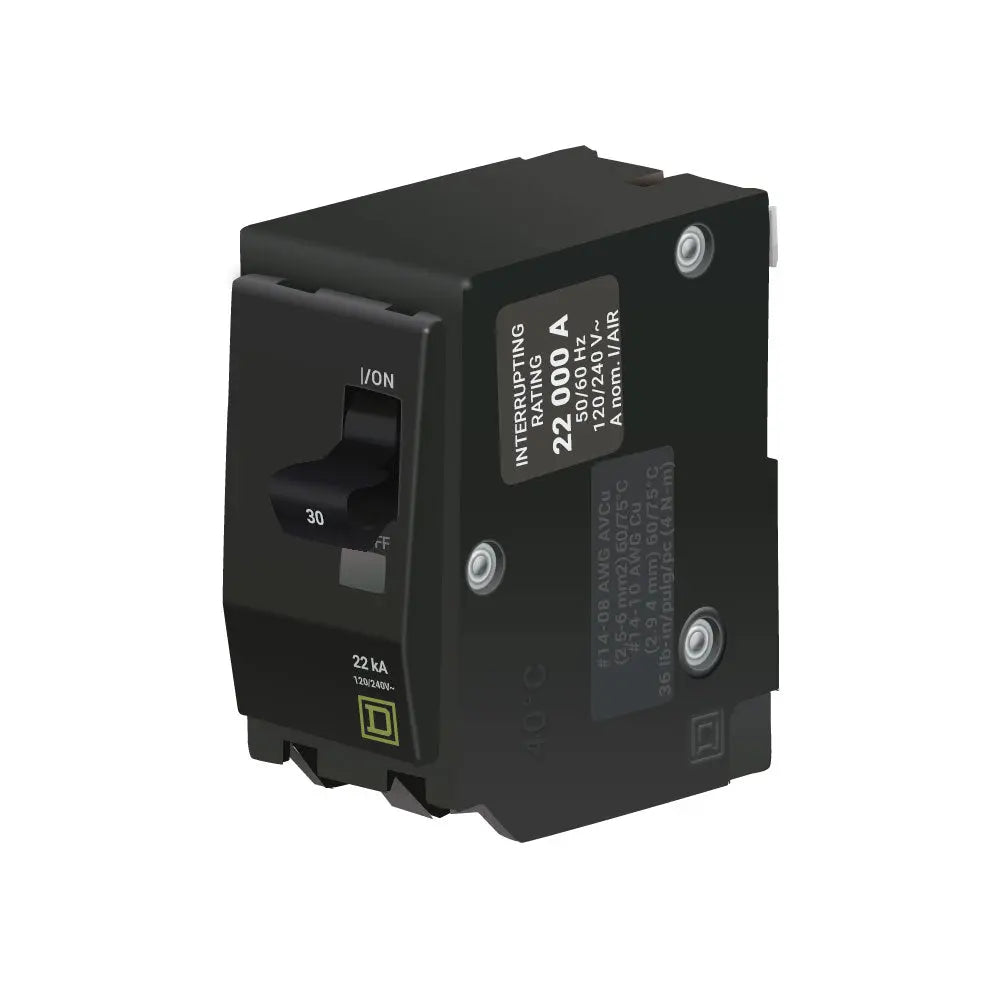

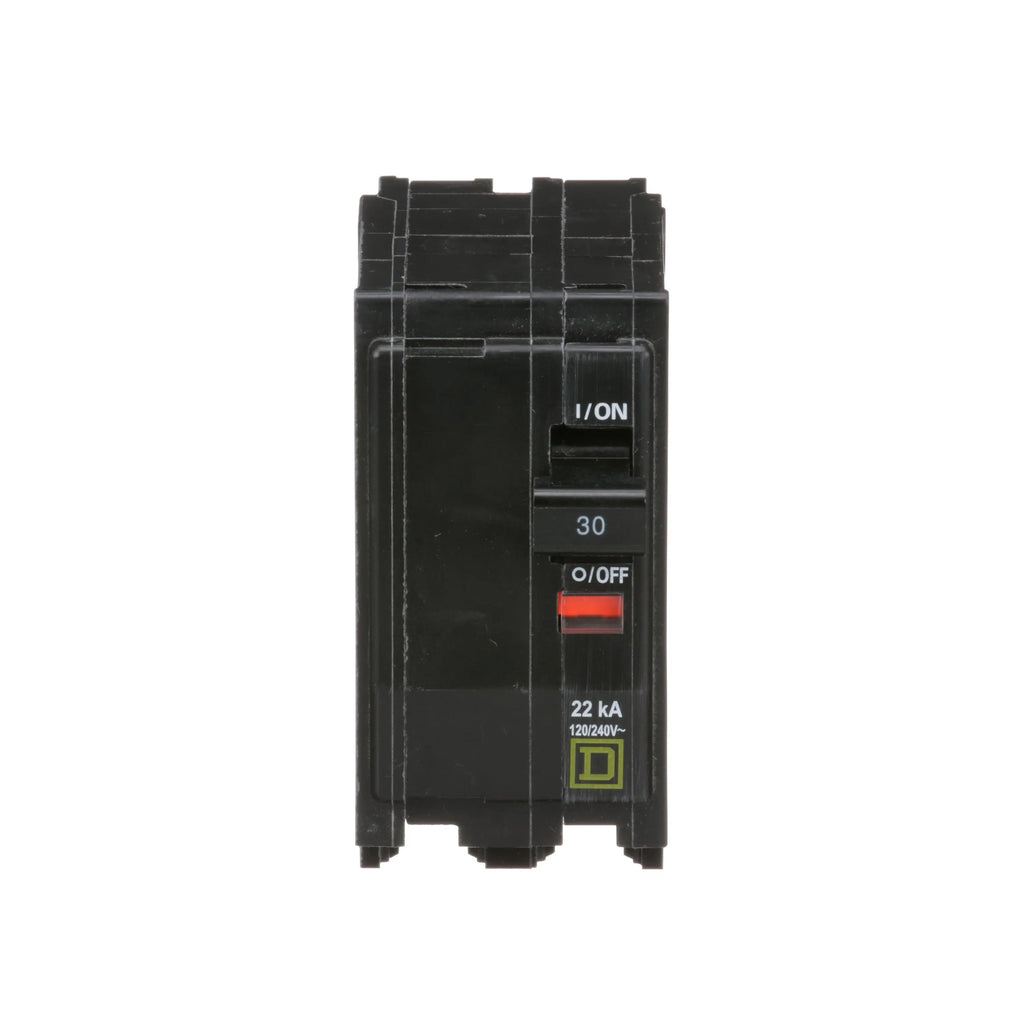

QO230VH - Square D 30 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker QO Series

QO230VH

QO230VH is a 2 Pole, 30 Amp thermal magnetic circuit breaker from Square D's QO Series designed for 120/240VAC and 48VDC applications.This molded case circuit breaker features a plug-in mounting type, long time and instantaneous trip functions, and a high interrupting rating of 22kA at 120/240VAC. It is UL and CSA certified, suitable for use with QO load centers and NQ panelboards, and supports wire gauges from AWG 14 to AWG 8 copper or aluminum.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Phase: 1
• Mounting Type: Plug-In
• Interrupting Rating: 22kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA
• Connection Type: Pressure Plate
• Wire Gauge: AWG 14 to AWG 8 Copper/Aluminum
• Temperature Rating: 104°F (40°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO230VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371847
• GTIN : 00785901371847
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.58
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper/Aluminum
