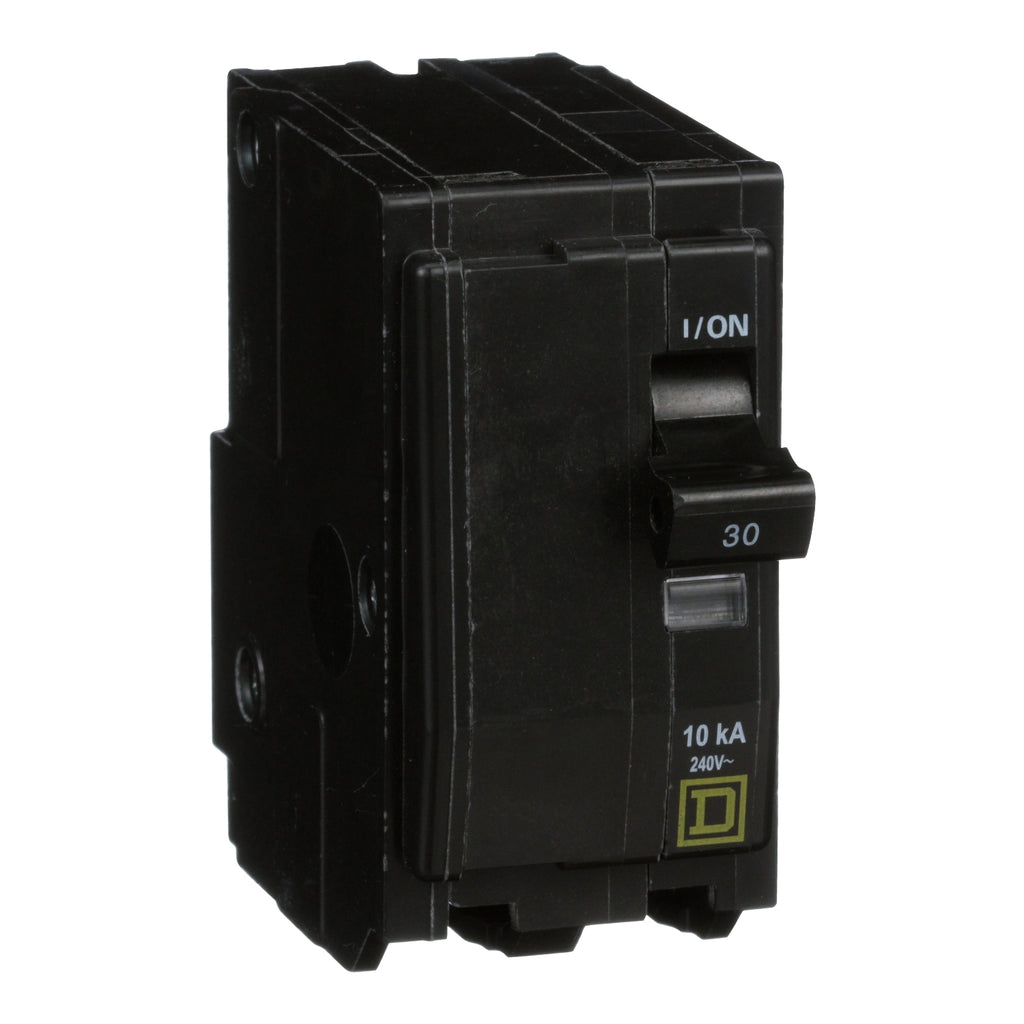

QO230H - Square D 240V 30A 2 Pole Circuit Breaker 10kA

QO230H

QO230H is a 2 pole miniature circuit breaker manufactured by Square D, rated for 240 volts at 30 amperes with a 10 kiloampere interrupt rating at 240VAC. This plug-in mount breaker features thermal magnetic trip protection and common trip operation, designed for use in QO load centers. The breaker accommodates wire sizes from 14 to 8 AWG and operates at 50/60 Hz frequency with UL and CSA certifications.

• Amperage Rating: 30 A
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10 kA @ 240VAC
• Trip Type: Thermal Magnetic
• Mounting: Plug-in
• Connection Type: Pressure Plate
• Wire Size: 14 to 8 AWG
• Frequency: 50/60 Hz
• Certifications: UL/CSA
• Dimensions: 2.91 in L x 1.5 in W x 3 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO230H
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400431
• GTIN : 00785901400431
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.58
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
