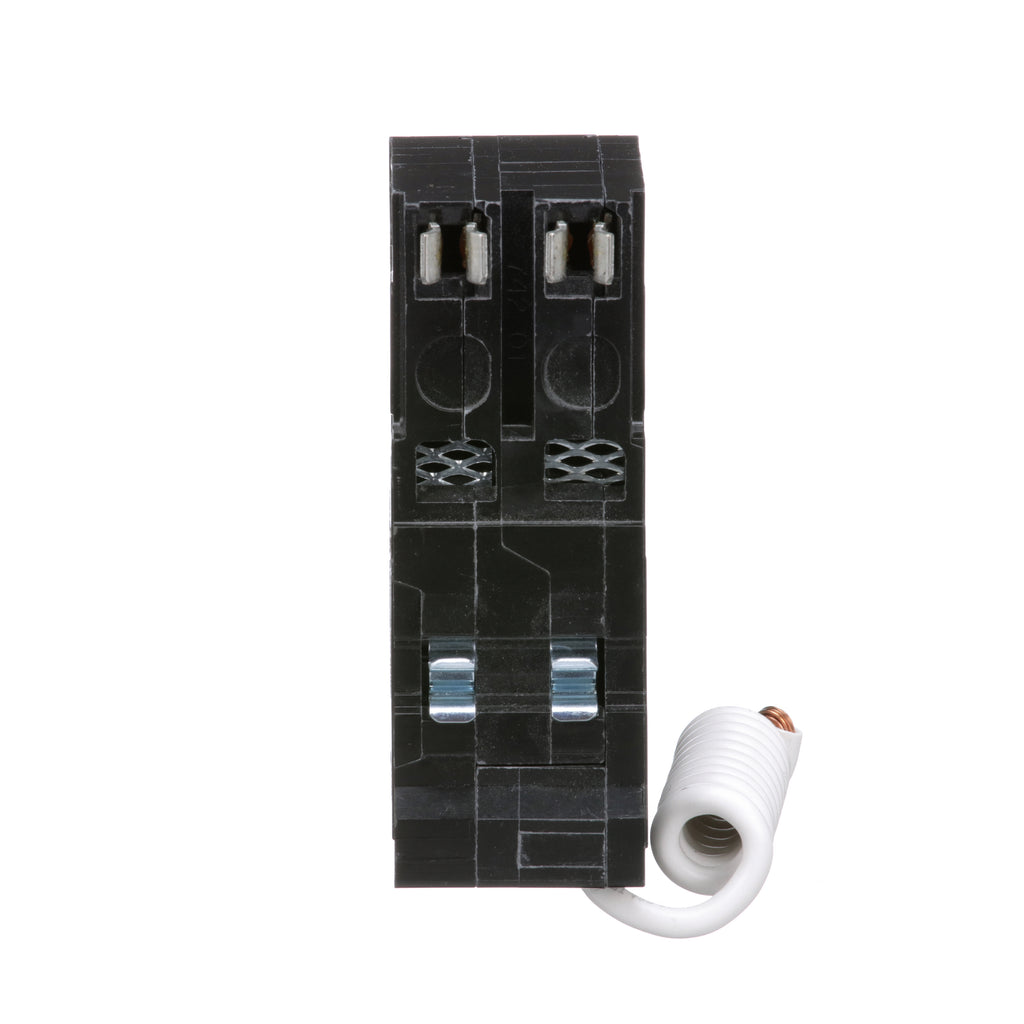

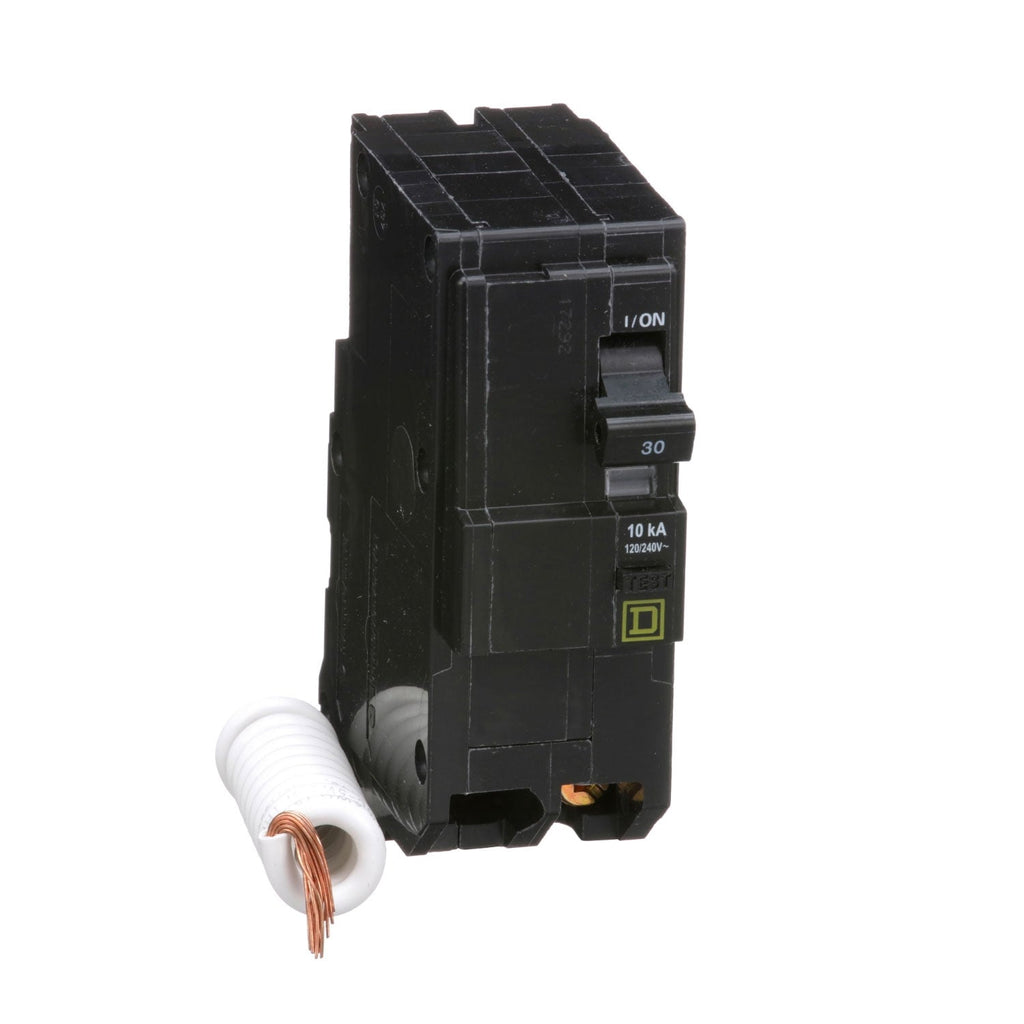

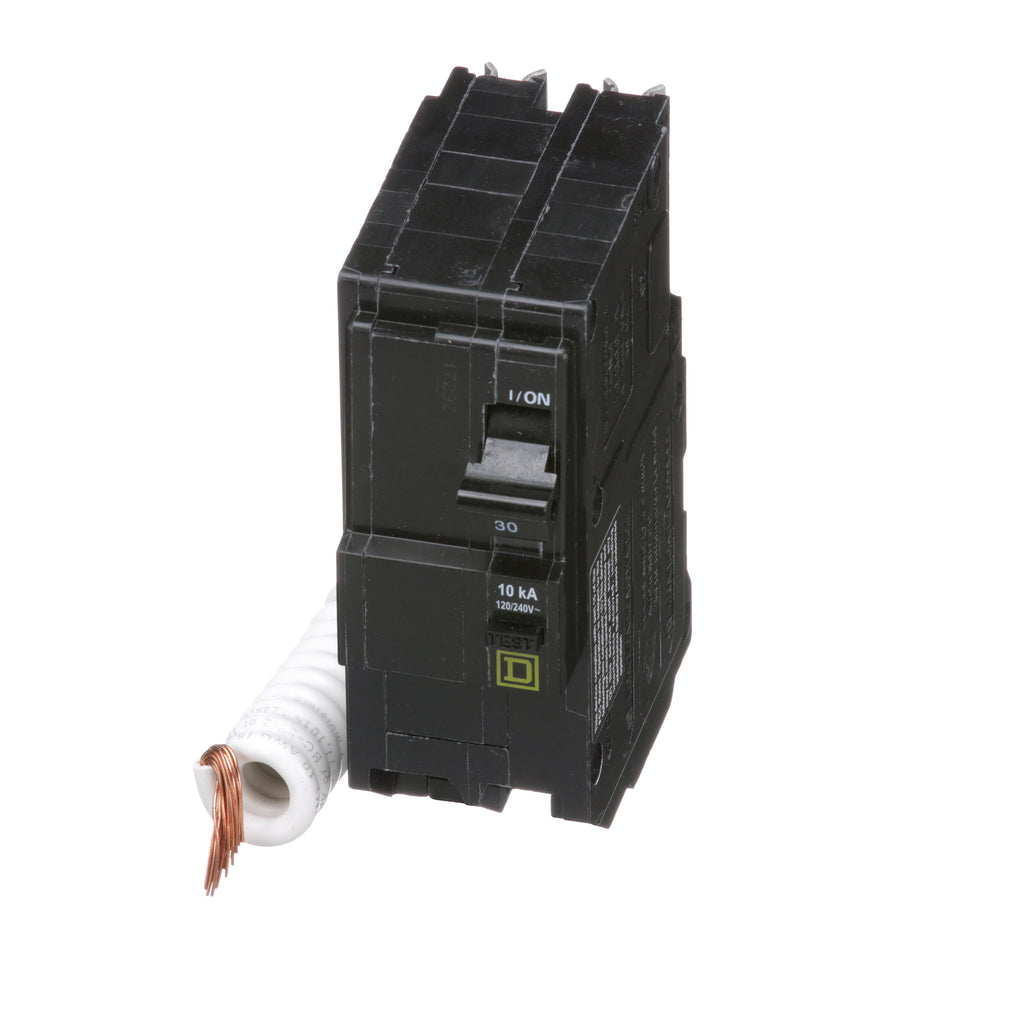

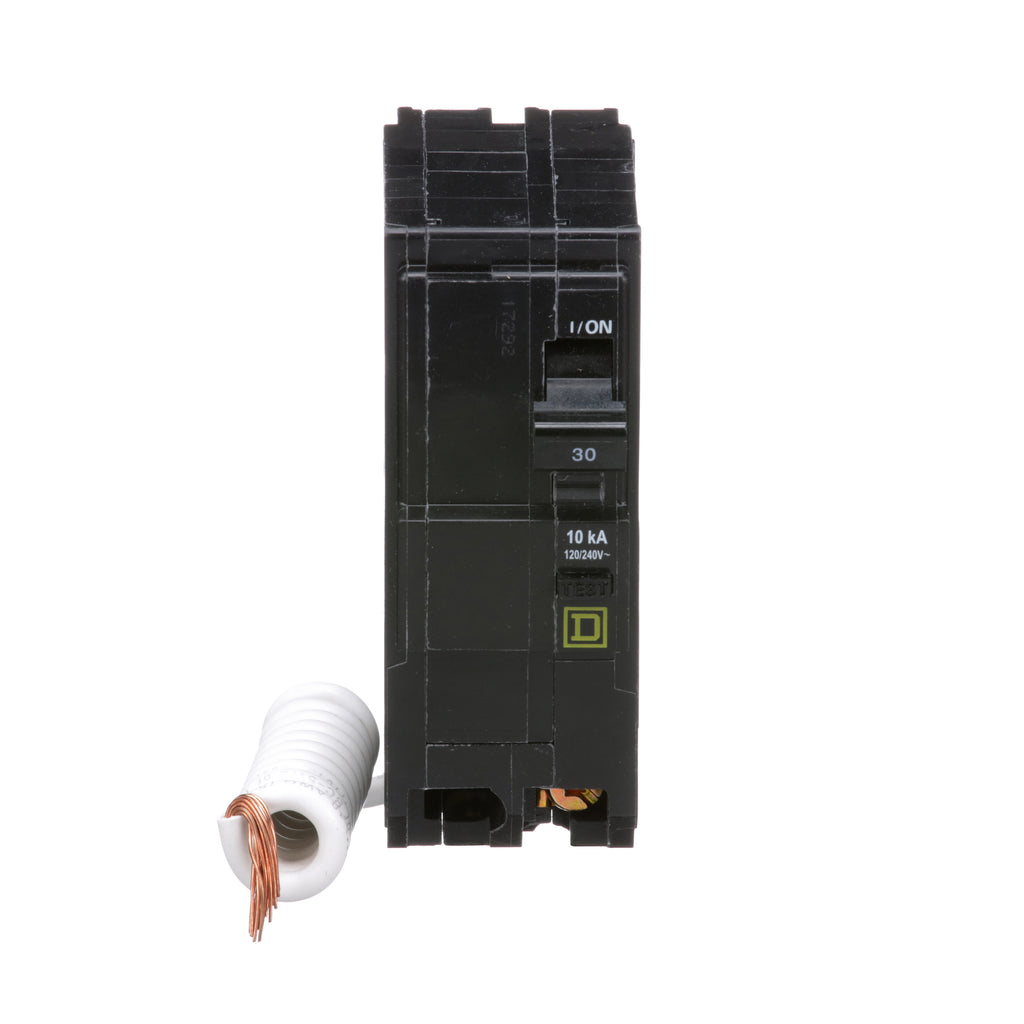

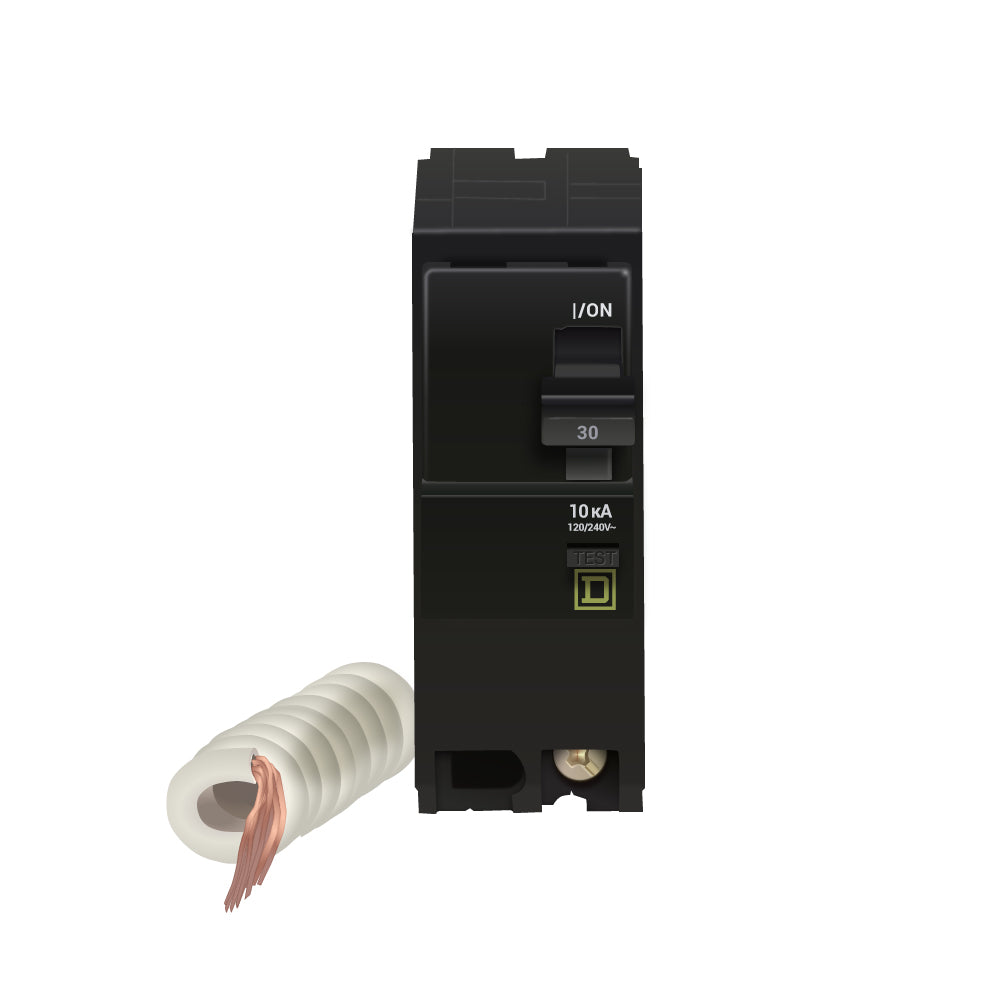

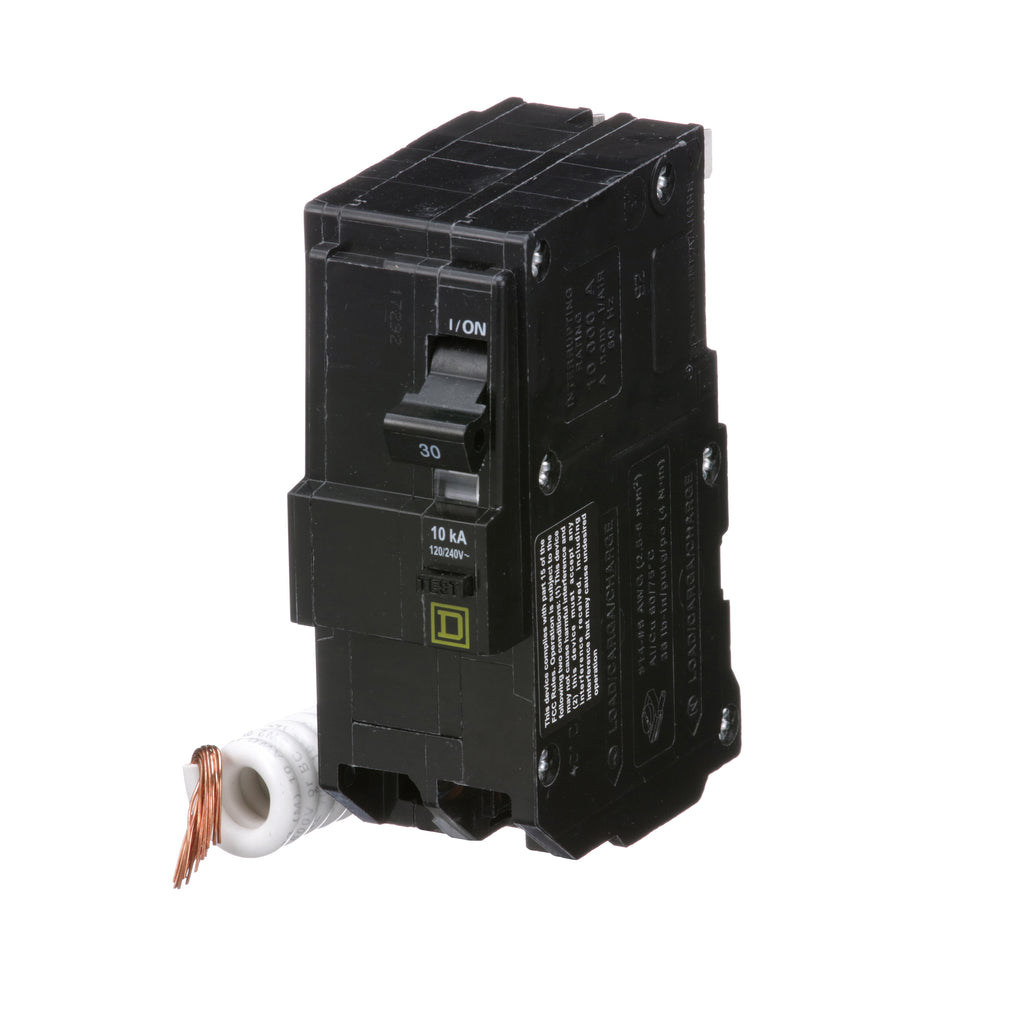

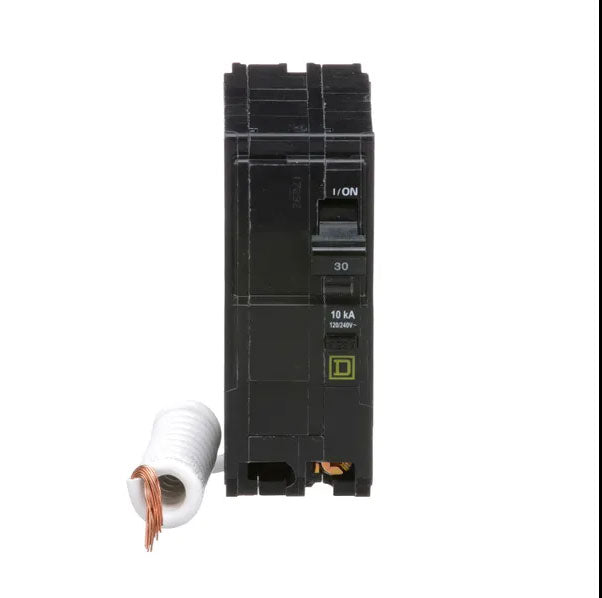

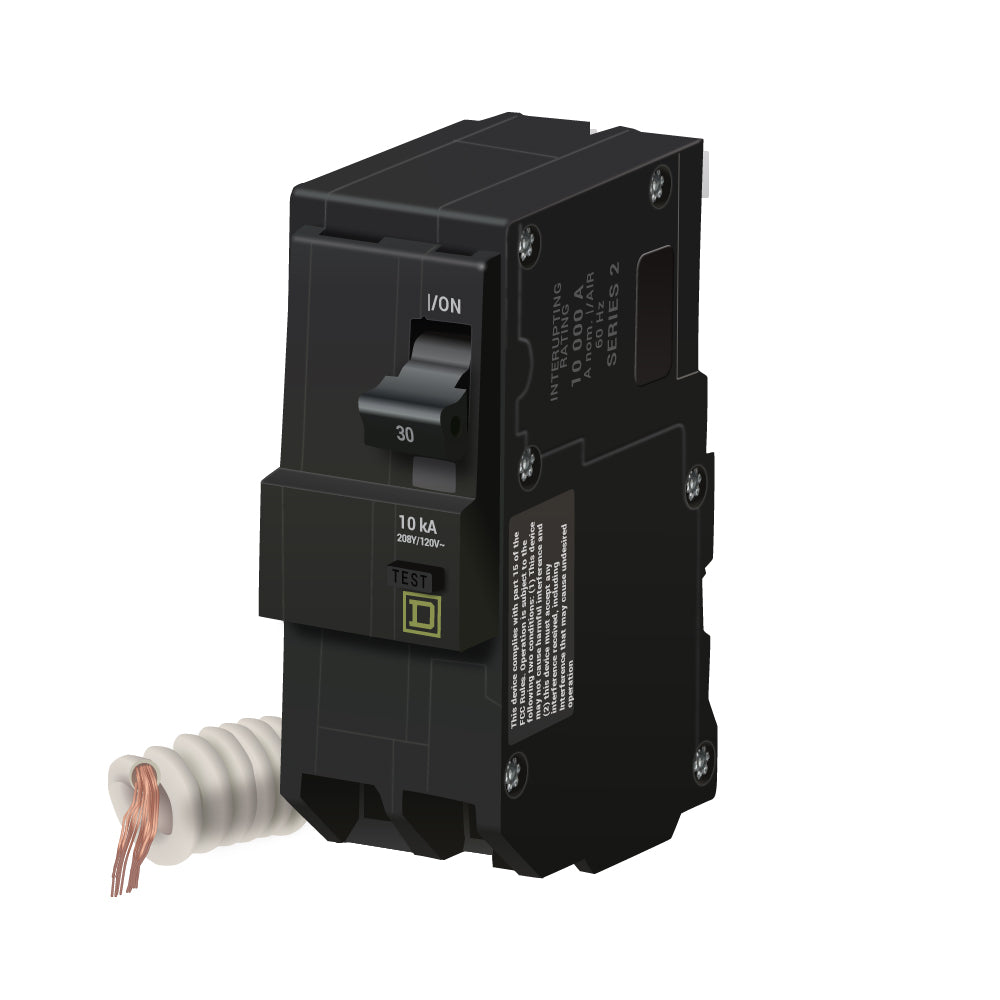

QO230EPD - Square D 30 Amp 2 Pole 120/240VAC QO Series Ground Fault Circuit Breaker, Plug-In Mount, 10kA Interrupt, Thermal Magnetic Trip, UL/CSA Listed

QO230EPD

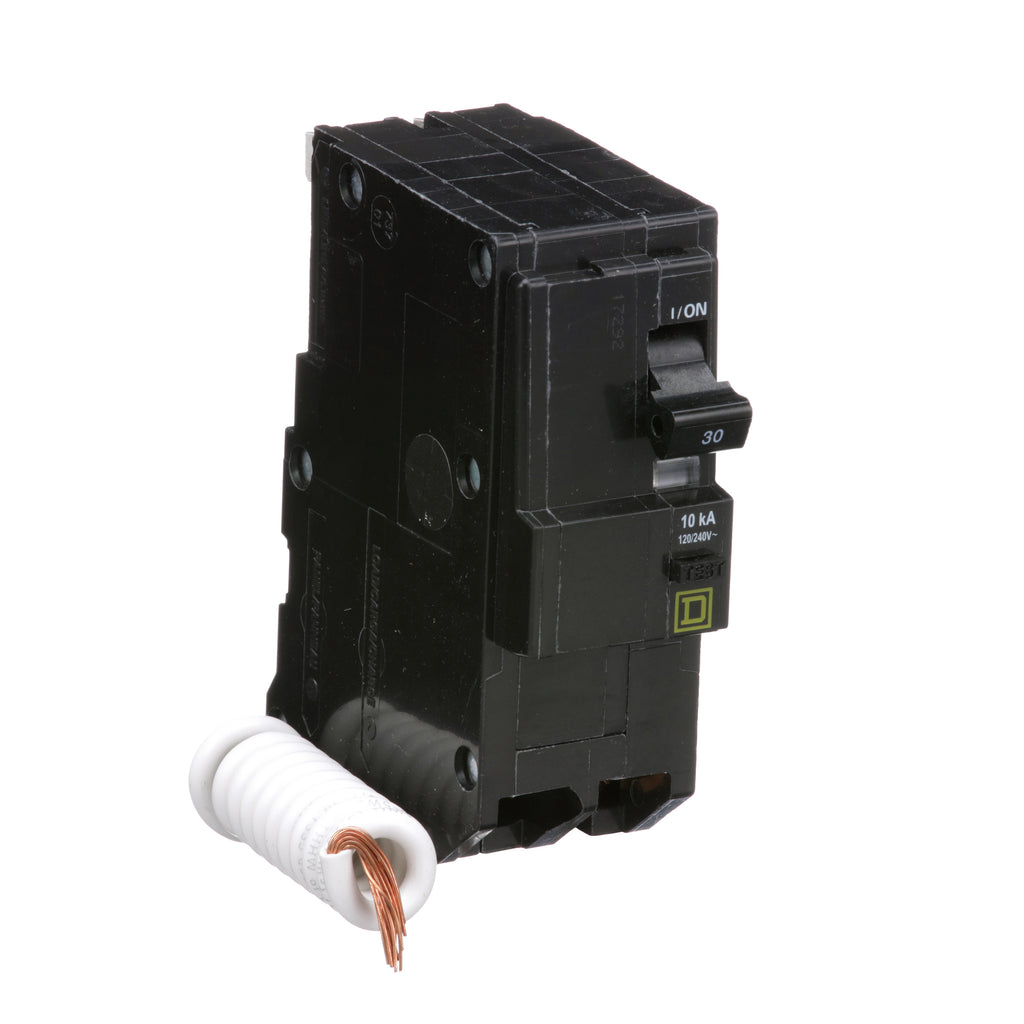

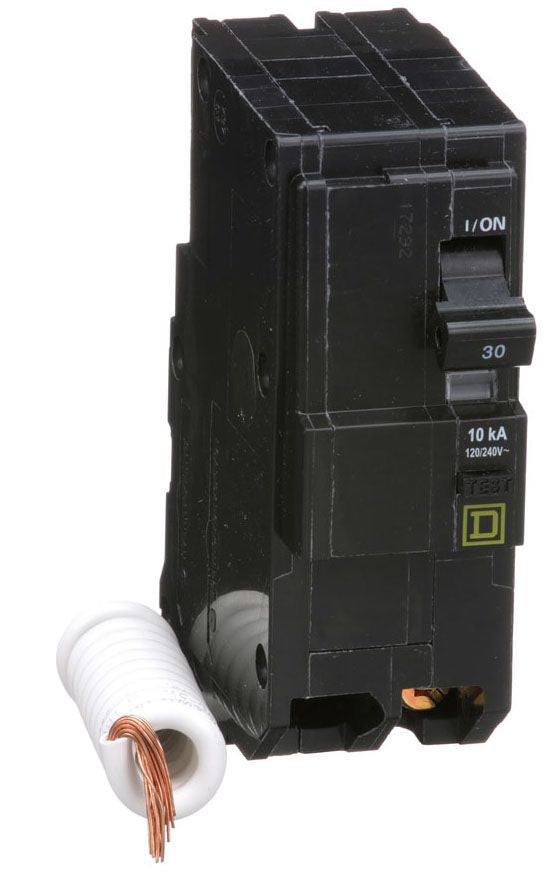

QO230EPD is a Square D 2-pole, 30 Amp, 120/240VAC ground fault circuit breaker designed for reliable overcurrent and ground fault protection in residential and commercial applications.

This plug-in mount breaker features a thermal magnetic trip unit for both long-time and instantaneous protection, with a 10kA interrupting rating at 120/240VAC. It is part of the QO series, known for durability and easy installation, and is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Certified
• Connection Type: Pressure Plate
• Wire Range: 14-8 AWG Copper, 12-8 AWG Aluminum
• Temperature Rating: 40°C
• VisiTrip Indicator: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO230EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Equipment Protection (30mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901120759
• GTIN : 00785901120759
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
