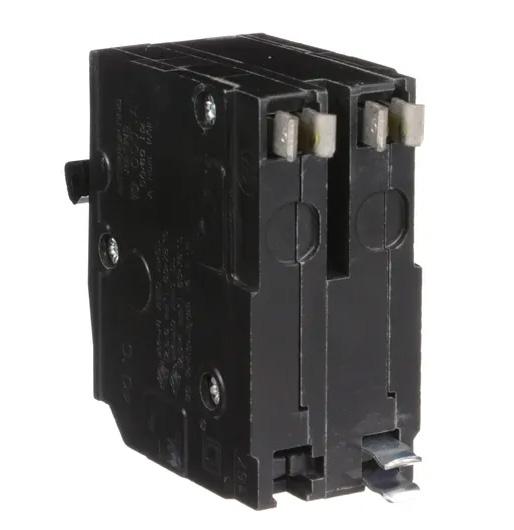

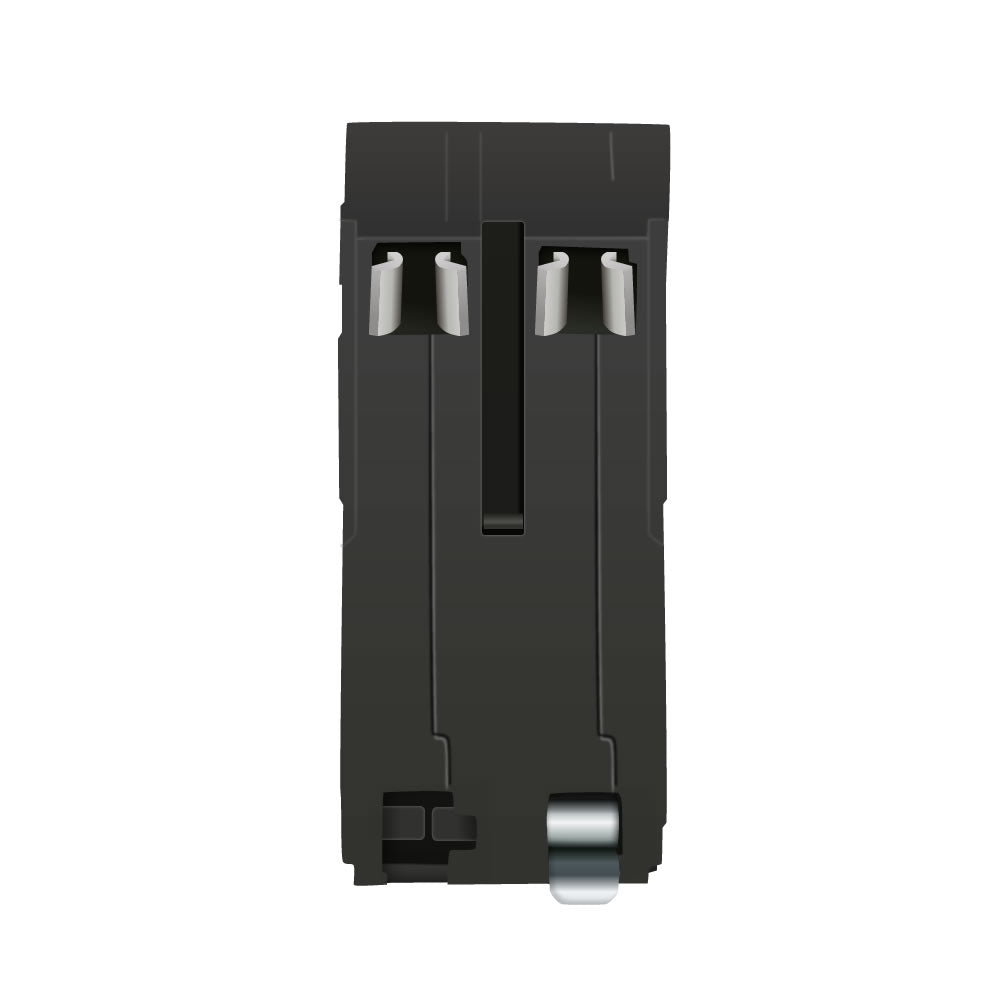

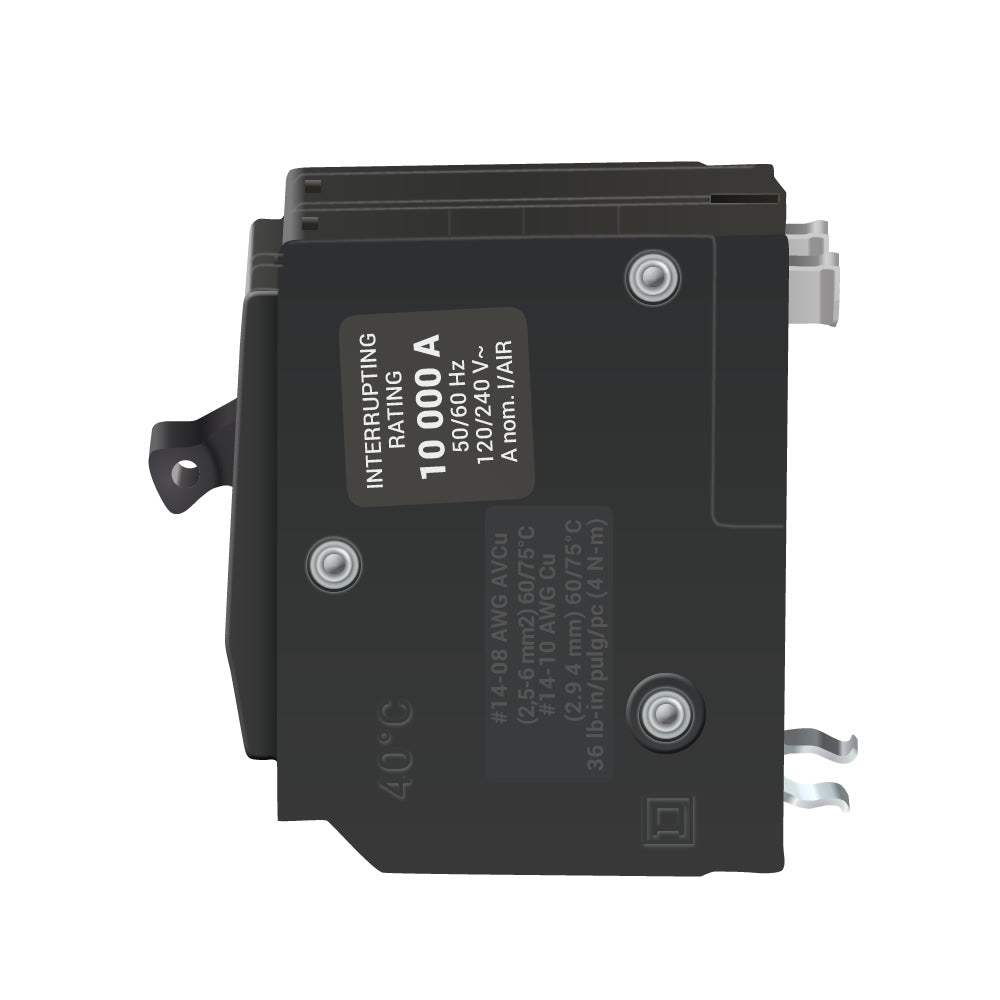

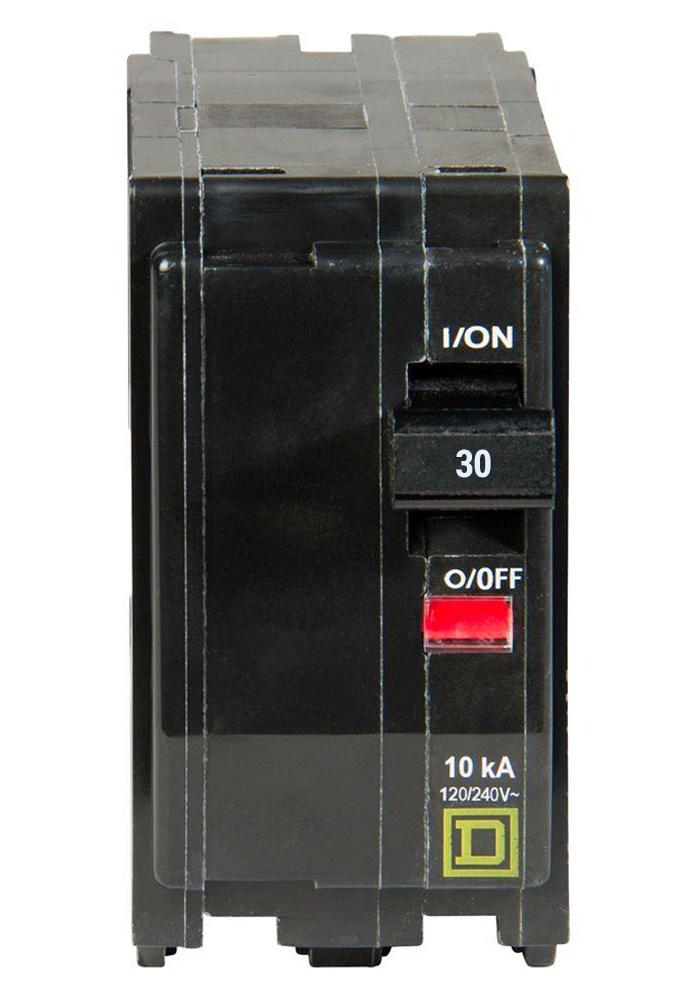

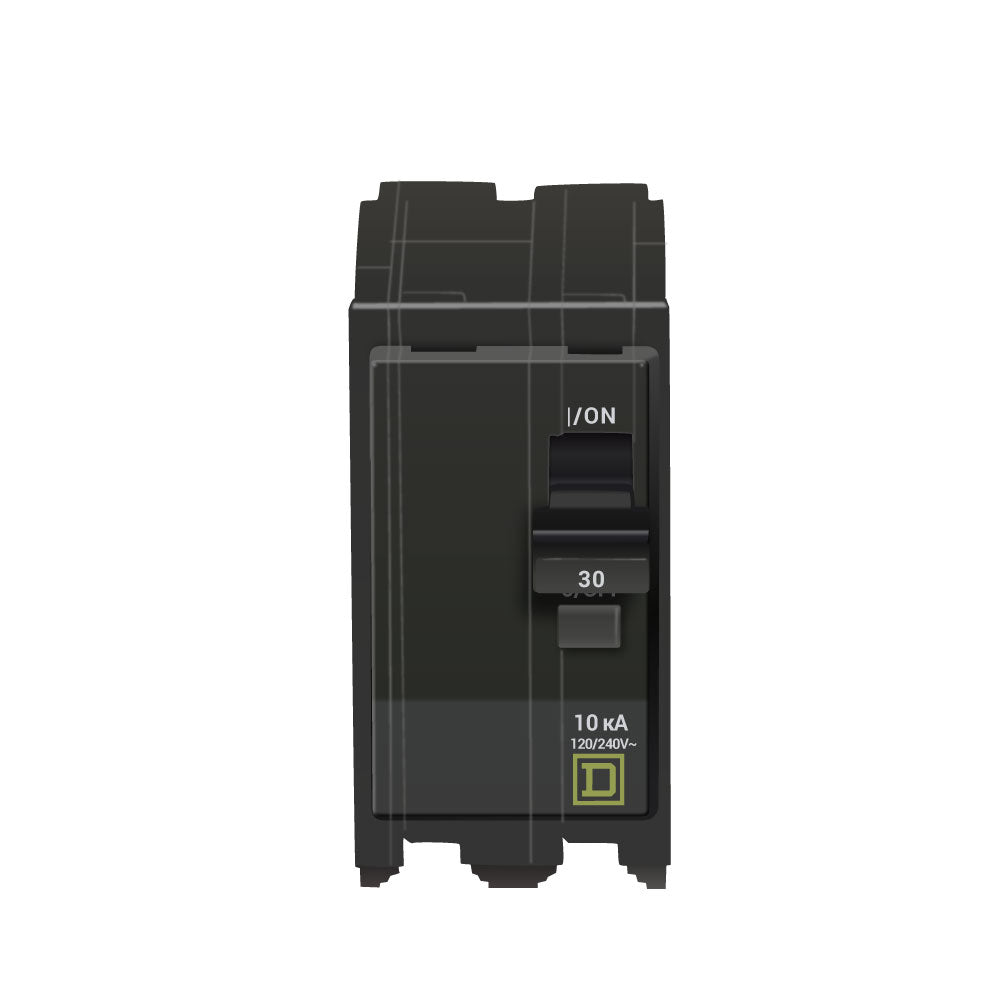

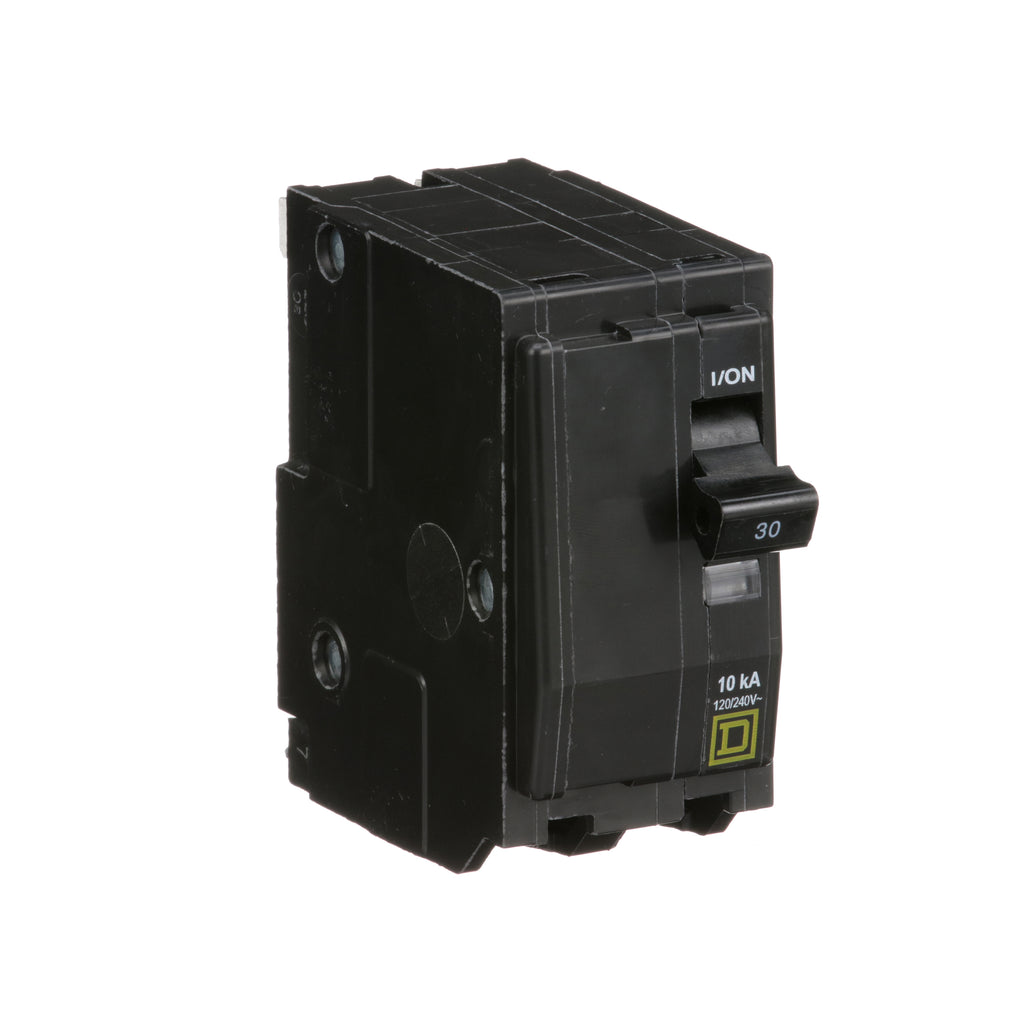

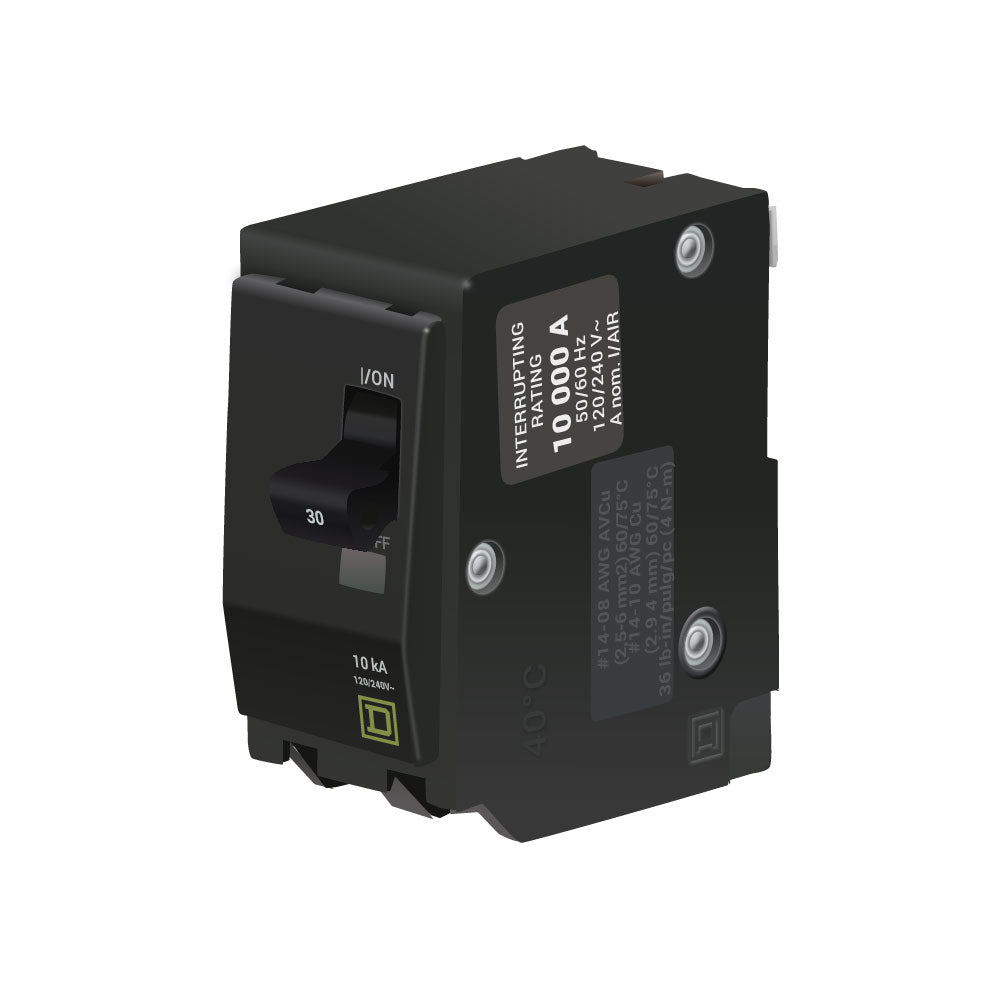

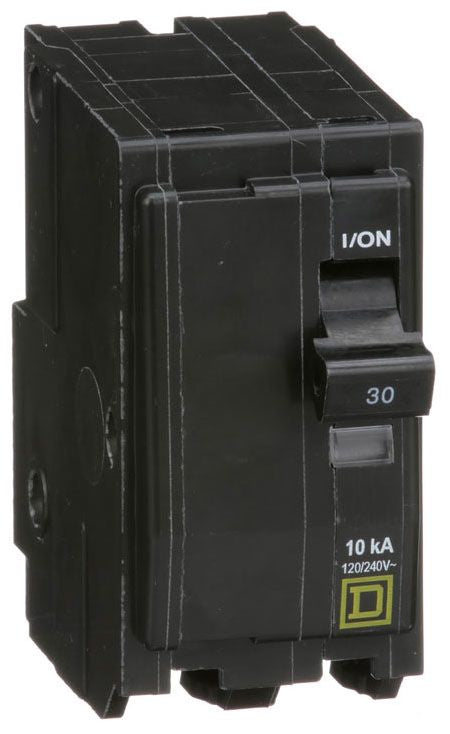

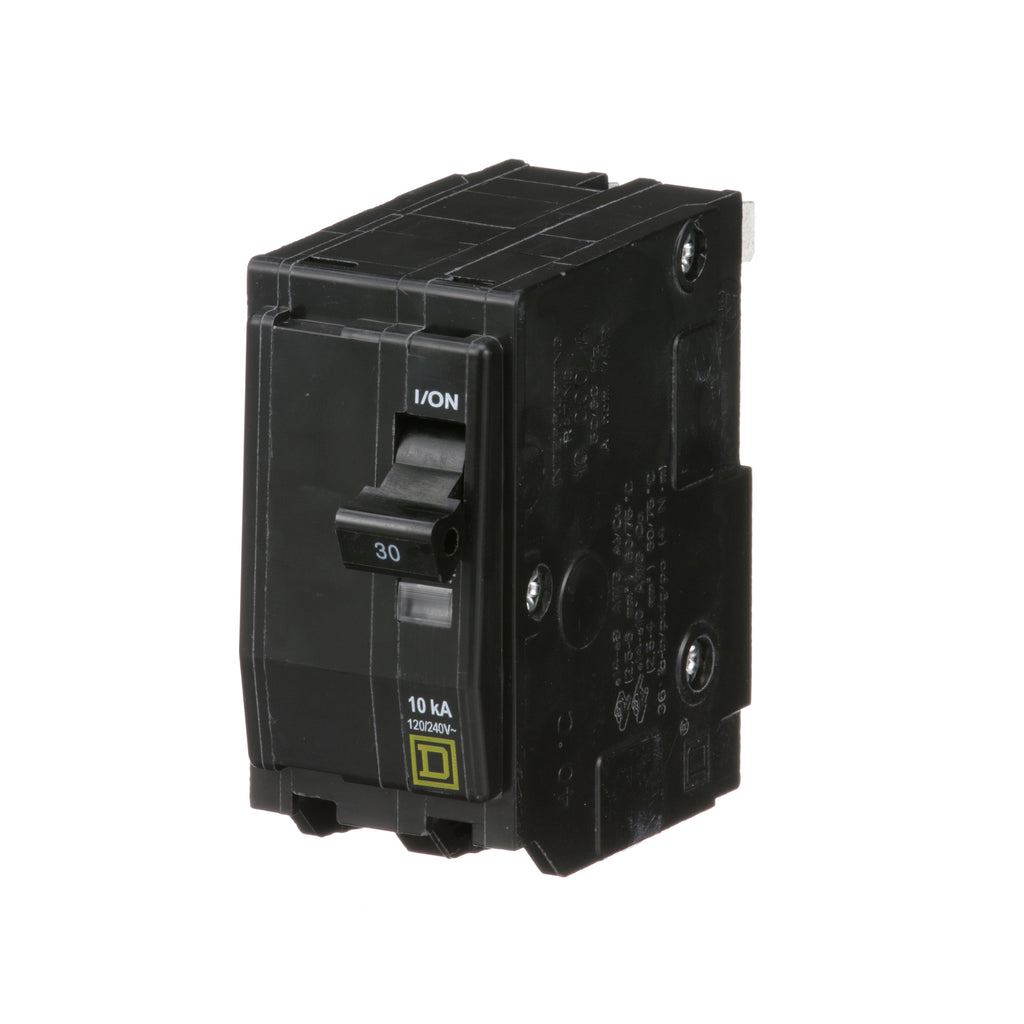

QO230 - Square D 30 Amp 2 Pole 120/240VAC Circuit Breaker QO Series Plug-In 10kA Interrupt Rating

QO230

QO230 is a 30 Amp 2 Pole circuit breaker from Square D designed for 120/240VAC electrical systems. It features a plug-in mounting type and provides reliable circuit protection.This Square D QO230 circuit breaker is a thermal magnetic molded case breaker with a 10kA interrupting rating at 120/240VAC. It includes long-time and instantaneous trip functions (LI) for enhanced protection. The breaker fits QO series panels and supports wire gauges from AWG 14 to AWG 8 for copper or aluminum wiring. It is UL and CSA certified and rated for use at 40 °C ambient temperature.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA
• Terminal Connection: Pressure Plate
• Wire Gauge: AWG 14 to AWG 8, Copper or Aluminum
• Dimensions (H x W x D): 3.0 x 1.5 x 2.9 inches
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO230
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400424
• GTIN : 00785901400424
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.55
• Certification : HACR, UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
