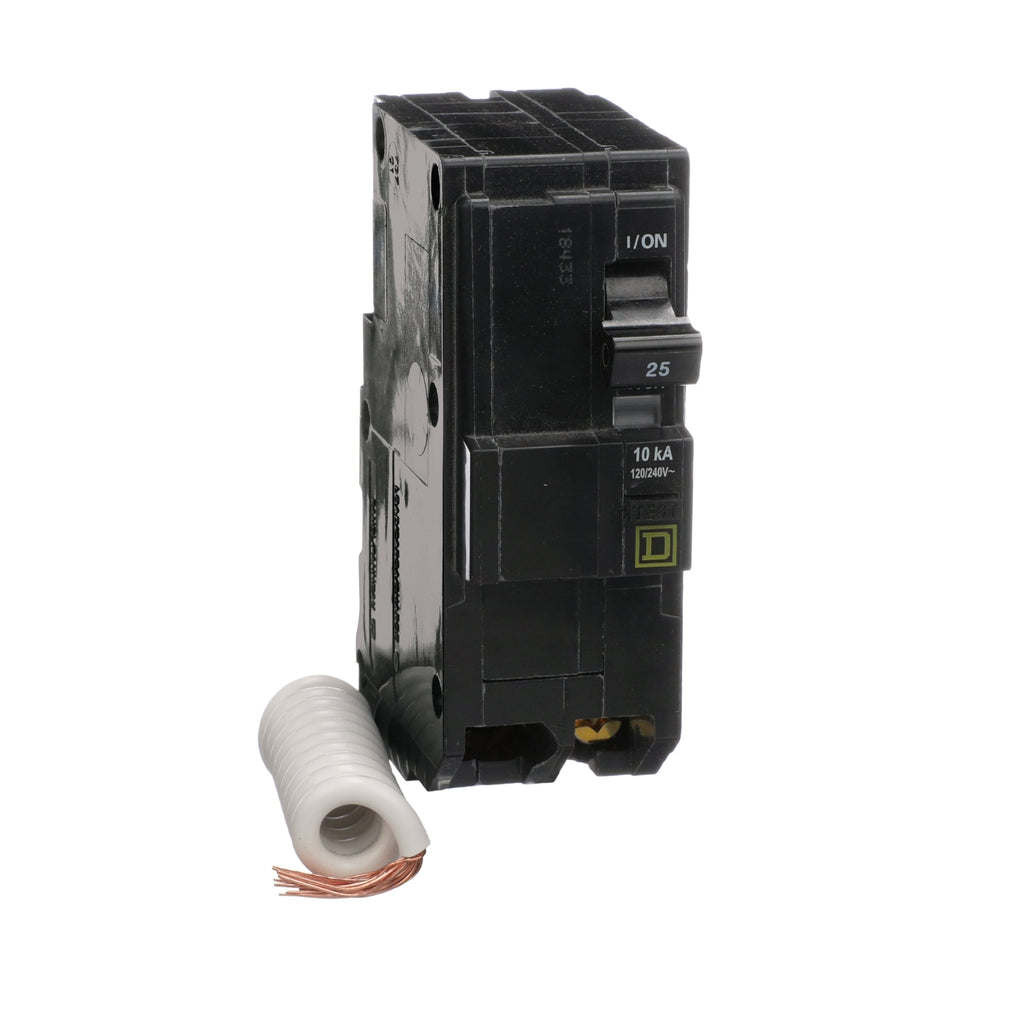

QO225EPD - Square D 25 Amp 2 Pole 120/240V Ground Fault Circuit Breaker QO Series

QO225EPD

QO225EPD is a 25 Amp, 2 Pole ground fault circuit breaker from Square D's QO Series designed for residential and light commercial electrical panels.QO225EPD provides reliable protection with a 120/240 Volt rating, 10,000 Amp interrupting capacity, and a 30mA ground fault trip unit. It features a plug-in mounting type for easy installation and is UL Listed and CSA Approved for safety and compliance.

• Amperage: 25 Amp
• Voltage: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps
• Series/Frame: QO Series
• Trip Unit: 30mA Ground Fault
• Certifications: UL Listed, CSA Approved
• Dimensions: Approx. 3" x 1.5" x 4.1"
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO225EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Equipment Protection (30mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901373278
• GTIN : 00785901373278
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.969
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
