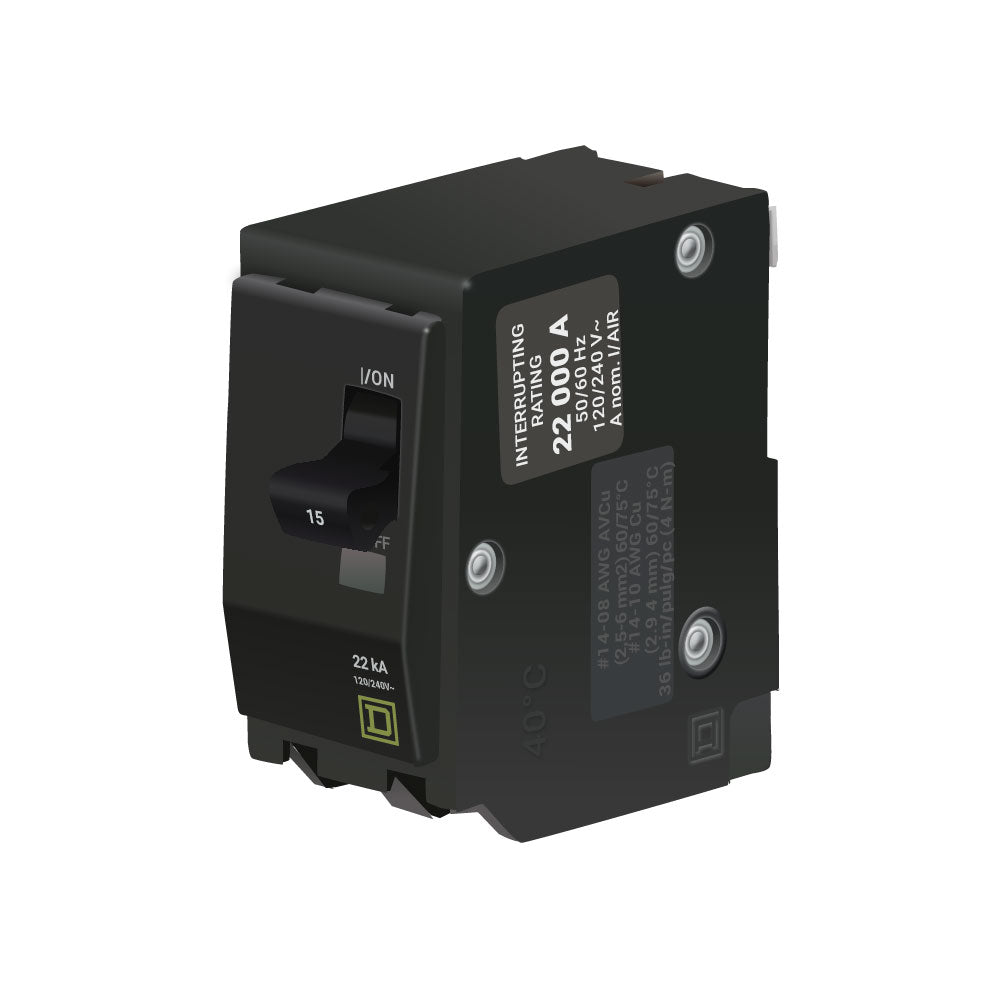

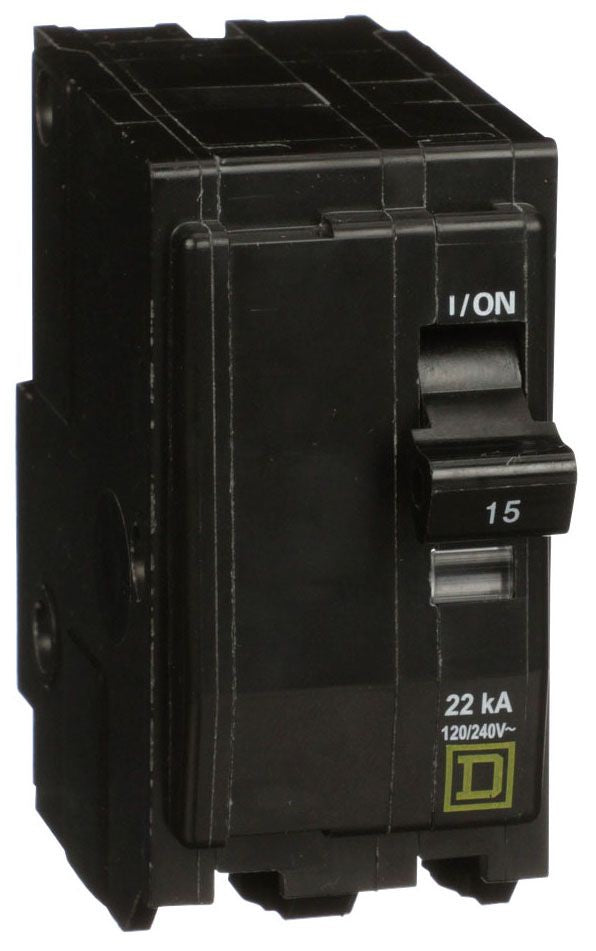

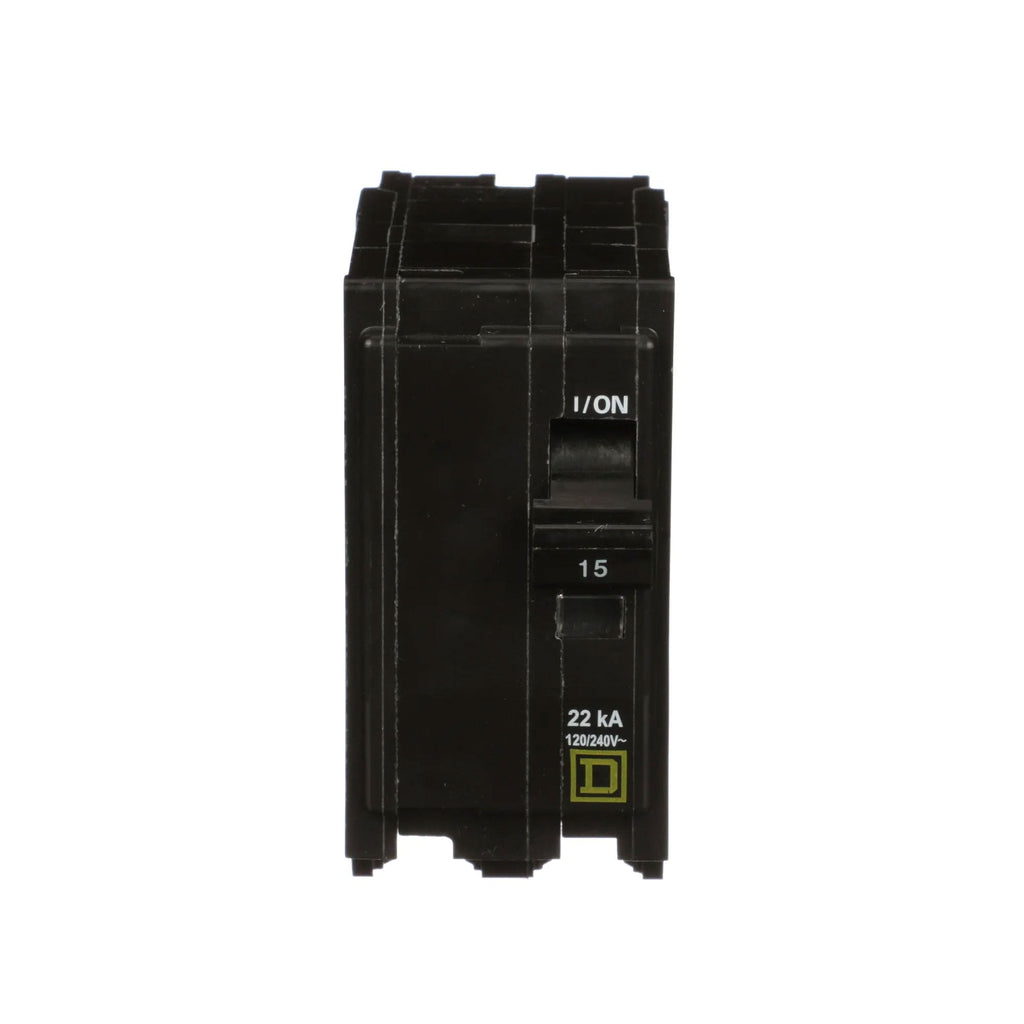

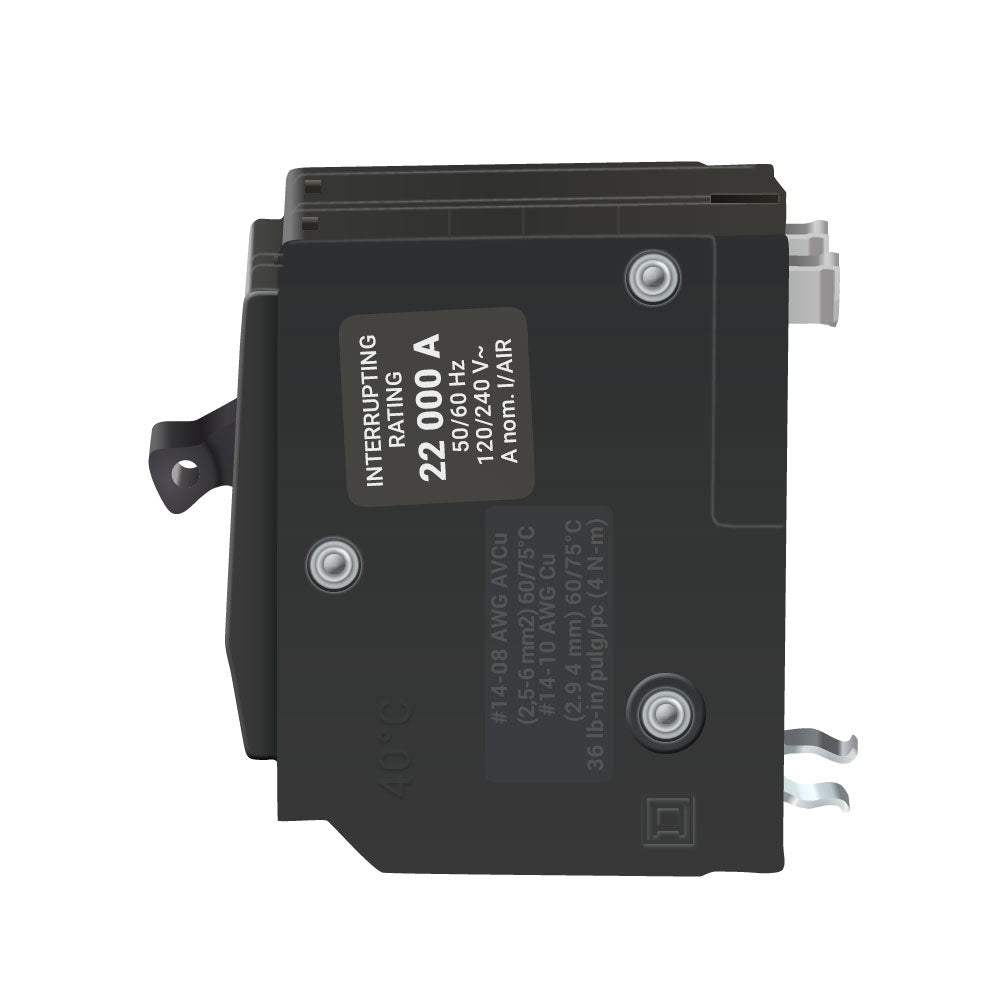

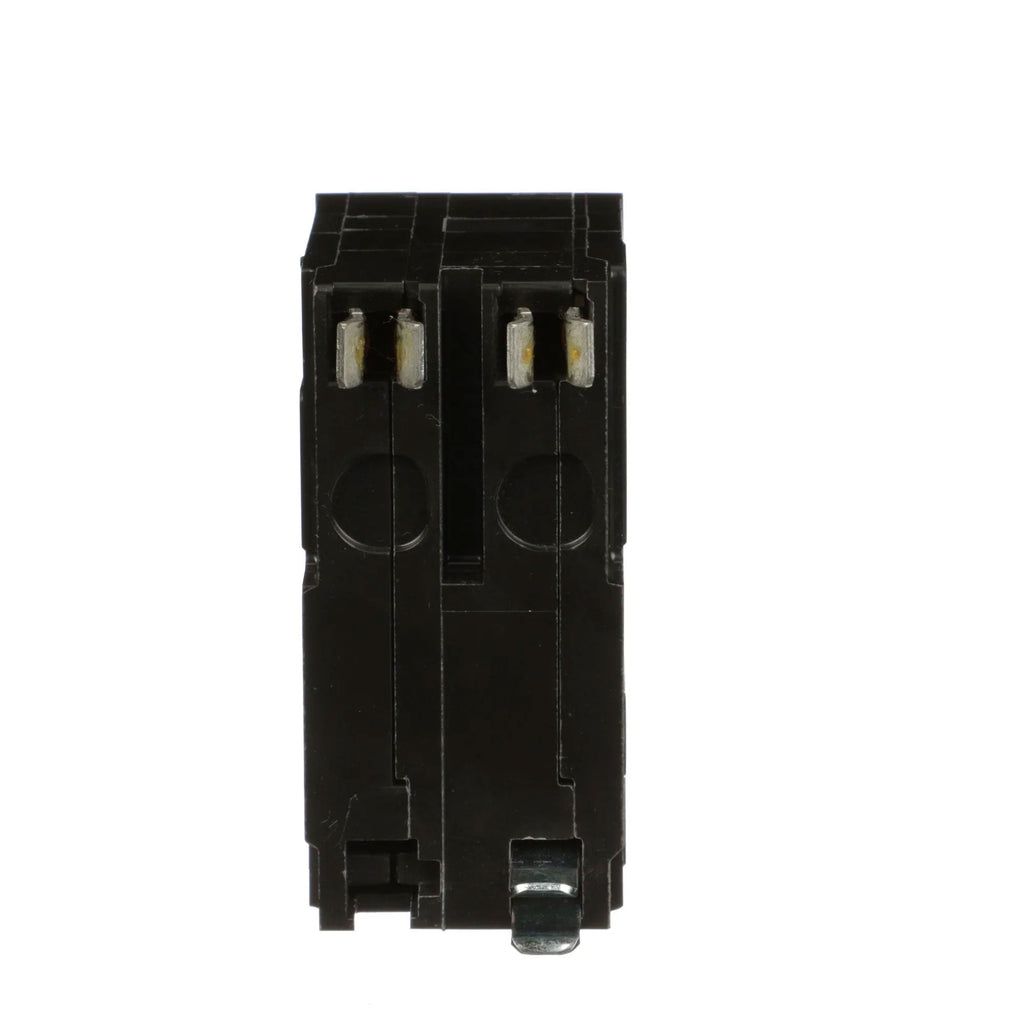

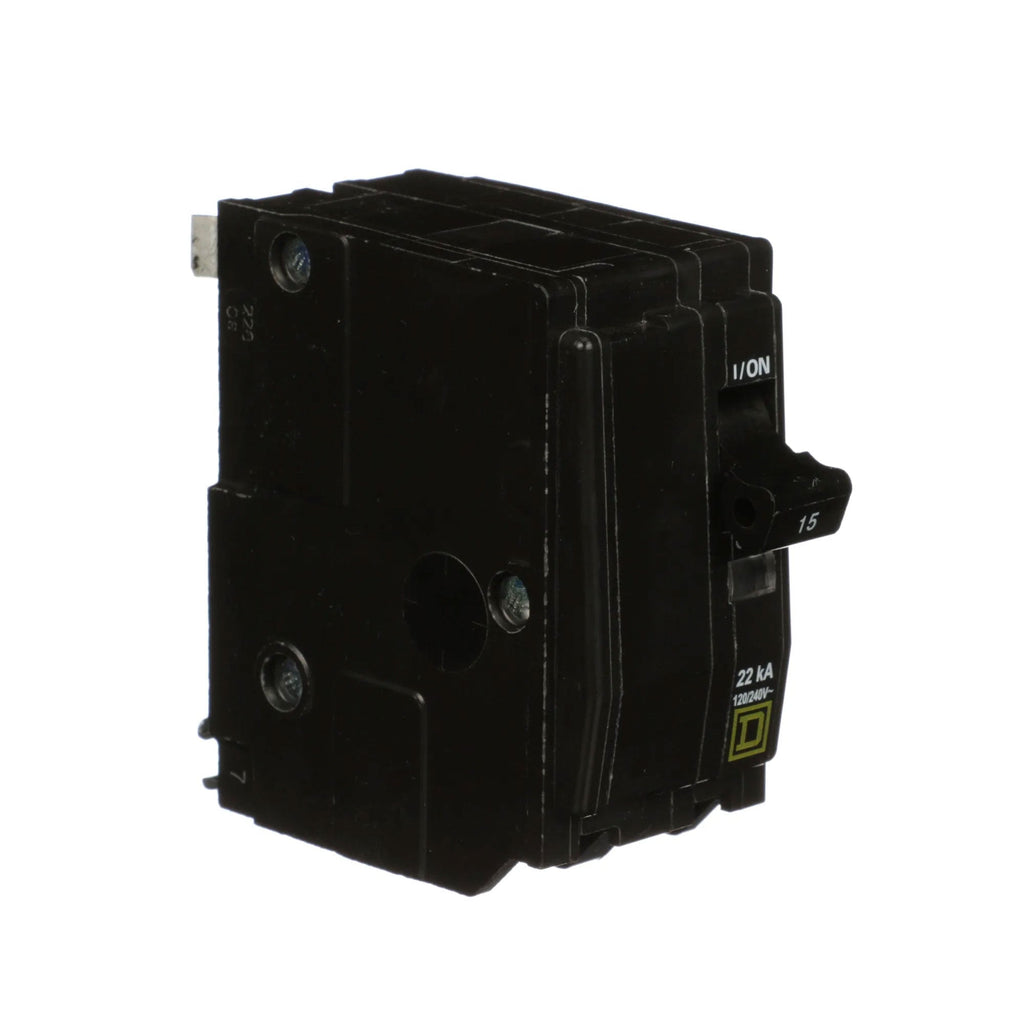

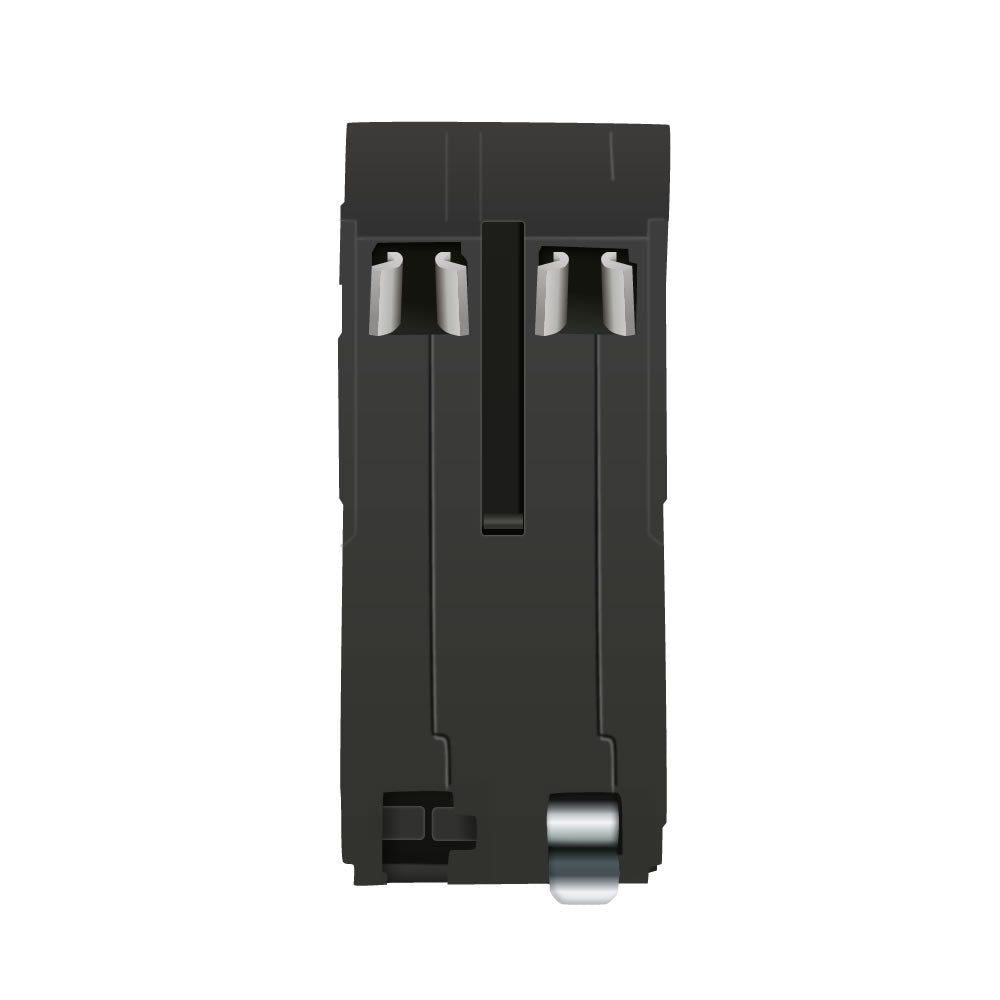

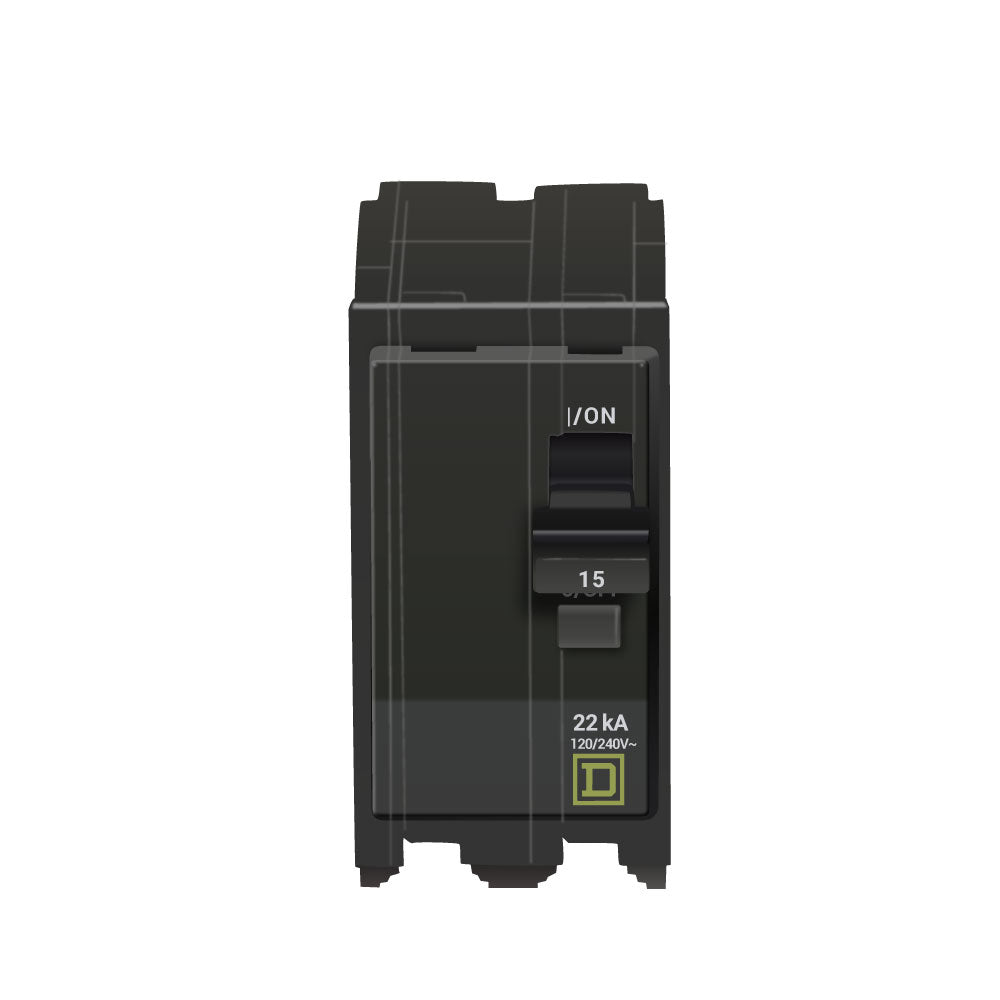

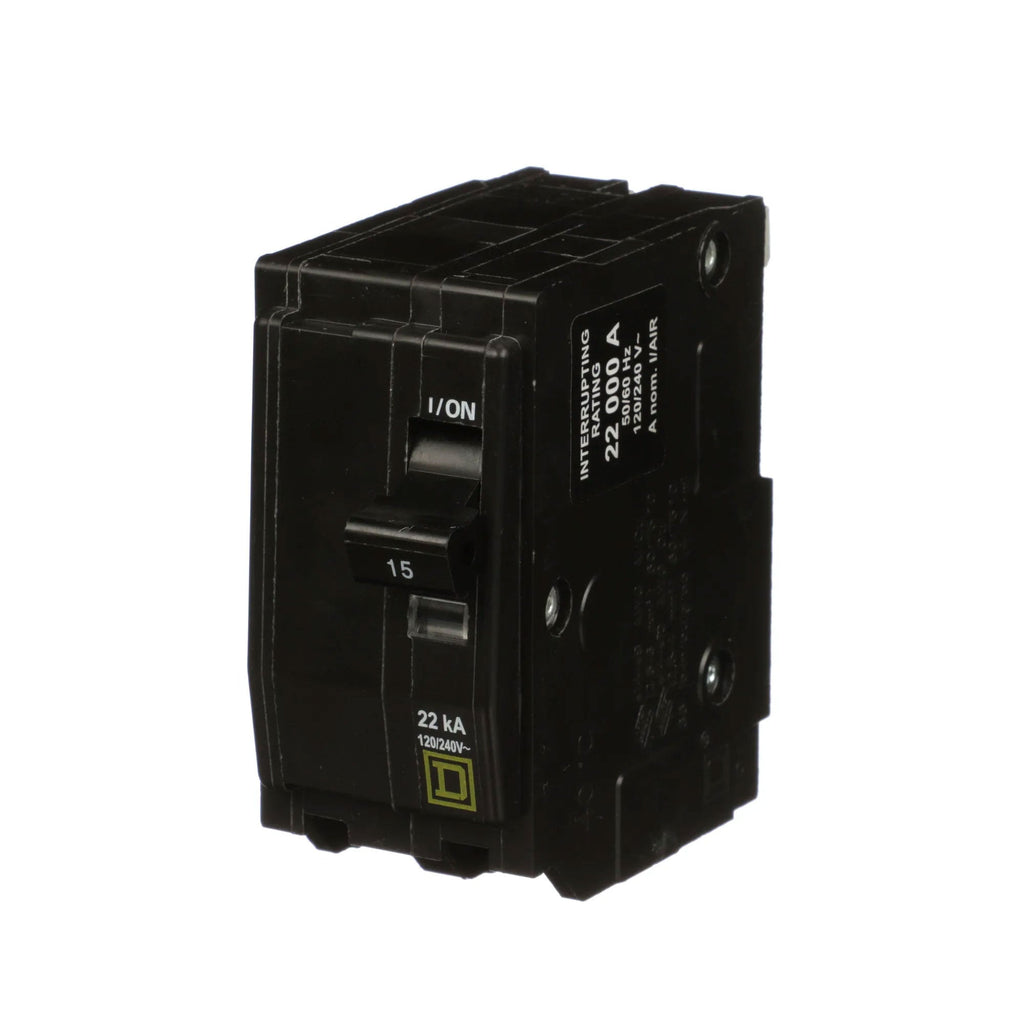

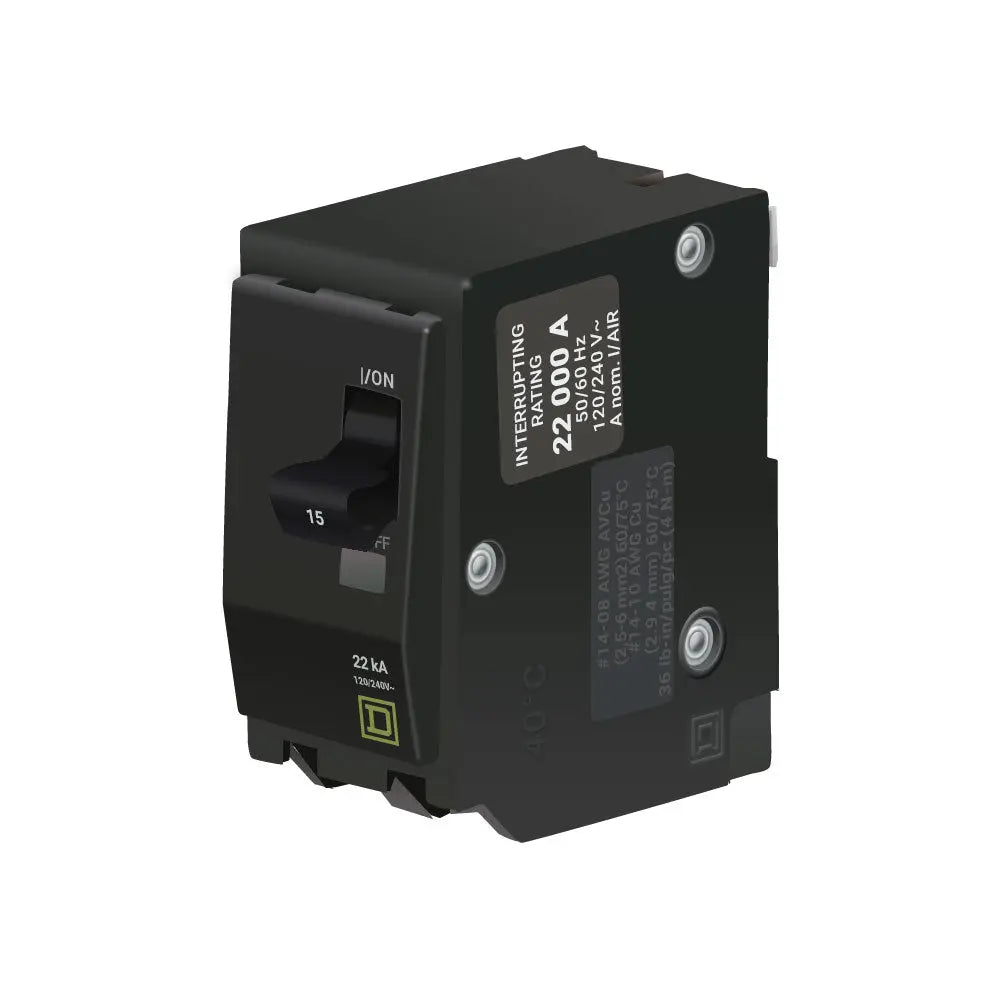

QO215VH - Square D 15A 120/240V 2-Pole QO Series Circuit Breaker Plug-In Mount 22kA Interrupt

QO215VH

QO215VH is a Square D 2-pole circuit breaker rated for 15 amps and 120/240 volts AC with a 22kA interrupt rating.This QO Series miniature circuit breaker features thermal magnetic trip units, plug-in mounting, and common trip functionality for reliable protection in residential and commercial load centers.

Key Specifications
• Amperage: 15 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 22,000 Amps (22kA)
• Mounting Type: Plug-In
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic, Common Trip
• Dimensions: Approx. 2.91 in L x 1.5 in W x 3 in H
• Frequency: 50/60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO215VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371816
• GTIN : 00785901371816
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.56
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper/Aluminum
