Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
QO2100BNRB

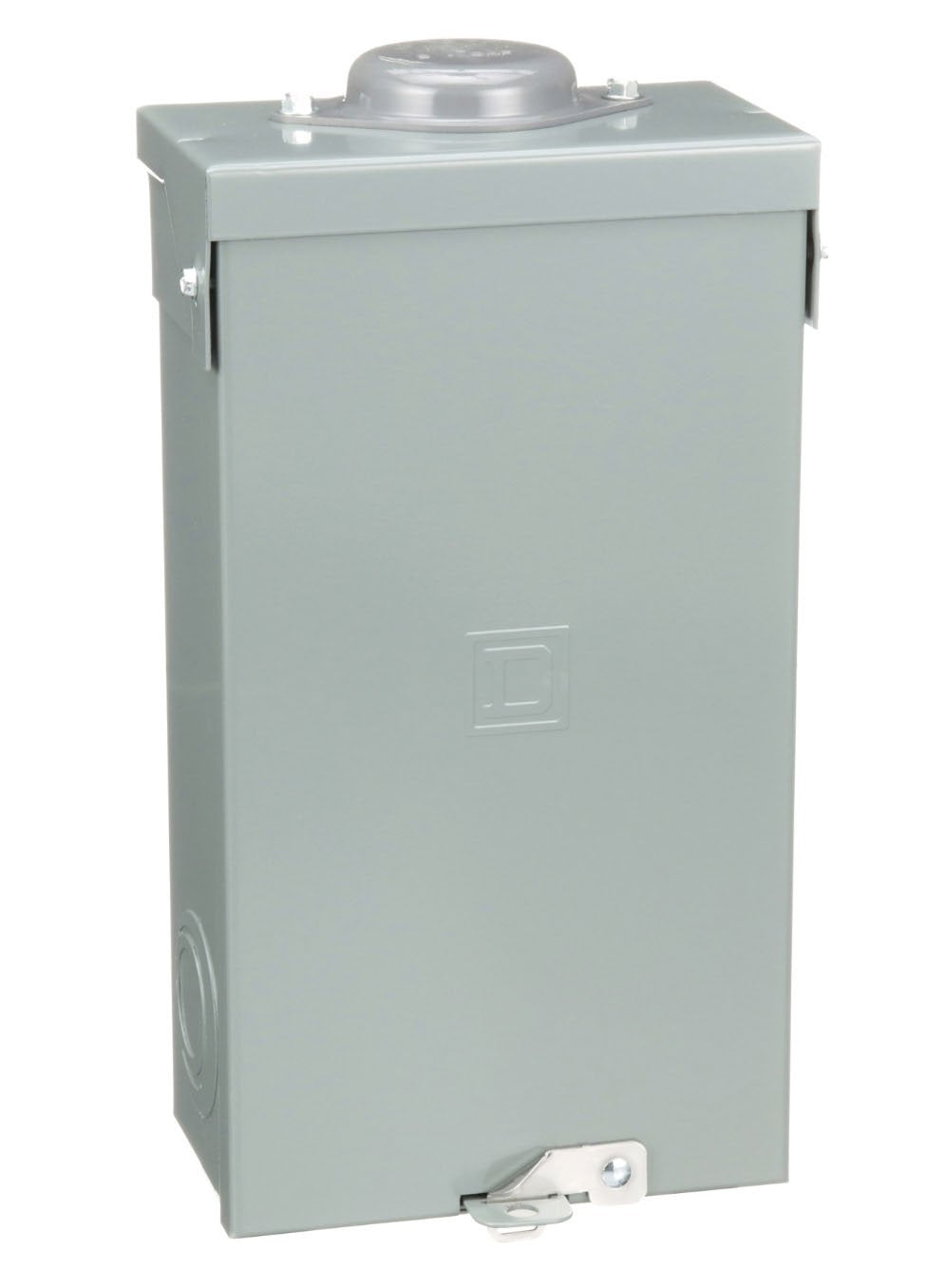

QO2100BNRB is a Square D 2-pole circuit breaker enclosure rated for 100 amps and 120/240 volts AC with NEMA 3R rating for outdoor use.This enclosure is designed for surface mounting and accommodates QO series circuit breakers. It features a welded galvannealed steel construction for durability and corrosion resistance, with a 22kA interrupting rating. The enclosure supports 3-wire connections and is UL listed, meeting industry safety standards.
- Amperage: 100A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Surface
- Interrupt Rating: 22kA
- Series/Frame: QO
- Enclosure Material: Welded Galvannealed Steel
- NEMA Rating: 3R (Rainproof)
- Terminal Connection: Lug
- Number of Wires: 3
- Certifications: UL Listed, RoHS Compliant
- Color: Gray
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: QO2100BNRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 100
- Phase : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Nema Rating : 3R
- Compatible Frames : QO
Product Data
- UPC : 785901051749
- GTIN : 00785901051749
- Country of Origin : Mexico
- Dimensions : 13.2 in (335 mm) x 6.9 in (176 mm) x 4.12 in (104.65 mm) (Height x Width x Depth)
- Weight : 8.091
- Certification : UL Listed
- Wire Size : AWG 14 to 1 Copper
