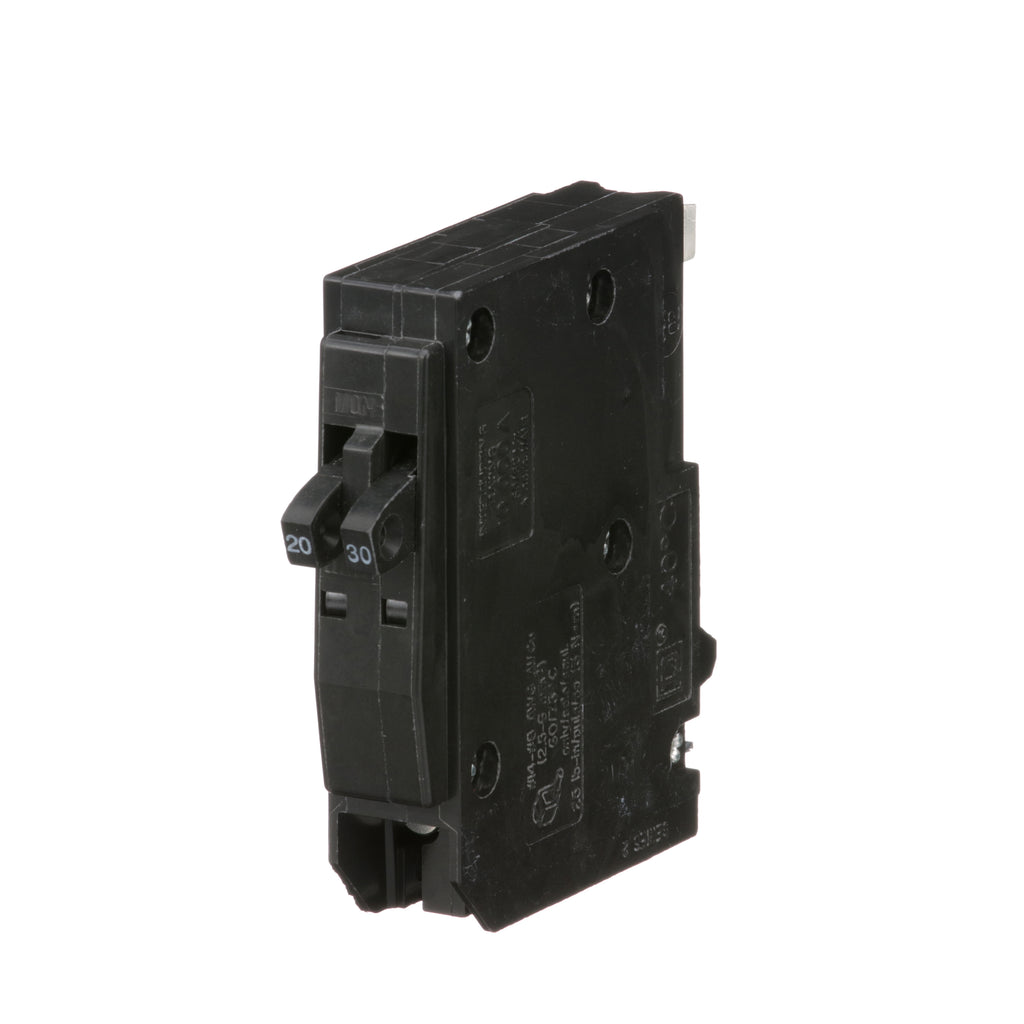

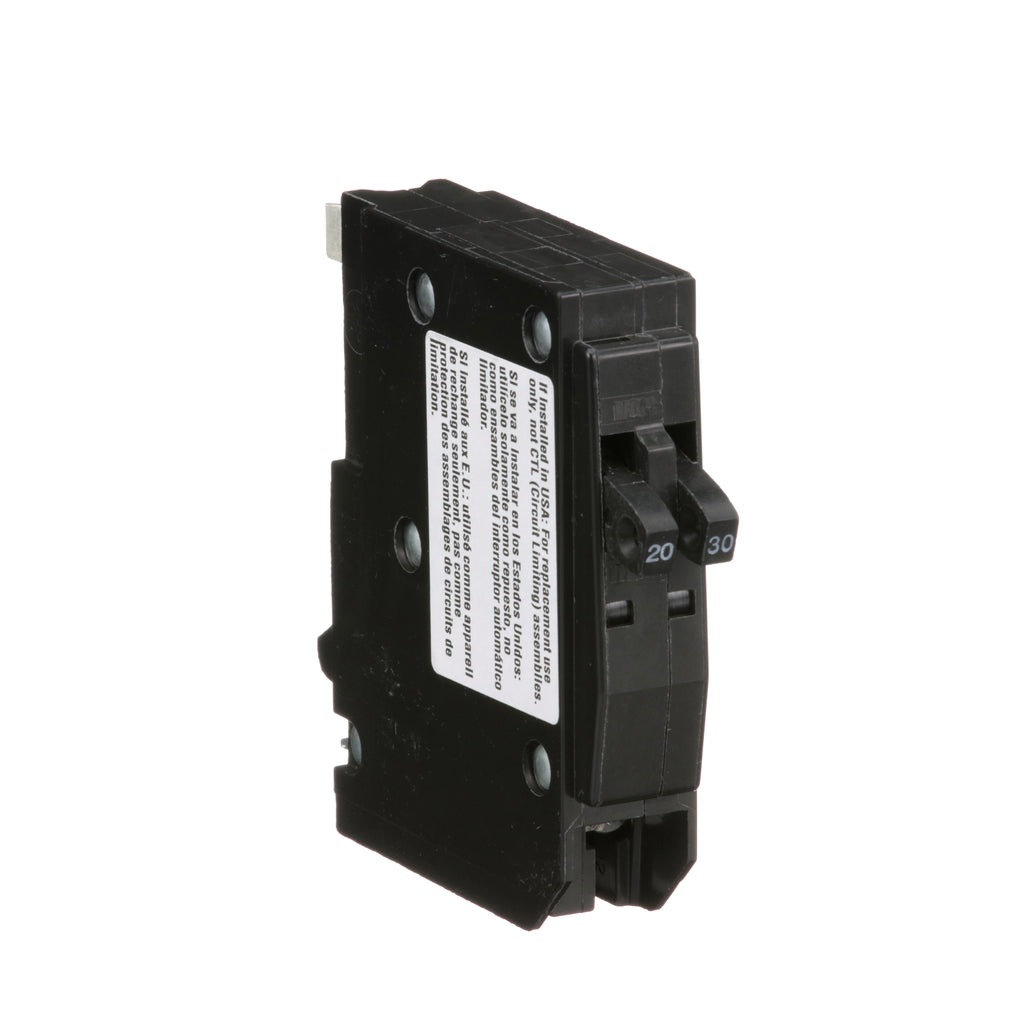

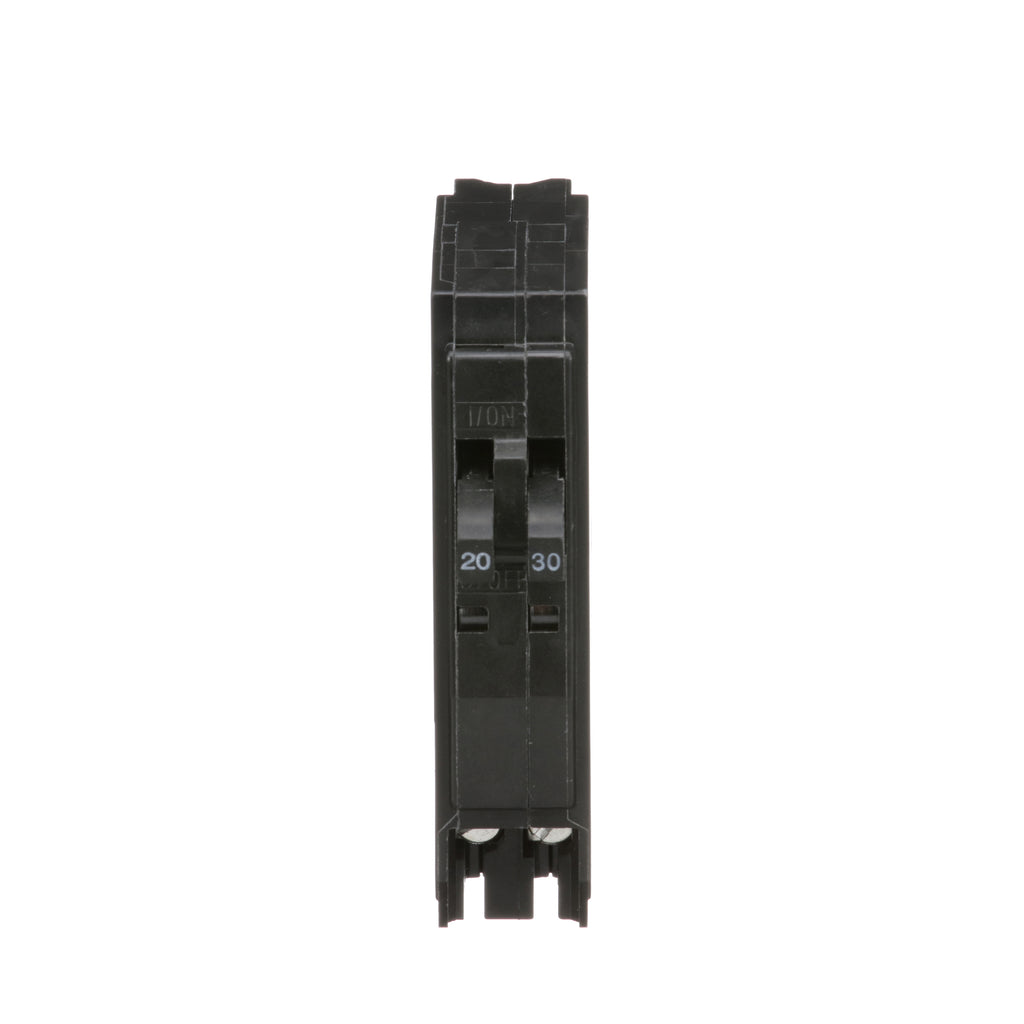

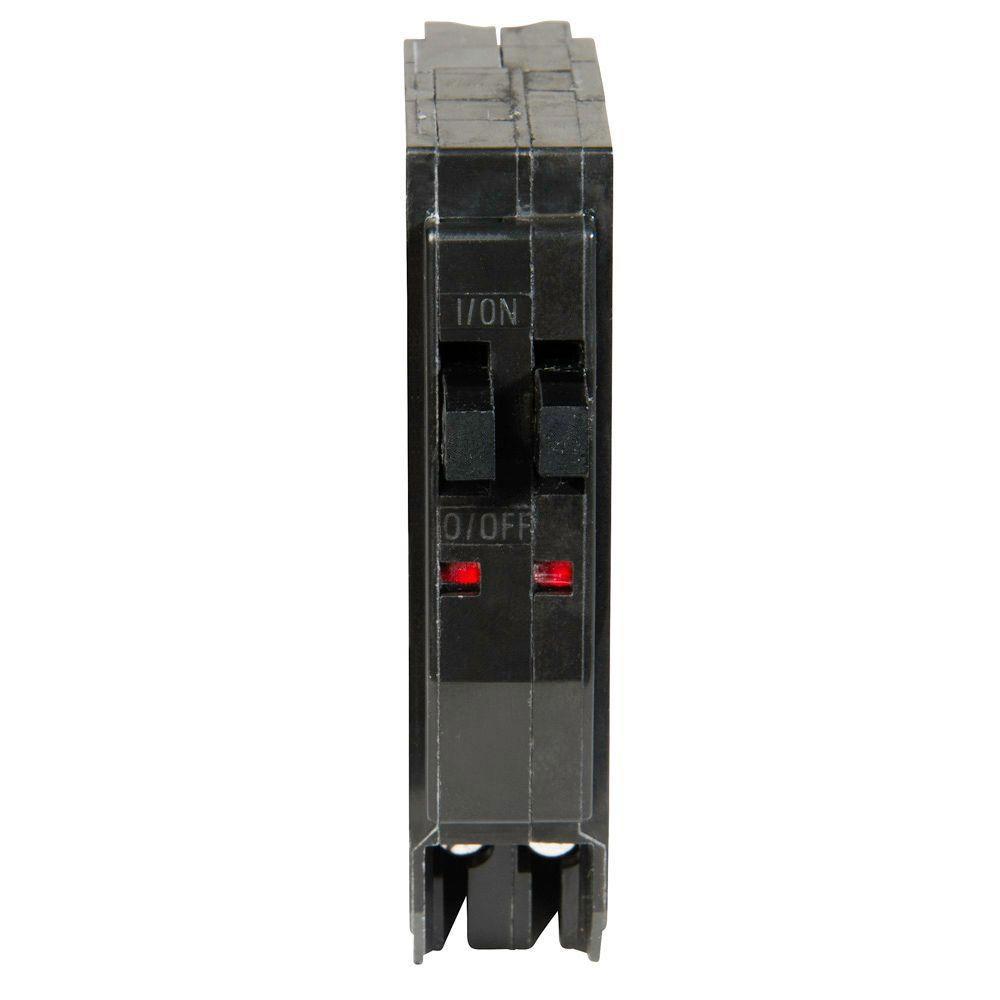

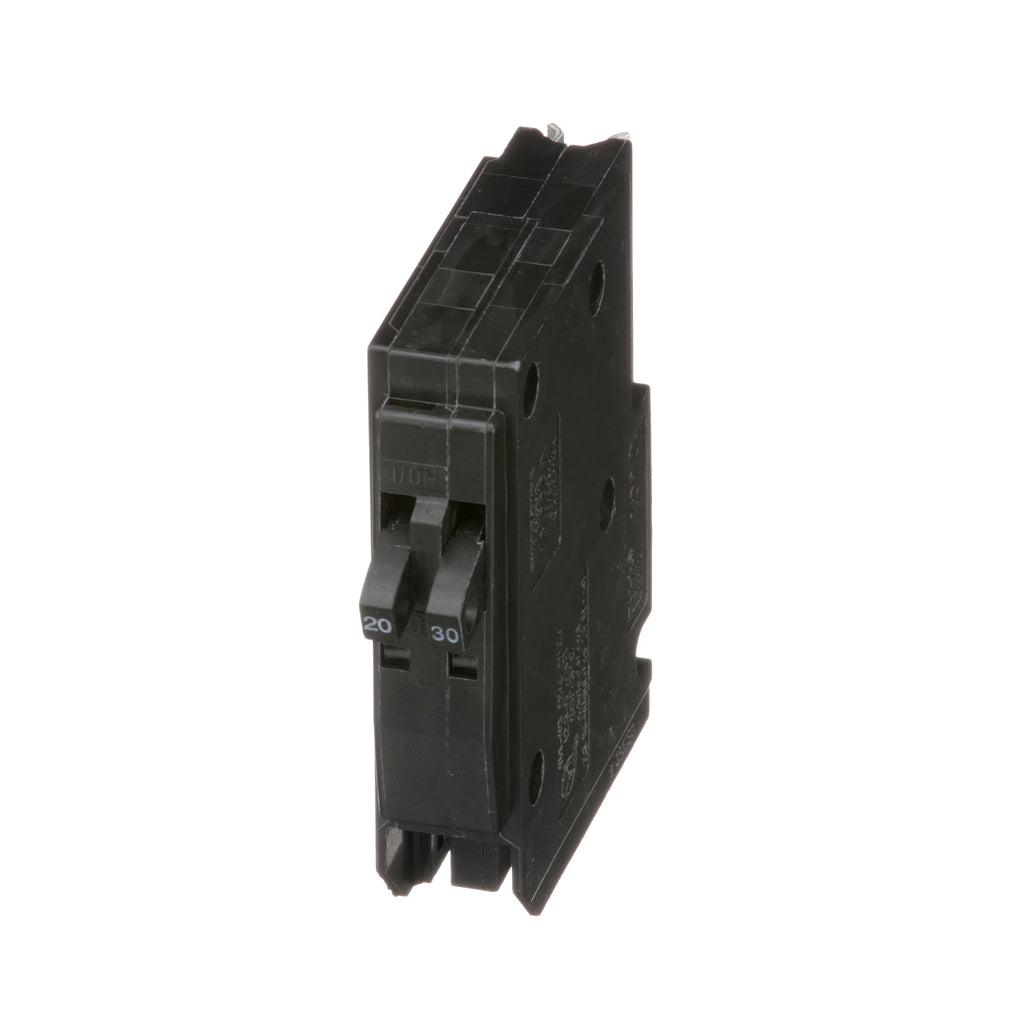

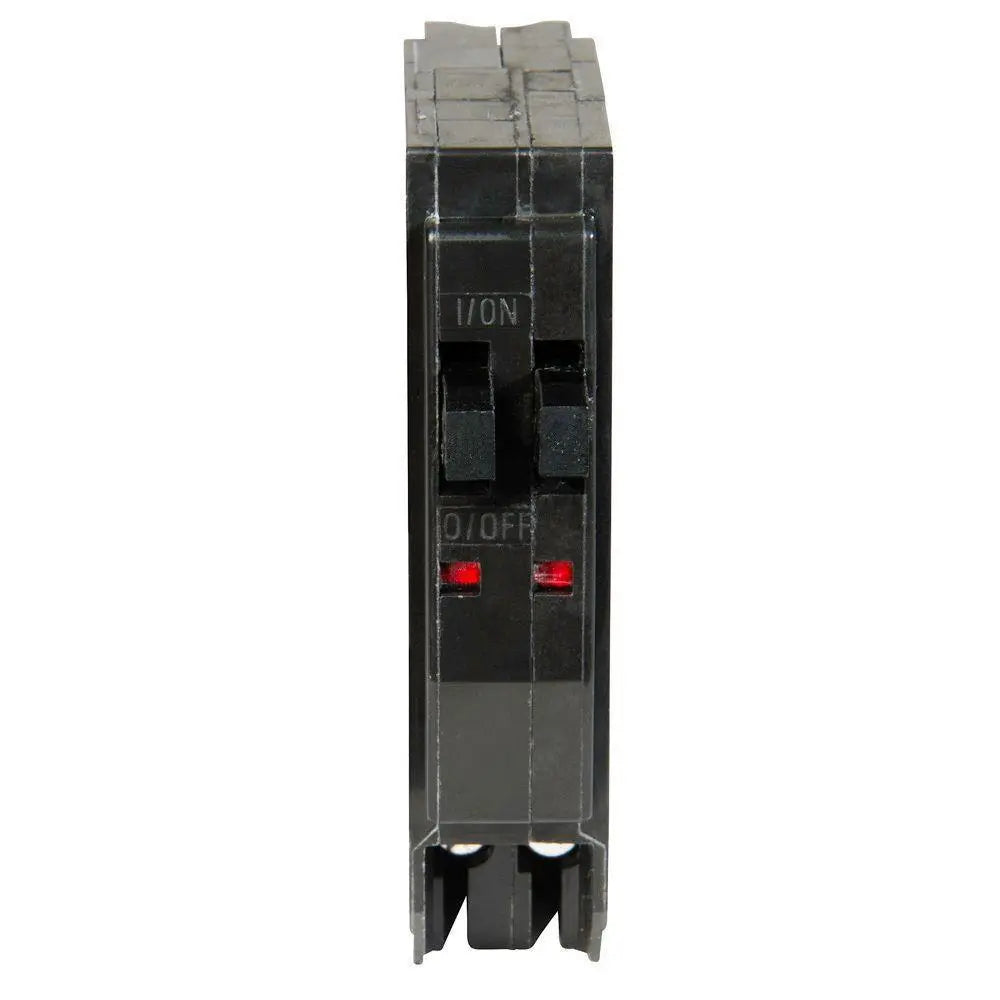

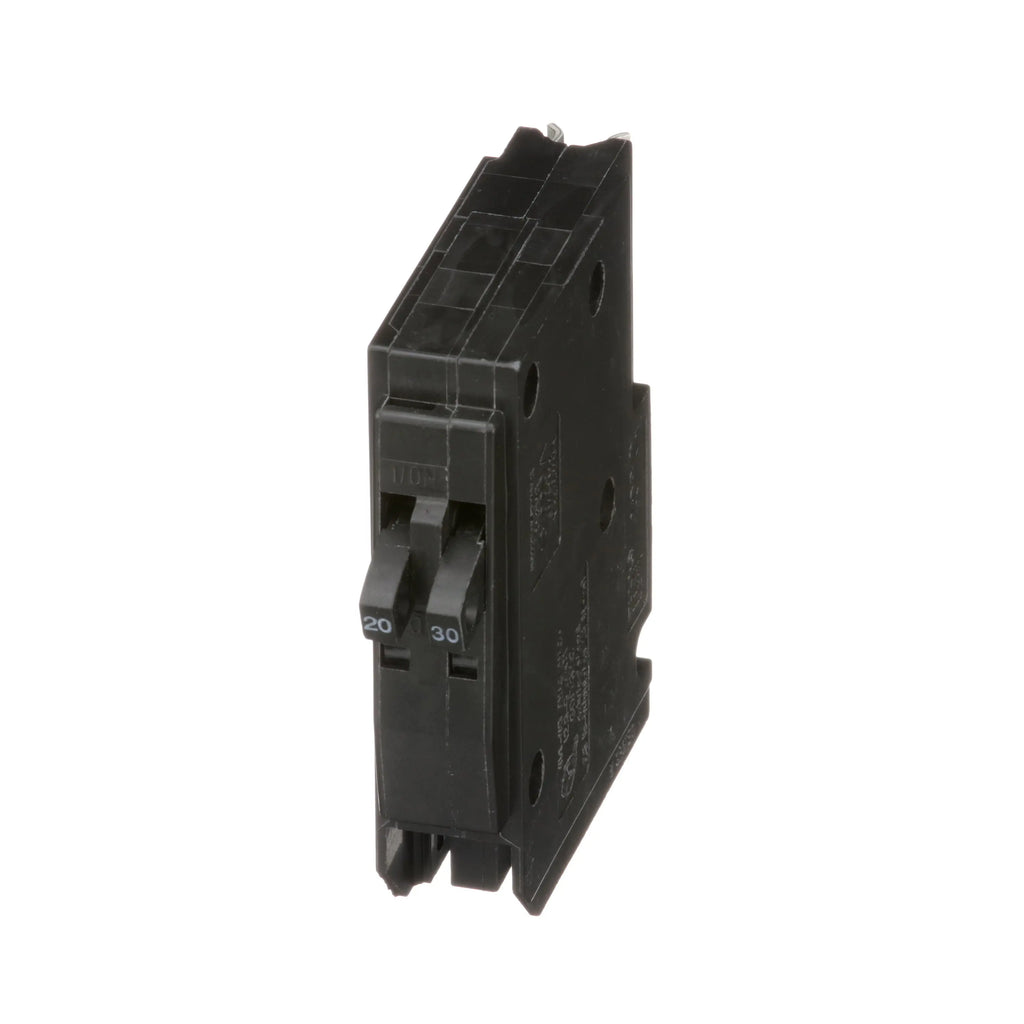

QO2030 - Square D Tandem Mini Circuit Breaker 20A/30A 1-Pole 120/240VAC 10kA Plug-In QO Series UL CSA RoHS REACh

QO2030

QO2030 is a Square D tandem mini circuit breaker designed for efficient protection of two circuits in a single panel space.

This plug-in breaker features one 20A and one 30A single pole, operates at 120/240VAC, and delivers a 10kA interrupting rating for reliable performance in residential, commercial, and light industrial applications. It is mercury-free, compliant with environmental standards, and includes a VisiTrip indicator for easy troubleshooting.

Key Specifications

• Amperage: 20A (one pole), 30A (one pole)
• Voltage: 120/240VAC
• Poles: 1-pole tandem configuration
• Mounting Type: Plug-in
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal magnetic, long-time and instantaneous trip
• Certifications: UL Listed, CSA Certified, RoHS, REACh compliant
• Wire Size: Accepts AWG 14 to AWG 8 copper or aluminum
• Dimensions: 3.2" H x 0.7" W x 2.9" D
• Weight: 0.331 lb
• Mercury-Free: Safe for home and environmental use

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO2030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Box Lugs
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901001010
• GTIN : 00785901001010
• Country of Origin : Mexico
• Dimensions : 3.2 in (82 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.33
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
