Product Info
- Manufacturer:Schneider Electric
Description
QO154L225PG

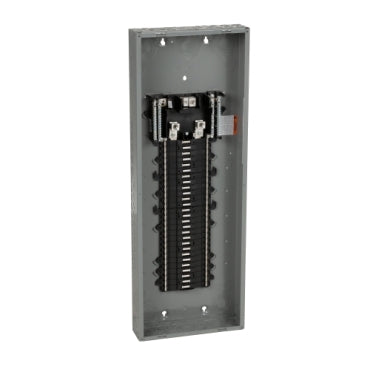

QO154L225PG is a single-phase load center featuring 225-ampere convertible main lugs and plug-on neutral (PoN) technology for efficient power distribution. This QO-series load center accommodates 54 spaces with capacity for up to 64 circuits, delivering superior performance and durability in a NEMA 1 enclosure rated for 65 kA maximum short circuit current. The straight-in wiring design saves wire, labor, and time, while PoN breakers connect directly for faster installation. The unit features 50% more terminations for clutter-free wiring and accepts cable sizes from AWG 6 to 300 KCMIL in aluminum or copper. Dimensions are 1000mm height by 362mm width with a tin-plated busbar construction.
- Voltage: 120/240V single-phase
- Main Amperage: 225A
- Spaces: 54 maximum
- Circuits: 64 maximum
- Main Disconnect: Convertible main lugs
- Neutral: Plug-on neutral (PoN)
- Enclosure Type: NEMA 1
- Short Circuit Rating: 65 kA
- Cable Compatibility: AWG 6 to 300 KCMIL aluminum/copper
- Certifications: UL 67 listed, CSA, IEC standards
- Busbar Material: Tin-plated
- Dimensions: 1000mm H x 362mm W
Specifications
- Part Number: QO154L225PG
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- UPC : 78590131696
- GTIN : 00785901316961
- Country of Origin : United States
- Weight : 21.779
