QO130VH - Square D 30 Amp 120/240V 1 Pole Thermal Magnetic Circuit Breaker

QO130VH

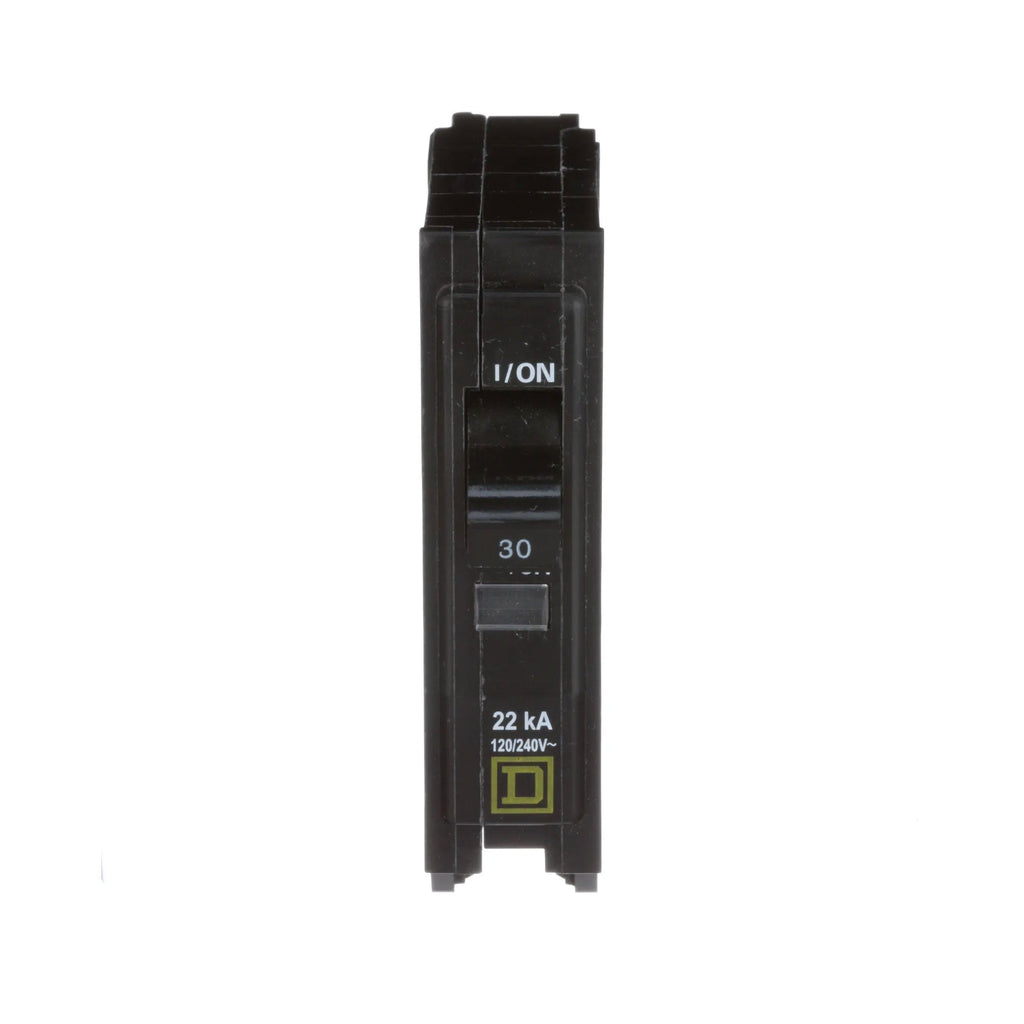

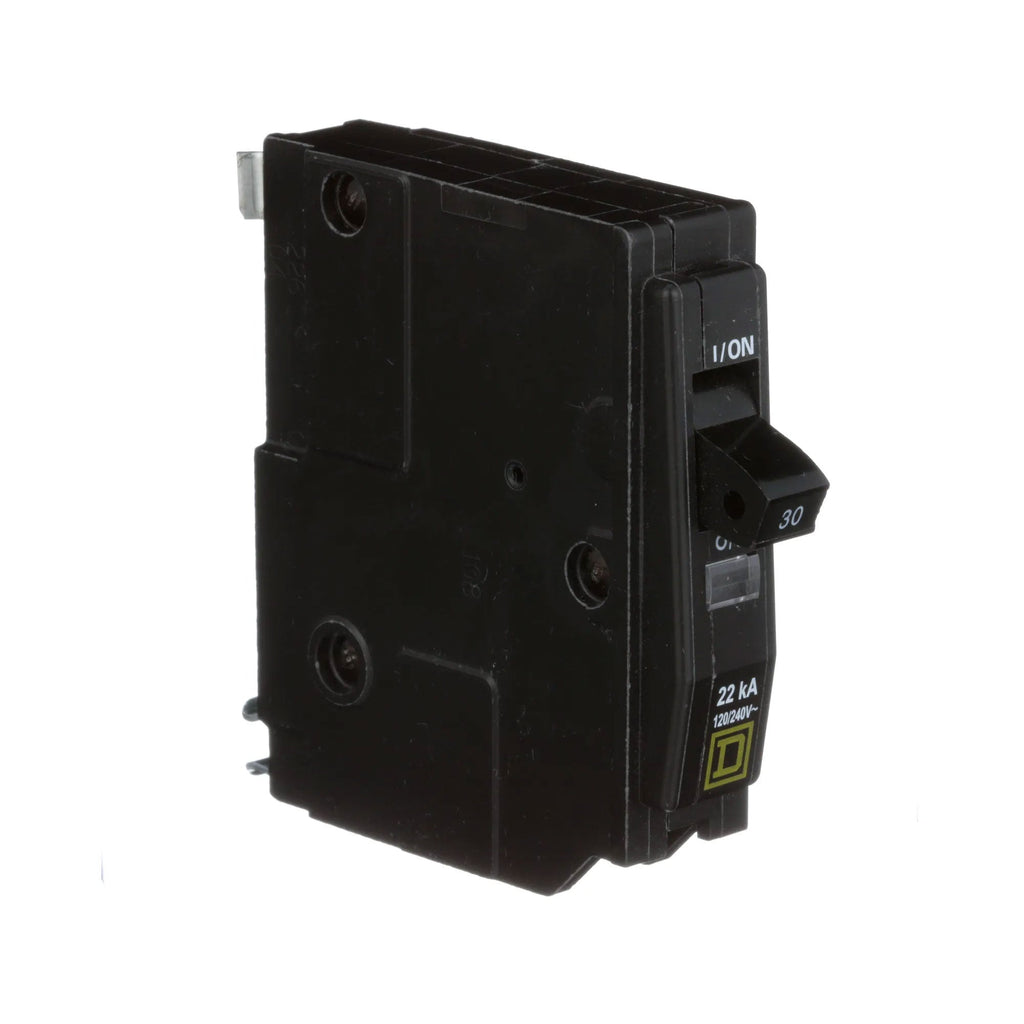

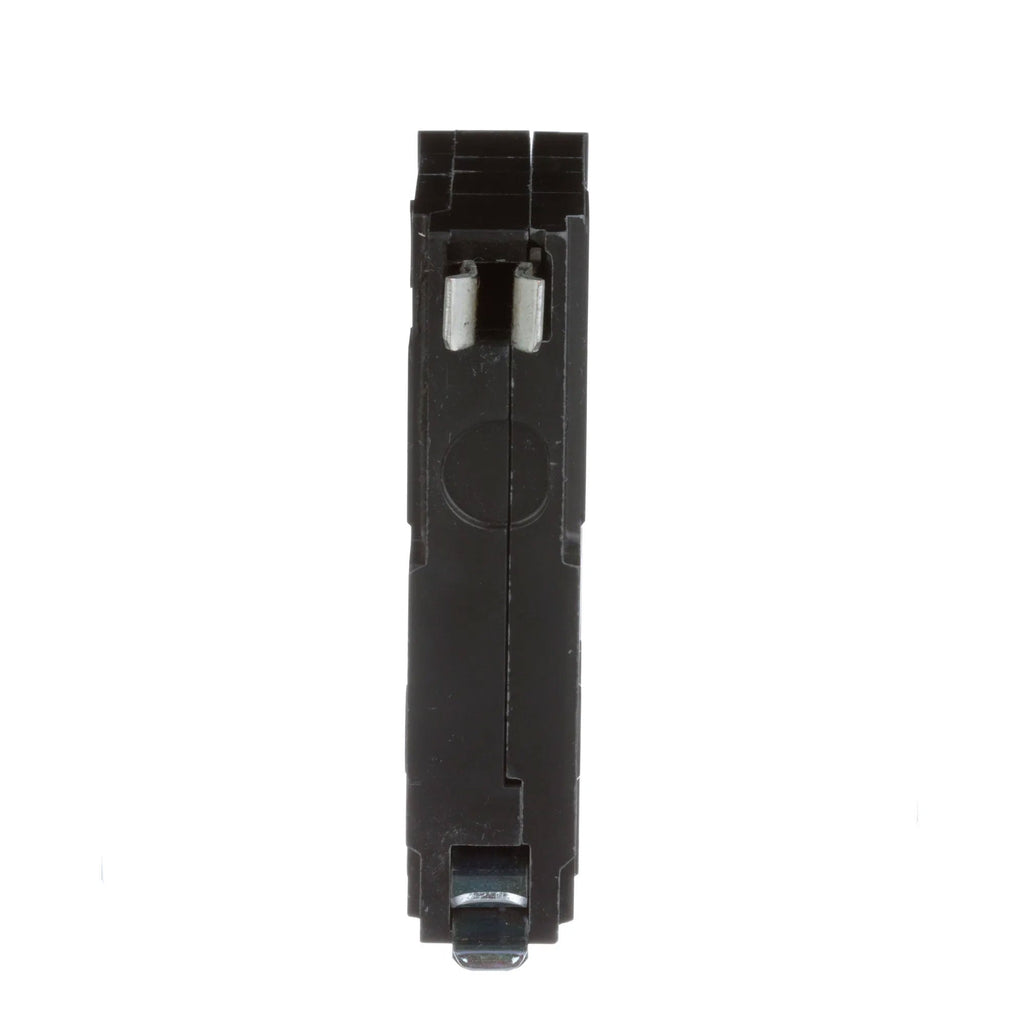

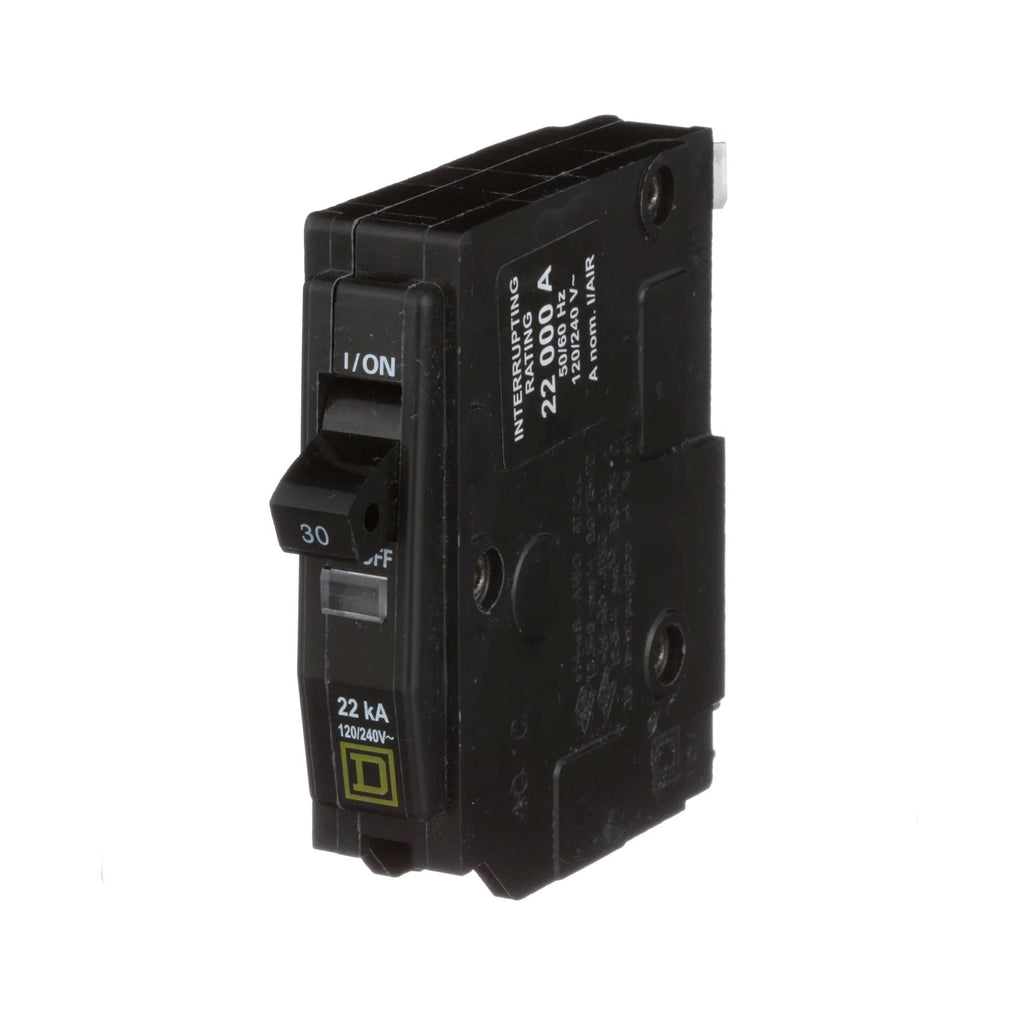

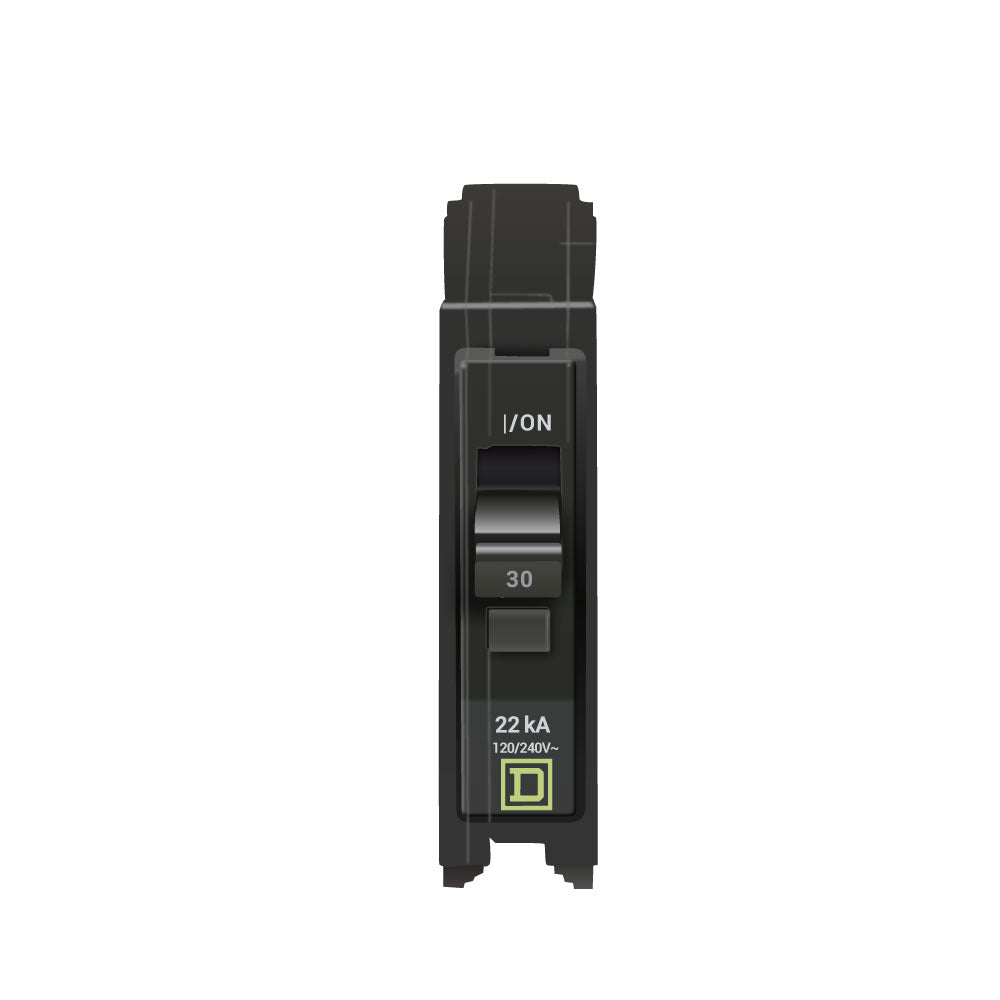

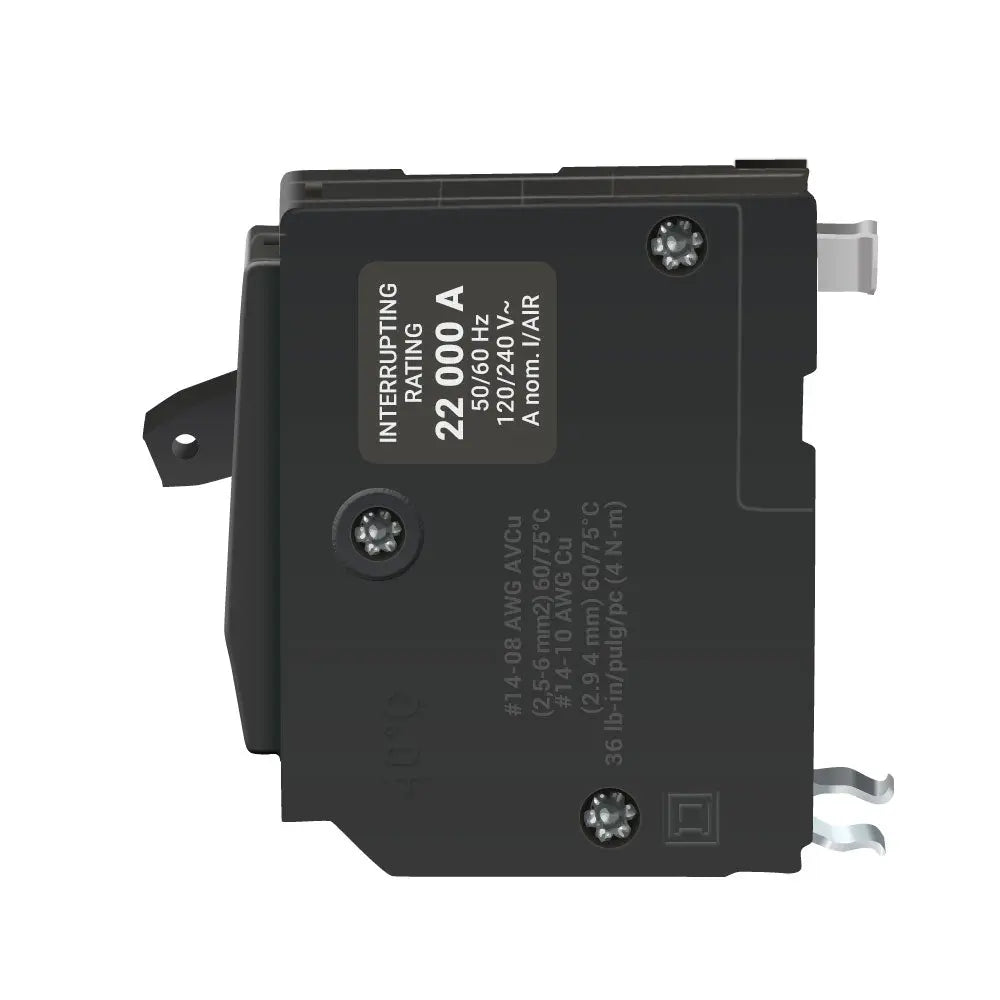

QO130VH is a Square D 30 Amp, 1 Pole thermal magnetic circuit breaker designed for 120/240 Volt AC applications.This miniature circuit breaker features a 22 kA interrupt rating at 120 VAC, plug-in mounting type, and is part of the QO series frame. It provides reliable overcurrent protection with a thermal magnetic trip unit and is UL and CSA certified for safety and performance.

• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Interrupt Rating: 22 kA at 120 VAC
• Mounting Type: Plug-in
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Wire Size: 14 to 8 AWG Copper/Aluminum
• Dimensions: Approx. 2.91" L x 0.75" W x 3" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO130VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371809
• GTIN : 00785901371809
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.29
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Cu/Al
