Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
QO124M100P

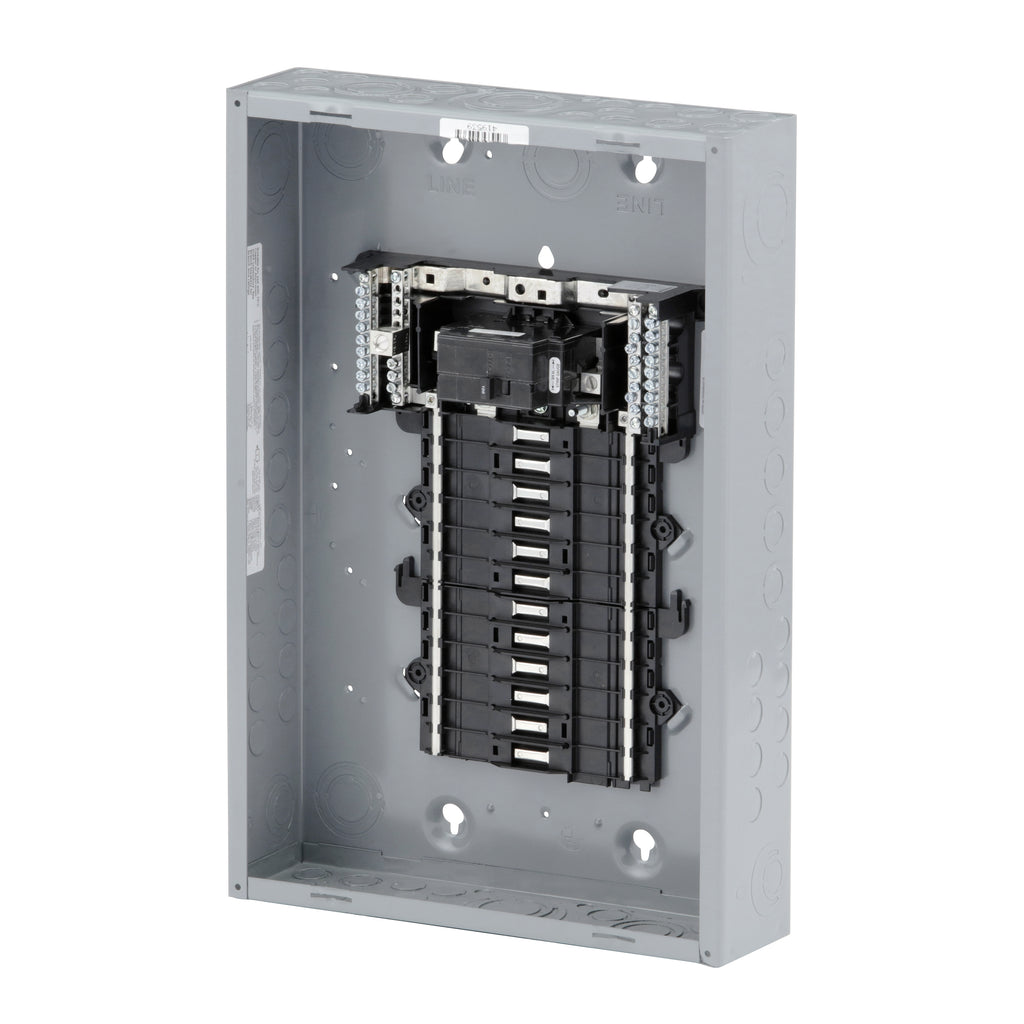

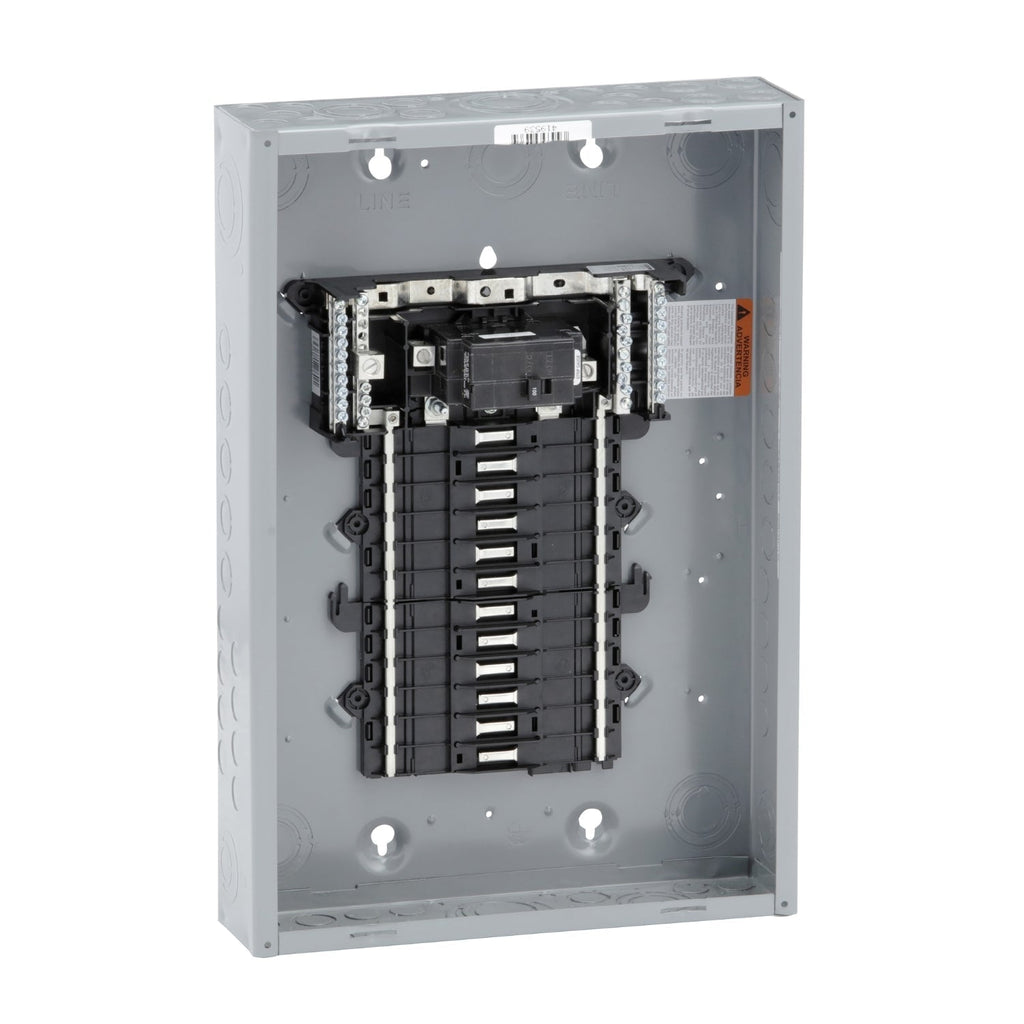

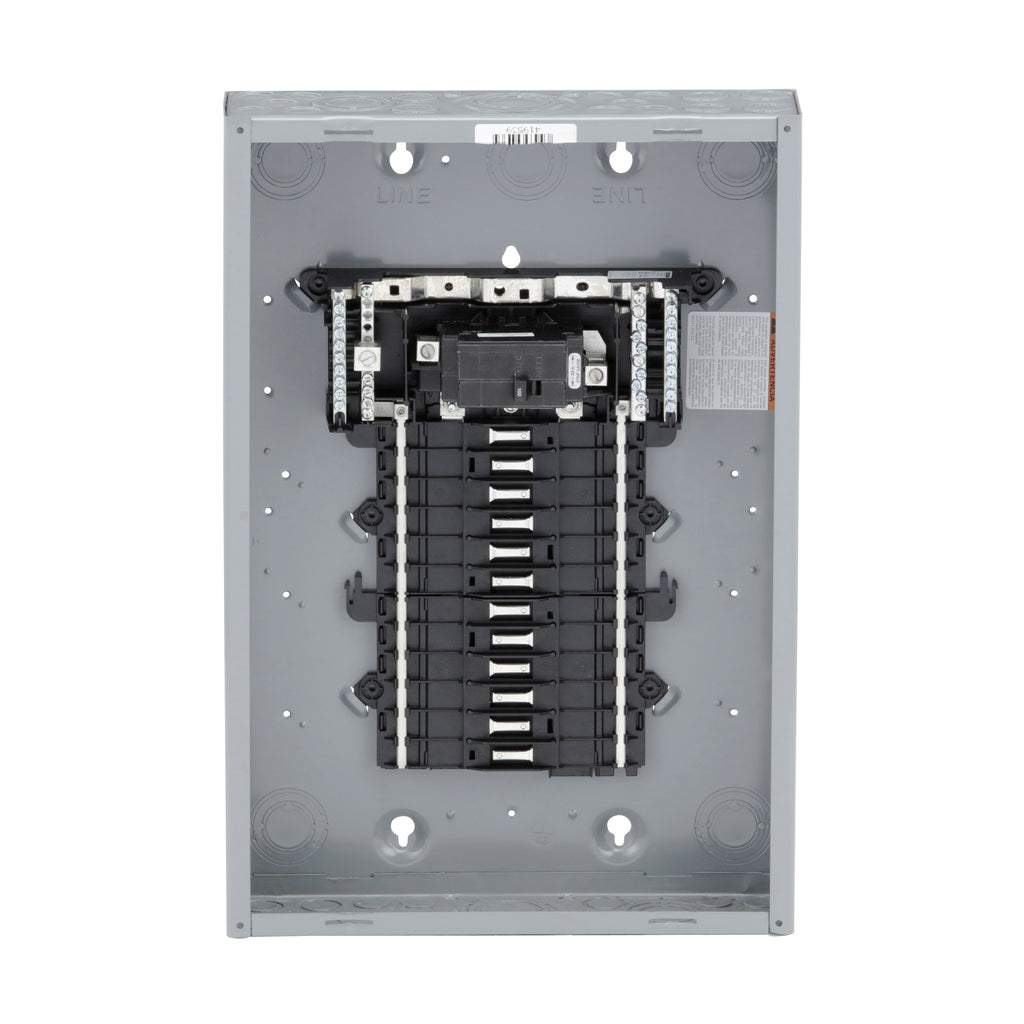

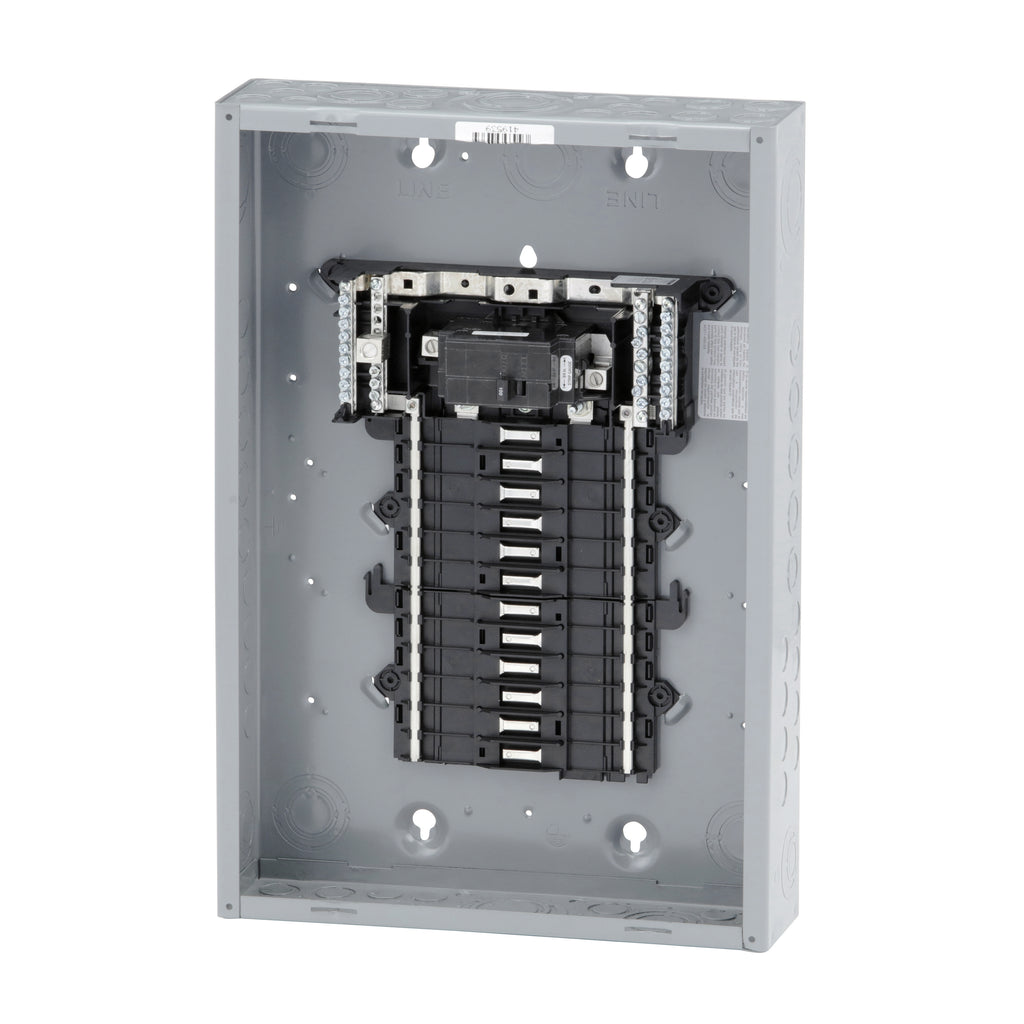

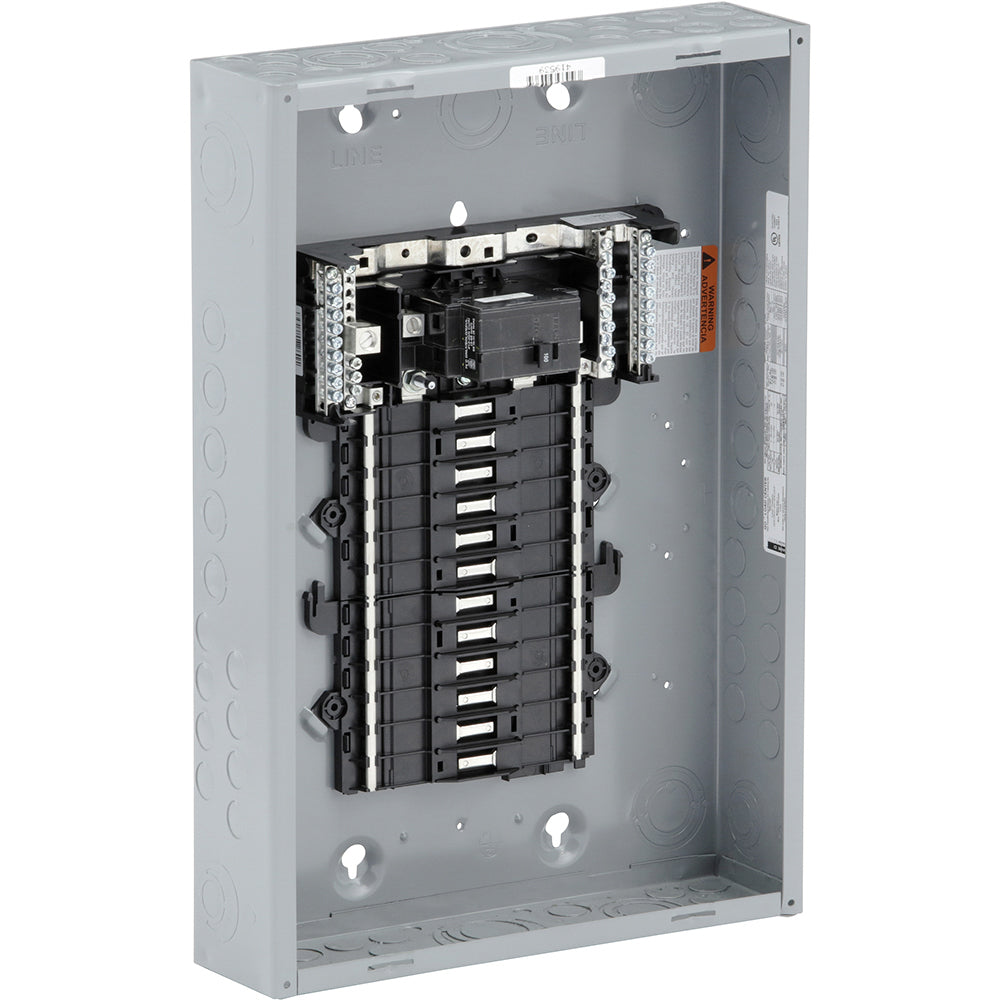

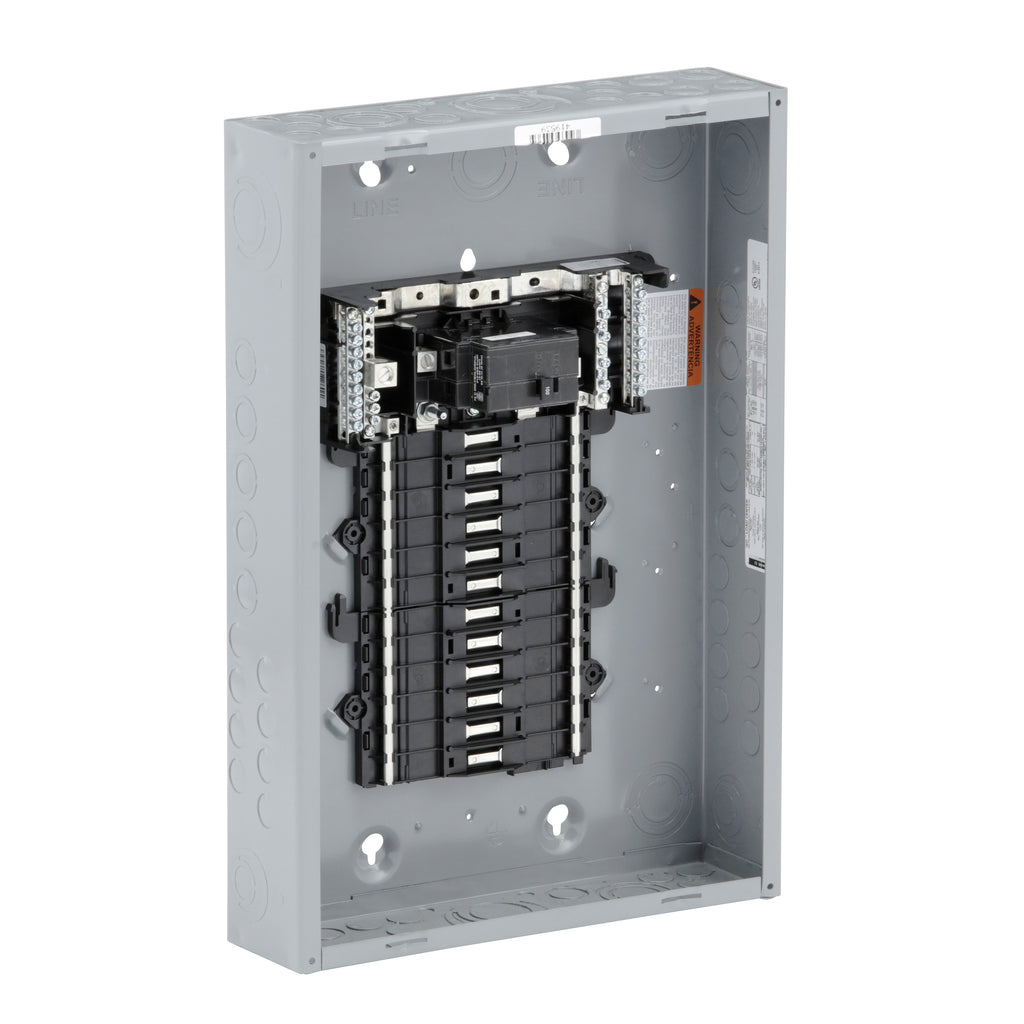

QO124M100P is a Square D 100 Amp, 120/240 Volt, 1-Phase QO Load Center with 24 circuits and a 22kA interrupt rating designed for reliable power distribution.This load center features a convertible neutral design, surface/plug-on mounting, and supports QO circuit breakers. It has a NEMA 1 indoor enclosure made of steel, accommodates wire sizes from 6 to 2/0 AWG aluminum or copper, and operates at 50/60 Hz frequency. The panel includes 24 spaces and circuits, with a 3-wire wiring configuration and a 7-inch enclosure box size.
- Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 120/240 VAC
- Phase: 1-Phase
- Number of Circuits: 24
- Interrupt Rating: 22 kA
- Mounting Type: Surface/Plug-On
- Enclosure Type: NEMA 1
- Wire Size: 6 to 2/0 AWG Aluminum/Copper
- Breaker Type: QO
- Number of Poles: 1
- Housing Material: Steel
- Frequency: 50/60 Hz
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: QO124M100P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Type : QO
- Voltage : 120/240VAC
- Amperage : 100
- Phase : 1
- AIC rating : 65kAIC
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 785901228769
- Country of Origin : Mexico
- Dimensions : 14.25 in x 20.91 in
- Weight : 13.12 lb
- Standards : RoHS, REACh
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to AWG 2/0, Aluminum/Copper
