Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

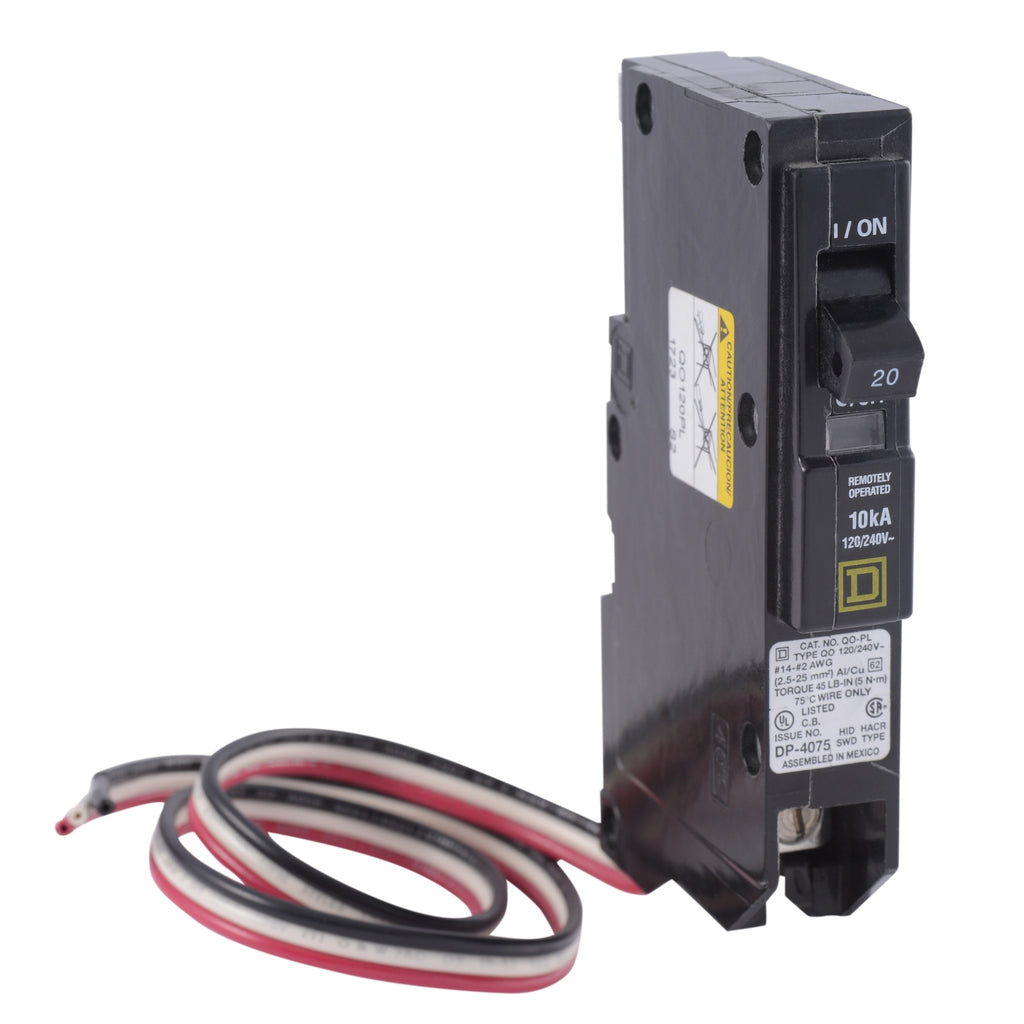

QO120PL
QO120PL is a Square D QO Series miniature circuit breaker designed for reliable circuit protection in residential and commercial applications.
This thermal magnetic circuit breaker features a plug-in mounting type, making it easy to install in compatible Square D QO panelboards. It is engineered for superior performance with a high interrupt rating and robust construction.
-
Key Specifications
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Plug-in
- Interrupt Rating: 10kA at 120/240VAC
- Series/Frame: QO
- Trip Unit: Thermal magnetic
- Certifications: Not specified
- Depth: 2.91 inches
- Width: 0.75 inches
- Height: 4.55 inches
- Application: Lighting, control systems, NQOD panelboards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO120PL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901095705
- GTIN : 00785901095705
- Country of Origin : Mexico
- Dimensions : 4.6 in (116 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.47
- Wire Size : AWG 12 to AWG 2, AWG 14 to AWG 2, Copper/Aluminum
