Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description
QO120L125G

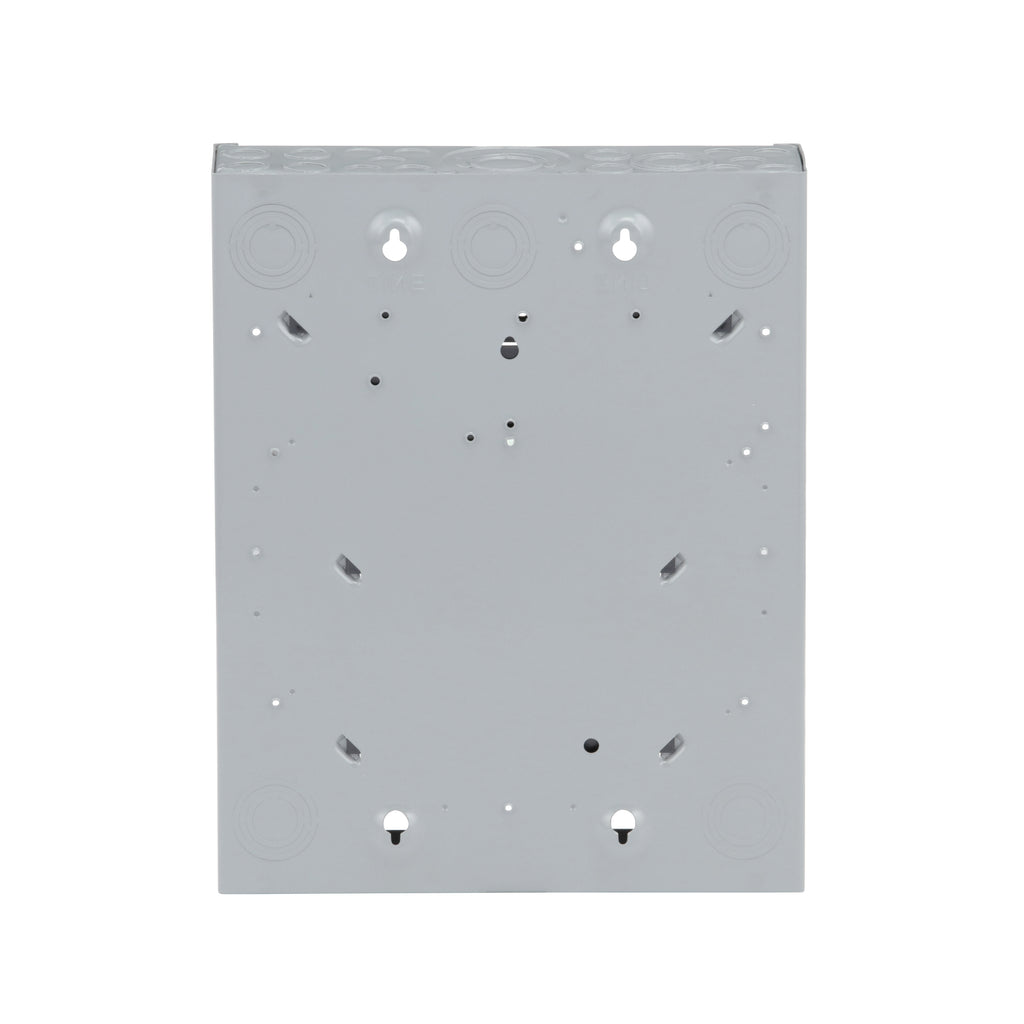

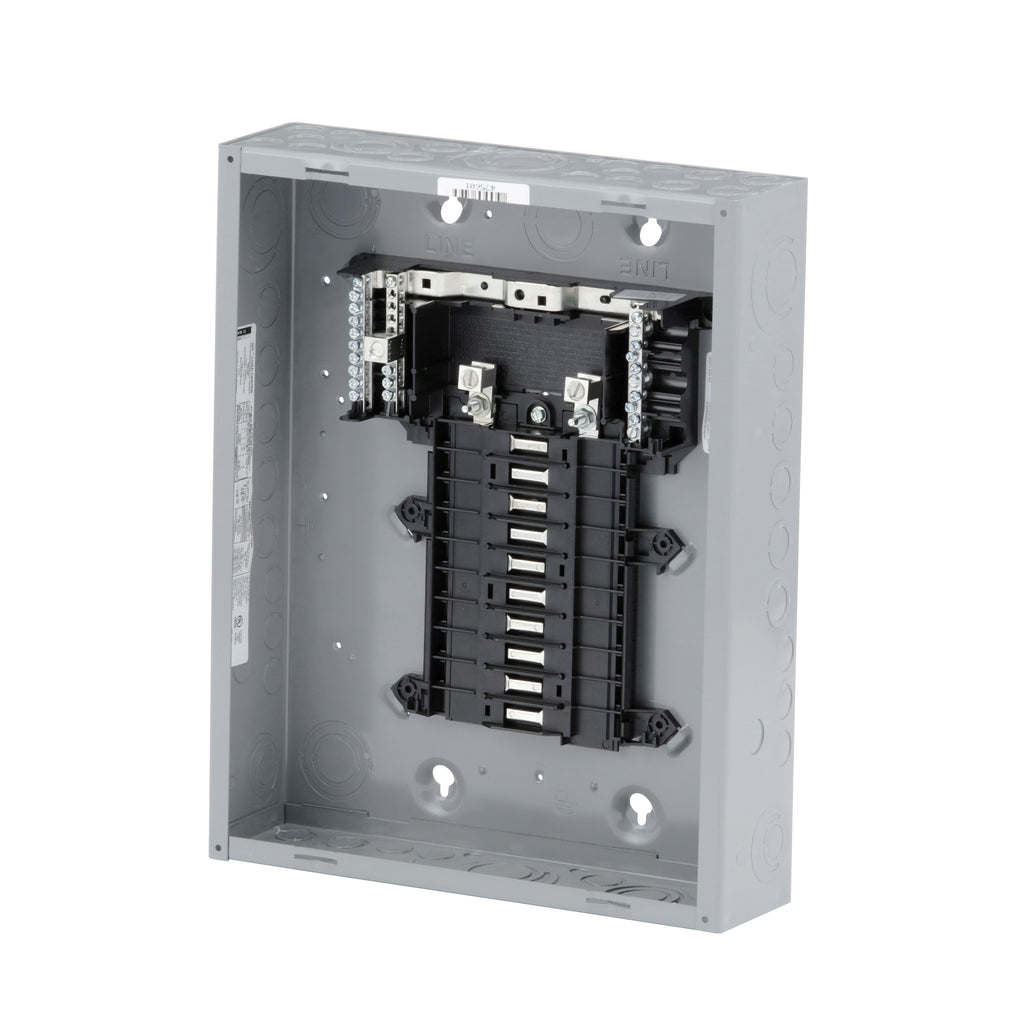

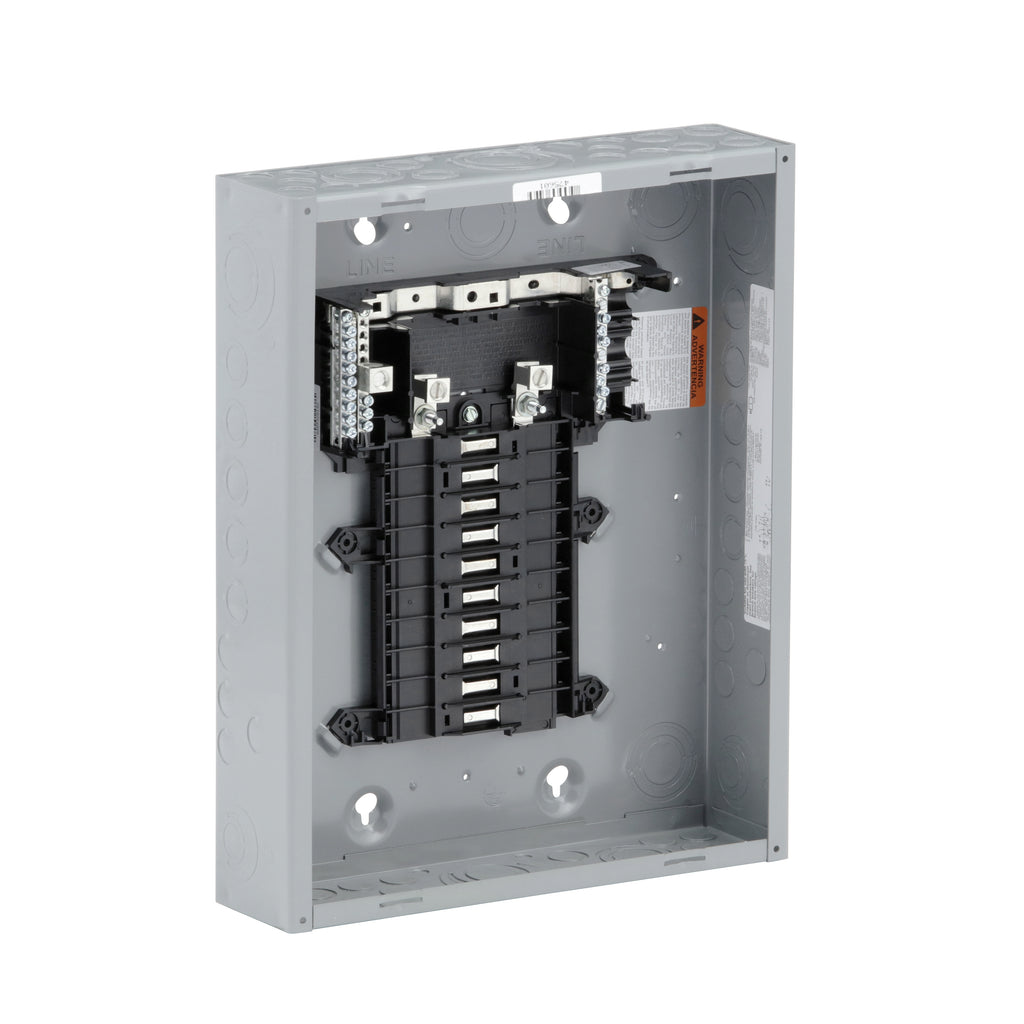

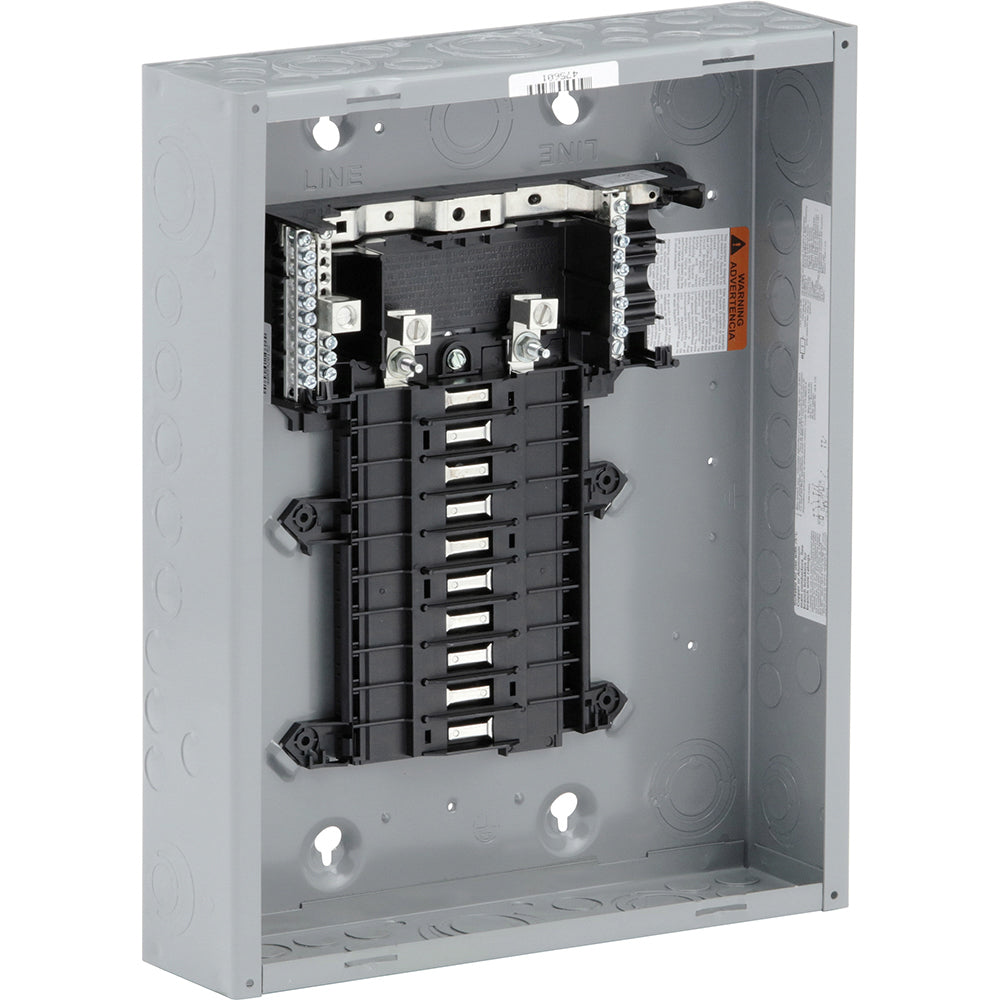

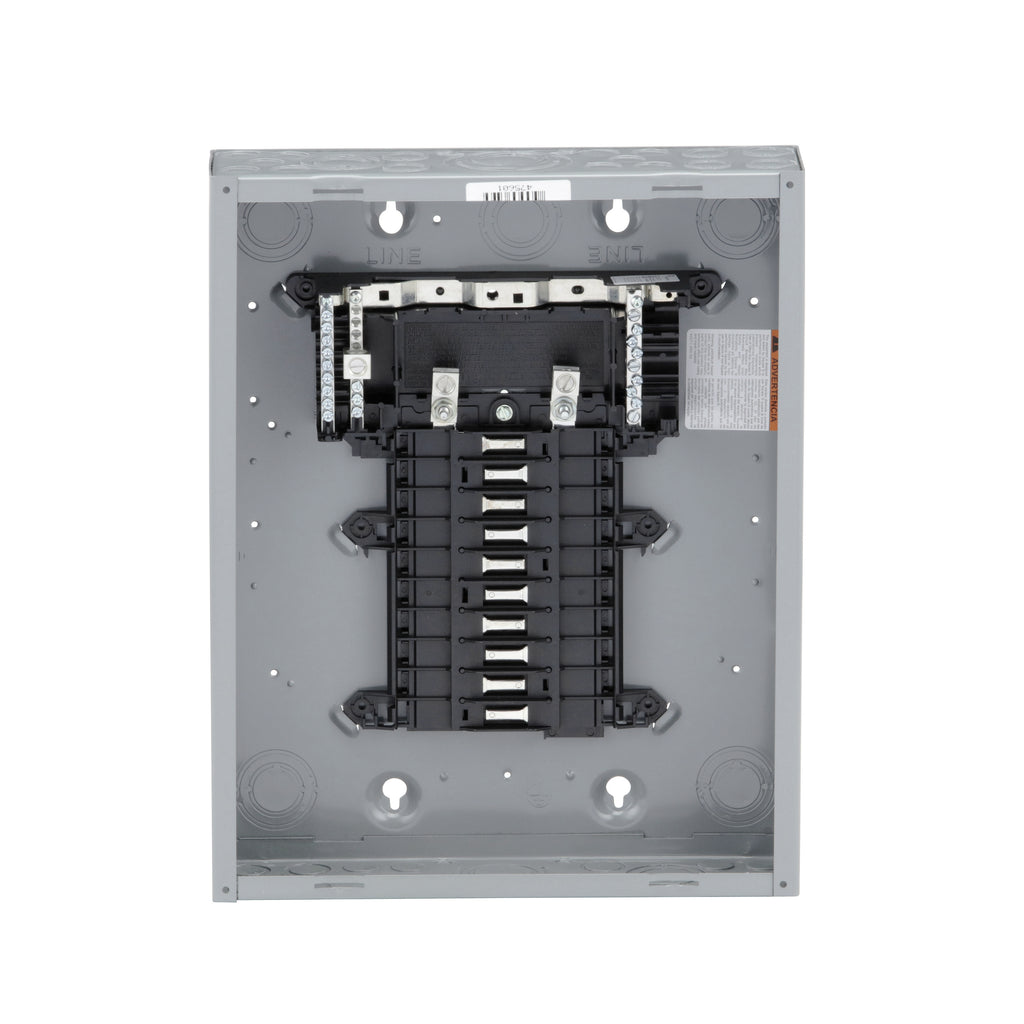

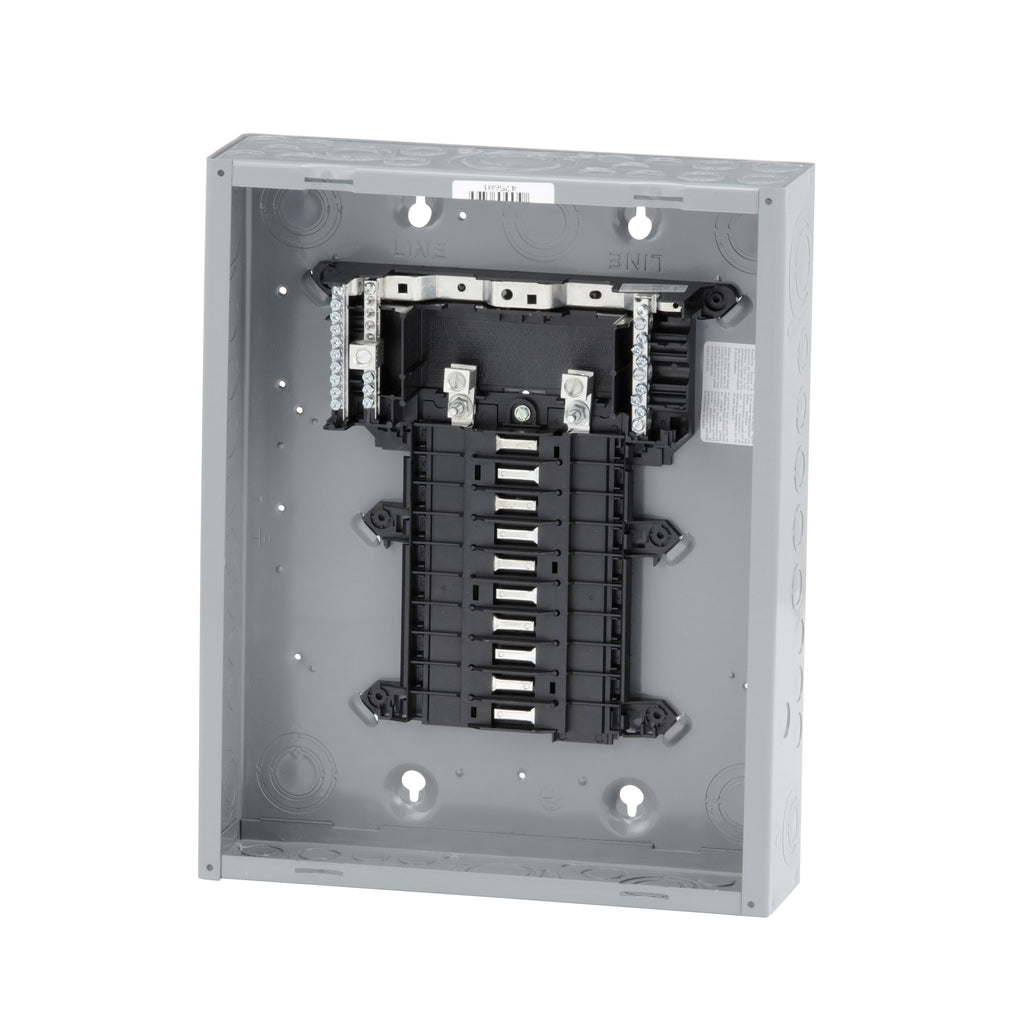

QO120L125G is a Square D load center designed for reliable power distribution in residential and commercial applications. This main lug load center features a 125A rating and supports up to 20 circuits in a compact, indoor-rated enclosure. The QO120L125G is built for 1-phase, 3-wire systems with a voltage rating of 120/240VAC. It is compatible with QO and QOM1 frame breakers and offers a high interrupting rating for safe operation in demanding environments. The convertible main lug design allows for flexible installation options.
- 125A Amperage Rating
- 120/240VAC Voltage Rating
- 1-Phase, 3-Wire Configuration
- 20 Maximum Circuits
- 20 Maximum Spaces
- Main Lug Mounting Type
- 65kAIC Interrupting Rating
- QOM1 Frame Size Main Breaker Compatibility
- Convertible Main Lug Design
- UL Listed
Specifications
- Part Number: QO120L125G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : QO Series
- Type : QO
- Voltage : 240
- Amperage : 125
- Phase : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Bus Type : Copper
Product Data
- UPC : 078590184785
- Weight : 10.651
- Wire Size : AWG 6 to AWG 2/0, Aluminum, AWG 6 to AWG 1, Copper
