Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO120HM

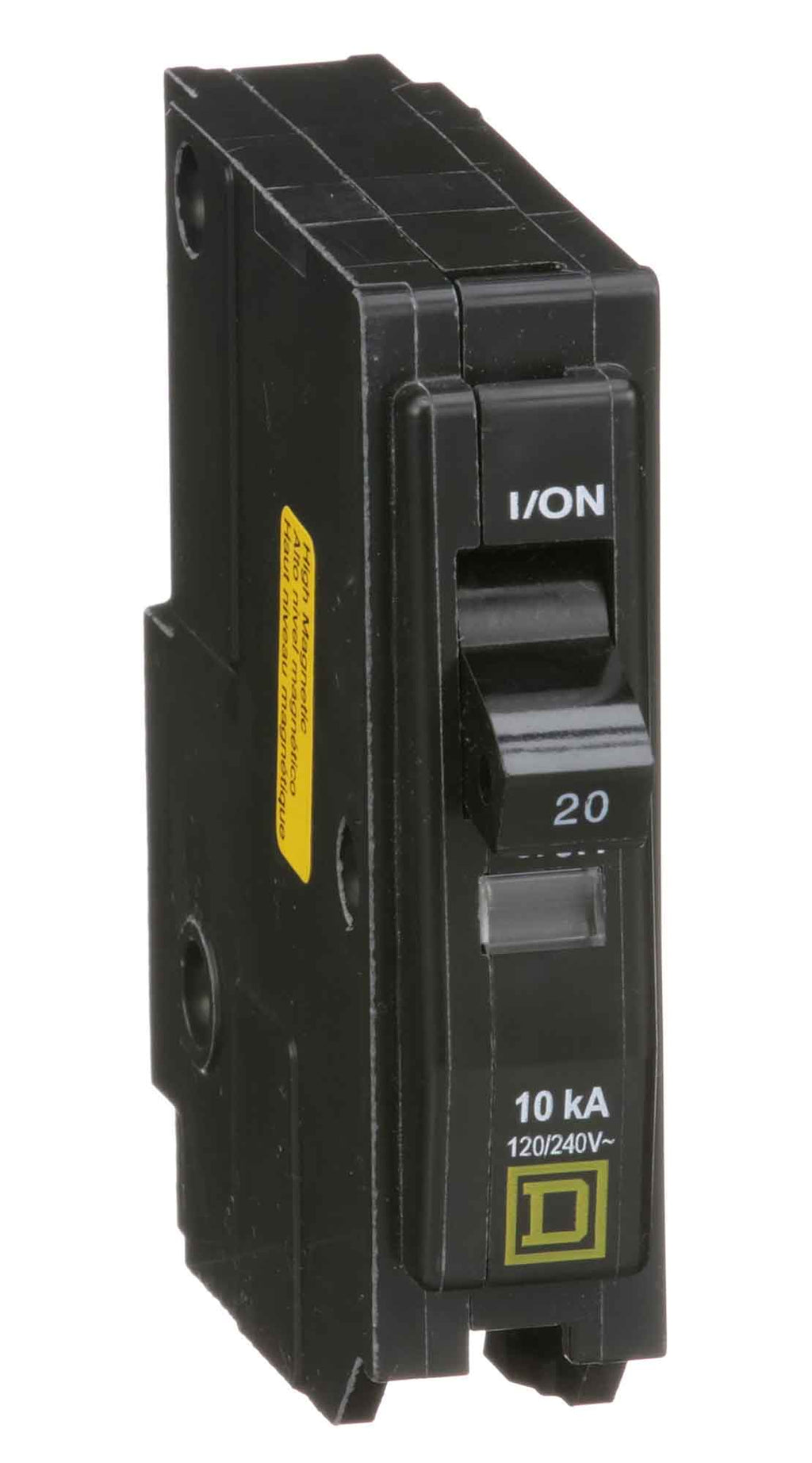

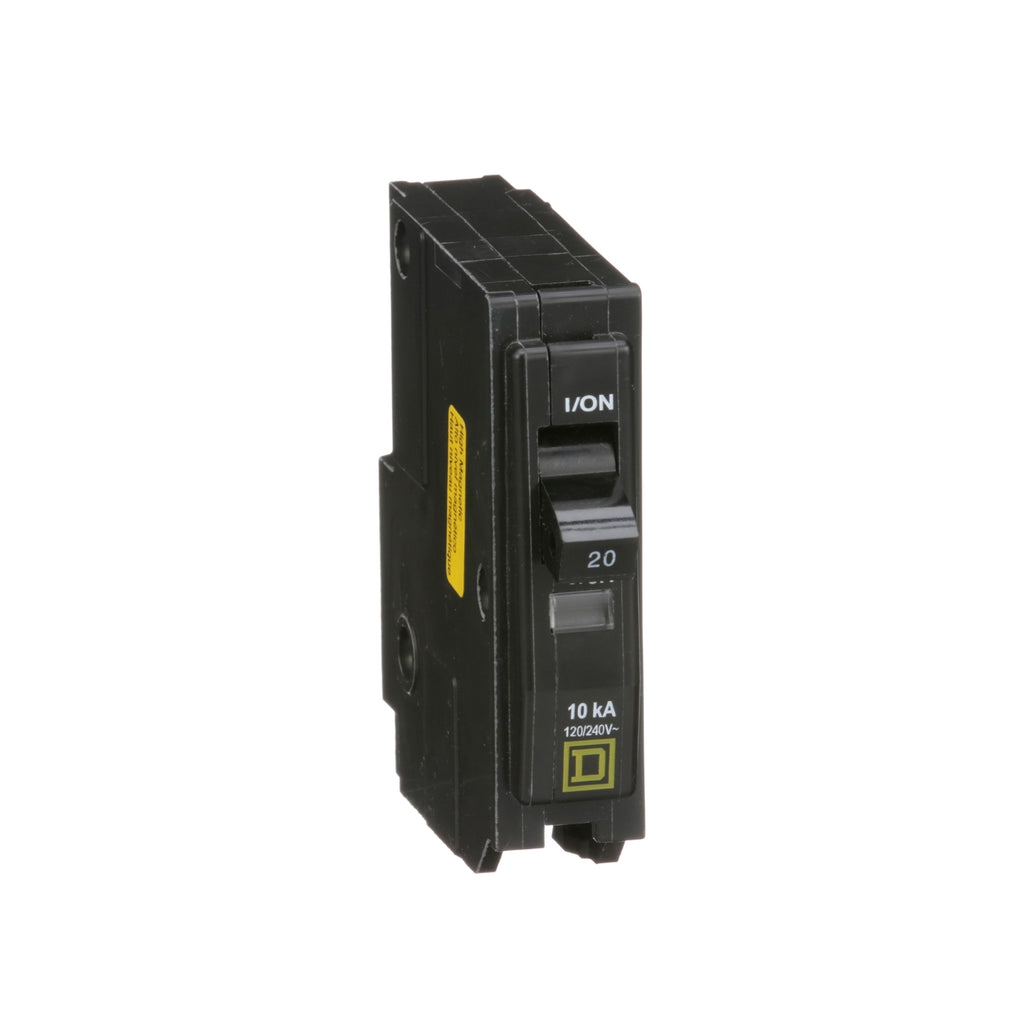

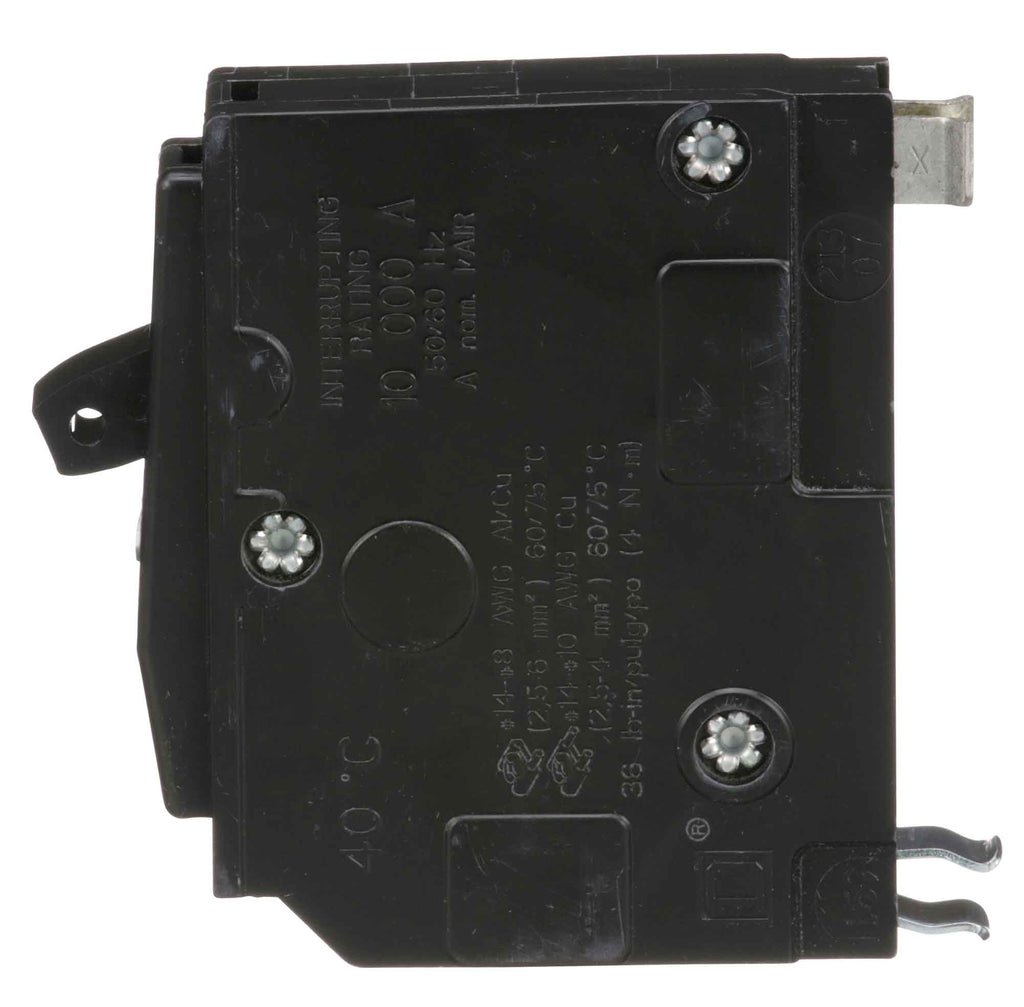

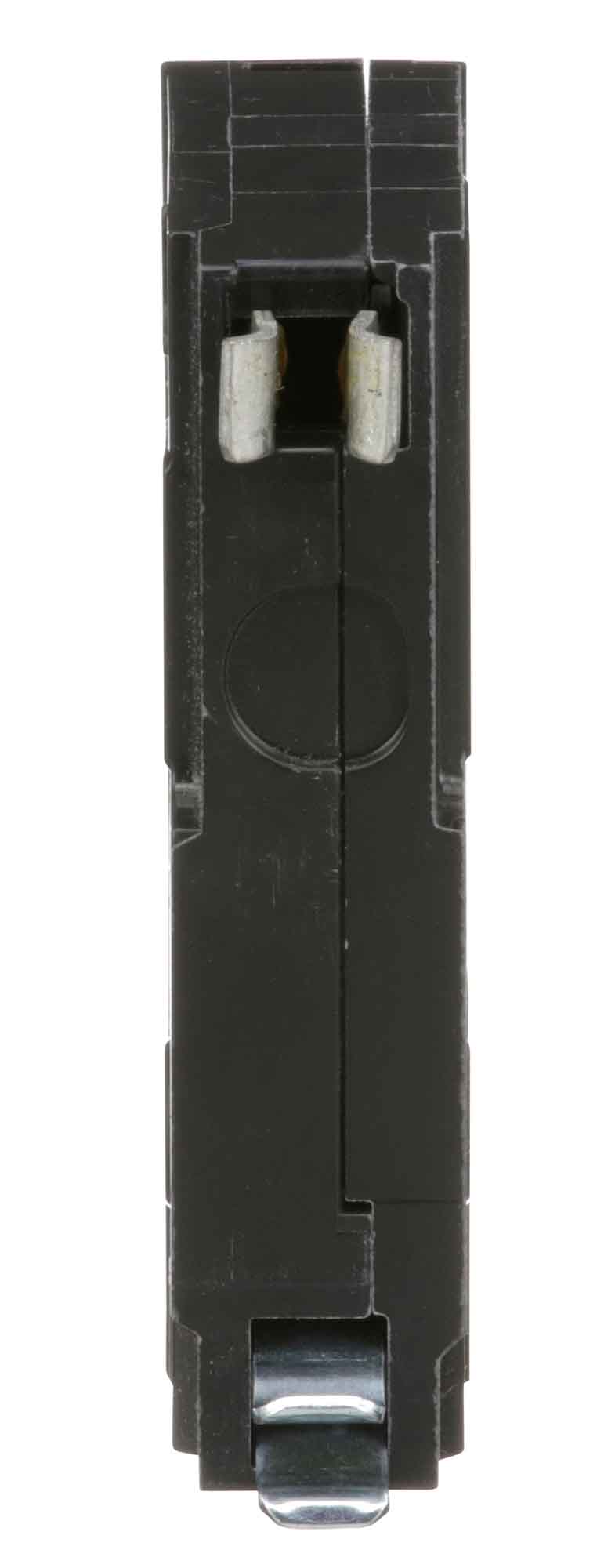

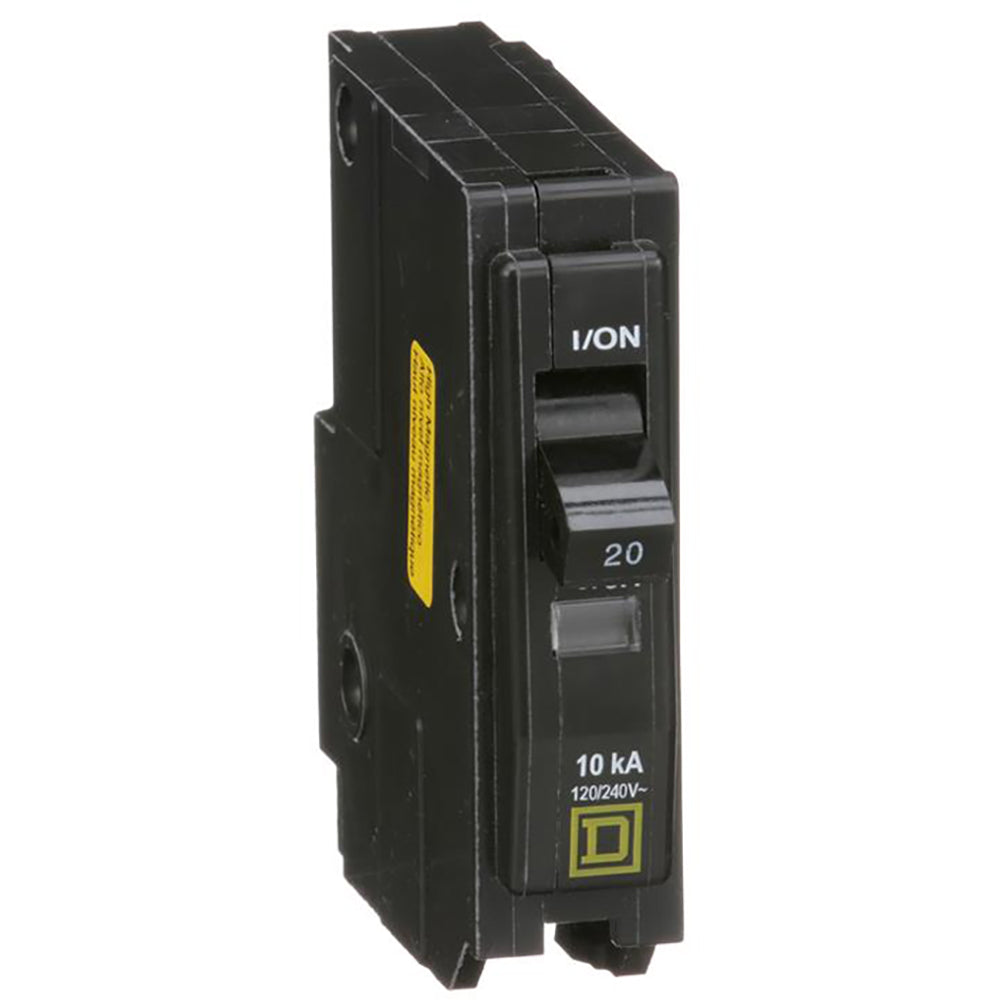

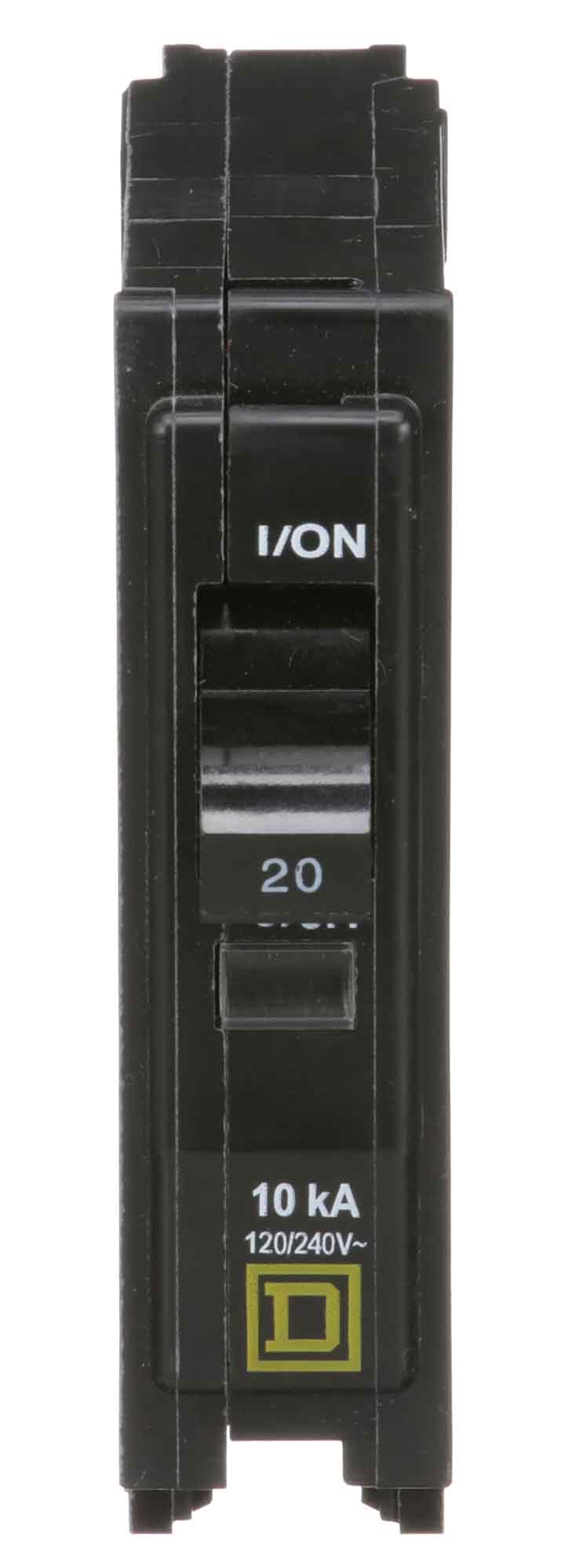

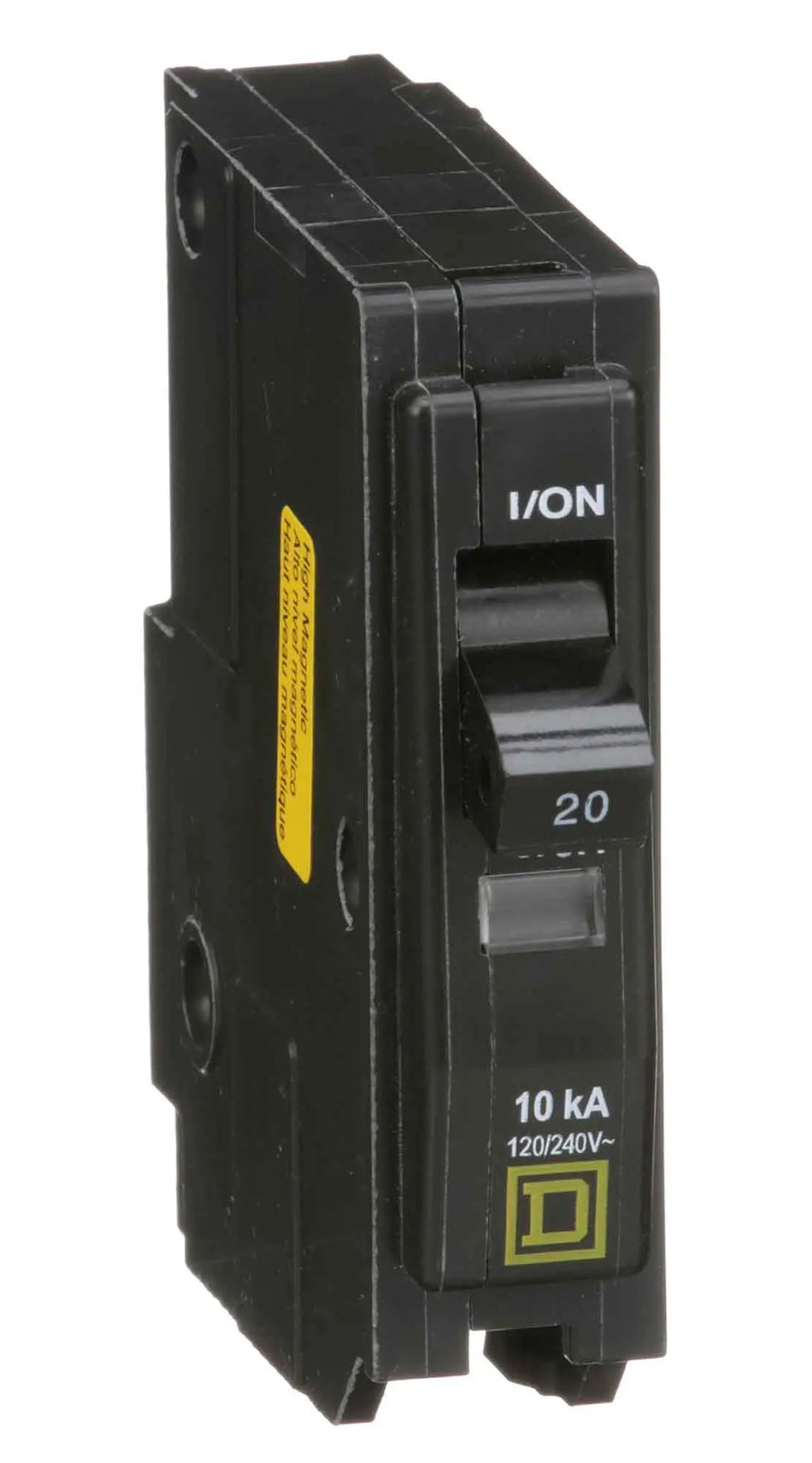

QO120HM is a Square D QO series miniature circuit breaker designed for reliable circuit protection in residential and commercial applications.
This high magnetic, single-pole breaker offers 20A current rating, 120VAC voltage, and a 10kA interrupting capacity. It features a plug-in mounting design for quick installation in compatible QO load centers and panelboards, with a compact footprint for space efficiency. The QO120HM is engineered for superior short-circuit and overload protection, with a clear trip indicator for easy diagnostics.
-
Key Specifications
- Amperage: 20A
- Voltage: 120VAC
- Poles: 1
- Mounting Type: Plug-in
- Interrupt Rating: 10kA
- Series/Frame: QO
- Trip Unit: High magnetic
- Certifications: Meets California Proposition 65 standards
- Application: Residential and commercial electrical systems
- Design: Compact, space-saving
- Diagnostics: Trip indicator for easy troubleshooting
- Environmental: Packaging made with recycled cardboard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO120HM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO Series
- Type : QO
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Pressure plate
- Frame Size : 100A/QO
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type : High Magnetic
- Protection : Thermal Magnetic
Product Data
- UPC : 785901400110
- GTIN : 00785901400110
- Country of Origin : Mexico
- Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.27
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA Certified, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8, Cu/Al
