Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QO115PAF

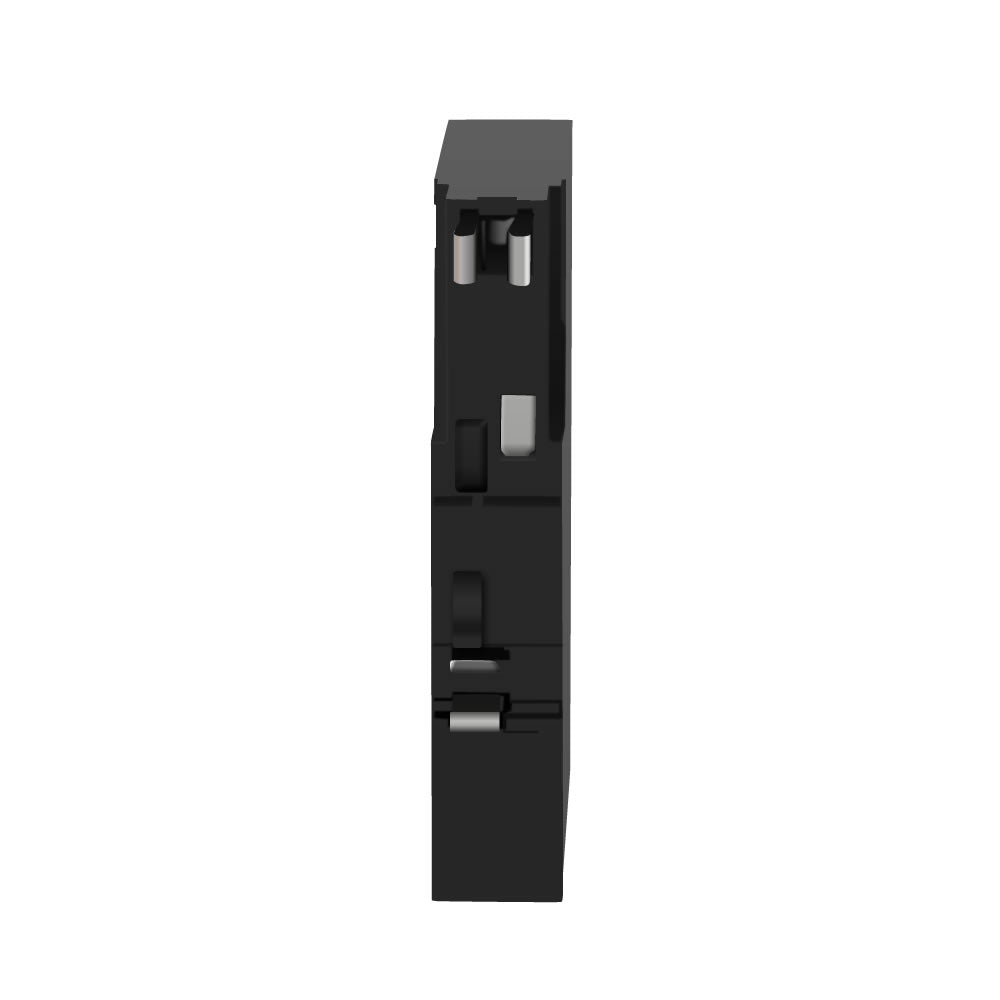

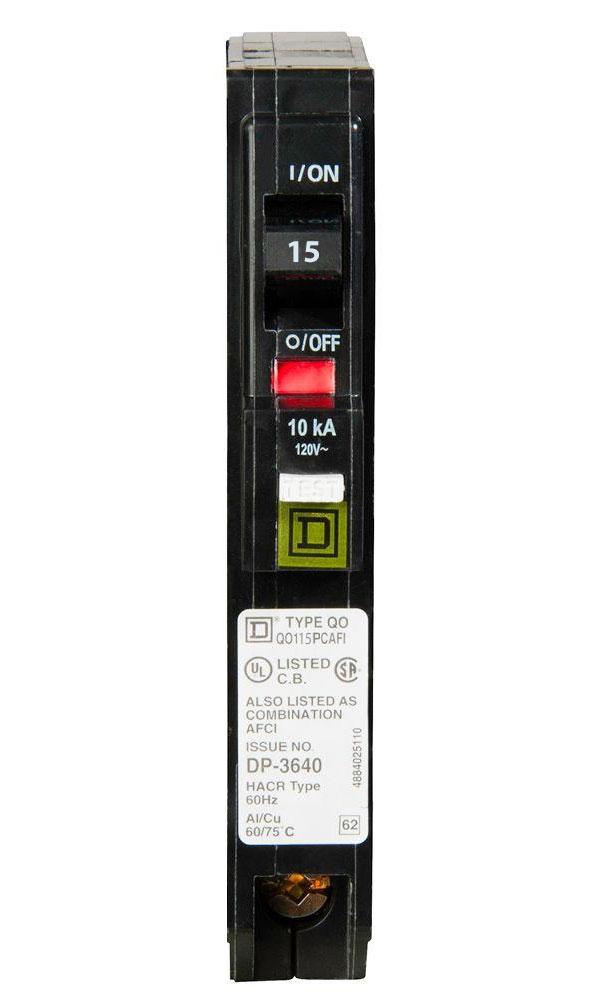

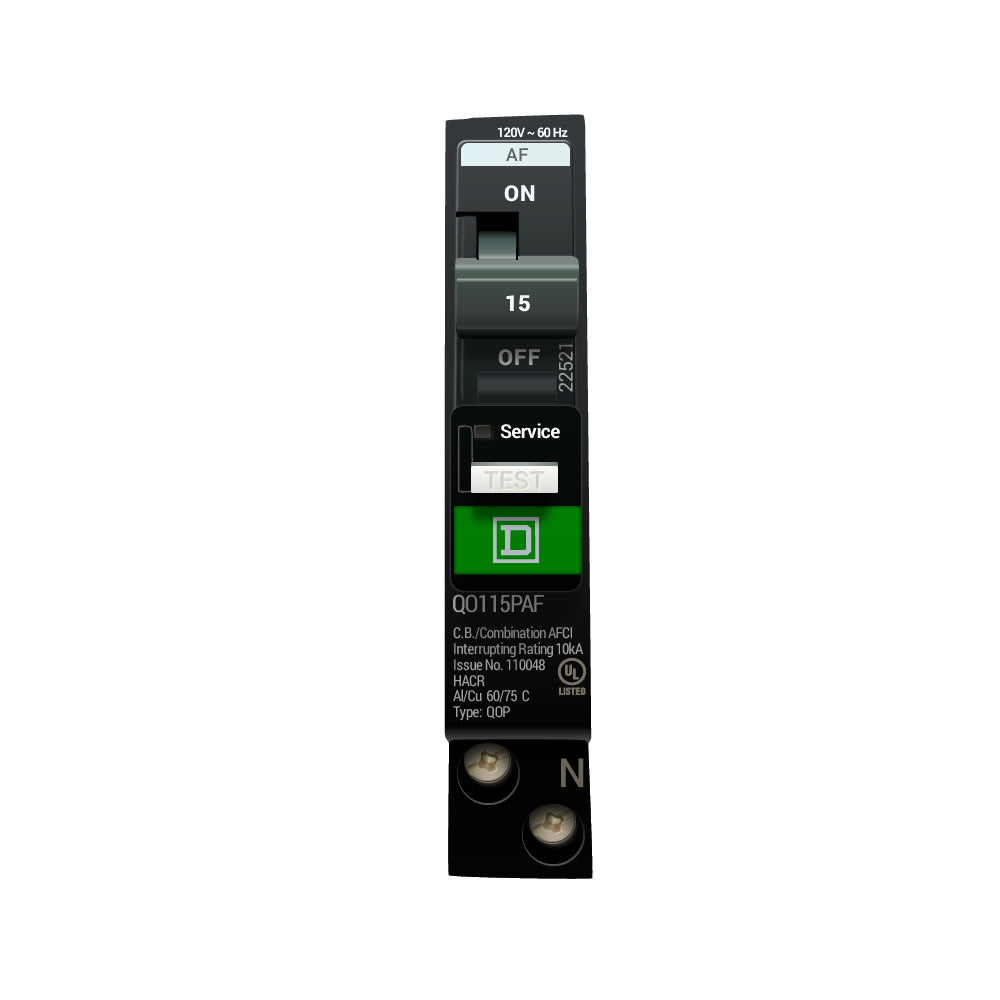

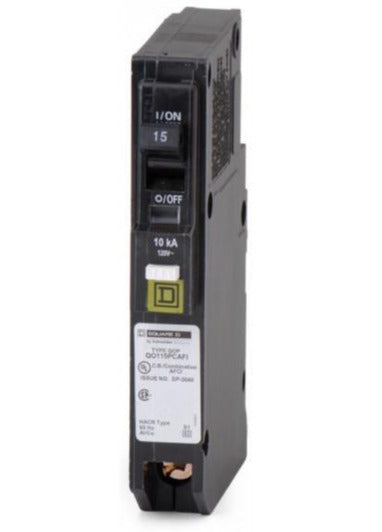

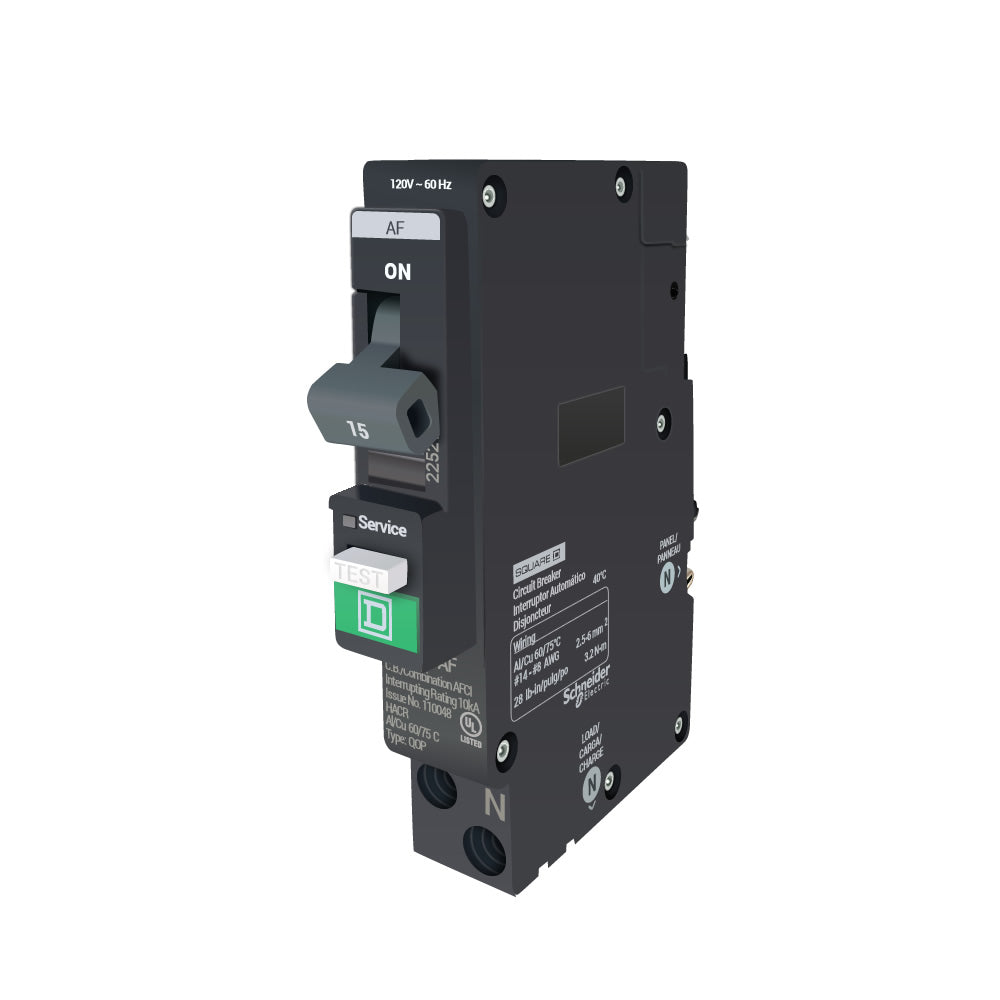

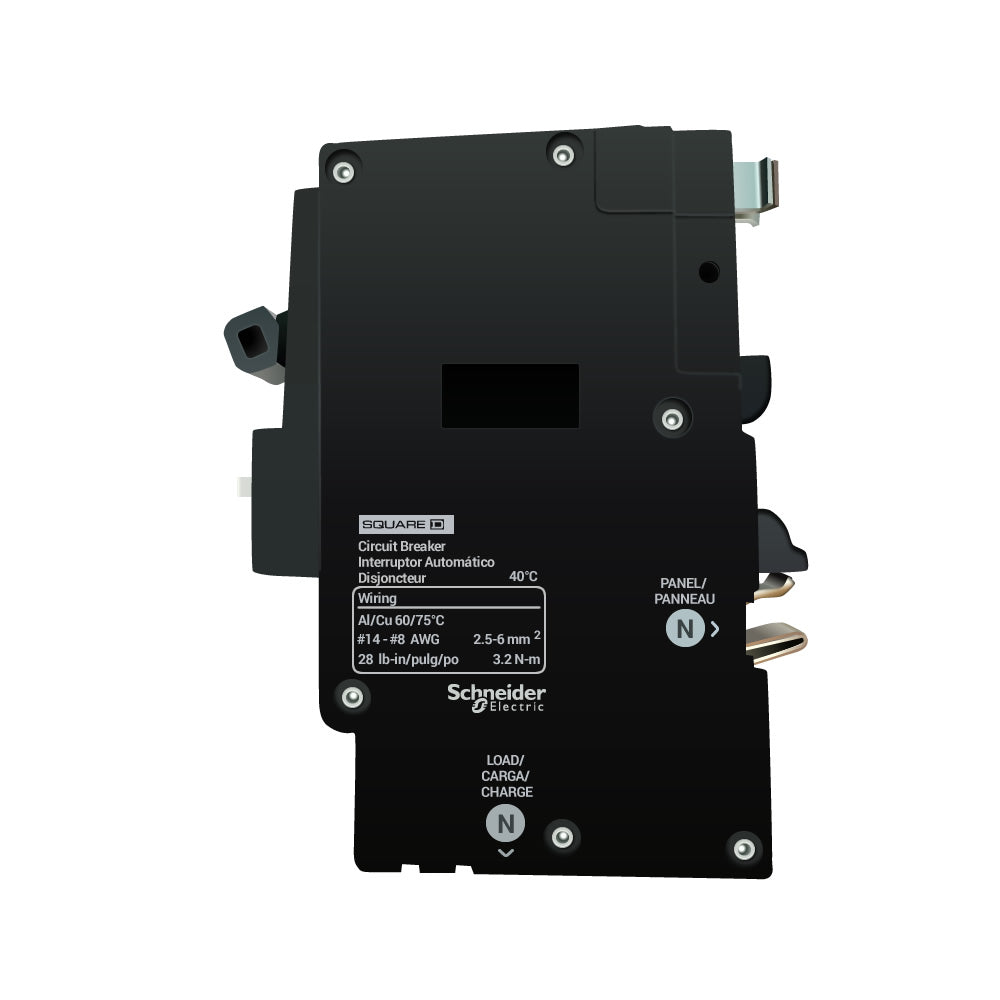

QO115PAF is a 15 Amp, 1-pole combination arc fault circuit breaker from Square D designed for residential and commercial electrical safety.This circuit breaker features a 120VAC voltage rating with a 10kA interrupt rating, plug-on neutral connection, and plug-in mounting type. It belongs to the QO series and provides reliable arc fault protection to help prevent electrical fires. The breaker is UL listed and designed for easy installation in QO load centers.
- Amperage: 15 Amps
- Voltage: 120VAC
- Poles: 1 Pole
- Interrupt Rating: 10,000 Amps (10kA)
- Mounting Type: Plug-In
- Series/Frame: QO
- Trip Unit: Combination Arc Fault (AFCI)
- Plug-On Neutral Connection
- UL Listed
- Manufacturer: Square D
Specifications
- Part Number: QO115PAF
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Type : QO
- Voltage : 120/240VAC
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kAIC at 120VAC
- Connection : Pressure Plate
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901778356
- GTIN : 00785901778356
- Country of Origin : United States
- Dimensions : 2.72 in (69.08 mm) x 0.75 in (19.05 mm) x 4.10 in (104.14 mm) (Height x Width x Depth)
- Weight : 0.413 lb
- Standards : RoHS, REACh, HACR
- Certification : UL, CSA
- Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
