Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QN2200RH

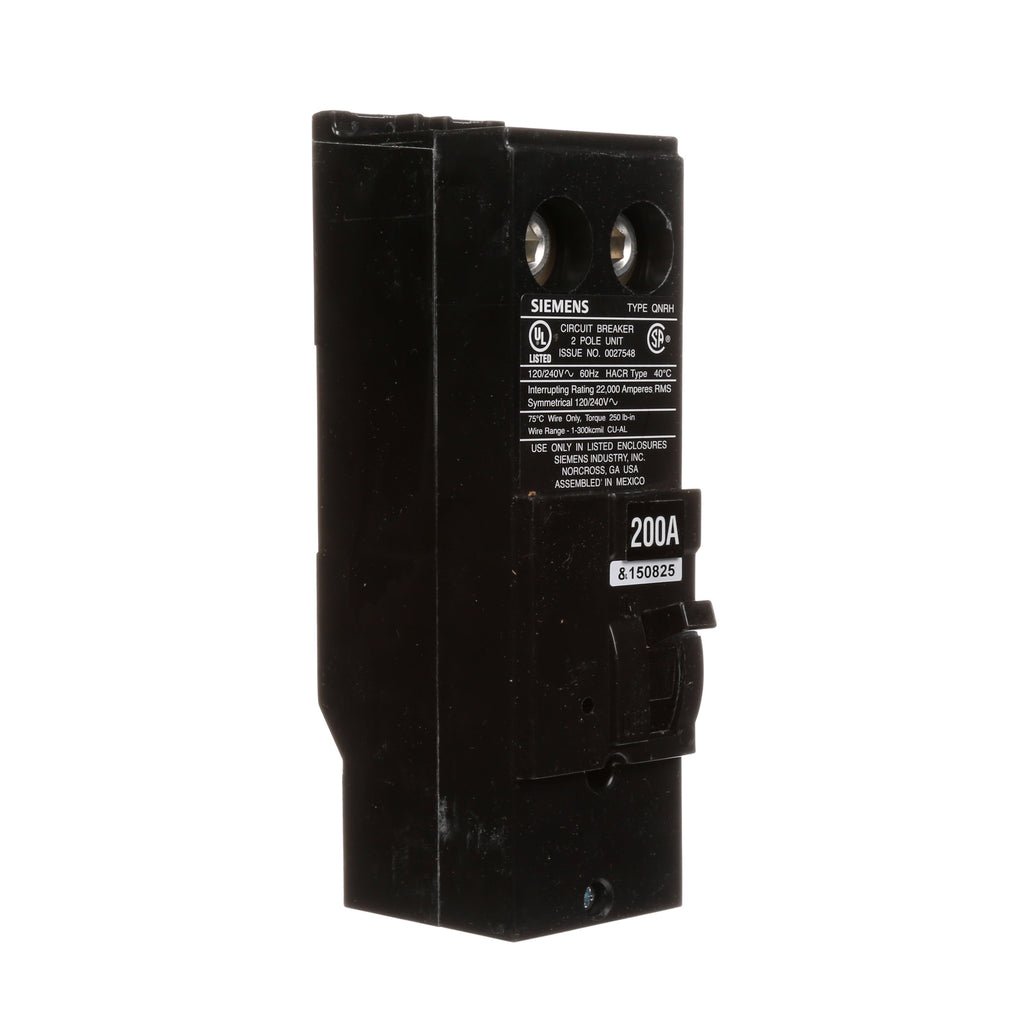

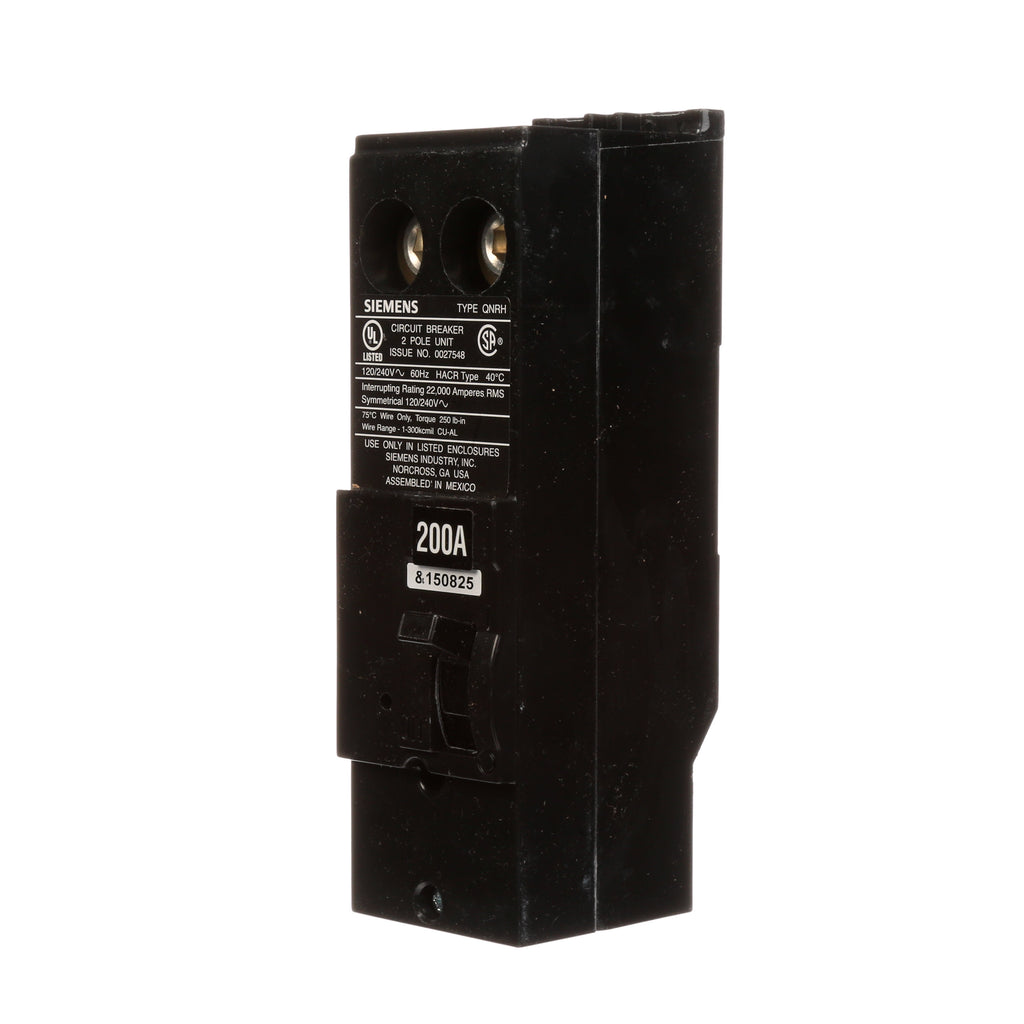

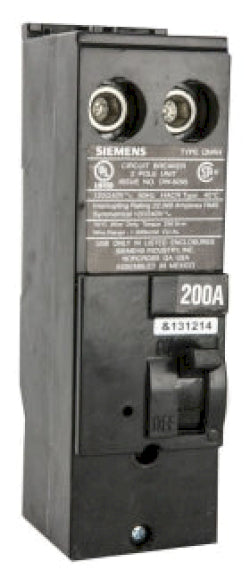

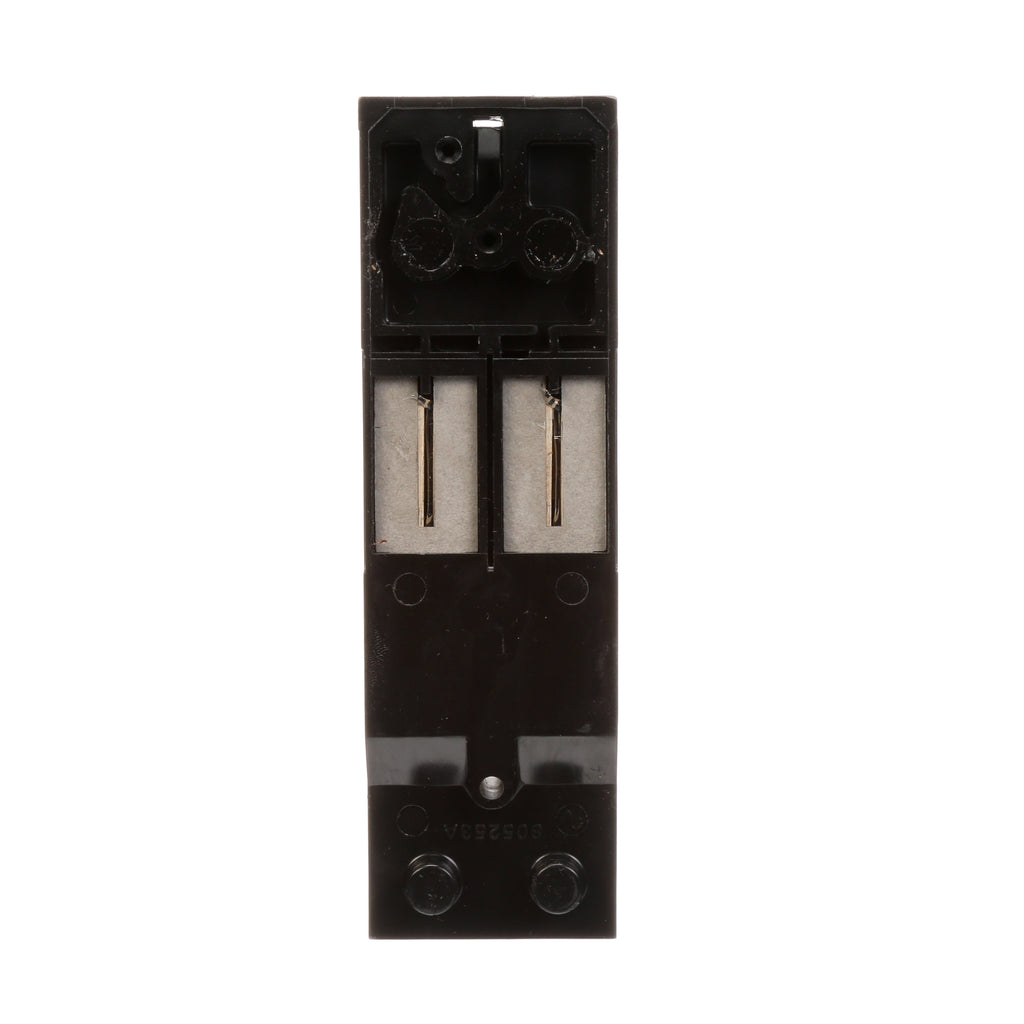

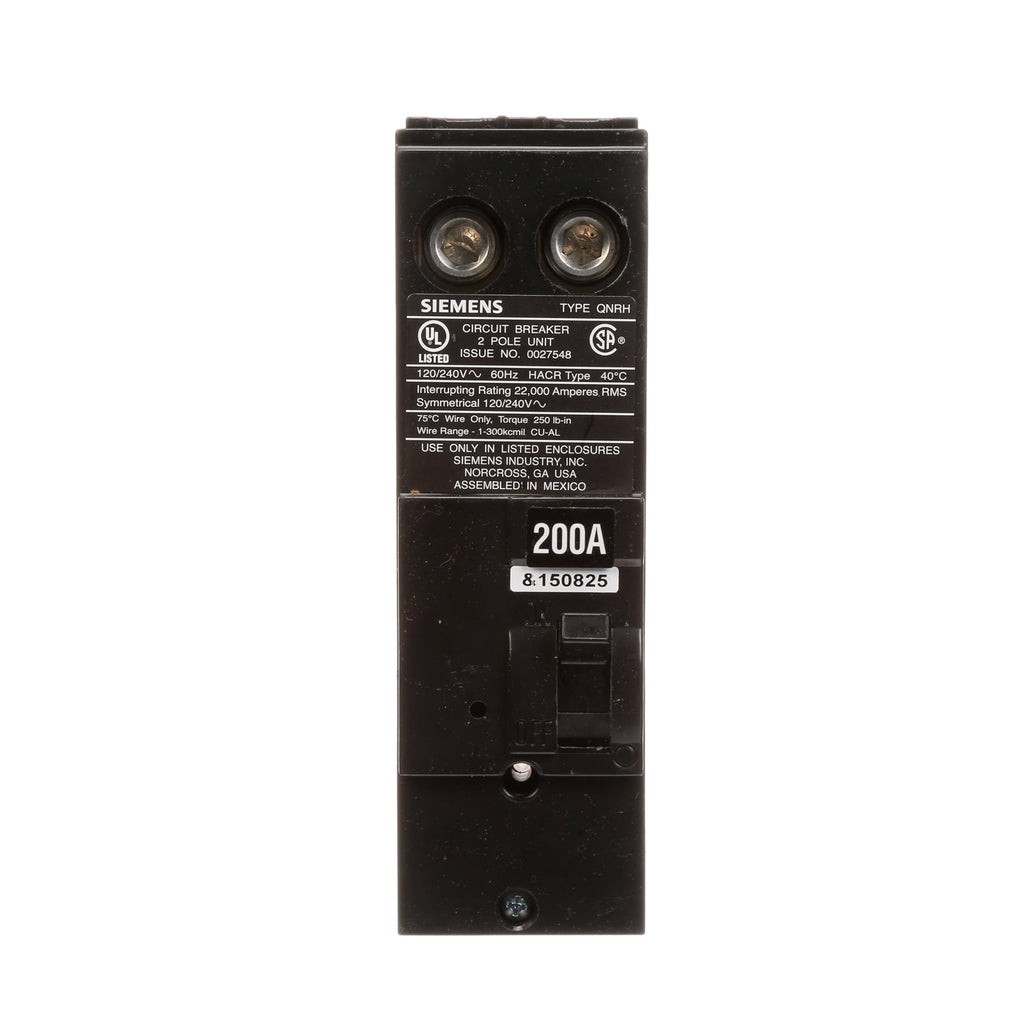

QN2200RH is a Siemens 2 pole, 200 amp thermal magnetic molded case circuit breaker designed for 120/240VAC systems.This Siemens QN2200RH circuit breaker features a Q frame with panel mounting and plug-in connection type. It provides reliable circuit protection with long time and instantaneous trip functions and an interrupting rating of 22kAIC at 240 volts. It is UL and ANSI certified and suitable for use with load centers, supporting wire gauges from #1 to 3000 kcmil aluminum or copper.
- Key Specifications
- Amperage: 200 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Panel
- Interrupting Rating: 22kAIC @ 240V
- Frame Type: Q
- Connection Type: Plug-In
- Protection: Thermal Magnetic
- Trip Functions: Long Time and Instantaneous
- Standards: UL, ANSI
- Wire Gauge Range: #1 to 3000 kcmil Aluminum/Copper
- Phase: Single
Specifications
- Part Number: QN2200RH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QN
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643204263
- GTIN : 00783643204263
- Country of Origin : Mexico
- Dimensions : 7.48 x 2.362 x 3.937 inch
- Weight : 2.601
- Wire Size : #1 to 3000KCmil Aluminum/Copper
