Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Panel Mount
Description
QMQB8036H

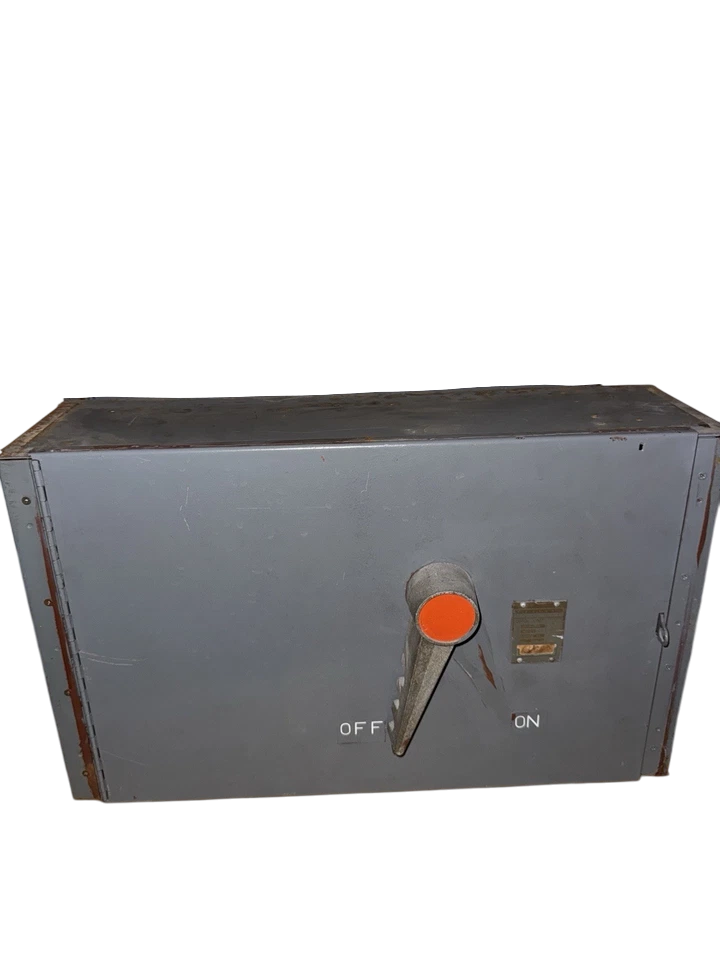

QMQB8036H is a 3 pole fusible panelboard switch rated for 800 amperes at 600 volts AC, designed for panel mount installation in industrial and commercial electrical systems.
This QMQB frame type switch features quick-make-quick-break technology with a heavy-duty rotary handle mechanism and locking handle for lockout-tagout (LOTO) compliance. The switch utilizes Class J fuses and is UL-98 listed (File Number E466967). It is interchangeable with existing Federal Pacific Electric panelboard switches and compatible with switches originally manufactured by American Circuit Breaker, Challenger, Frank Adams, Sylvania, and Zinsco without requiring switchboard modifications.
Key Specifications
- Amperage: 800 Amps
- Voltage: 600V AC
- Poles: 3 Phase
- Frame Type: QMQB
- Mounting: Panel Mount
- Interrupt Rating: 200 kAIC at 600V
- Fuse Type: Class J
- Handle Type: Heavy-duty Rotary with Locking Mechanism
- Certification: UL-98 Listed
- NEMA Rating: 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QMQB8036H
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMQB
- Type : QMQB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
Product Data
- Weight : 95
