Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Panel Mount
Description
QMQB7036

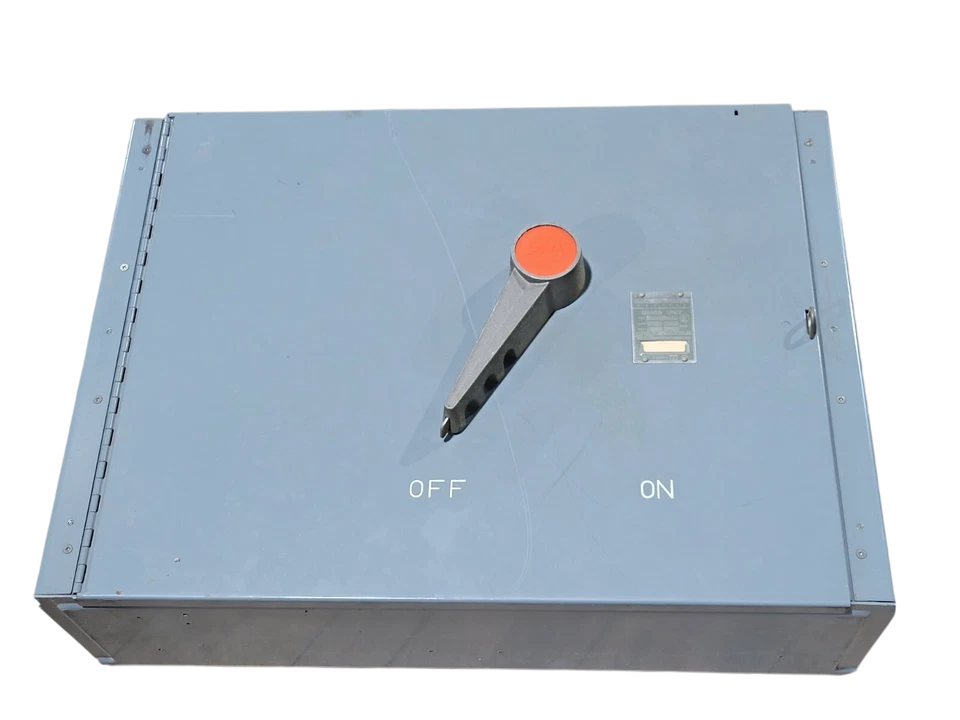

QMQB7036 is a 600 Amp, 600 Volt, 3 Pole QMQB type panelboard switch designed for reliable power distribution in commercial and industrial applications. This fusible panelboard switch features a bolt-in mounting type and is engineered for heavy-duty use with Class RK1 and RK5 fuse compatibility. It provides a robust solution for managing electrical circuits with a 200 kA interrupting capacity at 600 Volts AC.
- Type: QMQB Panelboard Switch
- Amperage Rating: 600 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3
- Mounting Type: Bolt-In
- Interrupting Capacity: 200 kAIC at 600V
- Fuse Compatibility: Class RK1 & RK5
- Dimensions: 22.25"W x 13.75"H x 6.25"D
- UL-98 Certified
- Heavy-Duty Rotary Handle
- Lockout/Tagout Ready
- NEMA 1 Rated
Specifications
- Part Number: QMQB7036
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMQB
- Type : QMQB
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,J,R,L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
Product Data
- Weight : 65
