Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Panel Mount
Description
QMQB1136R

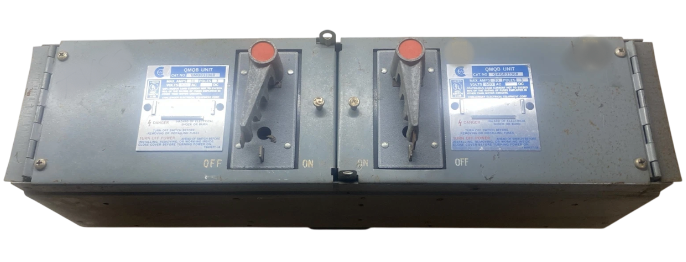

QMQB1136R is a fusible panelboard disconnect switch designed for reliable circuit protection in industrial and commercial applications. This switch is rated for 100 amps, 600 volts, and features a 3-pole configuration for three-phase systems. The Federal Pacific QMQB1136R is a fusible panelboard switch with a NEMA 1 enclosure, suitable for indoor use. It is designed for bolt-on mounting and provides a high interrupting capacity of 200kA. The switch is part of the QMQB series and is commonly used in panelboards requiring a fusible disconnect for safety and compliance.
- Part Number: QMQB1136R
- Manufacturer: Federal Pacific
- Amperage: 100A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA
- Series/Frame: QMQB
- Enclosure Type: NEMA 1
- Fuse Provision: Fusible
- Application: Panelboard Disconnect
- Phase: 3-Phase
Specifications
- Part Number: QMQB1136R
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMQB Series
- Type : QMQB
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,J,R
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : TKM
Product Data
- Weight : 35
