2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Panel Mount
Description
QMB362T32W

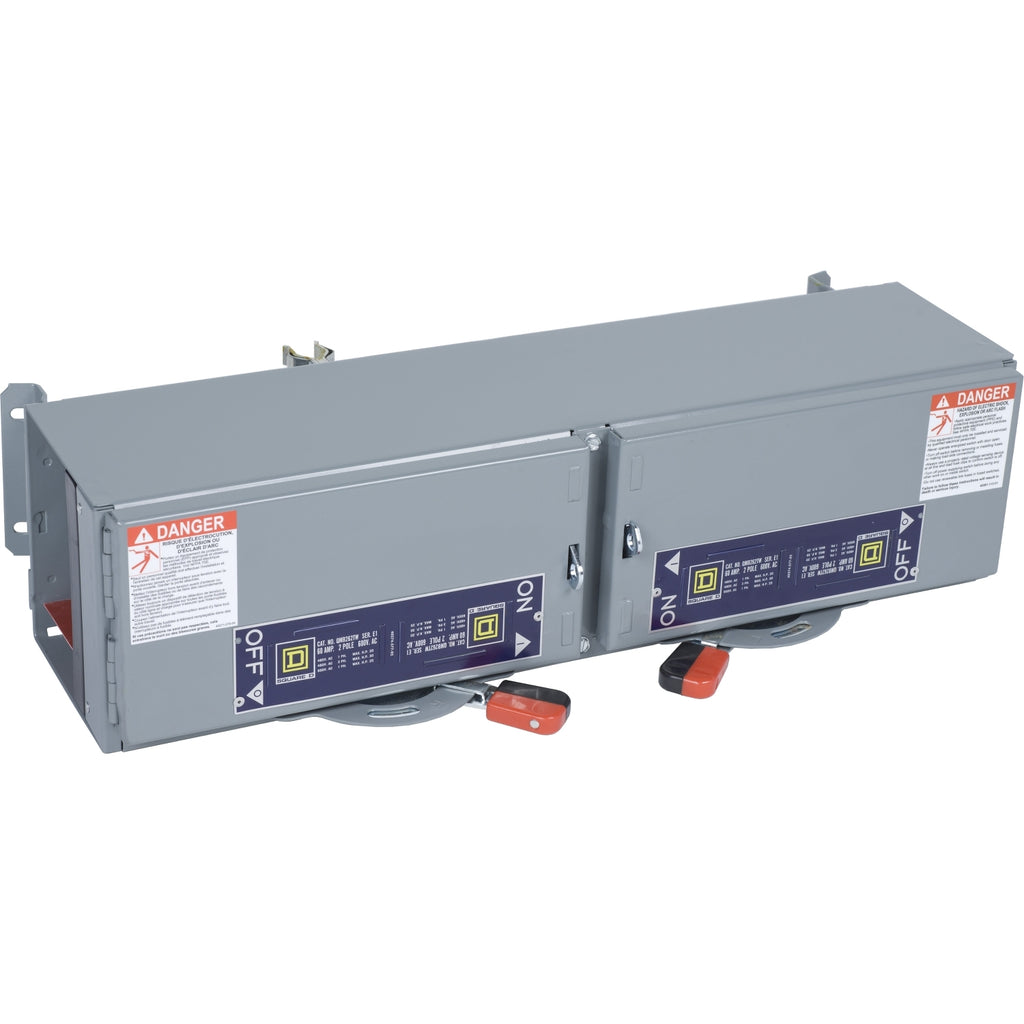

QMB362T32W is a 60 Amp, 600 Volt, 3-pole fusible panelboard switch from Square D designed for reliable power distribution and service equipment applications.QMB362T32W features a fusible safety switch configuration with a panel mount design, suitable for 3-phase systems. It is rated for 60 Amps continuous current and 600 VAC voltage, with an interrupting rating of 200kA at 480V, ensuring high fault current protection. The switch is constructed with steel material and includes a solid neutral that may be bonded to the enclosure with a grounding strap. This model is part of the QMB series and supports up to 7.5 horsepower motor load at 600 VAC.
- Key Specifications
- Amperage: 60 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA at 480V
- Series/Frame: QMB Series
- Material: Steel
- Phase: 3-Phase
- Motor HP Rating: 7.5 HP at 600 VAC
- Fusible Safety Switch
Specifications
- Part Number: QMB362T32W
- Manufacturer : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series E1-E2
- Type : QMB
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- GTIN : 00785901766087
- Weight : 30
