Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Panel Mount
Description
QMB361TW

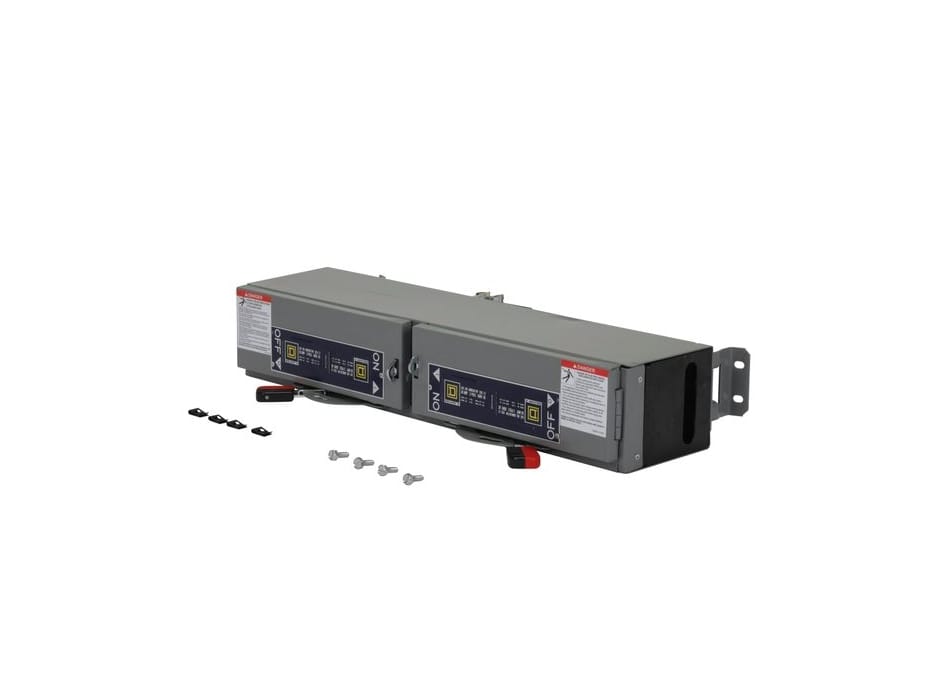

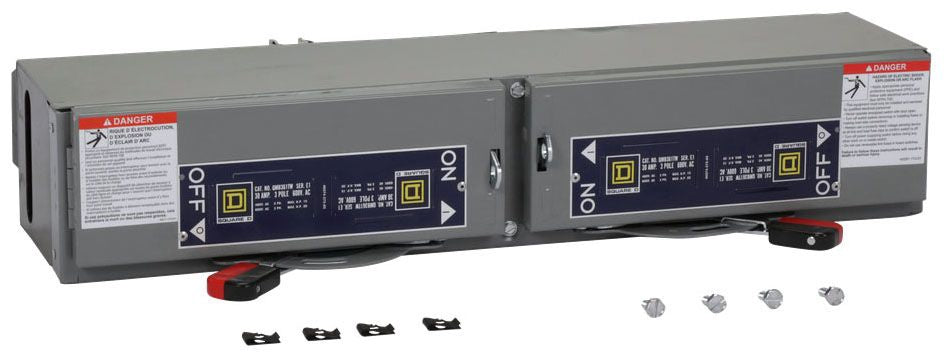

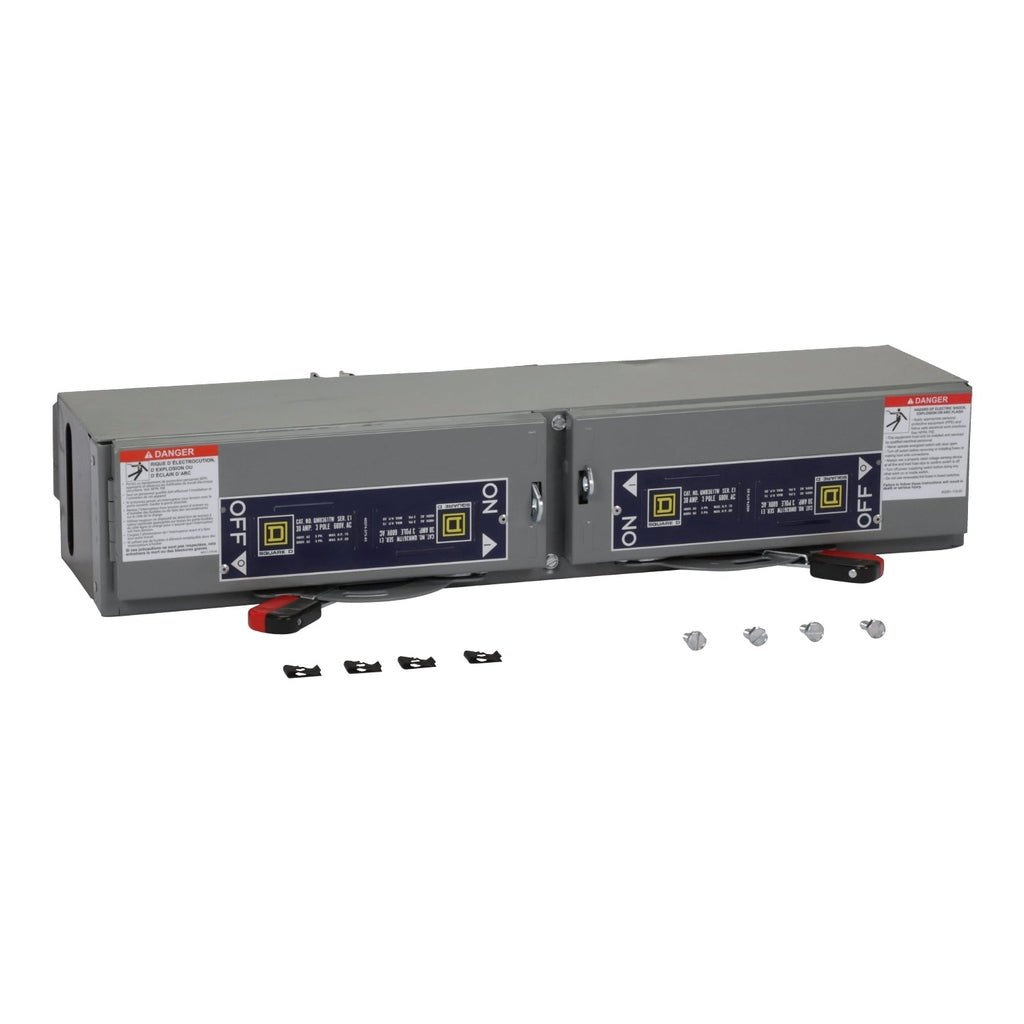

QMB361TW is a Square D 3 pole, 30 amp, 600 Volt fusible twin panel switch from the QMB Series E1 designed for panel mount applications.This fusible switch disconnector features a twin unit with two 30A switches in one, suitable for 3 phase systems with a voltage rating of 240/480/600 VAC. It supports wire sizes from 12 to 2 AWG aluminum and 14 to 4 AWG copper. The switch has a NEMA 1 rating and an interrupting rating of 200kA at 480V, making it ideal for QMB series E1 and E2 panelboards and switchgear distribution systems. It is UL 98 and CSA certified.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240/480/600 VAC
- Poles: 3 Pole
- Type: Fusible Twin Panel Switch
- Series/Frame: QMB Series E1
- Mounting Type: Panel Mount
- Interrupt Rating: 200kA @ 480V
- Wire Size: 12 to 2 AWG Aluminum, 14 to 4 AWG Copper
- NEMA Rating: NEMA 1
- Certifications: UL 98, CSA
- Phase: 3 Phase
- Horsepower Max: 20 HP
Specifications
- Part Number: QMB361TW
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series E1-E2
- Type : QMB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HHED
Product Data
- UPC : 785901748144
- GTIN : 00785901748144
- Country of Origin : United States
- Dimensions : Height 5.98 in (152 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 17.811
- Certification : NEMA KS1
