Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Panel Mount
Description
QMB361HW

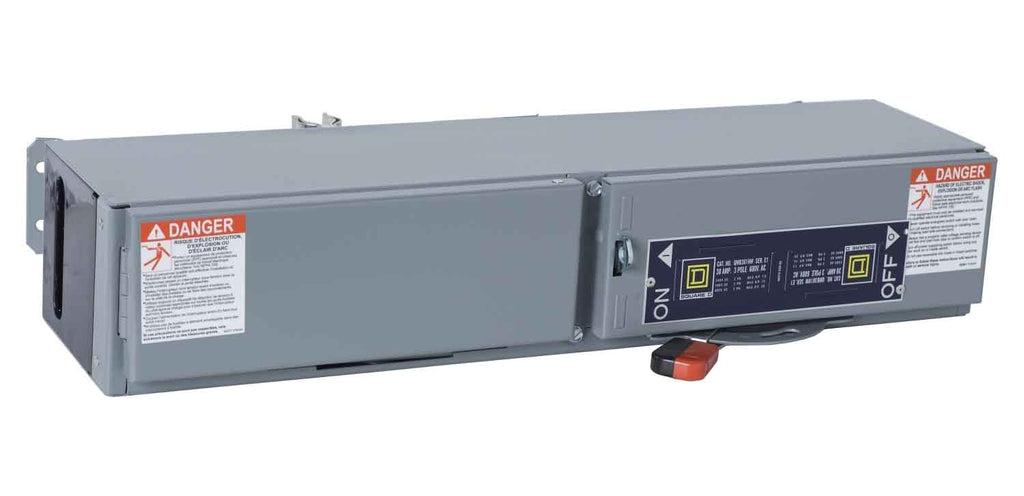

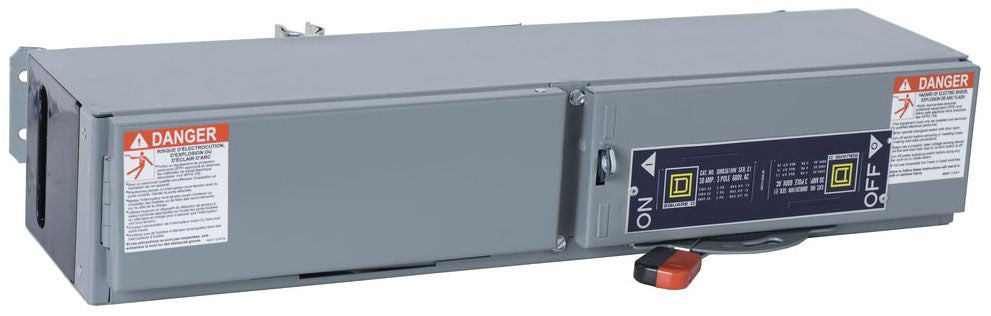

QMB361HW is a Square D 3 pole fusible panel mount switch rated for 30 Amps and 600 Volts, designed for QMB Series panelboards.
This switch features a 200kA interrupting rating at 480V, NEMA 1 enclosure rating, and is UL and CSA certified. It is compatible with QMB Series E1 and E2 panelboards and switchgear distribution systems, providing reliable circuit protection and disconnect functionality in three-phase applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Phase: 3
- Mounting Type: Panel Mount
- Interrupting Rating: 200kA at 480V
- Series/Frame: QMB
- Enclosure NEMA Rating: 1
- Certifications: UL Listed, CSA Certified
- Dimensions (LxWxH): 23.5 x 12.5 x 5 inches
- Configuration: Single
- Part Number: QMB361HW
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series E1-E2
- Type : QMB
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
- UPC : 785901748090
- GTIN : 00785901748090
- Country of Origin : United States
- Dimensions : Height 4.5 in (114.30 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 15.119
- Certification : NEMA KS1
