Product Info
- Manufacturer:Square D
- Sub-Category:Panel Mount
Description
QMB322TJ

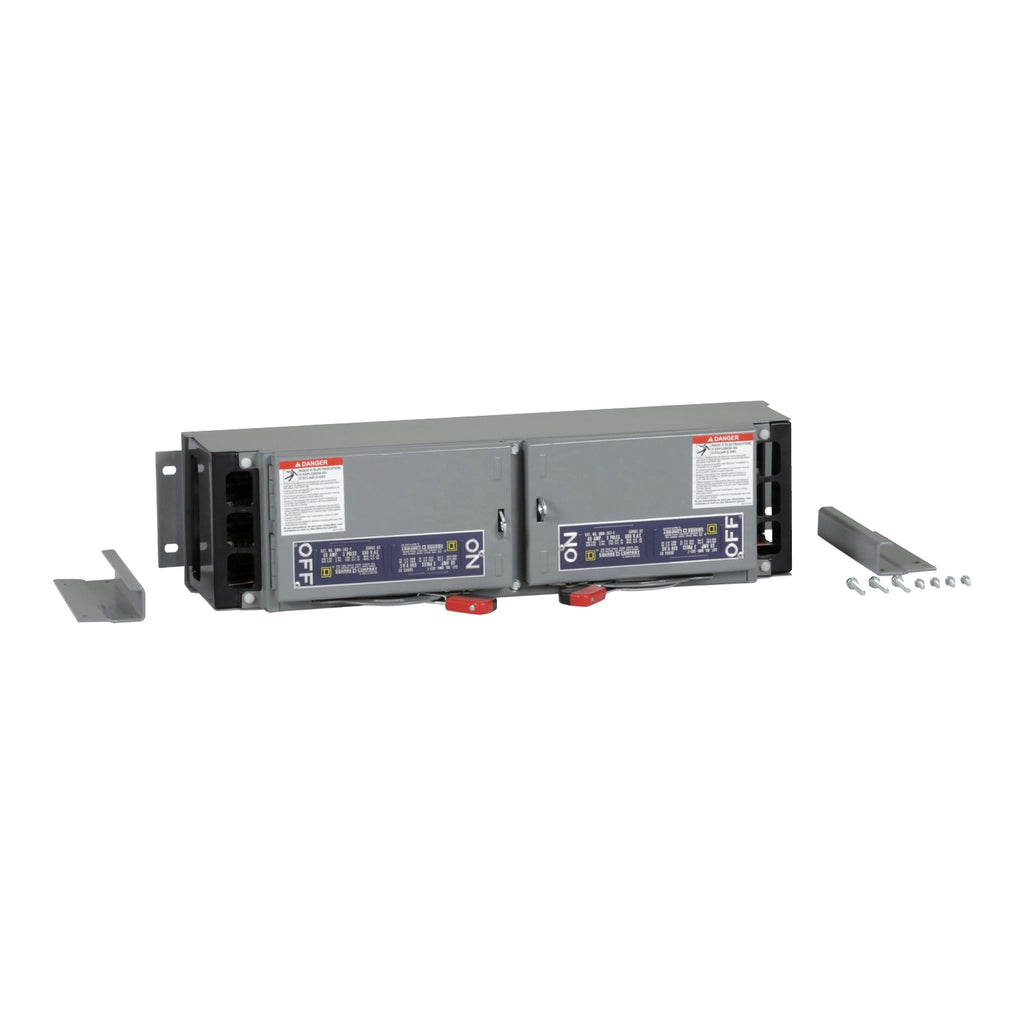

QMB322TJ is a Square D fusible panelboard switch designed for industrial and commercial power distribution applications requiring reliable overcurrent protection and load disconnection. This 60 amp, 240 volt, 3 pole fusible switch unit provides a manual disconnect between the power source and load while accepting Class H or K fuses for circuit protection. The switch complies with UL and CSA standards and is suitable for 3 phase power systems with a maximum rating of 15 HP at 240 VAC.
- Amperage: 60 Amp
- Voltage: 240 Volt
- Poles: 3 Pole
- Phase: 3 Phase
- Fuse Type: Class H or K (Class R with QMB36R kit)
- Horsepower Rating: 15 HP @ 240 VAC
- Certifications: UL Listed and CSA Certified
- Lug Type: Mechanical aluminum lugs standard
- Mounting: Panel Mount
Specifications
- Part Number: QMB322TJ
- Manufacturer : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series D2
- Type : QMB
- Voltage : 240
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : J
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HHED
Product Data
- Weight : 30
