Product Info
- Manufacturer:Square D
- Sub-Category:Panel Mount
Description
QMB322

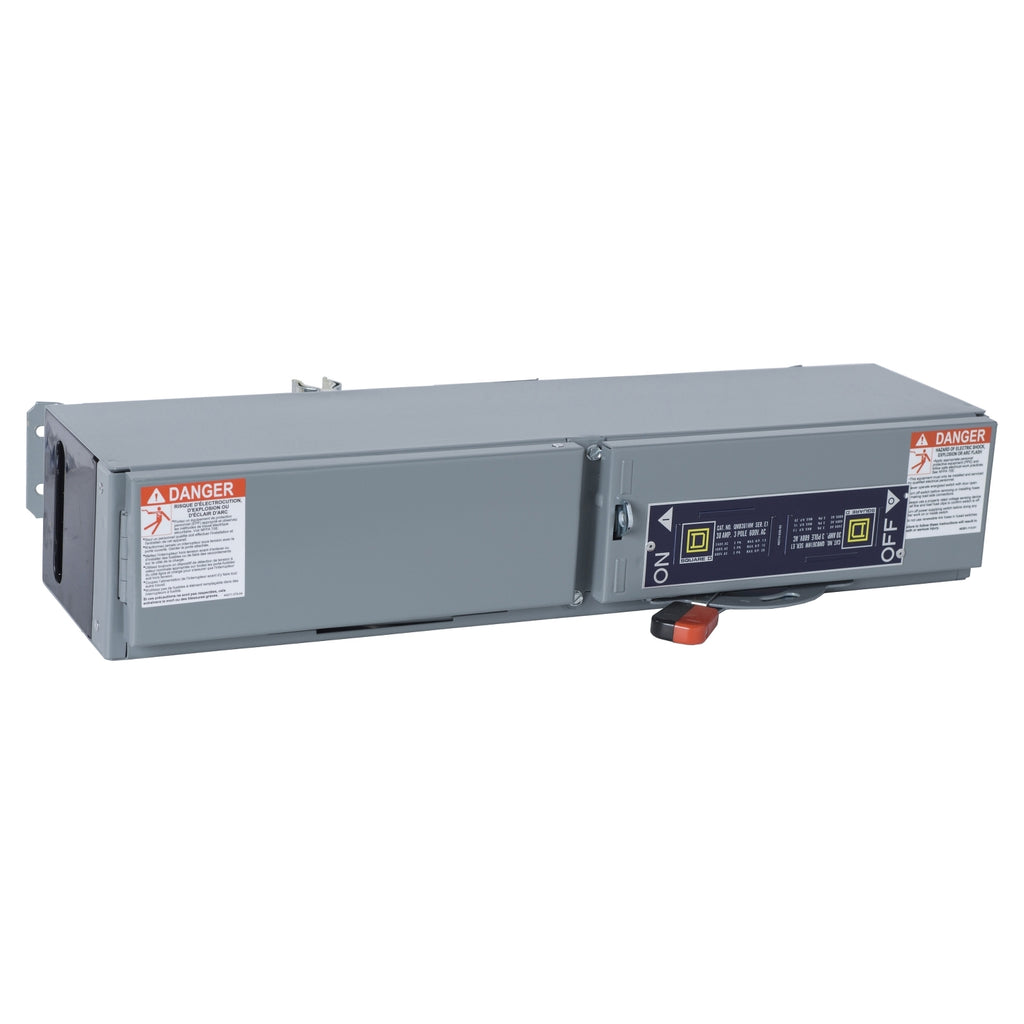

QMB322 is a Square D fusible panelboard switch unit rated for 60 amperes at 240 volts with 3 poles and panel mount configuration. This QMB series switch provides overcurrent and short circuit protection, serving as a disconnect between load and source with circuit open/close capability. The unit accepts Class H or K fuses, features mechanical aluminum lugs as standard, and is housed in a NEMA 1 enclosure with dimensions of 4.5 inches in height. Key Specifications
- Amperage: 60A
- Voltage: 240VAC
- Poles: 3
- Series: QMB
- Mounting Type: Panel Mount
- Enclosure Rating: NEMA 1
- Short Circuit Rating: 200 kA
- Fuse Type: Class H or K compatible
- Terminal Type: Mechanical Lugs (Aluminum standard)
- Compliance: UL and CSA certified
Specifications
- Part Number: QMB322
- Manufacturer : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series D2
- Type : QMB
- Voltage : 240
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HHED
Product Data
- Weight : 30
