Product Info
- Manufacturer:Square D
- Sub-Category:Panel Mount
Description
QMB223-TD

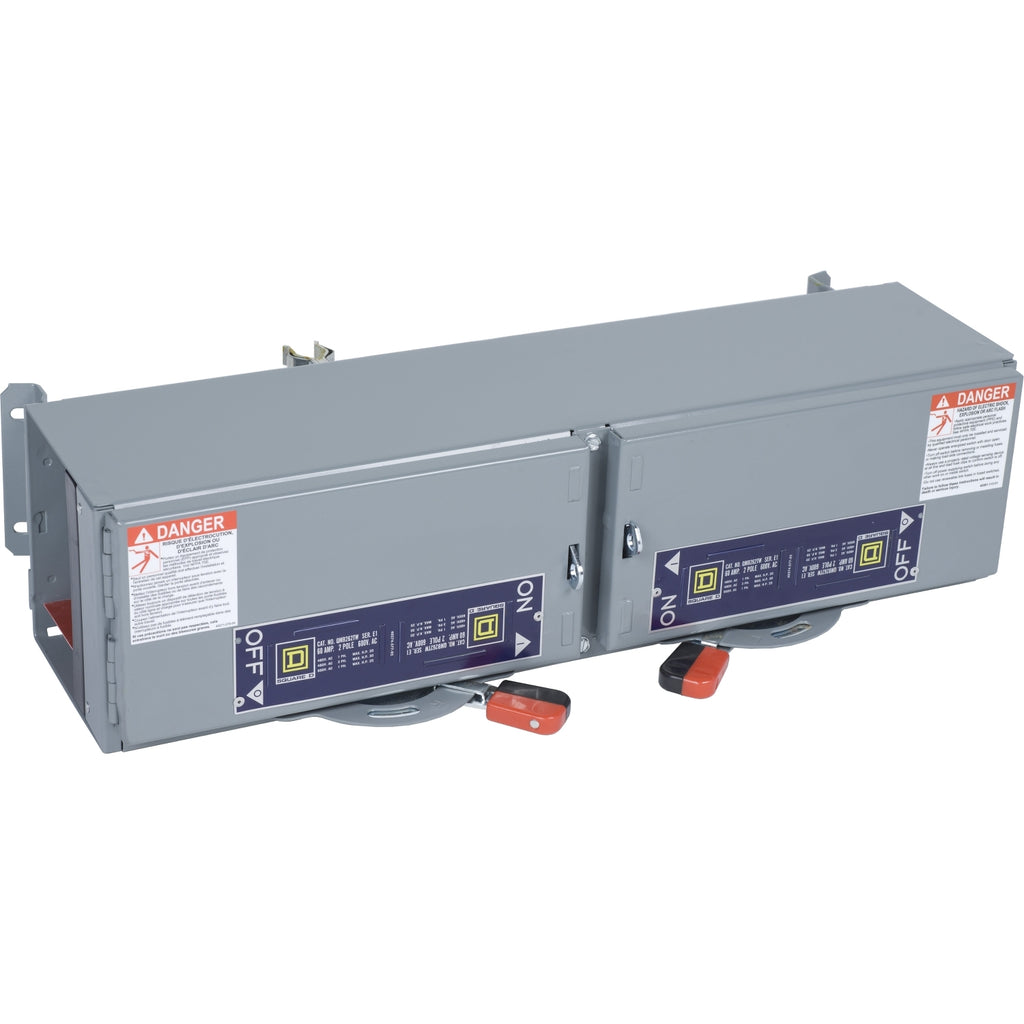

QMB223-TD is a Square D QMB Series D2 fusible panel mount switch designed for reliable circuit protection in commercial and industrial applications. This 2-pole, 100A switch is rated for 240V AC and features a NEMA 1 enclosure for indoor use. The plug-in design simplifies installation and maintenance, making it ideal for panelboard installations requiring quick servicing and dependable power management. The QMB223-TD is built on the rugged QMB frame and is compatible with Class RK1, RK5, and J fuses, providing robust circuit protection. Its fusible twin-unit design ensures safe and efficient operation, while the panel mount configuration supports secure installation in a variety of electrical panels.
- Part Number: QMB223-TD
- Manufacturer: Square D
- Series: QMB Series D2
- Amperage Rating: 100A
- Voltage Rating: 240V AC
- Pole Configuration: 2-pole
- Mounting Type: Panel Mount
- Switch Type: Fusible Twin Unit
- Fuse Compatibility: Class RK1, RK5, J
- Enclosure Rating: NEMA 1
- Interrupt Rating: 200kA @ 240V
- Application: Panelboard, Service Equipment
Specifications
- Part Number: QMB223-TD
- Manufacturer : Square D
- Category : Switch
- Item Subcategory : Panel Mount
- Family : QMB Series E1-E2
- Type : QMB
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R,H,K,J,T
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HED
Product Data
- Weight : 30
