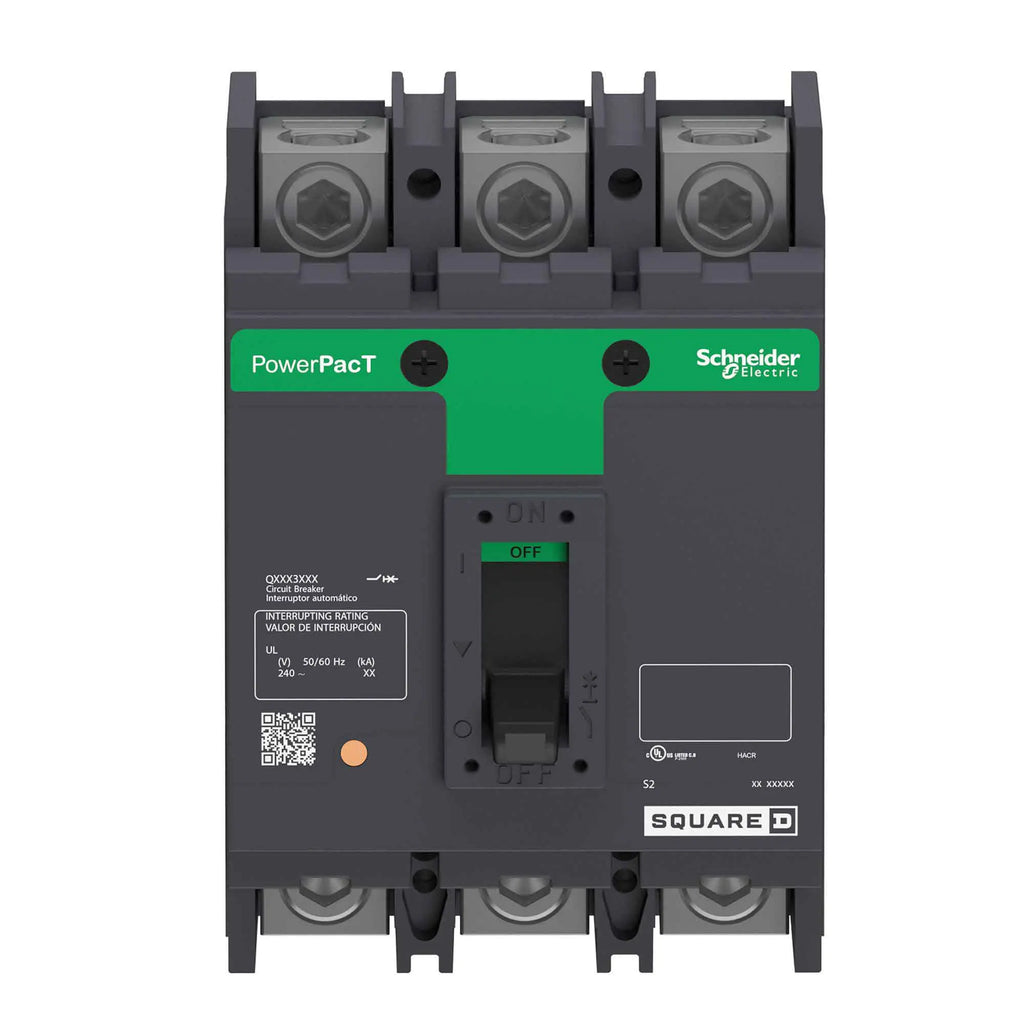

QJL32175 - Schneider Electric 175A 3 Pole 240VAC PowerPact QJL Frame Circuit Breaker Thermal Magnetic 100kA Interrupt Rating

QJL32175

QJL32175 is a Schneider Electric PowerPact QJL frame molded case circuit breaker rated for 175 amps, 3 poles, and 240 volts AC with a 100kA interrupting rating.

This thermal magnetic circuit breaker features feed-thru connections, line and load side lug terminals, and is designed for use in commercial and industrial electrical distribution systems. It provides reliable overcurrent protection with long time and instantaneous trip functions. The breaker is UL 489, CSA, and IEC certified, suitable for panel board mounting with additional hardware, and part of the PowerPact Q series.

Key Specifications
• Amperage: 175A
• Voltage: 240VAC
• Poles: 3
• Frame Type: QJL (PowerPact Q)
• Interrupt Rating: 100kA at 240V
• Trip Unit: Thermal Magnetic
• Connection Type: Feed-Thru with line and load lug terminals
• Certifications: UL 489, CSA, IEC
• Mounting: Panel board mount (additional hardware required)
• Phase: 3
• Brand: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJL32175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QJL
• Voltage : 240
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.74
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
