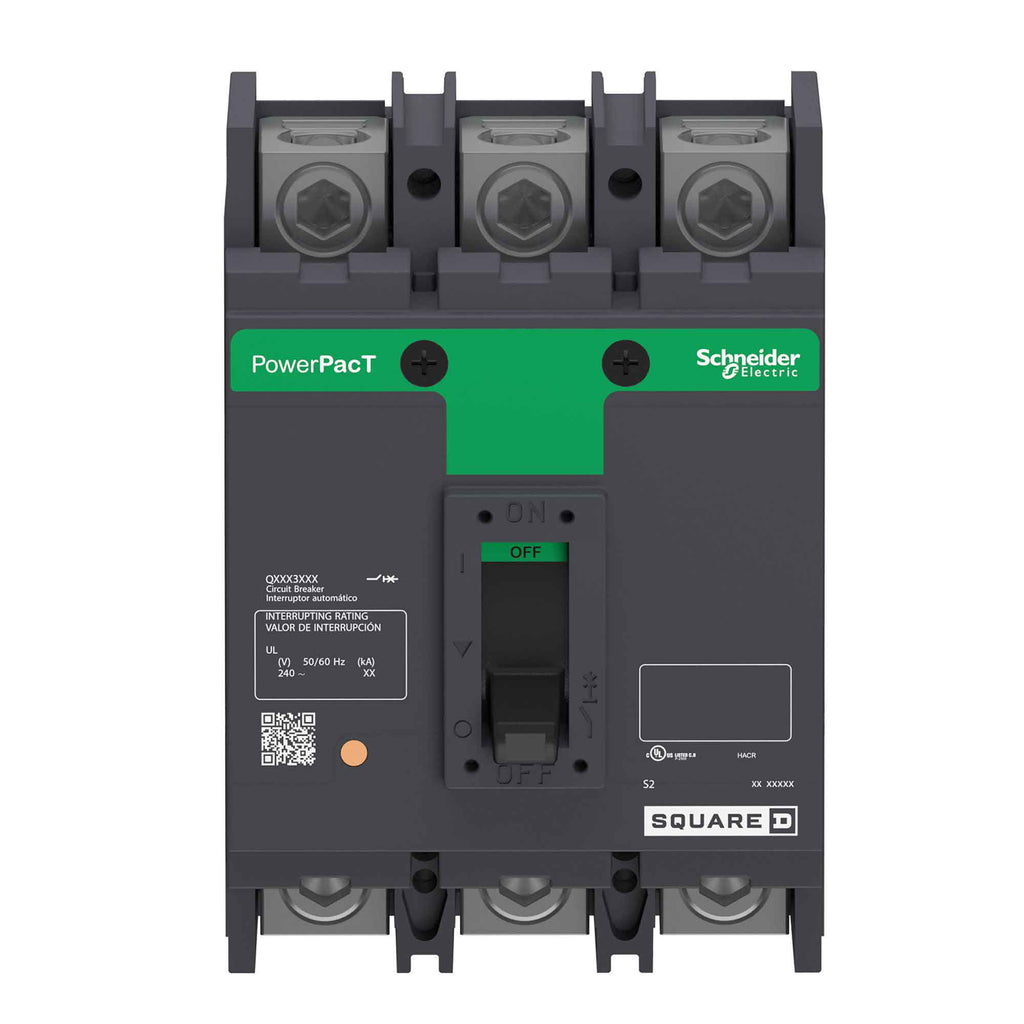

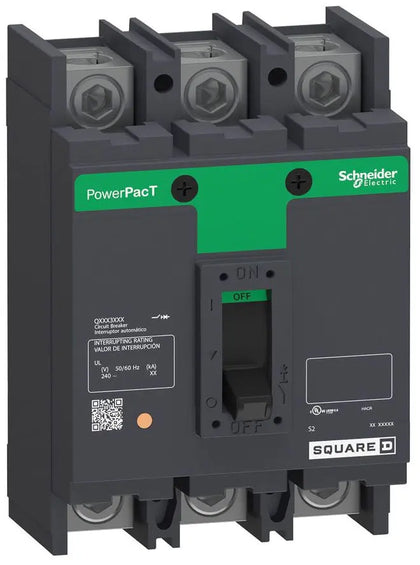

QJL32150 - Square D PowerPact QJL 150A 240V 3P Molded Case Circuit Breaker, 100kA Interrupt, Thermal Magnetic Trip, Feed-Thru, UL Listed

QJL32150

QJL32150 is a Square D PowerPact QJL series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 3-pole, 150 amp breaker features a thermal magnetic trip unit, 240V AC voltage rating, and an impressive 100kA interrupting capacity at 240V. It is UL listed, offers feed-thru connection, and is built for durability in demanding environments.

Key Specifications
• Part Number: QJL32150
• Manufacturer: Square D (Schneider Electric)
• Amperage: 150A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 100kA at 240V
• Series/Frame: PowerPact QJL
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Connection: Feed-Thru
• Certifications: UL 489 Listed
• Dimensions: 6.47" H x 4.5" W x 3.93" D
• Weight: 5.99 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJL32150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QJL
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901982661
• GTIN : 00785901982661
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.74
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
