Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QJH23B090

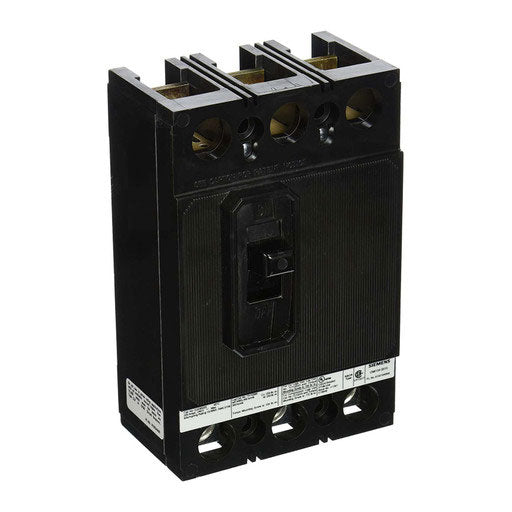

QJH23B090 is a Siemens 3 pole, 90 amp, 240 volt bolt-on circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.This Siemens QJH23B090 circuit breaker features a thermal magnetic trip unit, a 22,000 amp interrupting capacity at 240 volts, and belongs to the QJ Frame family. It is engineered for panelboards and switchboards requiring robust protection with compliance to RoHS environmental standards. The breaker supports a standard operating temperature of 40°C and includes load side lug terminals for secure connections.
- Amperage: 90 Amps
- Voltage Rating: 240 Volts AC
- Poles: 3
- Interrupting Capacity: 22kA at 240V
- Mounting Type: Bolt-On
- Frame/Series: QJ Frame, Type QJH2
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Operating Temperature: Standard 40°C
- Material Compliance: RoHS Compliant
- Certifications: UL Listed
Specifications
- Part Number: QJH23B090
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QJ Frame
- Type : QJH2
- Voltage : 240
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643201187
- GTIN : 00783643201187
- Country of Origin : Mexico
- Weight : 4
