2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QJH23B080

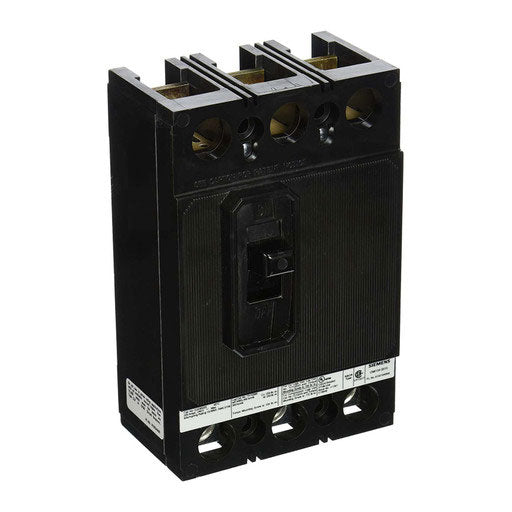

QJH23B080 is a Siemens 80 Amp, 3-pole bolt-on molded case circuit breaker designed for reliable electrical protection.This Siemens QJH23B080 circuit breaker features a QJ frame type with a thermal magnetic trip unit, rated for 80 amps and 240 volts AC. It offers a high interrupting capacity of 22,000 amps at 240 volts, suitable for commercial and industrial applications. The breaker includes non-interchangeable long-time and instantaneous trip functions and load side lug terminals for flexible installation.
- Key Specifications
- Amperage: 80A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 22kA at 240V
- Frame Type: QJ
- Trip Unit: Thermal Magnetic
- Series: QJH
- Certifications: UL Listed
- UPC: 783643201170
- GTIN: 783643201170
Specifications
- Part Number: QJH23B080
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QJ Frame
- Type : QJH2
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643201170
- GTIN : 00783643201170
- Country of Origin : Mexico
- Weight : 4
