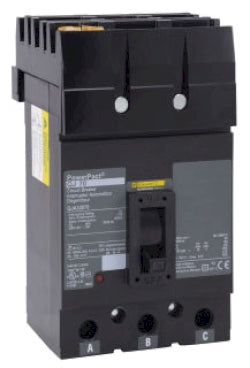

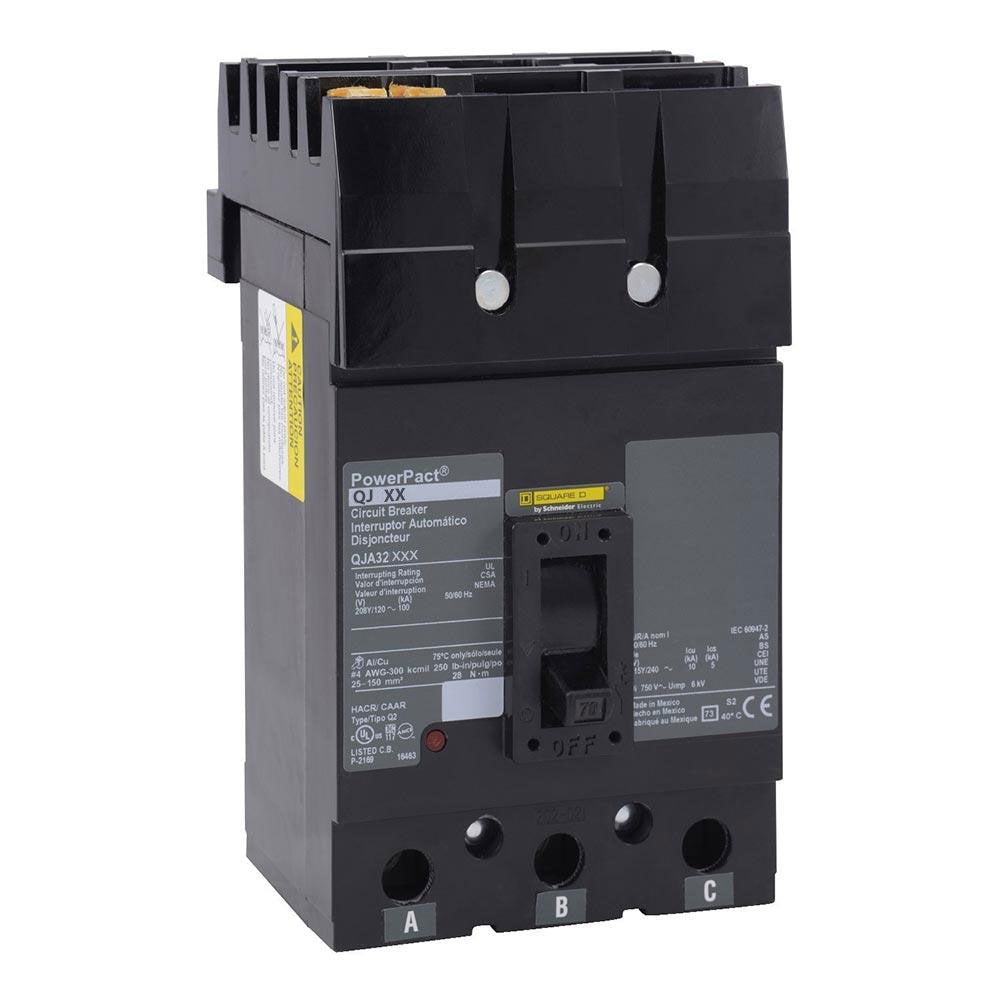

QJA32200 - Square D 200A 240VAC 3 Pole PowerPacT Q Molded Case Circuit Breaker I-Line Plug-In

QJA32200

QJA32200 is a 3 pole, 200 amp, 240VAC molded case circuit breaker from Square D's PowerPacT Q series designed for reliable power distribution protection.This thermal magnetic circuit breaker features an I-Line style plug-in connection with long time and instantaneous trip functions. It has a 100kA interrupting rating at 120/208/240VAC, suitable for industrial and commercial applications. The breaker is UL, CSA, NOM, and NEMA certified and supports load side lug terminal connections. It is mercury and PVC free, with a temperature rating from 40 to 70 °C.

• Amperage: 200A
• Voltage: 240VAC
• Poles: 3
• Series/Frame: PowerPacT Q, QJA frame
• Mounting Type: I-Line bracket plug-in
• Interrupt Rating: 100kAIC at 120/208/240VAC
• Trip Unit: Thermal magnetic with long time and instantaneous trip
• Certifications: UL, CSA, NOM, NEMA
• Terminal Connection: Load side lug
• Breaker Feature: Mercury free, PVC free
• Operating Temperature: 40 to 70 °C
• Dimensions (LxWxH): 3.93 x 4.5 x 6.47 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA32200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901705673
• GTIN : 00785901705673
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.72
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
