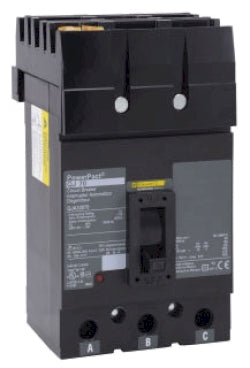

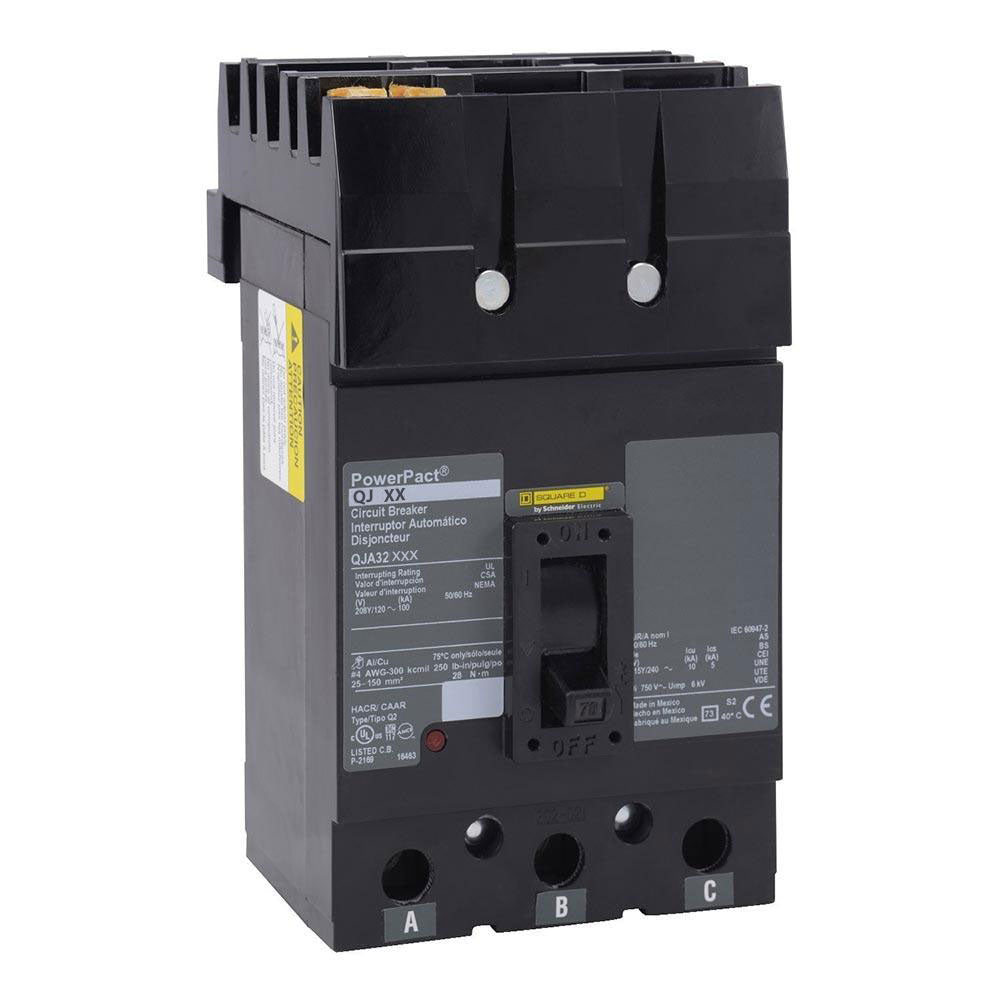

QJA32175 - Square D 175A 240V 3 Pole I-Line Thermal Magnetic Circuit Breaker 100kA Interrupting Rating

QJA32175

QJA32175 is a Square D 175 Amp, 3 Pole, 240 Volt AC circuit breaker designed for reliable power distribution protection.QJA32175 features a thermal magnetic trip unit and an I-Line plug-in mounting style, providing superior protection against overloads and short circuits with a 100kA interrupting capacity at 240VAC. This molded case circuit breaker is UL and CSA certified, suitable for industrial and commercial electrical panels requiring durable and high-performance circuit protection.

• Amperage: 175A
• Voltage: 240 VAC, 50/60 Hz
• Poles: 3
• Interrupting Capacity: 100kA at 240VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Plug-In
• Frame/Series: QJA
• Certifications: UL Listed, CSA Approved
• Phase Configuration: ABC
• Load Side Lug Terminals
• Non-Interchangeable 1.0 Trip
• Designed for Power Distribution Applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA32175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901603498
• GTIN : 00785901603498
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.02
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
