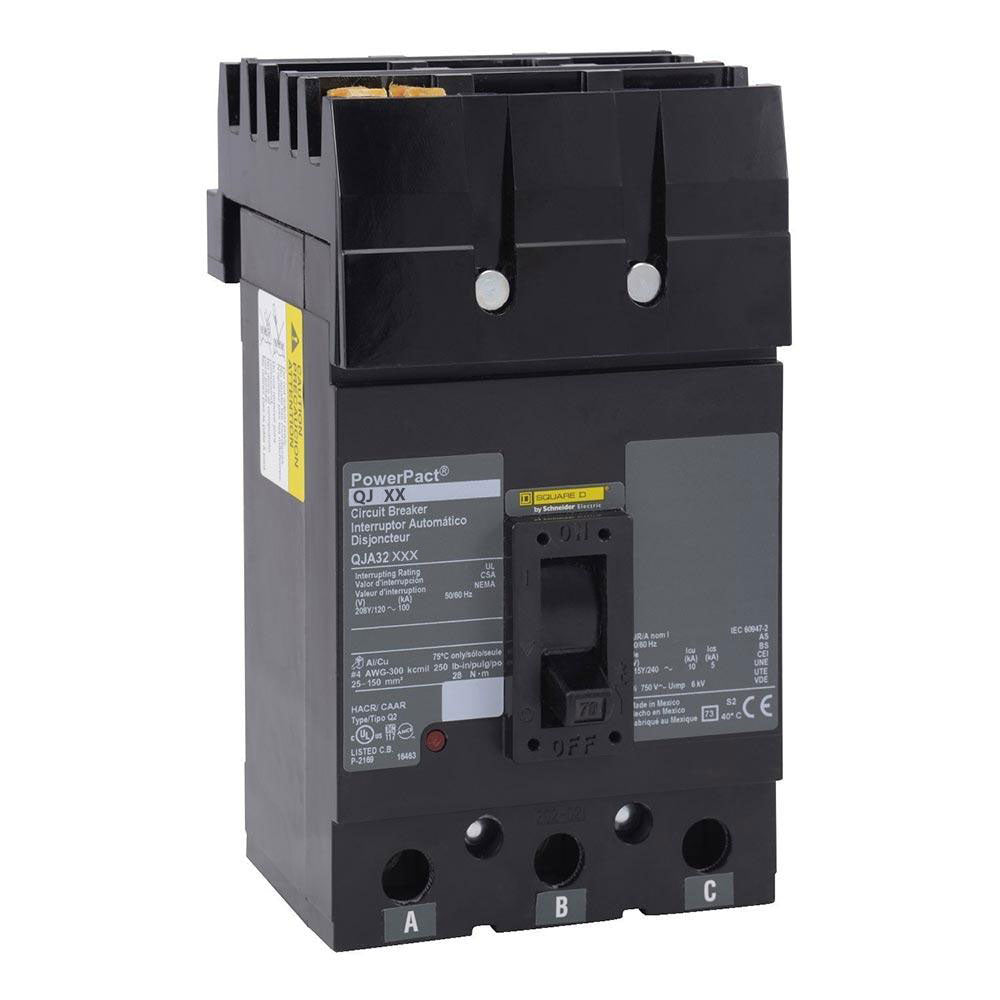

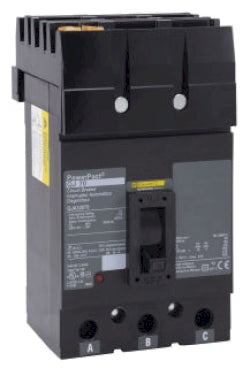

QJA32125 - Square D 125A 240V 3 Pole I-Line Molded Case Circuit Breaker 100kA Interrupt Rating

QJA32125

QJA32125 is a 3 pole, 125 amp, 240 volt I-Line molded case circuit breaker from Square D designed for reliable circuit protection.This thermal magnetic circuit breaker features a QJA frame with plug-in I-Line style mounting, 100kA interrupting rating at 240V, and includes long-time and instantaneous trip functions. It is UL, CSA, and IEC certified for safety and performance in commercial and industrial applications.

• Amperage: 125A
• Voltage: 240V AC
• Poles: 3
• Interrupt Rating: 100kA at 240V
• Mounting Type: I-Line plug-in
• Frame/Series: QJA
• Trip Unit: Thermal magnetic with LI (long-time and instantaneous) functions
• Approvals: UL, CSA, IEC
• Phase: 3
• Connection: Line and load lug terminals
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA32125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901877608
• GTIN : 00785901877608
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.647
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
