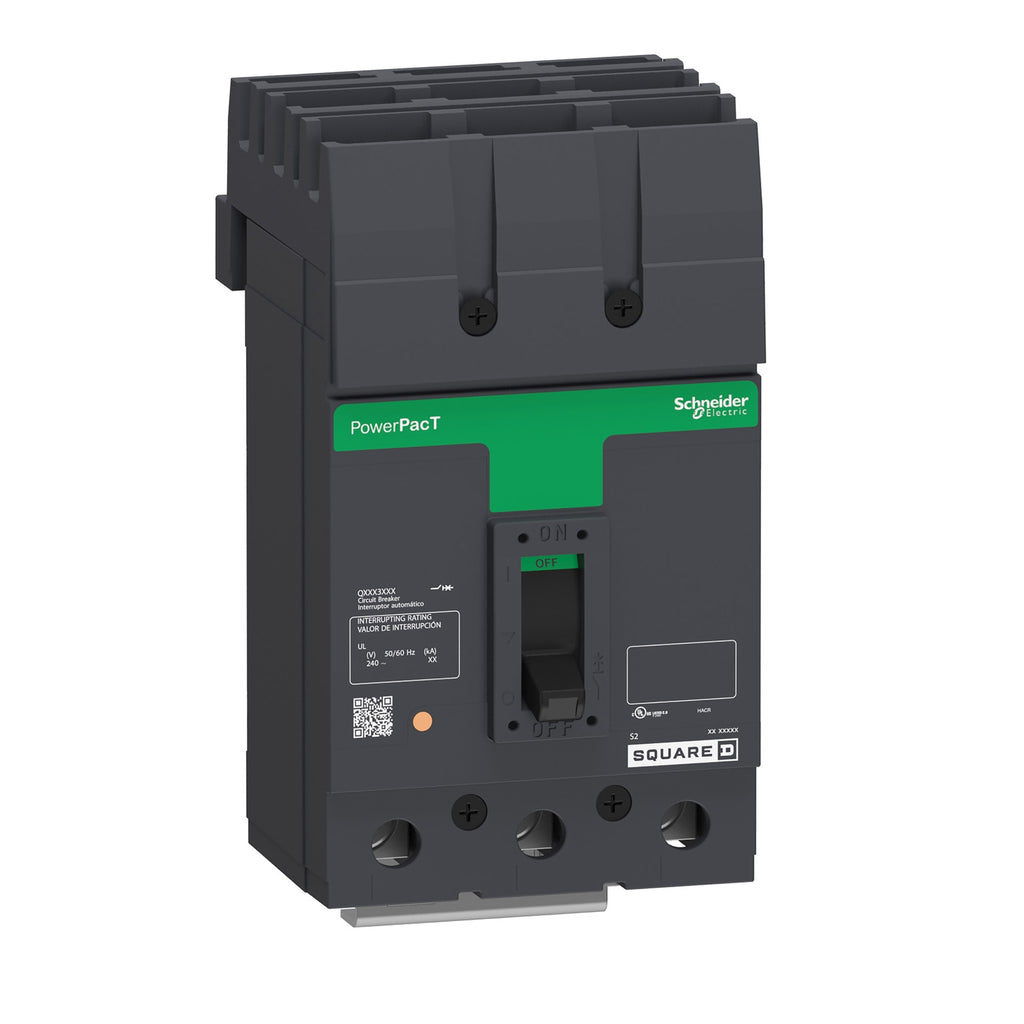

QJA32110 - Square D 110A 240VAC 3-Pole Thermal Magnetic Circuit Breaker PowerPact Q I-Line

QJA32110

QJA32110 is a Square D 3-pole thermal magnetic molded case circuit breaker rated for 110 amps and 240 volts AC, designed for reliable power distribution protection.This PowerPact Q series breaker features an I-Line style plug-in connection and is equipped with long time and instantaneous trip functions. It has a high interrupting rating of 100kAIC at 240V, suitable for demanding industrial and commercial applications. The breaker supports line and load side lug connections for AWG 4 to 300 kcmil aluminum or copper wire and meets UL, CSA, NEMA, NOM, and IEC certifications.

Key Specifications
• Amperage: 110A
• Voltage: 240VAC
• Poles: 3
• Series/Frame: PowerPact Q
• Mounting Type: I-Line Bracket
• Interrupt Rating: 100kAIC at 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: I-Line Style Plug-In
• Terminal Connection: Line and Load Side Lug
• Wire Gauge: AWG 4 to 300 kcmil Aluminum/Copper
• Certifications: UL, CSA, NEMA, NOM, IEC
• Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA32110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901641278
• GTIN : 00785902000000
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.647
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
