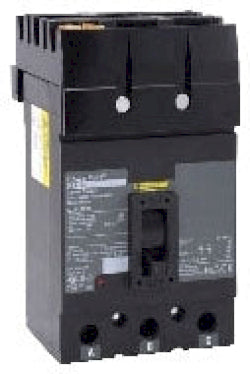

QJA32070 - Square D PowerPact Q 70A 3 Pole 240V Molded Case Circuit Breaker

QJA32070

QJA32070 is a three pole molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This Square D PowerPact Q series breaker features a 70A current rating and is rated for 240V operation, making it suitable for a wide range of applications requiring robust circuit protection. The QJA32070 breaker is part of the PowerPact Q family and is engineered for use in I-Line busway systems. It utilizes a thermal magnetic trip unit for dependable overcurrent protection and is built to withstand high interrupting capacities. The breaker is designed for easy installation and secure mounting in compatible panels.

• Part Number: QJA32070
• Manufacturer: Square D
• Series: PowerPact Q
• Mounting Type: I-Line
• Poles: 3 Pole
• Amperage: 70 Amps
• Voltage: 240V
• Interrupt Rating: 100kA at 240V
• Frame: Q
• Trip Unit: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA32070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901703020
• GTIN : 00785901703020
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.647
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
