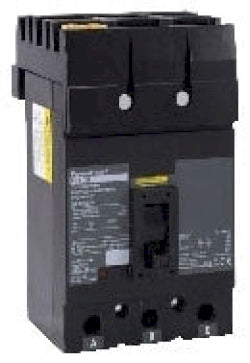

QJA221501 - Square D 150 Amp 240VAC 2 Pole Molded Case Circuit Breaker I-Line PowerPact Q Frame

QJA221501

QJA221501 is a 2 Pole, 150 Amp molded case circuit breaker from Square D designed for 240VAC applications with I-Line plug-in mounting.This thermal magnetic circuit breaker features a PowerPact Q frame with a 100kA interrupting rating at 240VAC. It includes long-time and instantaneous trip functions (LI trip unit) and is UL, CSA, NEMA, and NOM certified. The breaker uses load side lug terminal connections and is rated for operation in temperatures from 40 to 70 °C.

• Manufacturer: Square D
• Part Number: QJA221501
• Amperage: 150 A
• Voltage: 240 VAC
• Poles: 2
• Frame/Series: PowerPact Q (QJA)
• Mounting Type: I-Line plug-in
• Interrupt Rating: 100 kAIC at 240 VAC
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) trip
• Certifications: UL, CSA, NEMA, NOM
• Terminal Connection: Load side lug
• Operating Temperature: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJA221501
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QJA
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901708834
• GTIN : 00785901708834
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.663
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
