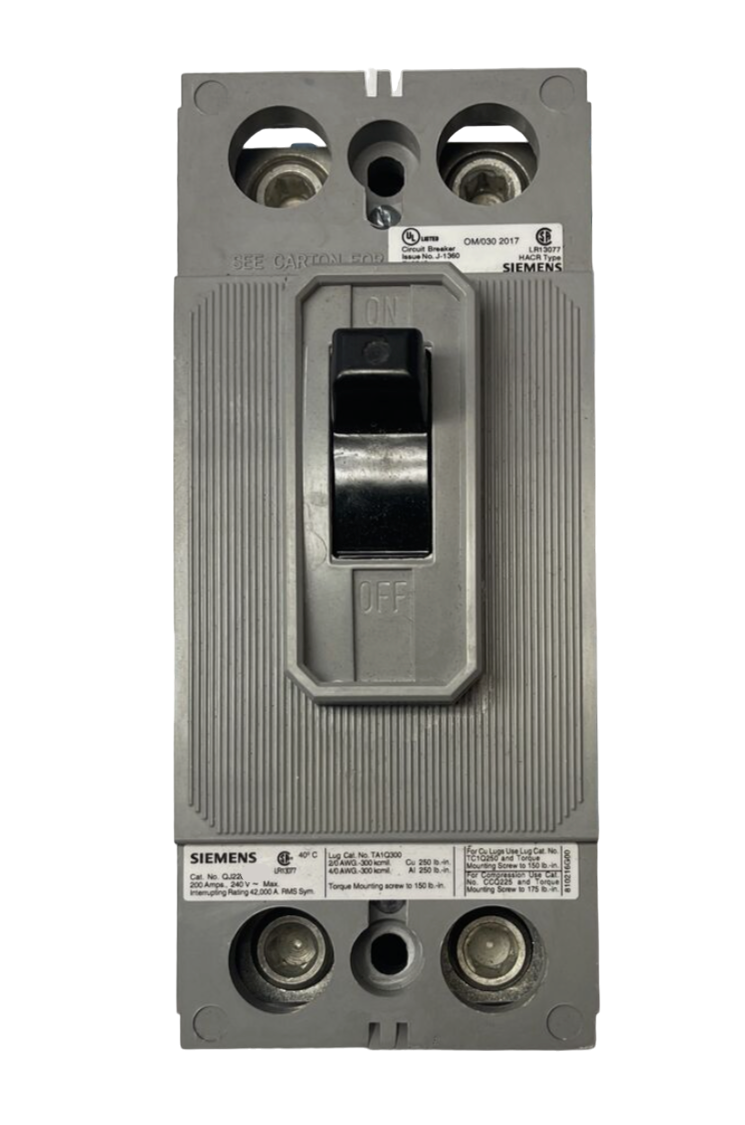

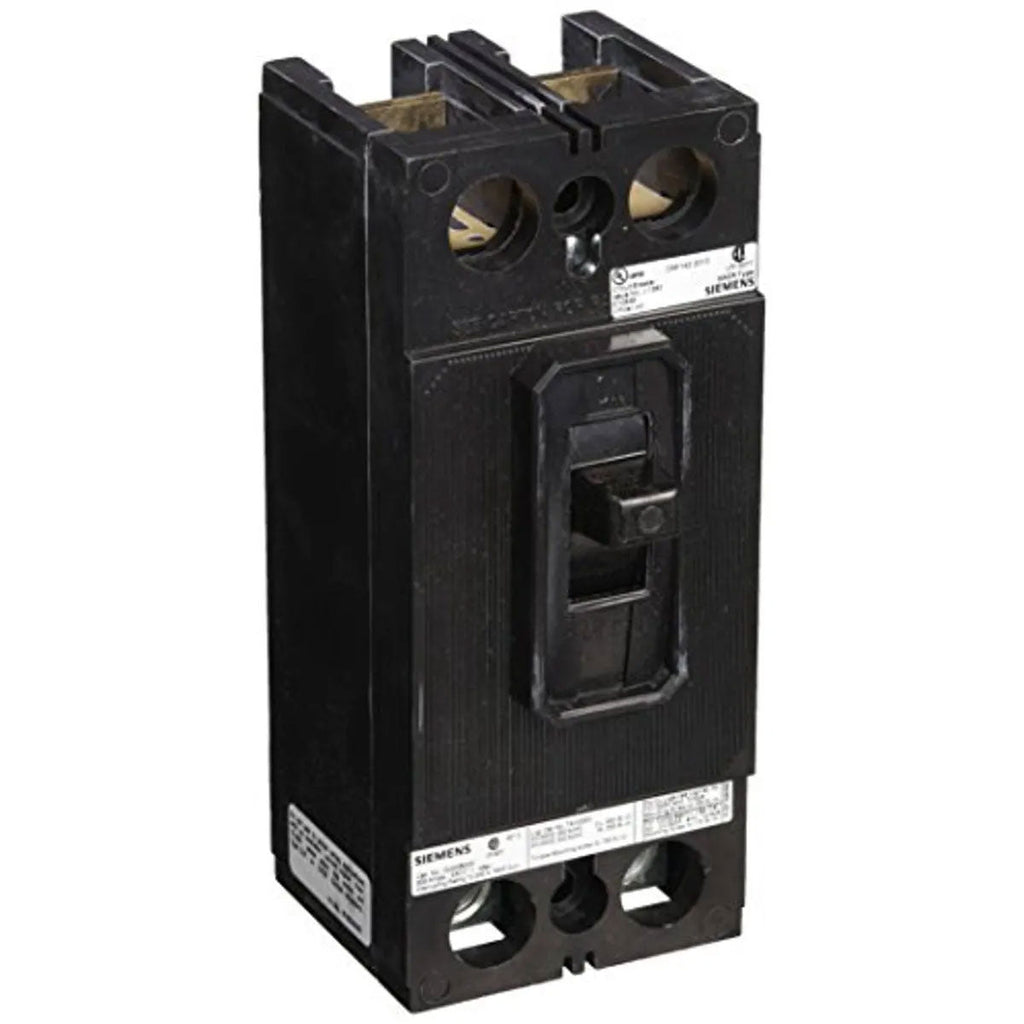

QJ22B125H - Siemens QJ2 Molded Case Circuit Breaker 240VAC 125A 2-Pole 42kA

QJ22B125H

QJ22B125H is a Siemens Type QJ2 molded case circuit breaker designed for low voltage power distribution applications requiring reliable thermal magnetic protection. This 2-pole breaker is rated for 240 VAC at 60 Hz with a 125 ampere continuous current rating at 40 degrees Celsius, delivering an interrupting capacity of 42,000 amperes at 240 VAC per UL standards. The thermal magnetic trip mechanism provides coordinated protection against overloads and short circuits, while the bolt-on lug load terminal connection ensures secure installation in panelboards and distribution equipment.

• Manufacturer: Siemens
• Part Number: QJ22B125H
• Type: QJ2 Molded Case Circuit Breaker
• Poles: 2
• Amperage Rating: 125 A at 40 degrees C
• Voltage Rating: 240 VAC, 60 Hz
• Trip Unit: Thermal Magnetic
• Interrupting Rating: 42,000 A at 240 VAC (UL)
• Connection Type: Bolt-on Lug Load Terminal
• Dimensions: 3 inches H x 7 inches W x 2.53 inches D
• Weight: 3.25 lbs
• UPC: 783643193925

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QJ22B125H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QJ Frame
• Type : QJ2H
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 42kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643193925
• GTIN : 00783643193925
• Country of Origin : Mexico
• Weight : 3
• Certification : Ul Listed Csa Certified
• Wire Size : 4 Awg To 300 Kcmil (Aluminum) 6 Awg To 300 Kcmil (Copper)
