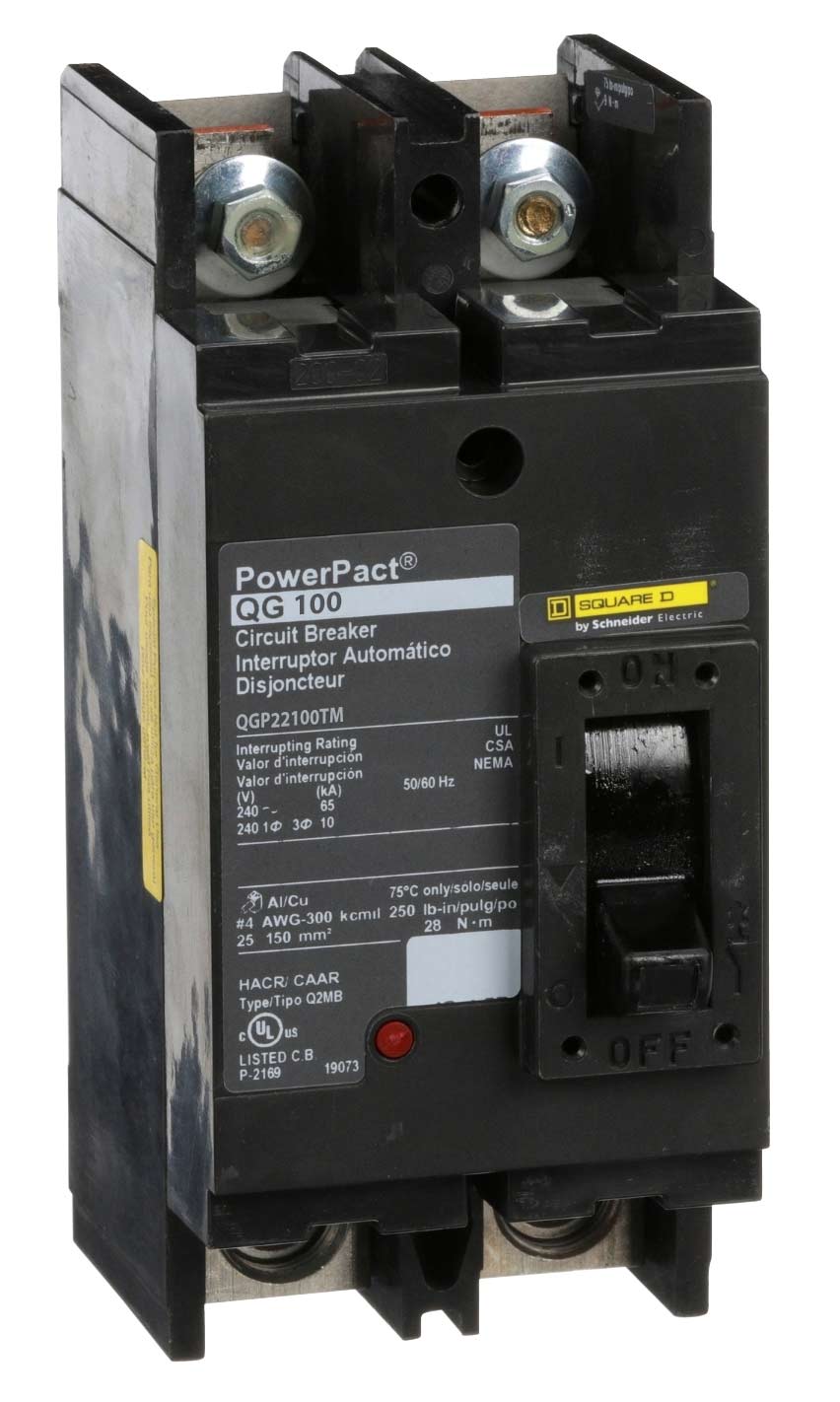

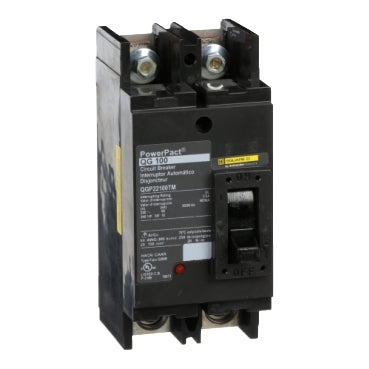

QGP22100TM - Square D 100 Amp 240 Volt 2 Pole Thermal Magnetic Circuit Breaker

QGP22100TM

QGP22100TM is a Square D 2 pole, 100 amp, 240 volt thermal magnetic molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a bolt-on mounting type with long-time and instantaneous trip functions, providing high interrupting capacity of 65kA at 240VAC. It is UL, CSA, and IEC certified, suitable for use in various industrial and commercial applications. The breaker supports load side lug terminal connections and fits the QGP series frame.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 240 Volts AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 65kA at 240VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Certifications: UL, CSA, IEC
• Frame Type: QGP
• Terminal Connection: Load side lug
• Dimensions: 6.47 in H x 4.5 in W x 3.93 in D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QGP22100TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QGP
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901546085
• GTIN : 00785901546085
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.241
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
