QGP22090TM - Square D 90A 240VAC 2 Pole Thermal Magnetic Circuit Breaker QGP Frame

QGP22090TM

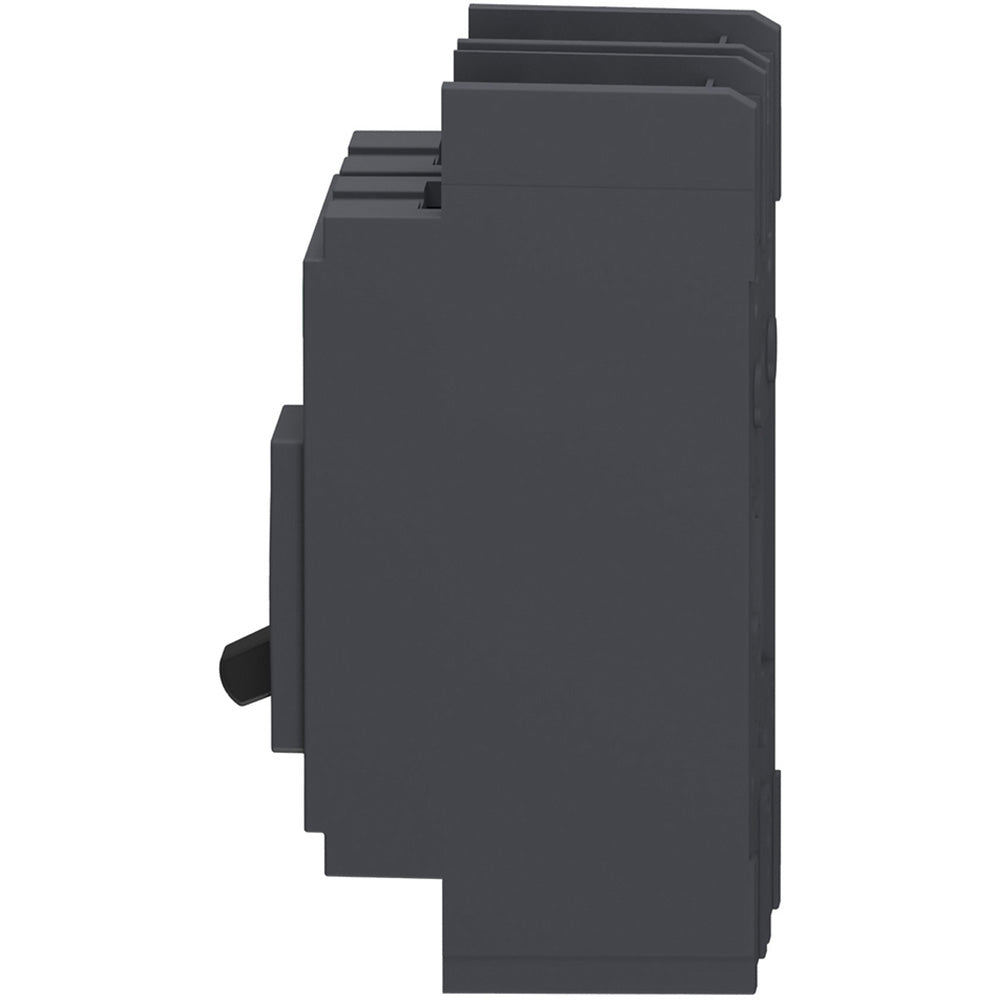

QGP22090TM is a Square D 2 Pole thermal magnetic circuit breaker rated for 90 Amps and 240VAC voltage. It features a QGP frame and unit mounting type.This molded case circuit breaker provides reliable overcurrent protection with a 65kA interrupting rating at 240V. It includes long time and instantaneous trip functions and is designed for bolt-on connection with line and load lugs. Certified to UL, CSA, NEMA, NOM, and RoHS standards, it is suitable for use with MPL Lever Bypass Meter-Pak metering equipment.

• Manufacturer: Square D
• Series/Frame: QGP
• Amperage: 90A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Unit (Bolt-On)
• Interrupting Rating: 65kAIC @ 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Lug
• Certifications: UL, CSA, NEMA, NOM, RoHS
• Temperature Rating: 104 to 158°F (40 to 70°C)
• Compatible with MPL Lever Bypass Meter-Pak

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGP22090TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QGP
• Voltage : 240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590172704
• GTIN : 00785901727040
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.24
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
