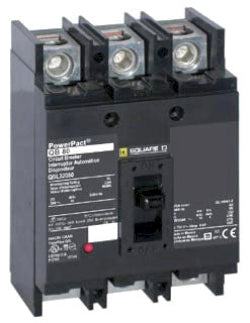

QGL32250 - Square D PowerPact QGL 250A 3P 240V Molded Case Circuit Breaker, 65kAIC, Unit Mount, Thermal Magnetic Trip, UL/CSA/CE

QGL32250

QGL32250 is a Square D PowerPact QGL series molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 3-pole, 250A, 240V AC circuit breaker features a thermal magnetic trip unit, unit mounting, and a high interrupting capacity of 65kA at 240V. It is approved to UL, CSA, and CE standards for safety and performance.

Key Specifications
• Part Number: QGL32250
• Manufacturer: Square D
• Series/Frame: PowerPact QGL
• Amperage: 250A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 65kA at 240V AC (UL/CSA/NOM), 10kA at 240/415V AC (IEC)
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Connection: Feed-Thru, Line and Load Side Lug
• Certifications: UL 489, CSA, CE
• Dimensions: 4.5" W x 3.93" D x 6.47" H
• Weight: 2.13 kg (approx.)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL32250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip Functions
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901548560
• GTIN : 00785901548560
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.729
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4, 300KCmil Aluminum/Copper
