QGL32225 - Square D 225 Amp 240VAC 3 Pole Thermal Magnetic Circuit Breaker Q Frame

QGL32225

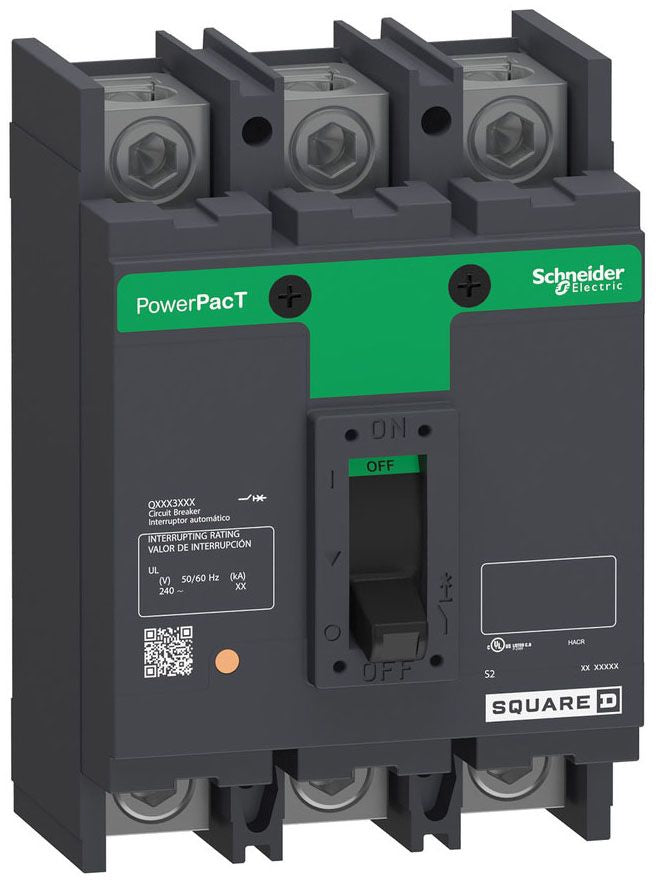

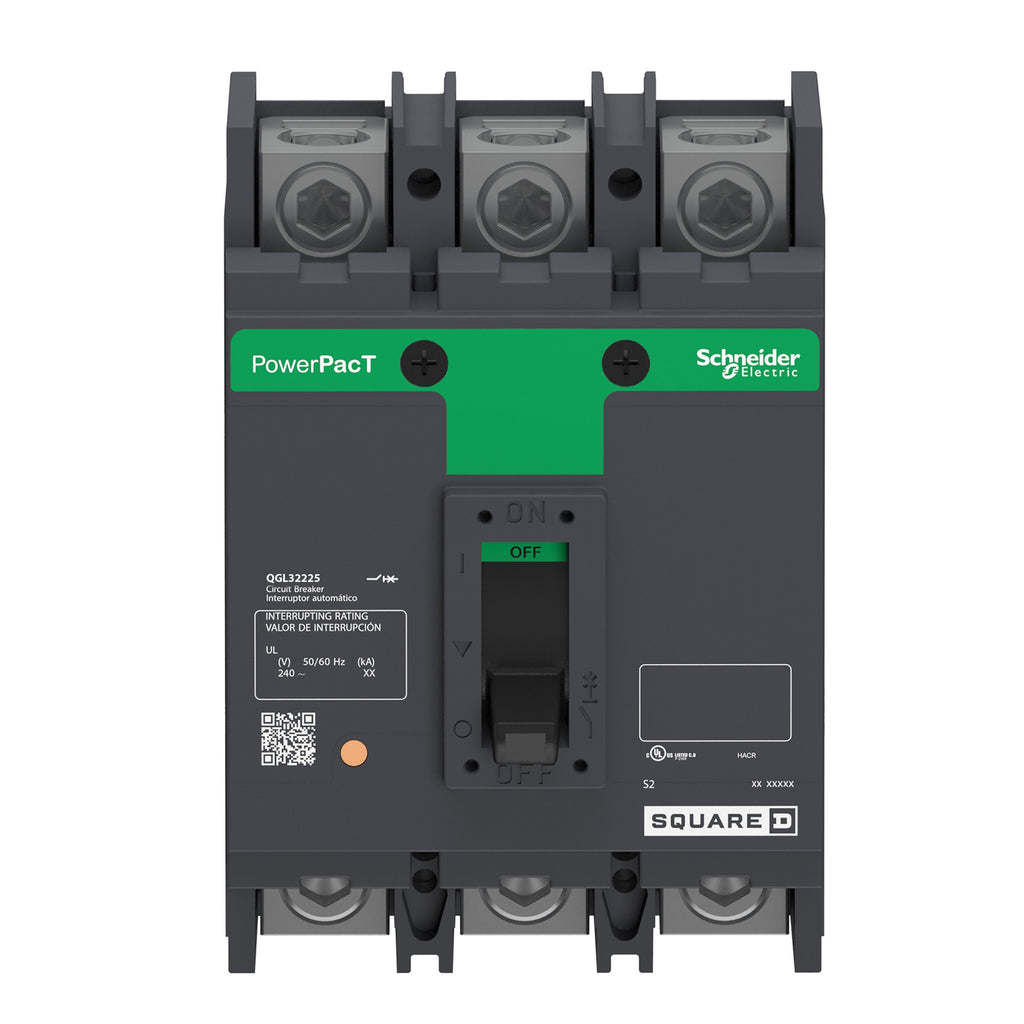

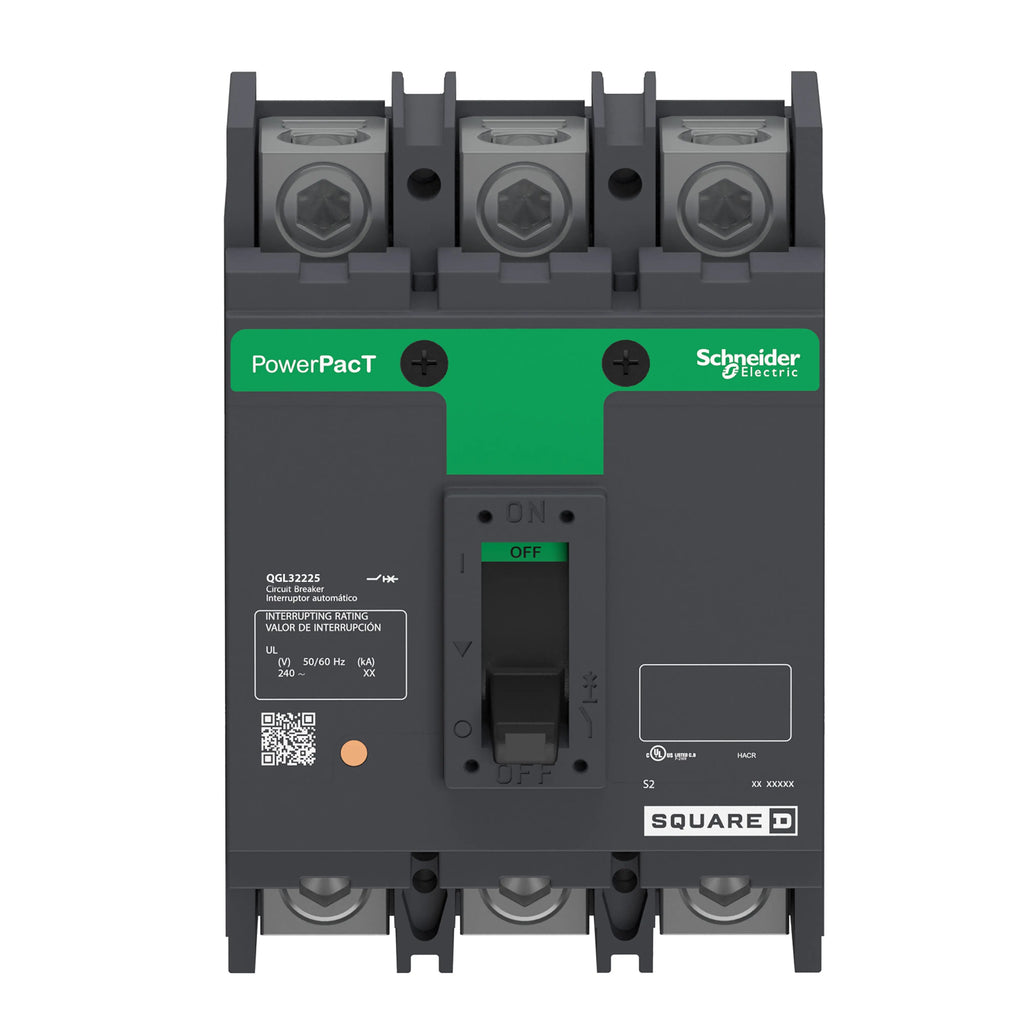

QGL32225 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 225 amps and 240VAC voltage. This circuit breaker features a Q frame type with a 65kA interrupting rating at 240VAC. It is designed for unit mounting with line and load side lug connections supporting wire gauges from 4 to 300 AWG aluminum or copper. The breaker provides long time and instantaneous trip protection and is UL, CSA, and IEC certified for overcurrent protection and switching on AC systems.

Key Specifications
• Amperage: 225 Amps
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 65kA @ 240VAC
• Frame Type: Q
• Trip Unit: Thermal Magnetic
• Terminal Connection: Line and Load Side Lug
• Wire Gauge Range: 4 to 300 AWG Aluminum/Copper
• Approvals: UL, CSA, IEC
• Functions: Long Time and Instantaneous Trip
• Operating Temperature: -13 to 158°F (-25 to 70°C)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QGL32225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901603559
• GTIN : 00785901603559
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.771
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : 4 to 300 AWG/KCmil Aluminum/Copper
